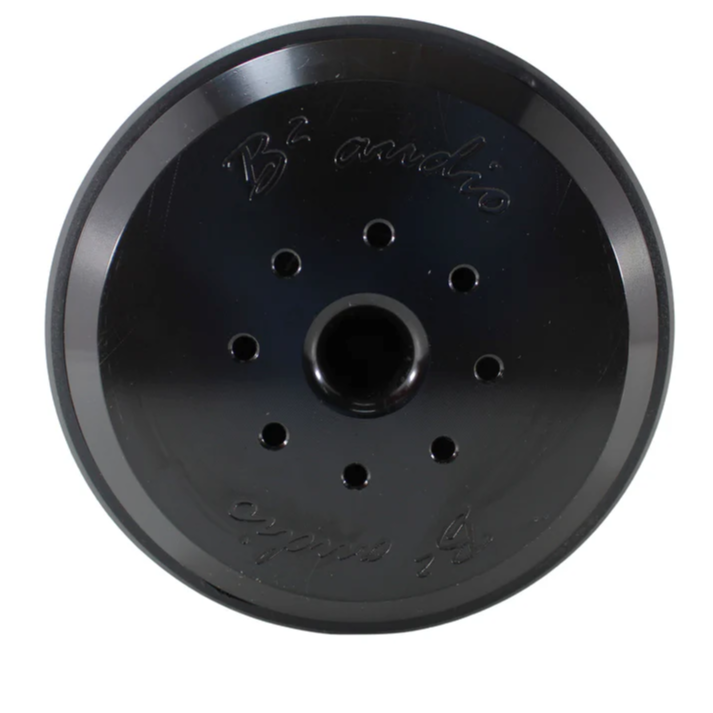

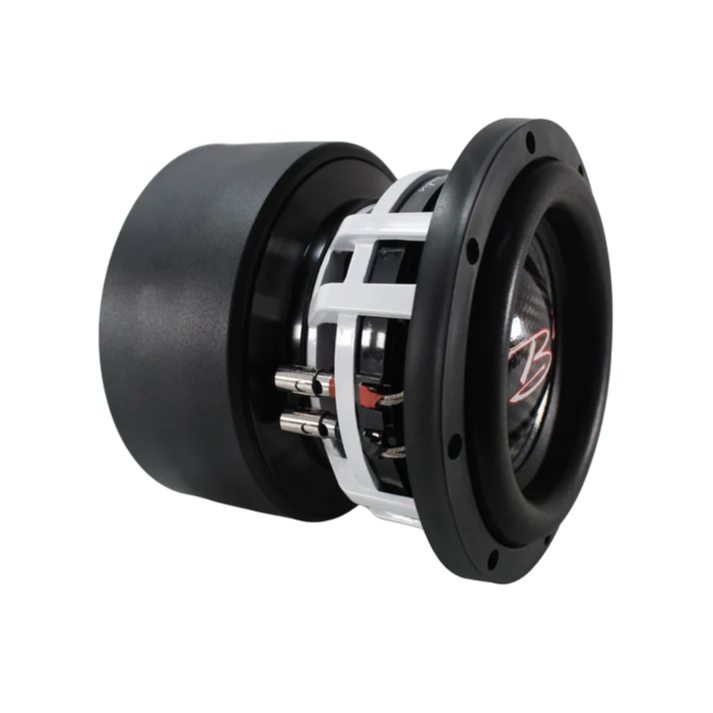

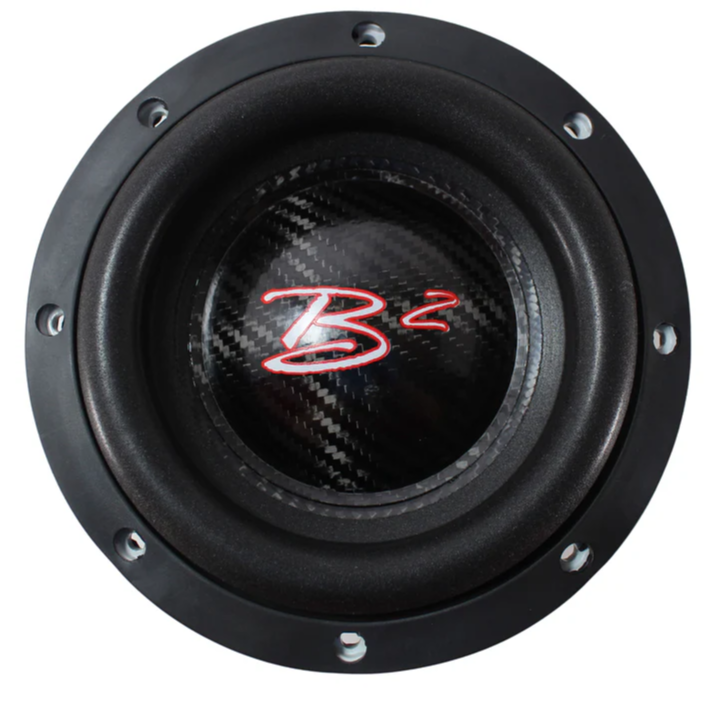

B² RAMPAGE6 D2
2x1Ω
2x2Ω
Subwoofer
| Nominal diameter | 6.5″ / 180 mm |
| Resonance | 45.9 Hz |
| Q factor | 0.56 |
| Sensitivity | 78.8 dB |
| Linear excursion | ± 15 mm |
| Program Power | 2000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 78.8dB
- Frequency response 10 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 45.9Hz
- Mechanical quality factor QMS 5.19
- Electrical quality factor QES 0.63
- Total quality factor QTS 0.56
Large signal parameters
- Maximum linear excursion (one way) xmax 15mm
- Air volume displaced at xmax VD 201cm³
- Power handling P 1000W
- Program power Pmax 2000W
- Peak power Ppeak 2000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series) LE 1.34mH
- VC Diameter 50.8mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 13.5N/A
- Motor constant Bl/√RE 6.93N/√W
- Diameter 160mm
- Height 95mm
- Weight 7.65kg
- Material Ferrite
Diaphragm
- Effective diameter 131mm
- Effective area SD 134cm²
- Moving mass MMS 104g
- Moving mass (without air load) MMD 103g
- Material Carbonfiber
Suspensions
- Stiffness KMS 9.09N/mm
- Compliance CMS 110µm/N
- Equivalent volume to the compliance VAS 2.9L
- Mechanical resistance RMS 5.78N·s/m
- Surround material Tall U Shaped Foam
Dimensions
- Nominal diameter 6.5″
- 180mm
- Overall diameter 180mm
- Baffle cutout diameter 160mm
- Overall depth 161mm
- Flange thickness 7mm
- Mounting depth 154mm
- Volume occupied by the driver (estimated) 2.8L
- Net weight 10.0kg
