24 results
Brand
ATOHMAcoustic EleganceAudesAudio SystemAudioControlAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraB²CRUNCHCT SoundsCelestionCerwin VegaCiareCube AudioD.A.S. AudioDB DriveDayton AudioESXETONEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGAS Audio PowerGRSGoldwoodGround ZeroHELIXHertzHiFonicsJL AudioJensenKICKERKICXKartesianLaVoceLii AudioLowtherMATCHMD LabMONACORMTX AudioMUSWAYMicro-PrecisionMorelObertonP.AudioPHL audioPRV AudioPUNKTKILDEPeerlessPioneerPowerBassPrecision DevicesPrideRCFRENEGADERadianReckhornRockford FosgateSB AcousticsSB AudienceSEASSICASONYSUPRAVOXScan-SpeakSkar AudioTang BandTectonicVIBE AudioVISATONVOLTWVLWavecoraccutonaudisonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
B² RIOT15 D4 Subwoofer

B² RIOT15 D4

2 x 4 Ω
15″ Subwoofer
fS30 Hz
SD840 cm²
10 - 500 Hz
QTS0.76
xmax18 mm
SPL1W86.6 dB
Bl/√RE8.78
Pmax3000 W
B² RIOT15 D2 Subwoofer

B² RIOT15 D2

2 x 2 Ω
15″ Subwoofer
fS30 Hz
SD840 cm²
10 - 500 Hz
QTS0.72
xmax18 mm
SPL1W86.6 dB
Bl/√RE9.49
Pmax3000 W
B² RIOT12 D4 Subwoofer

B² RIOT12 D4

2 x 4 Ω
12″ Subwoofer
fS30.4 Hz
SD528 cm²
10 - 500 Hz
QTS0.63
xmax18 mm
SPL1W84.1 dB
Bl/√RE8.85
Pmax3000 W

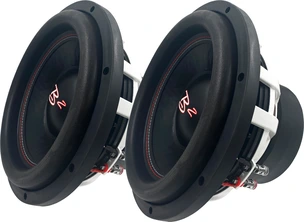

B² RIOT12 D2 Subwoofer

B² RIOT12 D2

2 x 2 Ω
12″ Subwoofer
fS29.9 Hz
SD528 cm²
10 - 500 Hz
QTS0.55
xmax18 mm
SPL1W84.4 dB
Bl/√RE9.64
Pmax3000 W
B² RIOT10 D4 Subwoofer

B² RIOT10 D4

2 x 4 Ω
10″ Subwoofer
fS30.9 Hz
SD329 cm²
10 - 500 Hz
QTS0.68
xmax18 mm
SPL1W80.6 dB
Bl/√RE7.87
Pmax3000 W
B² RIOT10 D2 Subwoofer

B² RIOT10 D2

2 x 2 Ω
10″ Subwoofer
fS28.3 Hz
SD329 cm²
10 - 500 Hz
QTS0.55
xmax18 mm
SPL1W80.8 dB
Bl/√RE8.57
Pmax3000 W
B² RAMPAGE RC2 Subwoofer

B² RAMPAGE RC2

4 Ω
2″ Subwoofer
fS96.5 Hz
SD15.2 cm²
80 - 6000 Hz
QTS1.10
xmax4 mm
SPL1W75 dB
Bl/√RE1.37
Pmax100 W
B² RAMPAGE8 D2 Subwoofer

B² RAMPAGE8 D2

2 x 2 Ω
8″ Subwoofer
fS37.5 Hz
SD202 cm²
QTS0.46
xmax20 mm
SPL1W80.7 dB
Bl/√RE8.82
Pmax2000 W
B² RAMPAGE8 D1 Subwoofer

B² RAMPAGE8 D1

2 x 1 Ω
8″ Subwoofer
fS39 Hz
SD195 cm²
QTS0.50
xmax20 mm
SPL1W81 dB
Bl/√RE7.78
Pmax2000 W
B² RAMPAGE6 D2 Subwoofer

B² RAMPAGE6 D2

2 x 2 Ω
6.5″ Subwoofer
fS45.9 Hz
SD134 cm²
10 - 500 Hz
QTS0.56
xmax15 mm
SPL1W78.8 dB
Bl/√RE6.93
Pmax2000 W
B² RAMPAGE6 D1 Subwoofer

B² RAMPAGE6 D1

2 x 1 Ω
6.5″ Subwoofer
fS42.9 Hz
SD134 cm²
10 - 500 Hz
QTS0.44
xmax15 mm
SPL1W78.9 dB
Bl/√RE8.2
Pmax2000 W
B² RAMPAGE18 ELITE D2 Subwoofer

B² RAMPAGE18 ELITE D2

2 x 2 Ω
18″ Subwoofer
fS26 Hz
SD1321 cm²
QTS0.34
xmax40 mm
SPL1W89.5 dB
Bl/√RE19.4
Pmax8000 W
B² RAMPAGE18 ELITE D1 Subwoofer

B² RAMPAGE18 ELITE D1

2 x 1 Ω
18″ Subwoofer
fS26.3 Hz
SD1223 cm²
QTS0.41
xmax40 mm
SPL1W88.6 dB
Bl/√RE17.6
Pmax8000 W
B² RAMPAGE15 ELITE D2 Subwoofer

B² RAMPAGE15 ELITE D2

2 x 2 Ω
15″ Subwoofer
fS27.2 Hz
SD742 cm²
QTS0.36
xmax40 mm
SPL1W85.4 dB
Bl/√RE17.7
Pmax8000 W
B² RAMPAGE15 ELITE D1 Subwoofer

B² RAMPAGE15 ELITE D1

2 x 1 Ω
15″ Subwoofer
fS27.5 Hz
SD670 cm²
QTS0.42
xmax40 mm
SPL1W84 dB
Bl/√RE16.3
Pmax12000 W
B² RAMPAGE12 D2 Subwoofer

B² RAMPAGE12 D2

2 x 2 Ω
12″ Subwoofer
fS33.8 Hz
SD487 cm²
QTS0.47
xmax40 mm
SPL1W82.5 dB
Bl/√RE16.6
Pmax8000 W
B² RAMPAGE12 D1 Subwoofer

B² RAMPAGE12 D1

2 x 1 Ω
12″ Subwoofer
fS34.6 Hz
SD478 cm²
QTS0.51
xmax40 mm
SPL1W82.2 dB
Bl/√RE15.8
Pmax8000 W
B² RAMPAGE10 D2 Subwoofer

B² RAMPAGE10 D2

2 x 2 Ω
10″ Subwoofer
fS38.8 Hz
SD316 cm²
10 - 500 Hz
QTS0.57
xmax30 mm
SPL1W81.6 dB
Bl/√RE10
Pmax7500 W
B² RAMPAGE10 D1 Subwoofer

B² RAMPAGE10 D1

2 x 1 Ω
10″ Subwoofer
fS39.6 Hz
SD316 cm²
10 - 500 Hz
QTS0.49
xmax30 mm
SPL1W81.8 dB
Bl/√RE11.3
Pmax7500 W
B² RAGE15 D2 Subwoofer

B² RAGE15 D2

2 x 2 Ω
15″ Subwoofer
fS26.2 Hz
SD777 cm²
10 - 500 Hz
QTS0.40
xmax20 mm
SPL1W86 dB
Bl/√RE14.2
Pmax6000 W
B² RAGE15 D1 Subwoofer

B² RAGE15 D1

2 x 1 Ω
15″ Subwoofer
fS26.3 Hz
SD769 cm²
10 - 500 Hz
QTS0.43
xmax20 mm
SPL1W86.1 dB
Bl/√RE12.9
Pmax6000 W
B² RAGE12 D2 Subwoofer

B² RAGE12 D2

2 x 2 Ω
12″ Subwoofer
fS26.9 Hz
SD465 cm²
10 - 500 Hz
QTS0.34
xmax20 mm
SPL1W83 dB
Bl/√RE14.7
Pmax6000 W
B² RAGE12 D1 Subwoofer

B² RAGE12 D1

2 x 1 Ω
12″ Subwoofer
fS29.9 Hz
SD465 cm²
10 - 500 Hz
QTS0.38
xmax20 mm
SPL1W83.6 dB
Bl/√RE13.6
Pmax6000 W
B² RAGE12PWR Subwoofer

B² RAGE12PWR

8 Ω
12″ Subwoofer
fS44 Hz
SD552 cm²
40 - 4000 Hz
QTS0.35
xmax7.3 mm
SPL1W93.5 dB
Bl/√RE7.84
Pmax1000 W
