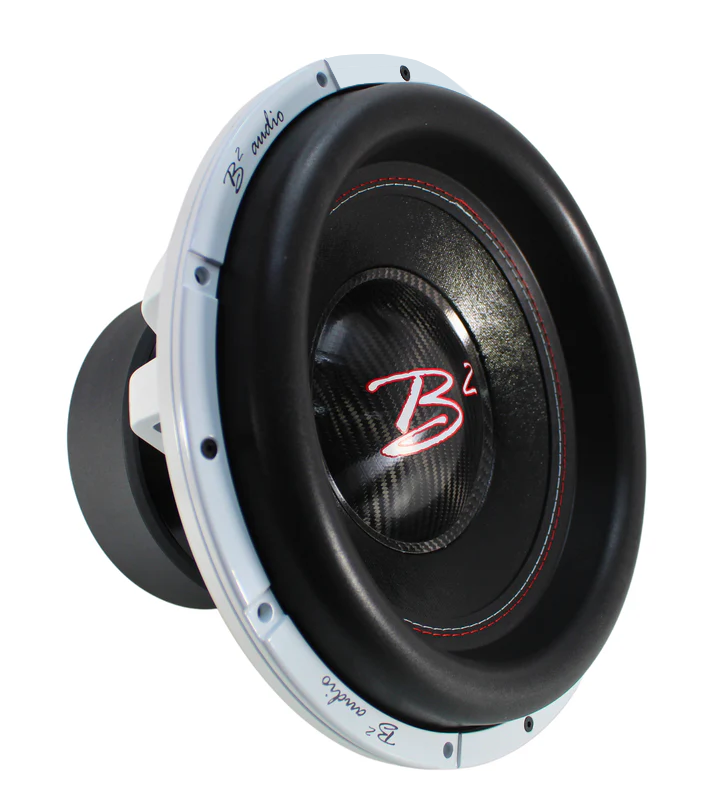

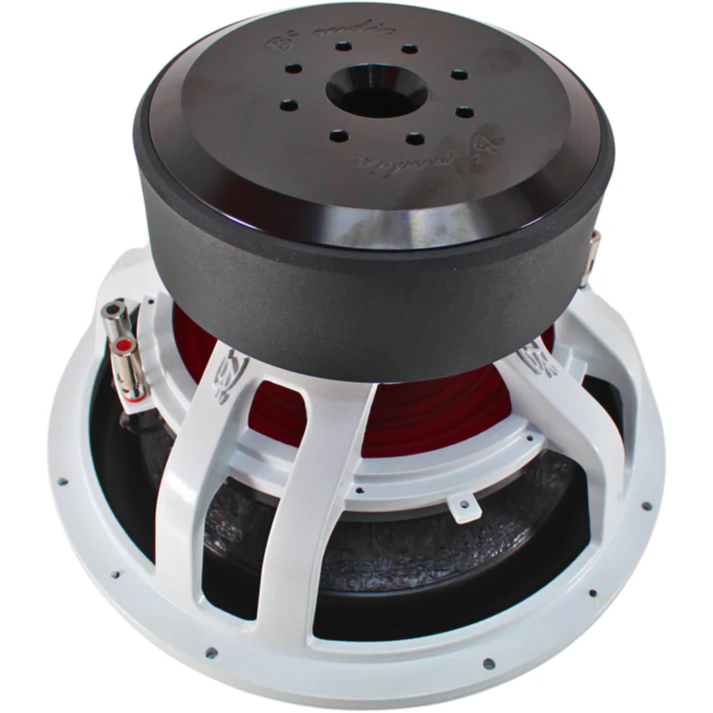

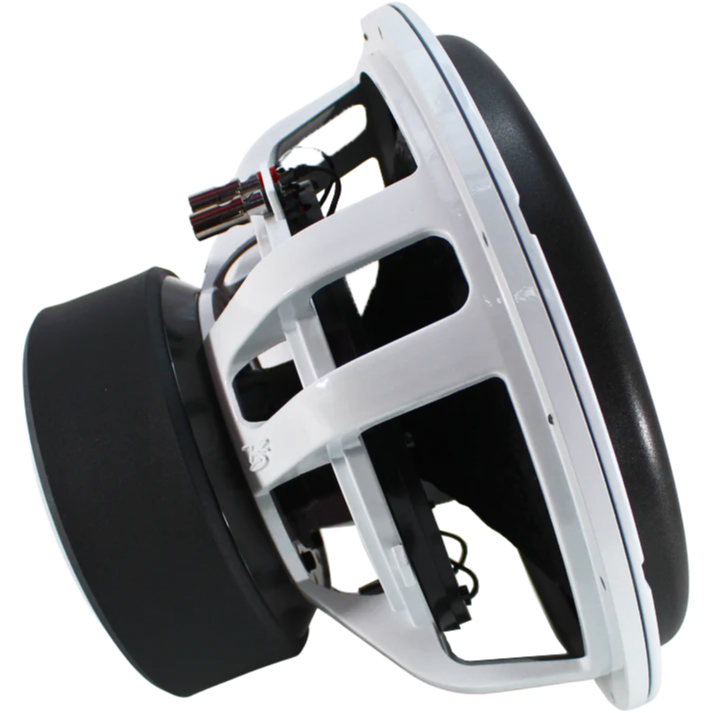

B² RAGE15 D2
2x1Ω
2x2Ω
Subwoofer
| Nominal diameter | 15″ / 390 mm |
| Resonance | 26.2 Hz |
| Q factor | 0.40 |
| Sensitivity | 86 dB |
| Linear excursion | ± 20 mm |
| Program Power | 6000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86dB
- Frequency response 10 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 26.2Hz
- Mechanical quality factor QMS 6.57
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion (one way) xmax 20mm
- Air volume displaced at xmax VD 1554cm³
- Power handling P 2000W
- Program power Pmax 6000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series) LE 3.02mH
- VC Diameter 76.2mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 27.7N/A
- Motor constant Bl/√RE 14.2N/√W
- Diameter 225mm
- Height 95mm
- Material Ferrite
Diaphragm
- Effective diameter 315mm
- Effective area SD 777cm²
- Moving mass MMS 527g
- Moving mass (without air load) MMD 511g
- Material RNPP
Suspensions
- Stiffness KMS 14.3N/mm
- Compliance CMS 70µm/N
- Equivalent volume to the compliance VAS 60L
- Mechanical resistance RMS 13.2N·s/m
- Surround material Tall U Shaped Foam
Dimensions
- Nominal diameter 15″
- 390mm
- Overall diameter 390mm
- Baffle cutout diameter 350mm
- Overall depth 282mm
- Flange thickness 17mm
- Mounting depth 265mm
- Volume occupied by the driver (estimated) 11L
- Net weight 21.0kg
