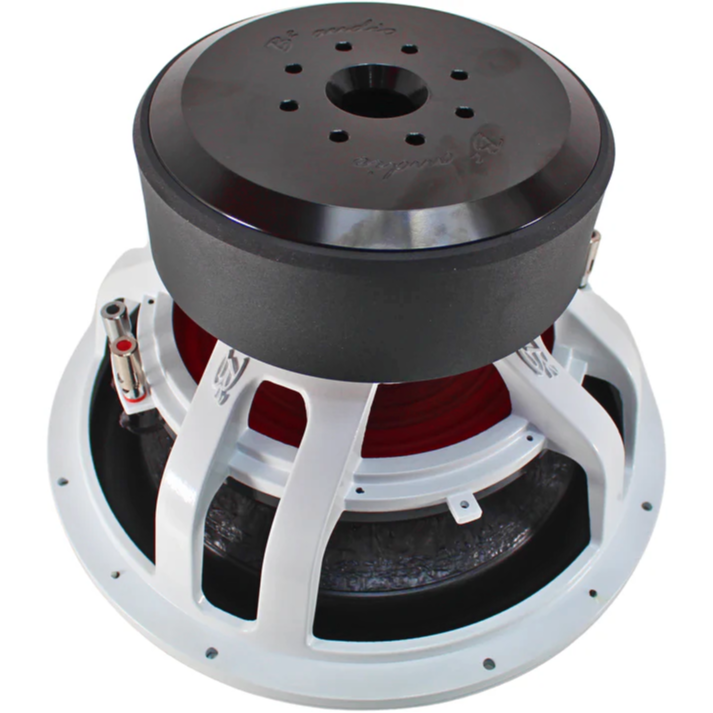

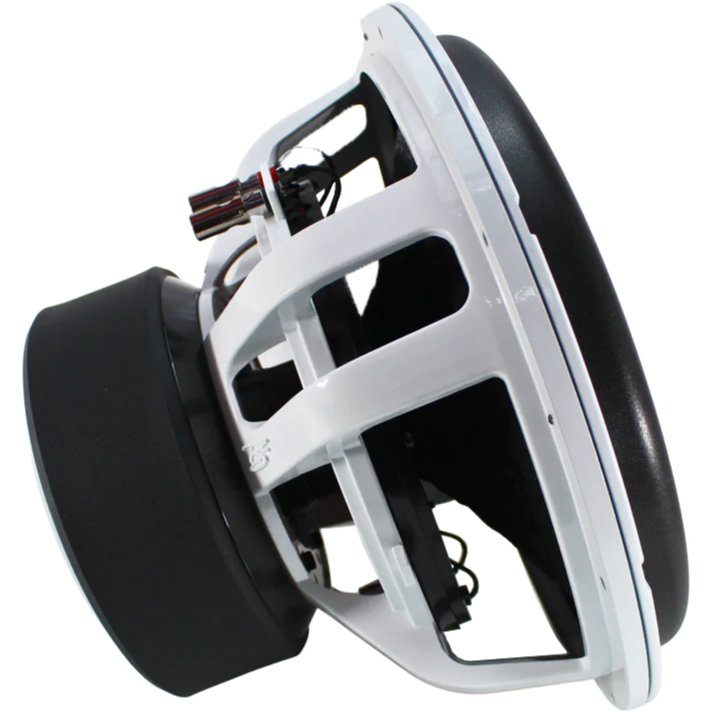

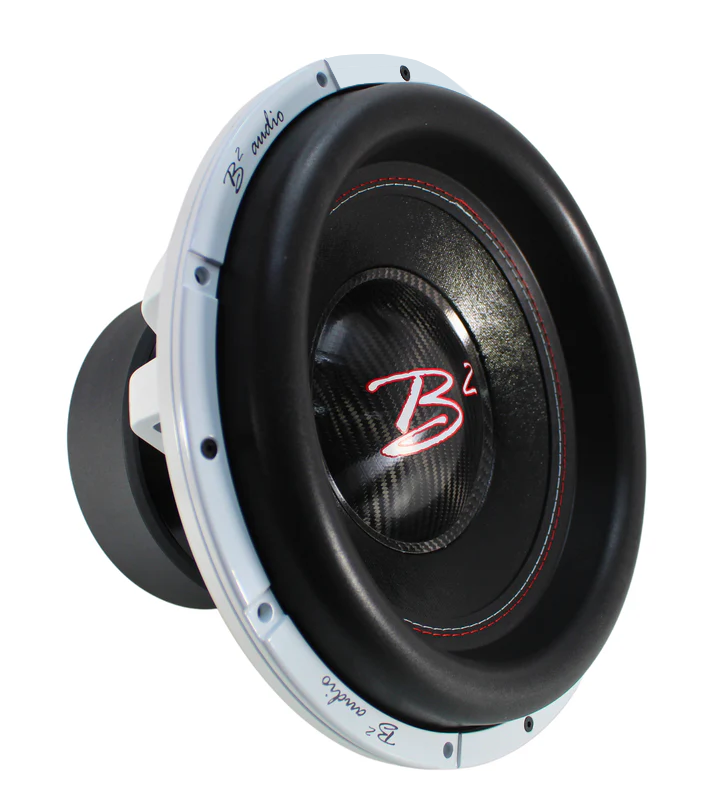

B² RAGE15 D1
2x1Ω
2x2ΩSubwoofer
| Nominal diameter | 15″ / 390 mm |
| Resonance | 26.3 Hz |
| Q factor | 0.43 |
| Sensitivity | 86.1 dB |
| Linear excursion | ± 20 mm |
| Program Power | 6000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.1dB
- Frequency response 10 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 26.3Hz
- Mechanical quality factor QMS 5.70
- Electrical quality factor QES 0.46
- Total quality factor QTS 0.43
Large signal parameters
- Maximum linear excursion (one way) xmax 20mm
- Air volume displaced at xmax VD 1537cm³
- Power handling P 2000W
- Program power Pmax 6000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.8Ω
- Inductance (1kHz, in series) LE 1.25mH
- VC Diameter 76.2mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 17.3N/A
- Motor constant Bl/√RE 12.9N/√W
- Diameter 225mm
- Height 95mm
- Material Ferrite
Diaphragm
- Effective diameter 313mm
- Effective area SD 769cm²
- Moving mass MMS 465g
- Moving mass (without air load) MMD 450g
- Material RNPP
Suspensions
- Stiffness KMS 12.5N/mm
- Compliance CMS 80µm/N
- Equivalent volume to the compliance VAS 67.1L
- Mechanical resistance RMS 13.5N·s/m
Dimensions
- Nominal diameter 15″
- 390mm
- Overall diameter 390mm
- Baffle cutout diameter 350mm
- Overall depth 282mm
- Flange thickness 17mm
- Mounting depth 265mm
- Volume occupied by the driver (estimated) 11L
- Net weight 21.0kg
