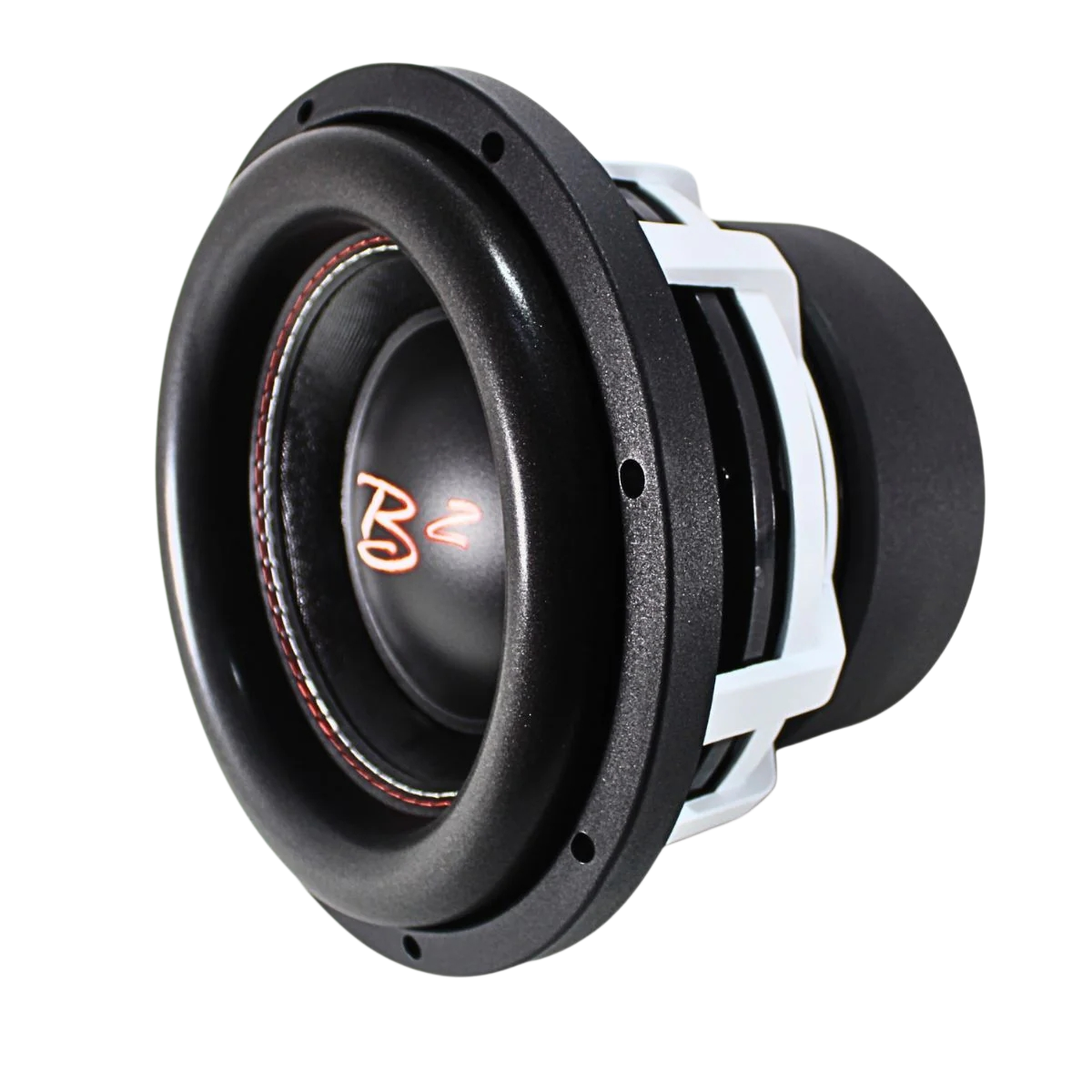

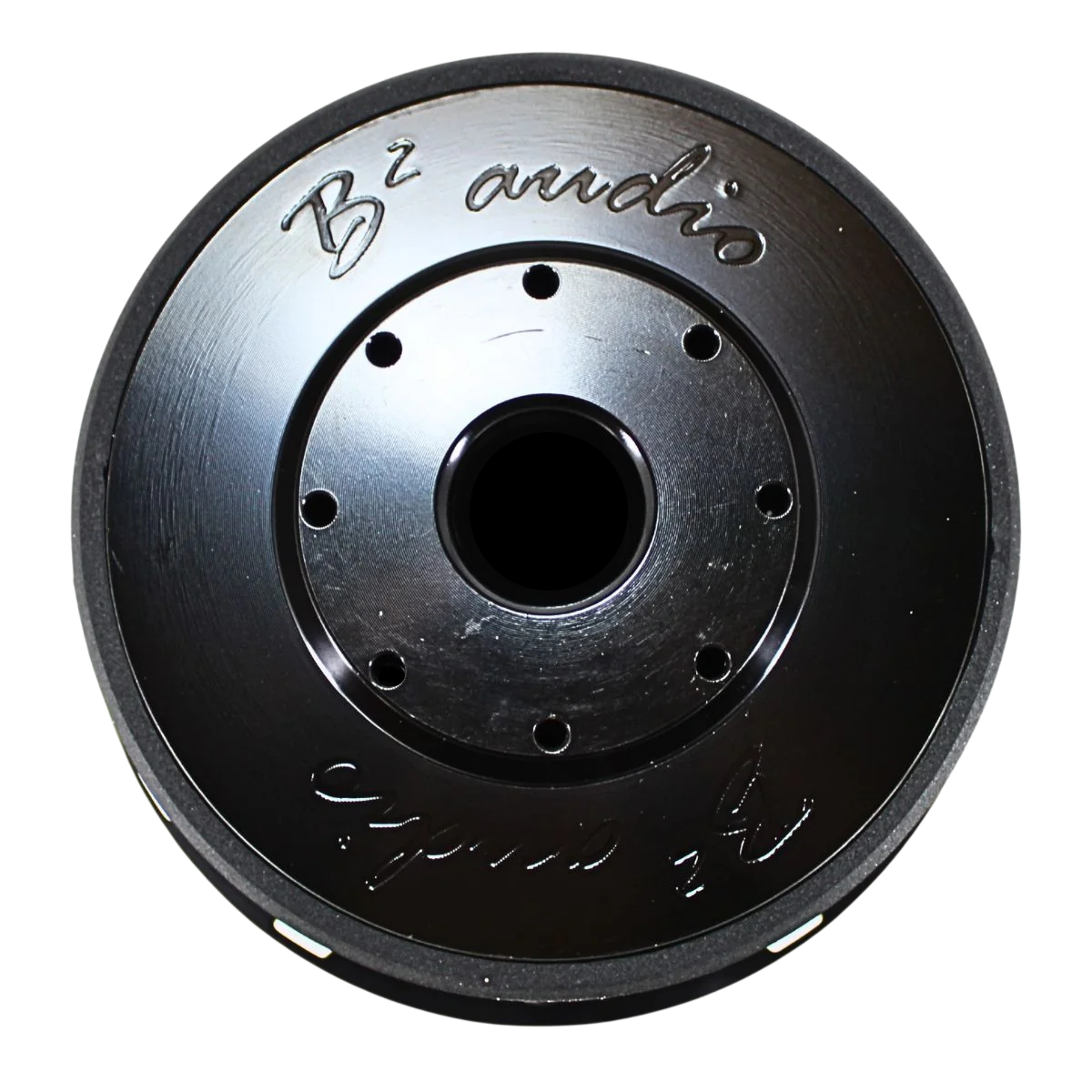

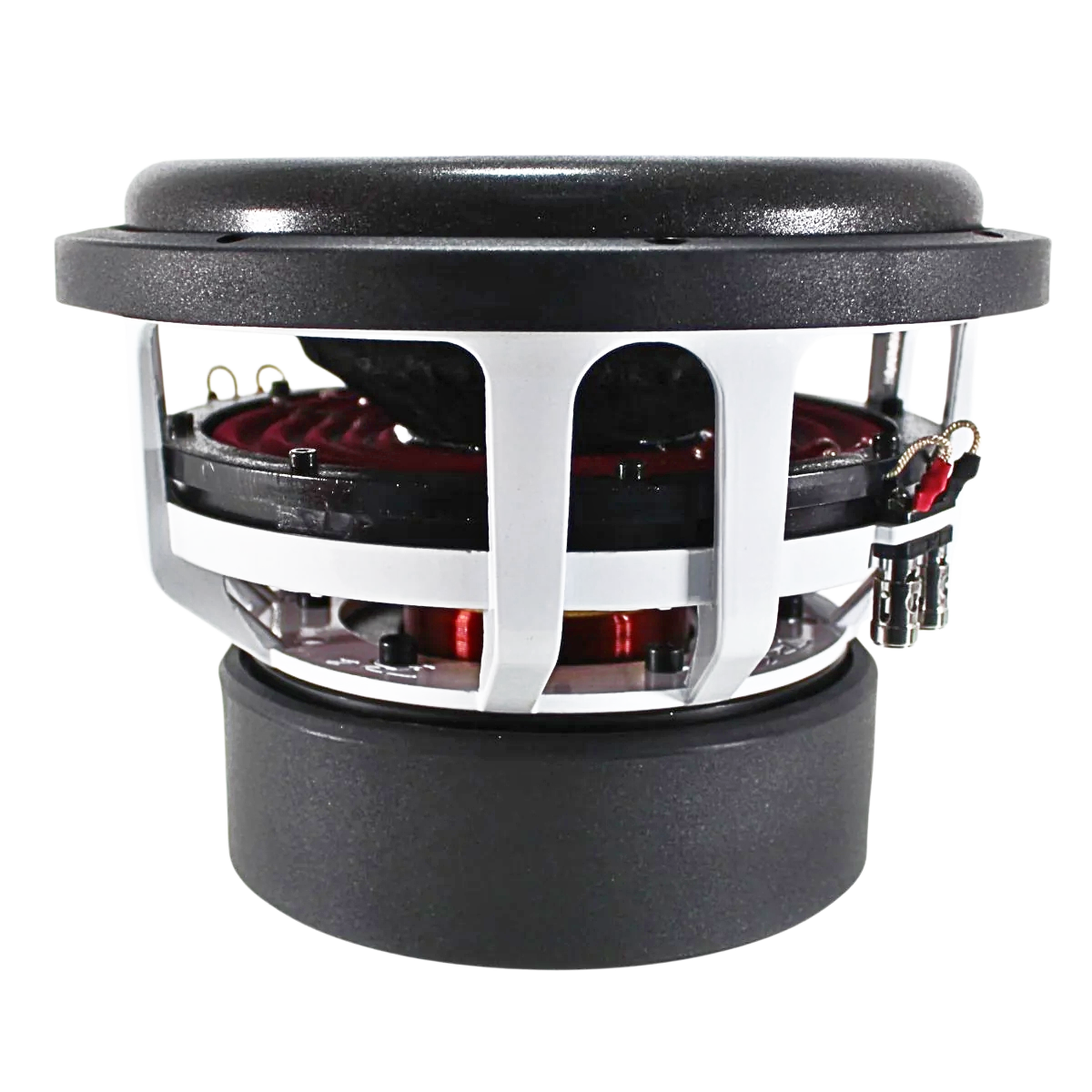

B² RIOT10 D4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 260 mm |
| Resonance | 30.9 Hz |
| Q factor | 0.68 |
| Sensitivity | 80.6 dB |
| Linear excursion | ± 18 mm |
| Program Power | 3000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 80.6dB
- Frequency response 10 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30.9Hz
- Mechanical quality factor QMS 6.64
- Electrical quality factor QES 0.76
- Total quality factor QTS 0.68
Large signal parameters
- Maximum linear excursion (one way) xmax 18mm
- Air volume displaced at xmax VD 592cm³
- Power handling P 1000W
- Program power Pmax 3000W
- Peak power Ppeak 3000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series) LE 3.47mH
- VC Diameter 76.5mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 19.9N/A
- Motor constant Bl/√RE 7.87N/√W
- Diameter 188mm
- Height 78mm
- Weight 6.8kg
- Material Ferrite
Diaphragm
- Effective diameter 205mm
- Effective area SD 329cm²
- Moving mass MMS 242g
- Moving mass (without air load) MMD 237g
- Material RNPP
Suspensions
- Stiffness KMS 9.09N/mm
- Compliance CMS 110µm/N
- Equivalent volume to the compliance VAS 16.9L
- Mechanical resistance RMS 7.07N·s/m
- Surround material Tall U Shaped Foam
Dimensions
- Nominal diameter 10″
- 260mm
- Overall diameter 267mm
- Baffle cutout diameter 235mm
- Overall depth 205mm
- Flange thickness 32mm
- Mounting depth 173mm
- Volume occupied by the driver (estimated) 4.6L
- Net weight 11.5kg
