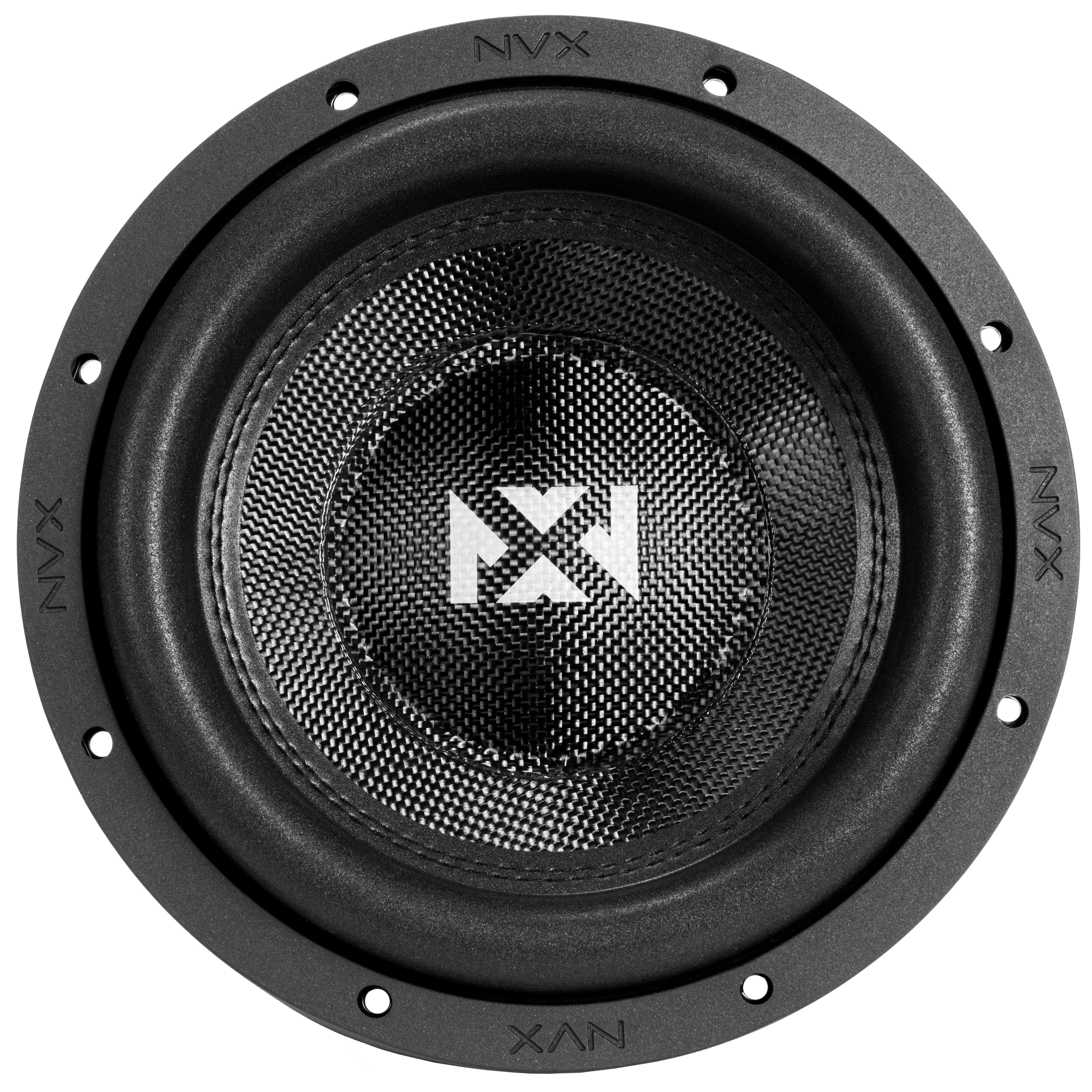

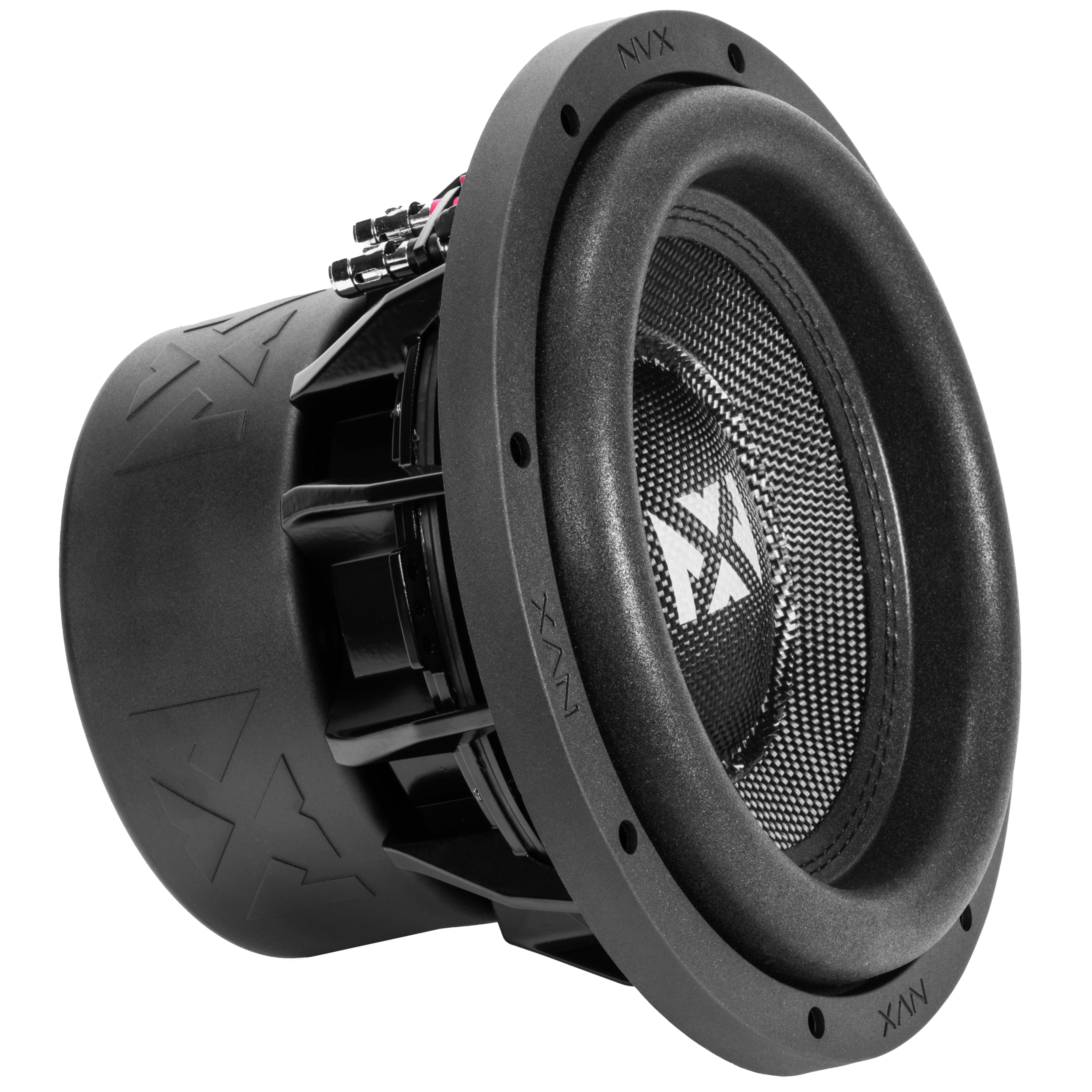

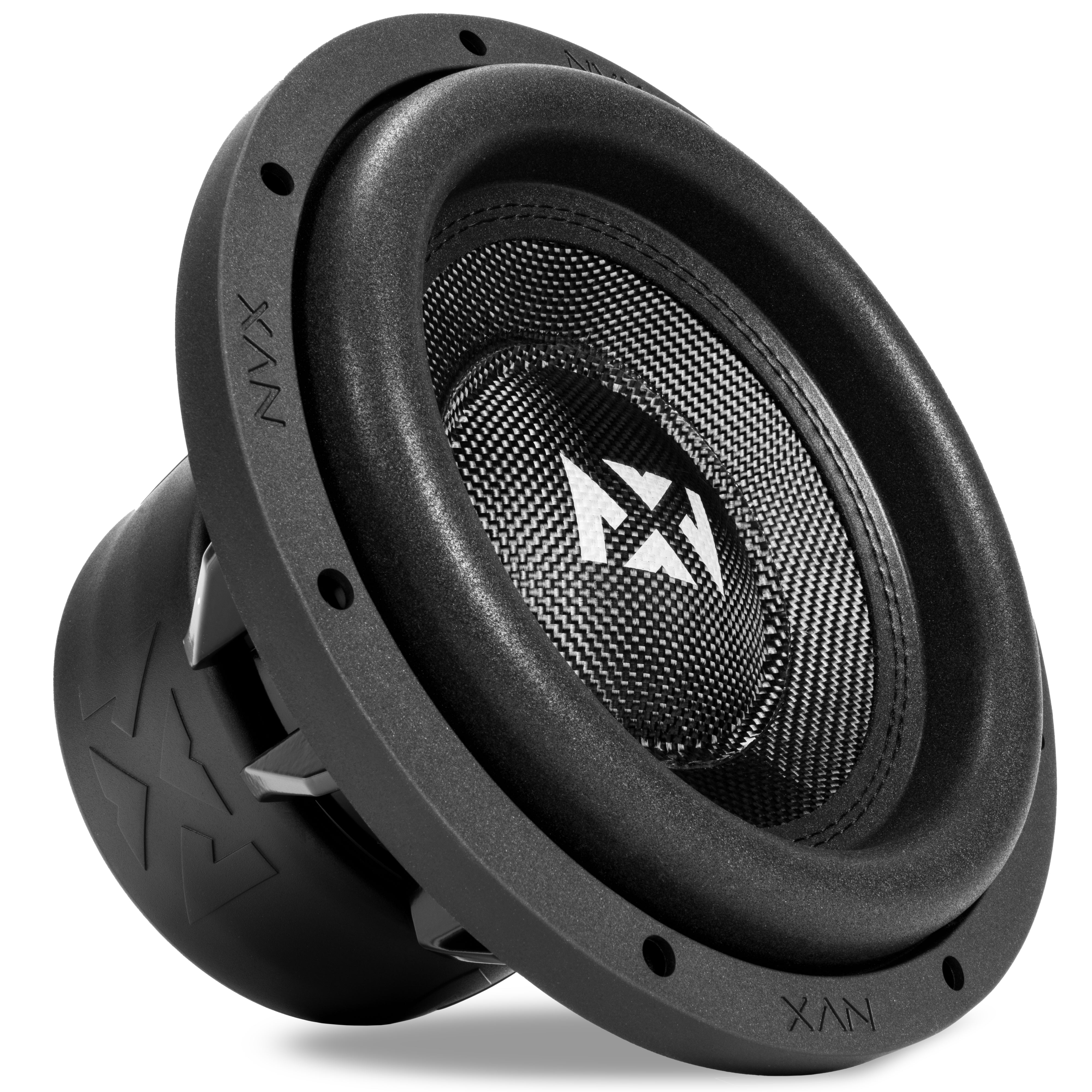

NVX VCW104v3
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 32.4 Hz |
| Q factor | 0.54 |
| Sensitivity | 81.8 dB |
| Linear excursion | ± 22 mm |
| Program power | 2000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.8dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 32.4Hz
- Mechanical quality factor QMS 2.40
- Electrical quality factor QES 0.71
- Total quality factor QTS 0.54
Large signal parameters
- Maximum linear excursion (one way) xmax 22mm
- Air volume displaced at xmax VD 814cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 5.36mH
Magnet
- Force factor (in series) Bl 20.7N/A
- Motor constant Bl/√RE 8.18N/√W
Diaphragm
- Effective diameter 217mm
- Effective area SD 370cm²
- Moving mass (including air load) MMS 234g
- Moving mass MMD 229g
Suspensions
- Stiffness KMS 9.71N/mm
- Compliance CMS 103µm/N
- Equivalent volume to the compliance VAS 19.9L
- Mechanical resistance RMS 19.9N·s/m
Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 281mm
- Baffle cutout diameter 245mm
- Mounting depth 160mm
- Volume occupied by the driver 4.25L
- Net weight 11.5kg
