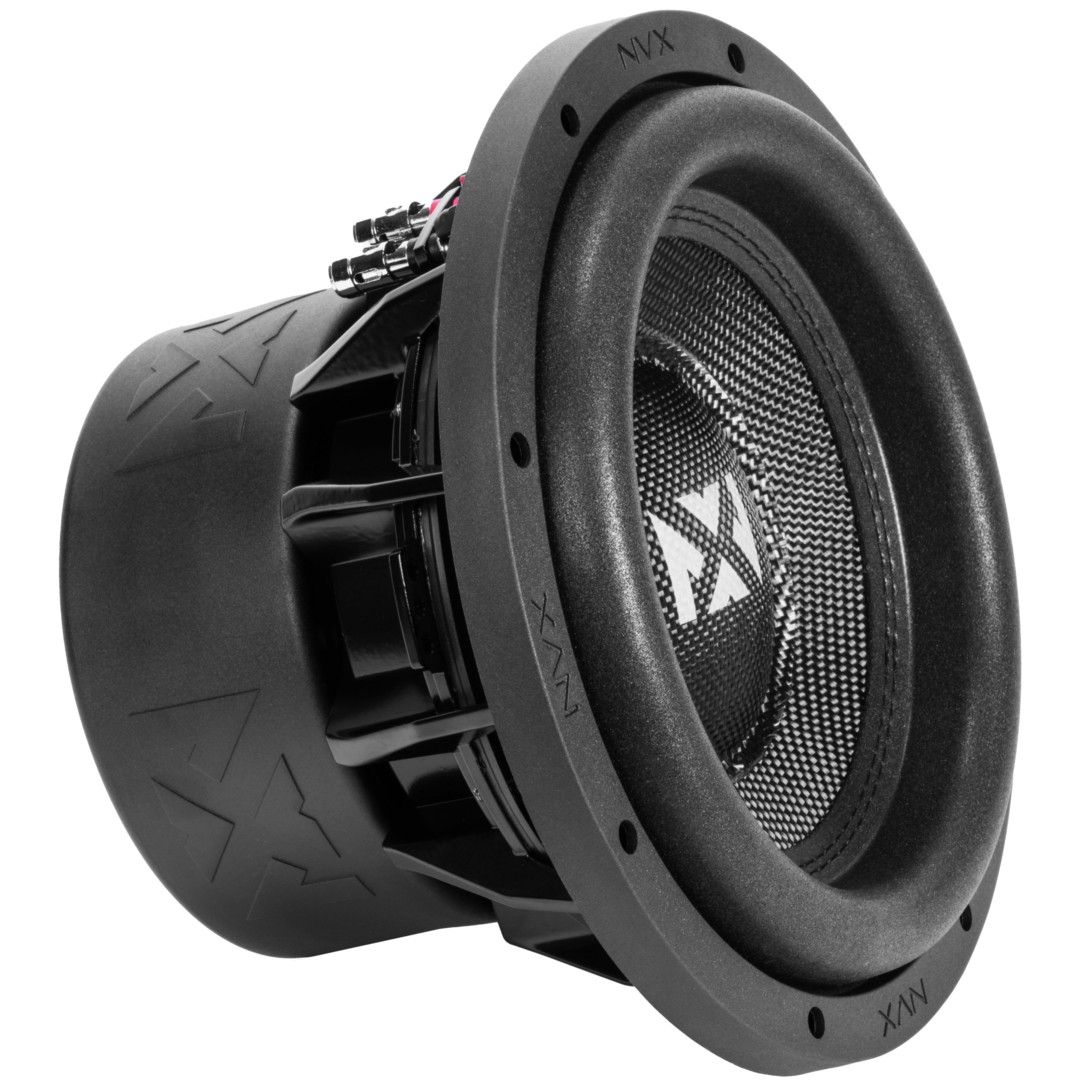

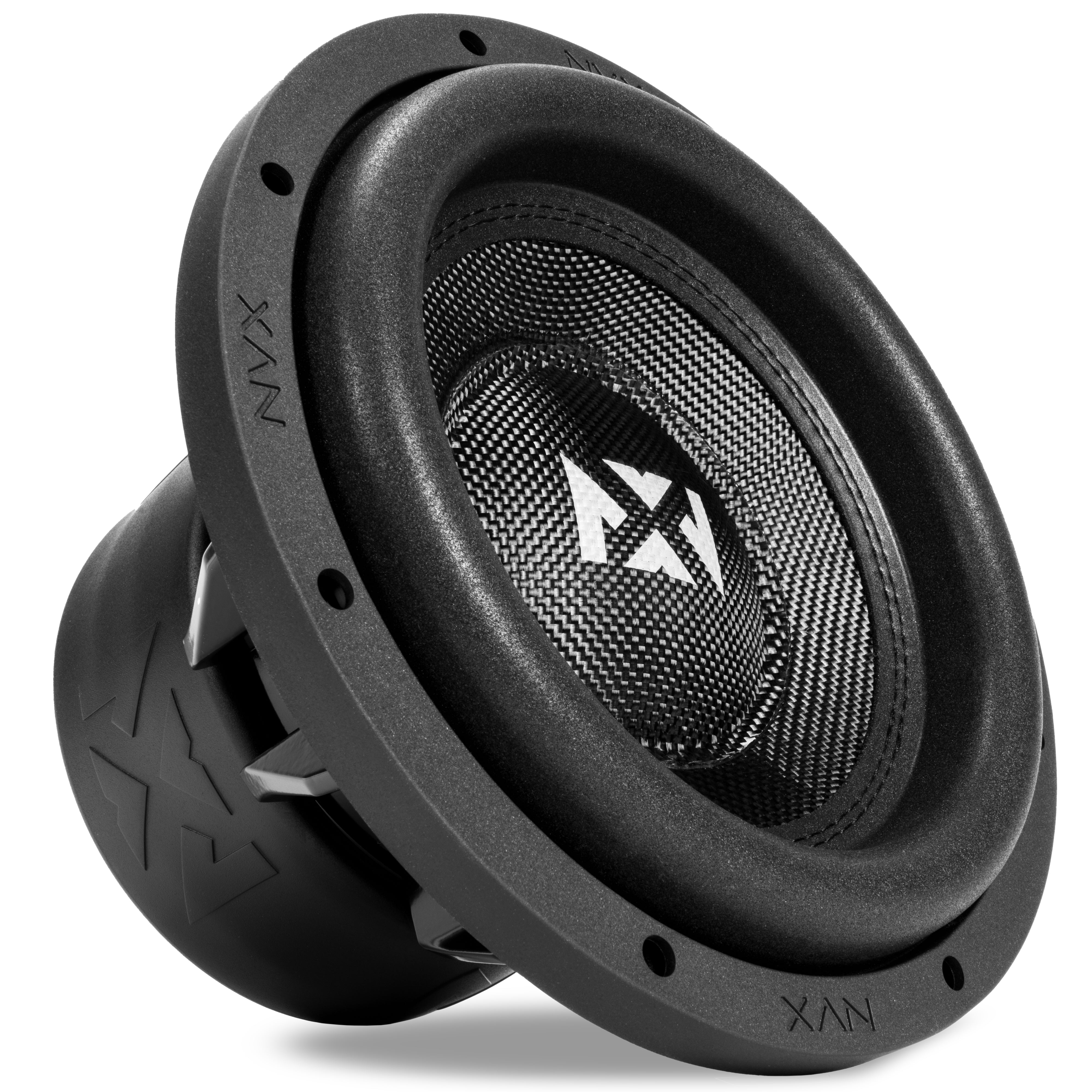

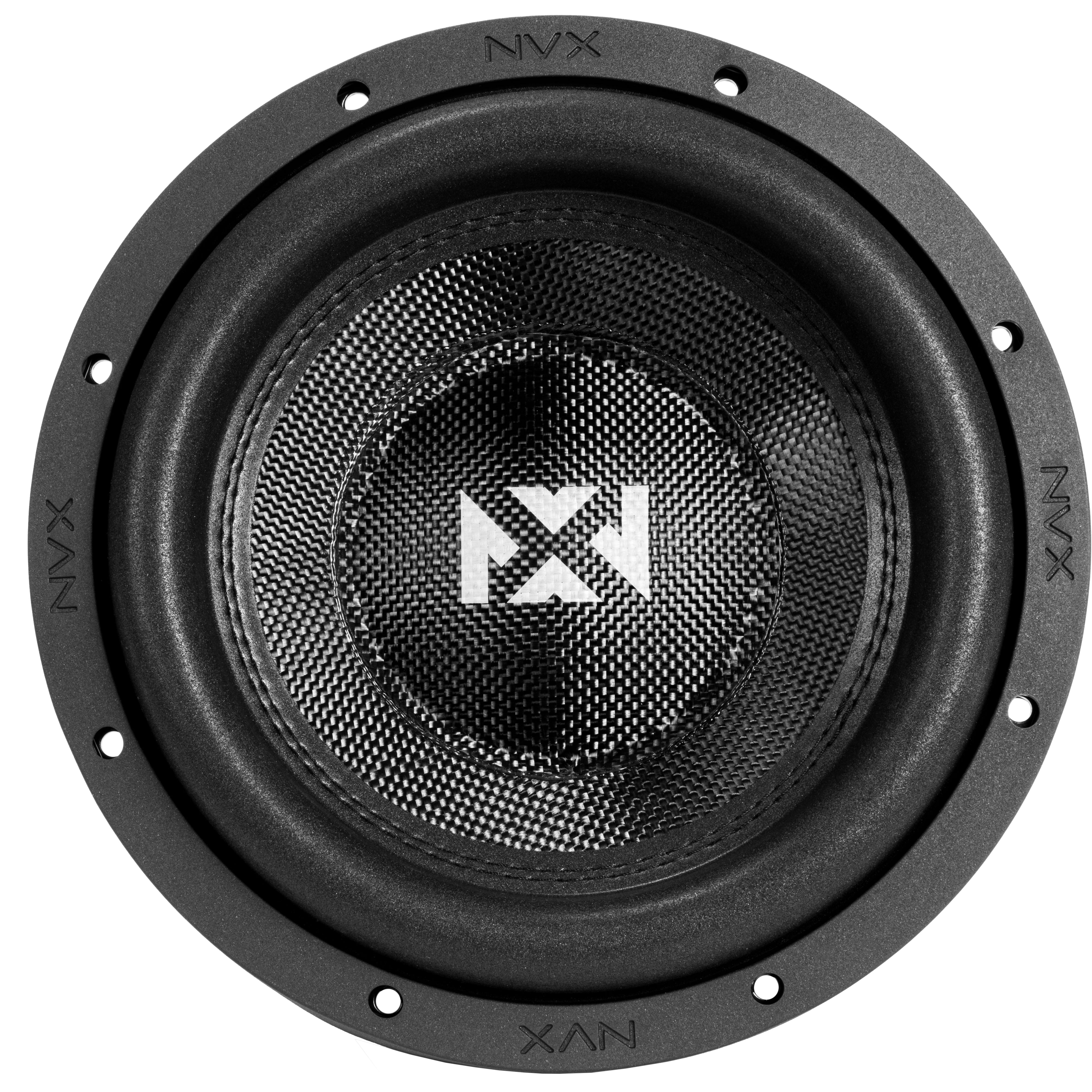

NVX VCW102v3
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 10″ / 281 mm |
| Resonance | 27.3 Hz |
| Q factor | 0.56 |
| Sensitivity | 81.3 dB |
| Linear excursion | ± 22 mm |
| Program power | 2000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.3dB
- Frequency response 20 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 27.3Hz
- Mechanical quality factor QMS 5.50
- Electrical quality factor QES 0.63
- Total quality factor QTS 0.56
Large signal parameters
- Maximum linear excursion (one way) xmax 22mm
- Air volume displaced at xmax VD 814cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.2Ω
- Inductance (1kHz, in series, estimated) LE 2.95mH
Magnet
- Force factor (in series) Bl 15.3N/A
- Motor constant Bl/√RE 8.55N/√W
Diaphragm
- Effective diameter 217mm
- Effective area SD 370cm²
- Moving mass (including air load) MMS 270g
- Moving mass MMD 264g
Suspensions
- Stiffness KMS 7.94N/mm
- Compliance CMS 126µm/N
- Equivalent volume to the compliance VAS 24.5L
- Mechanical resistance RMS 8.41N·s/m
Dimensions
- Nominal diameter 10″
- 281mm
- Overall diameter 281mm
- Baffle cutout diameter 245mm
- Mounting depth 160mm
- Volume occupied by the driver 4.25L
- Net weight 11.5kg
