ALPINE R2-W10D4

2x2Ω
2x4Ω

Subwoofer

Nominal diameter10″ / 250 mm
Resonance32 Hz
Q factor0.48
Sensitivity82.8 dB
Linear excursion± 20 mm
Program power1500 W

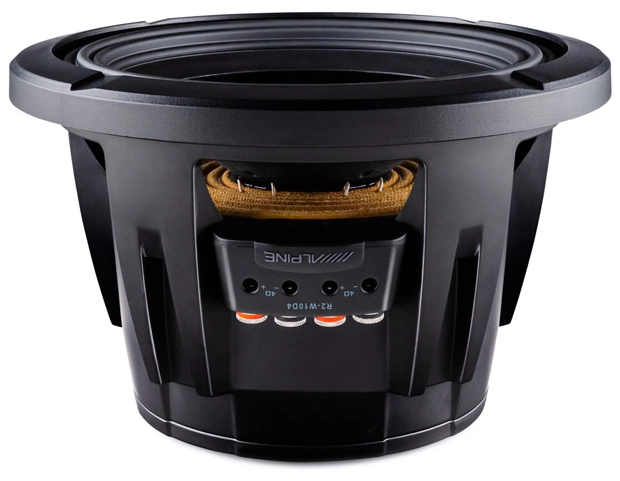

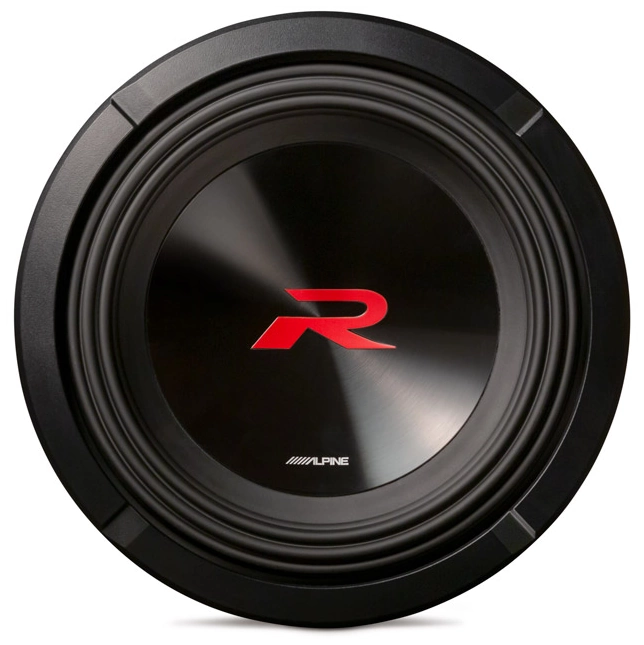

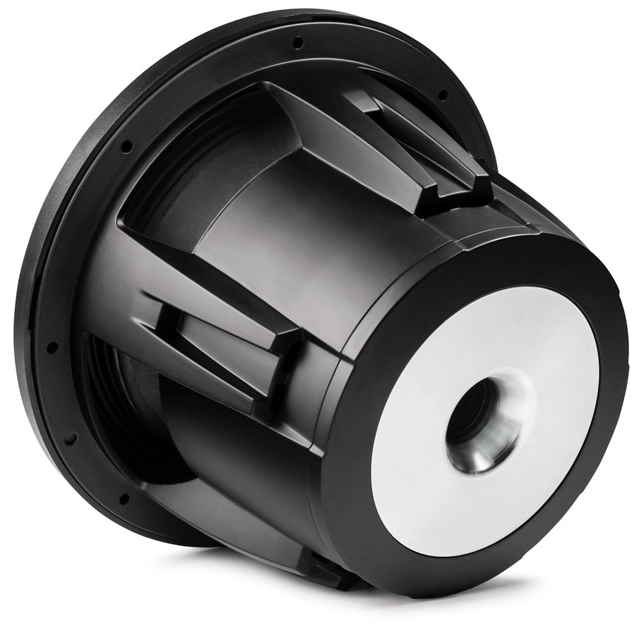

ALPINE R2-W10D4 SubwooferALPINE R2-W10D4 SubwooferALPINE R2-W10D4 Subwoofer
Excursion
Velocity
SPL
Phase
Group delay
Frequency
Hz
Impedance
Ω
Impedance phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical phase
°
Group delay
ms
Transient response
ms
Save

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 82.8dB
  • Frequency response 26 - 200Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 32Hz
  • Mechanical quality factor QMS 6.50
  • Electrical quality factor QES 0.52
  • Total quality factor QTS 0.48

Large signal parameters

  • Maximum linear excursion (one way) xmax 20mm
  • Maximum excursion before damage xlim 70mm
  • Air volume displaced at xmax VD 666cm³
  • Power handling P 750W
  • Program power Pmax 1500W
  • Peak power Ppeak 2250W

Voice Coil

  • Nominal impedance Z 2 x 4Ω
  • DC resistance (in series) RE 7.0Ω
  • Inductance (1kHz, in series, estimated) LE 5.51mH
  • VC Diameter 65.5mm

Magnet

  • Force factor (in series) Bl 24N/A
  • Motor constant Bl/√RE 9.07N/√W
  • Diameter 175mm
  • Weight 3.49kg

Diaphragm

  • Effective diameter 206mm
  • Effective area SD 333cm²
  • Moving mass (including air load) MMS 213g
  • Moving mass MMD 210g
  • Material hybrid poly ceramic composite

Suspensions

  • Stiffness KMS 8.62N/mm
  • Compliance CMS 116µm/N
  • Equivalent volume to the compliance VAS 18.2L
  • Mechanical resistance RMS 6.6N·s/m

Dimensions

  • Nominal diameter 10″
  • 250mm
  • Overall diameter 272mm
  • Baffle cutout diameter 231mm
  • Overall depth 173mm
  • Flange thickness 23mm
  • Mounting depth 150mm
  • Volume occupied by the driver (estimated) 2.6L
Impedance
Step response
Tone burst

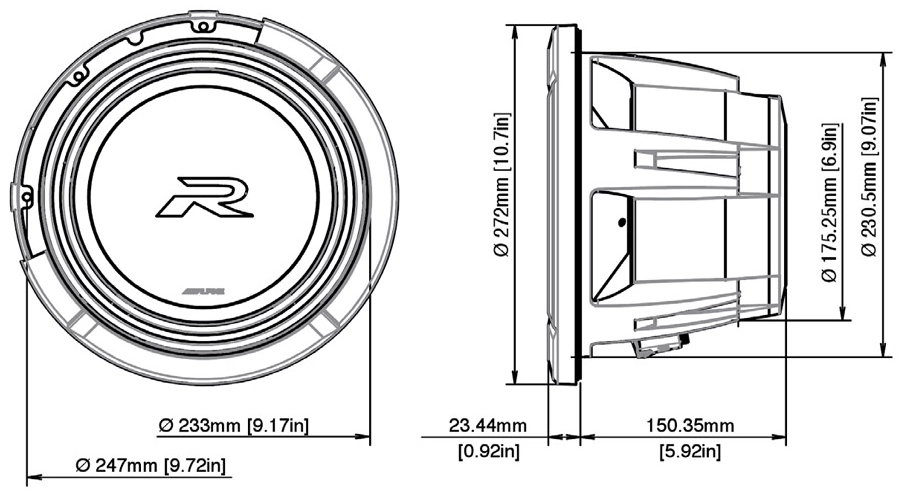

ALPINE R2-W10D4 Dimensions
PDF fileDatasheet

Export this driver to a box design software:
