DS18 ZXI10.4D
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 279 mm |
| Resonance | 29 Hz |
| Q factor | 0.43 |
| Sensitivity | 82.3 dB |
| Program Power | 1600 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.3dB
- Frequency response 20 - 900Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 29Hz
- Mechanical quality factor QMS 5.17
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.43
Large signal parameters
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 8.2Ω
- Inductance (1kHz, in series) LE 6.37mH
- VC Diameter 63.5mm
- Winding material Copper Clad Aluminium
- Former material Black Aluminum
Magnet
- Force factor (in series) Bl 27.4N/A
- Motor constant Bl/√RE 9.56N/√W
- Diameter 170mm
- Weight 5.556kg
- Material Ferrite
Diaphragm
- Effective diameter 205mm
- Effective area SD 330cm²
- Moving mass MMS 237g
- Moving mass (without air load) MMD 233g
- Material Non Pressed Paper
Suspensions
- Stiffness KMS 9.17N/mm
- Compliance CMS 109µm/N
- Equivalent volume to the compliance VAS 16.8L
- Mechanical resistance RMS 8.36N·s/m
- Surround material Foam

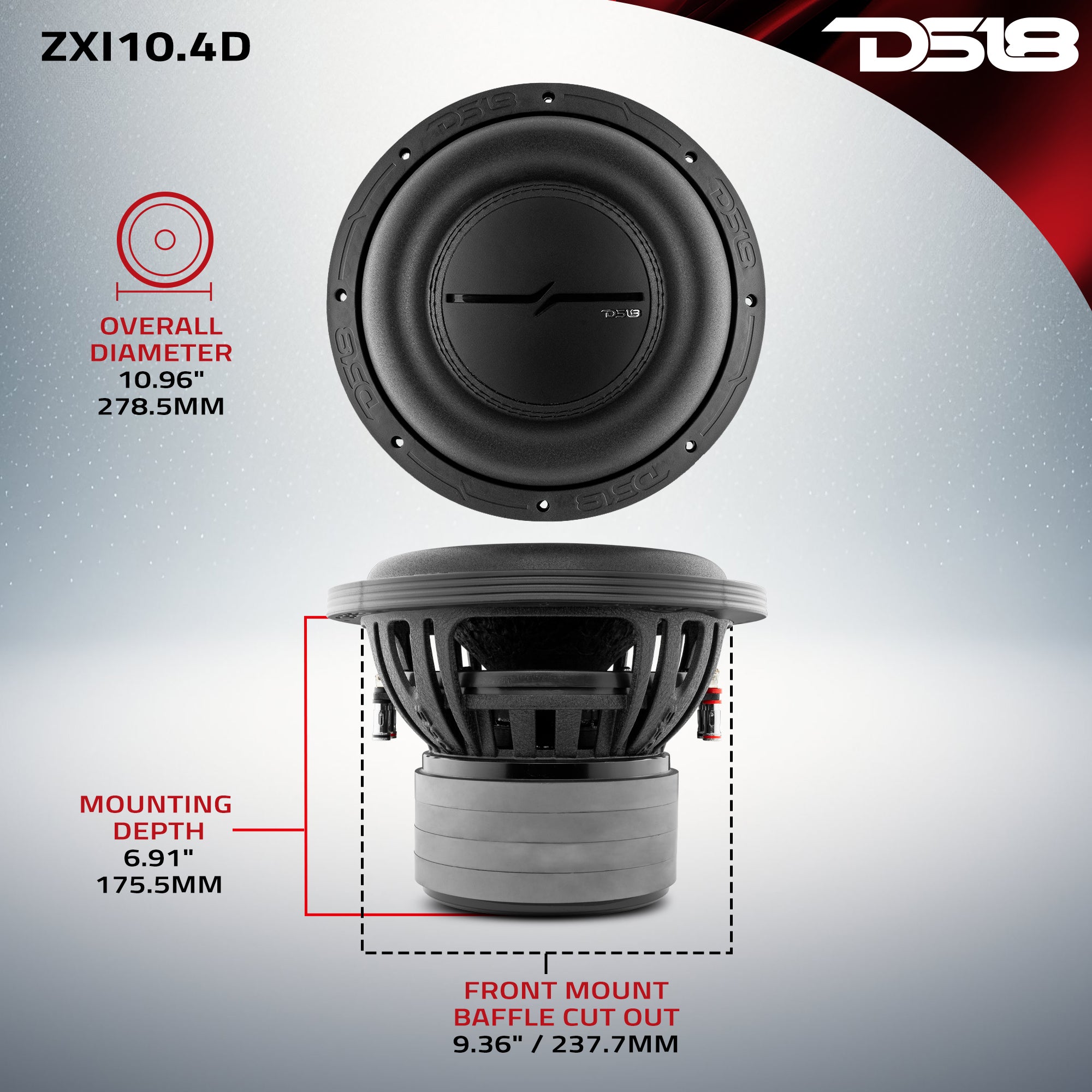

Dimensions
- Nominal diameter 10″
- 279mm
- Overall diameter 279mm
- Baffle cutout diameter 238mm
- Overall depth 212mm
- Flange thickness 36mm
- Mounting depth 176mm
- Volume occupied by the driver 2.23L
- Frame material Aluminium
