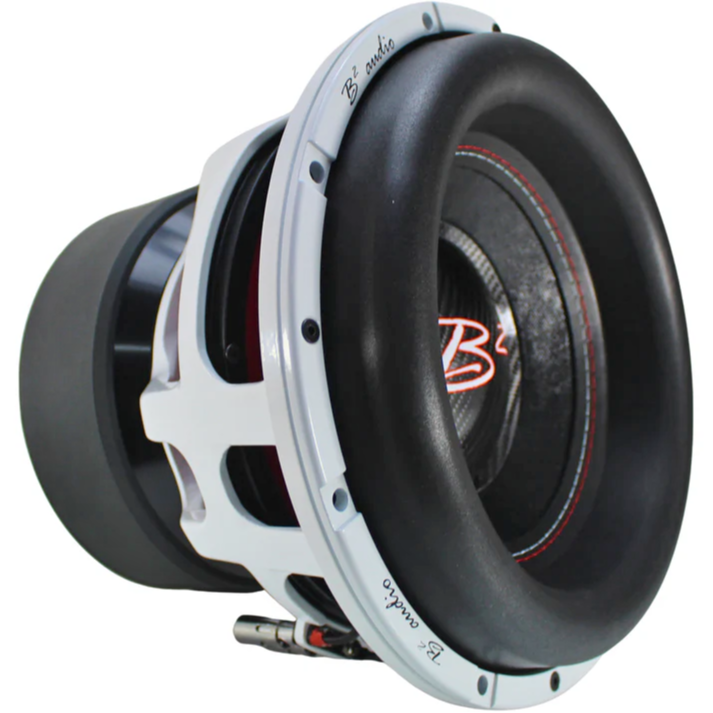

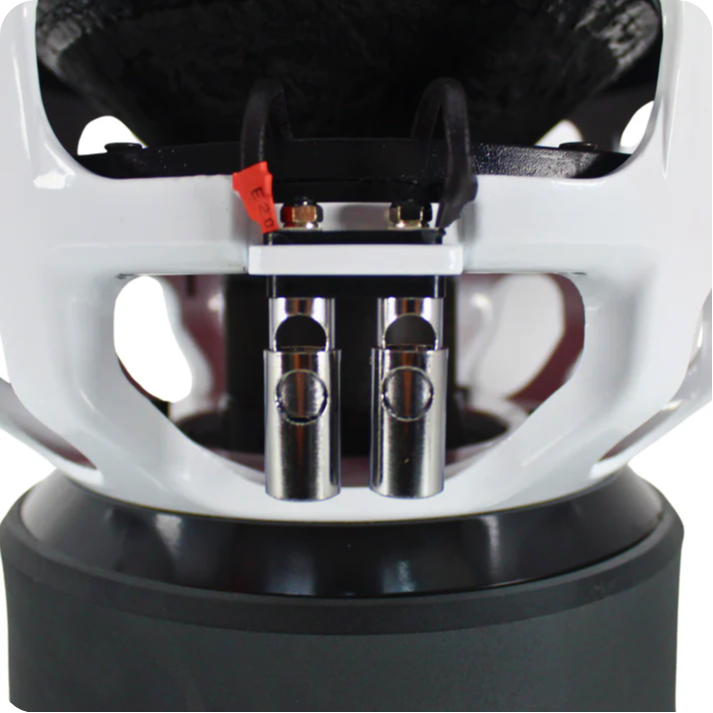

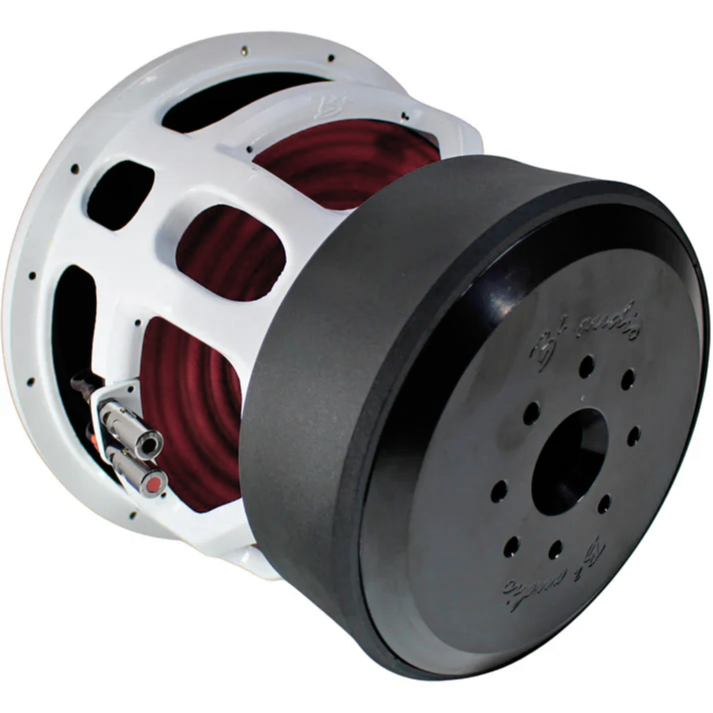

B² RAGE12 D2
2x1Ω
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 26.9 Hz |
| Q factor | 0.34 |
| Sensitivity | 83 dB |
| Linear excursion | ± 20 mm |
| Program Power | 6000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83dB
- Frequency response 10 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 26.9Hz
- Mechanical quality factor QMS 5.58
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion (one way) xmax 20mm
- Air volume displaced at xmax VD 929cm³
- Power handling P 2000W
- Program power Pmax 6000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.8Ω
- Inductance (1kHz, in series) LE 2.9mH
- VC Diameter 76.2mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 28.7N/A
- Motor constant Bl/√RE 14.7N/√W
- Diameter 228mm
- Height 95mm
- Weight 17.86kg
- Material Ferrite
Diaphragm
- Effective diameter 243mm
- Effective area SD 465cm²
- Moving mass MMS 462g
- Moving mass (without air load) MMD 454g
- Material RNPP
Suspensions
- Stiffness KMS 14.3N/mm
- Compliance CMS 70µm/N
- Equivalent volume to the compliance VAS 19.8L
- Mechanical resistance RMS 14N·s/m
- Surround material Foam
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 311mm
- Baffle cutout diameter 282mm
- Overall depth 237mm
- Flange thickness 12mm
- Mounting depth 225mm
- Volume occupied by the driver (estimated) 8L
- Net weight 20.0kg
