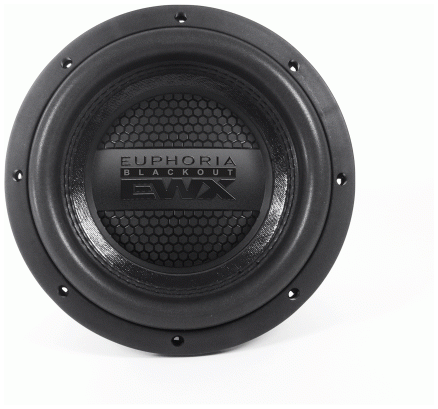

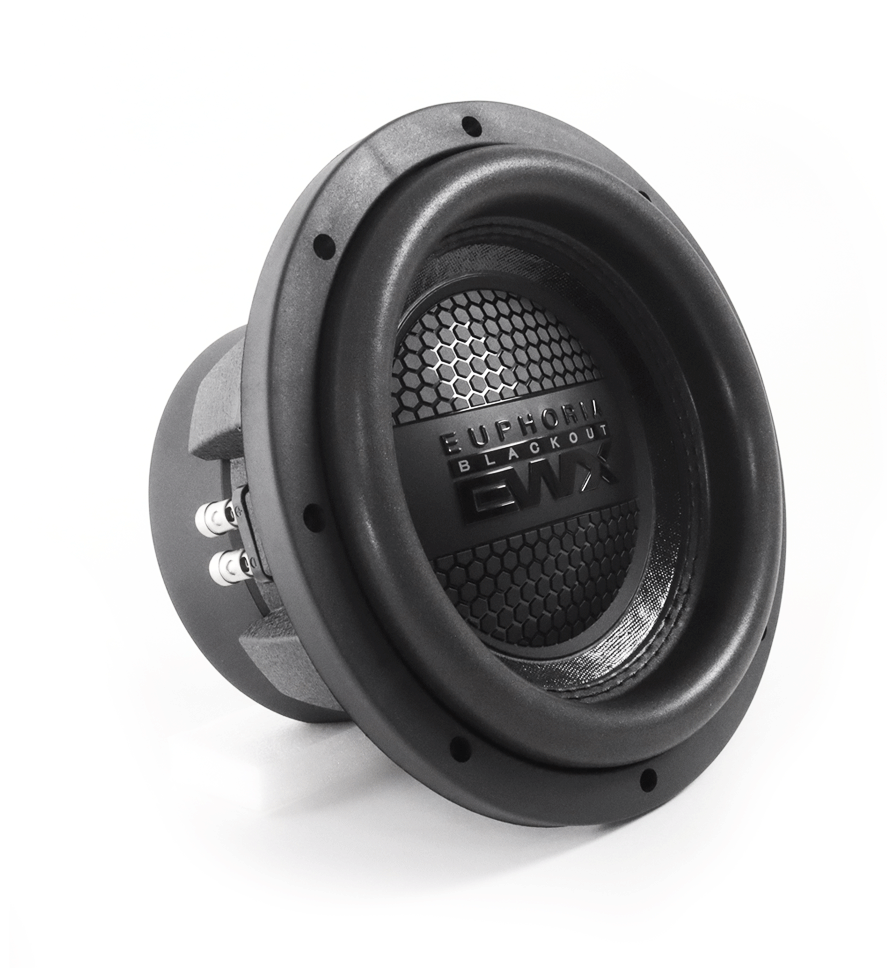

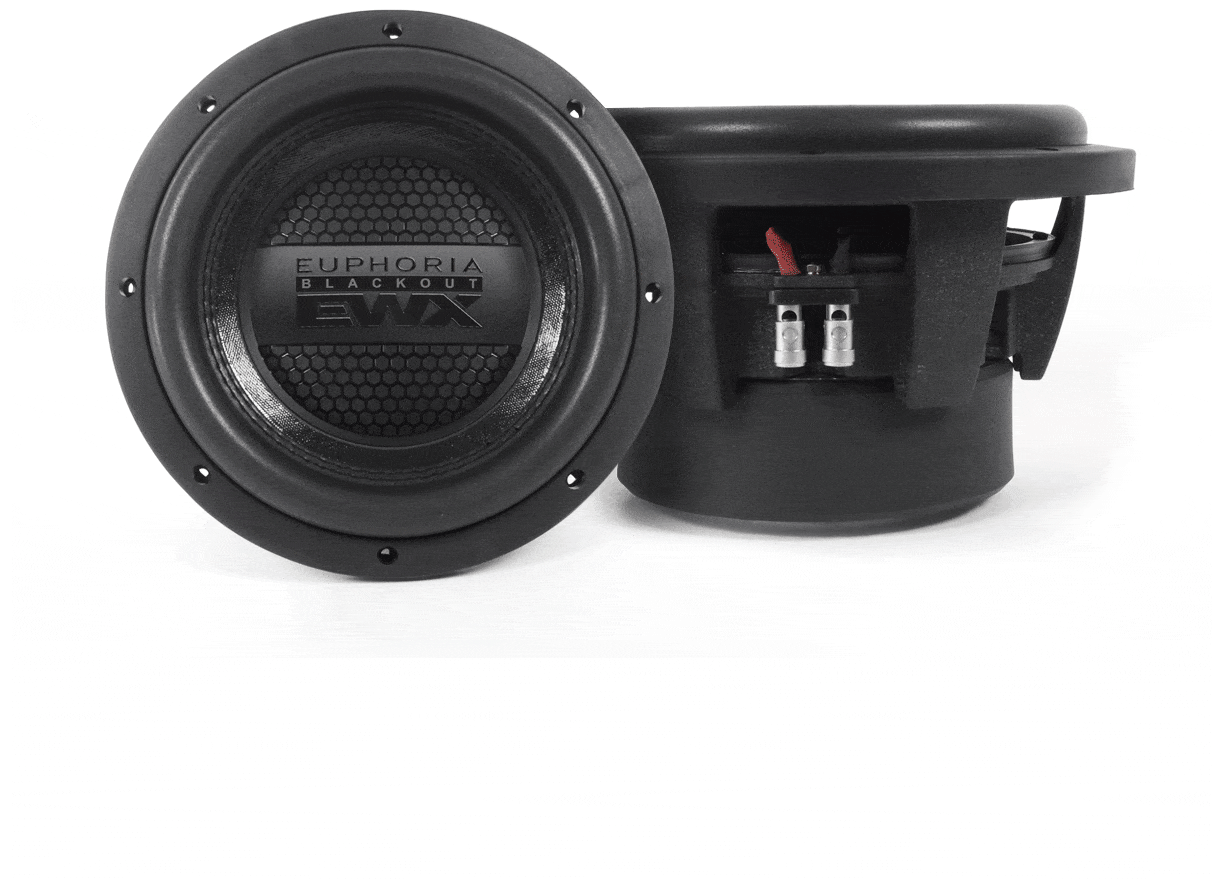

EUPHORIA BLACKOUT EWXB10D4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 10″ / 276 mm |
| Resonance | 39 Hz |
| Q factor | 0.75 |
| Sensitivity | 84.8 dB |
| Linear excursion | ± 17.8 mm |
| Program Power | 2500 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 39Hz
- Mechanical quality factor QMS 4.57
- Electrical quality factor QES 0.90
- Total quality factor QTS 0.75
Large signal parameters
- Maximum linear excursion (one way) xmax 17.8mm
- Air volume displaced at xmax VD 945cm³
- Power handling P 1000W
- Program power Pmax 2500W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series, estimated) LE 6.87mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 23.6N/A
- Motor constant Bl/√RE 8.8N/√W
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass MMS 285g
- Moving mass (without air load) MMD 277g
Suspensions
- Stiffness KMS 16.9N/mm
- Compliance CMS 59.1µm/N
- Equivalent volume to the compliance VAS 23.7L
- Mechanical resistance RMS 15.3N·s/m

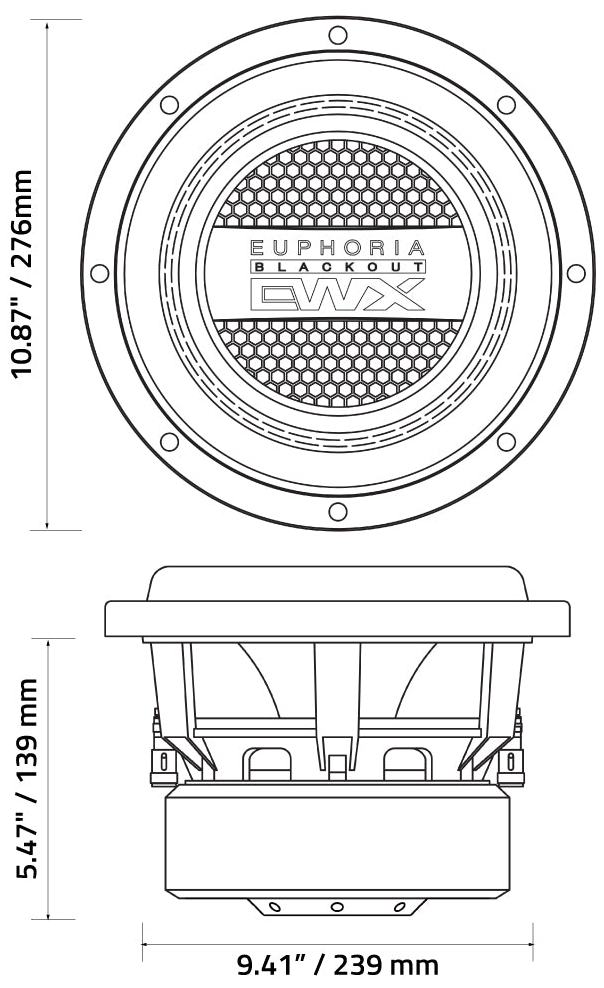

Dimensions
- Nominal diameter 10″
- 276mm
- Overall diameter 276mm
- Baffle cutout diameter 239mm
- Mounting depth 139mm
- Volume occupied by the driver (estimated) 1.9L
.webp)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
MfbLabs
