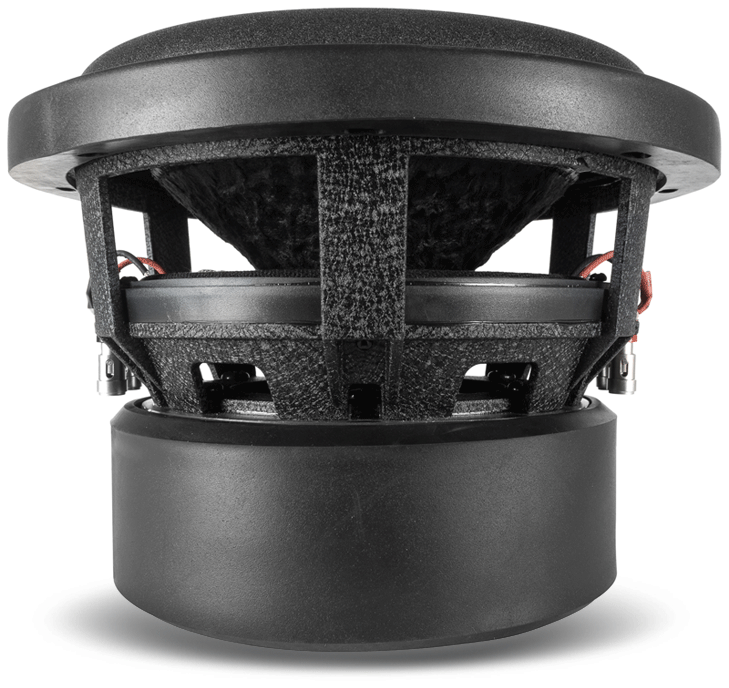

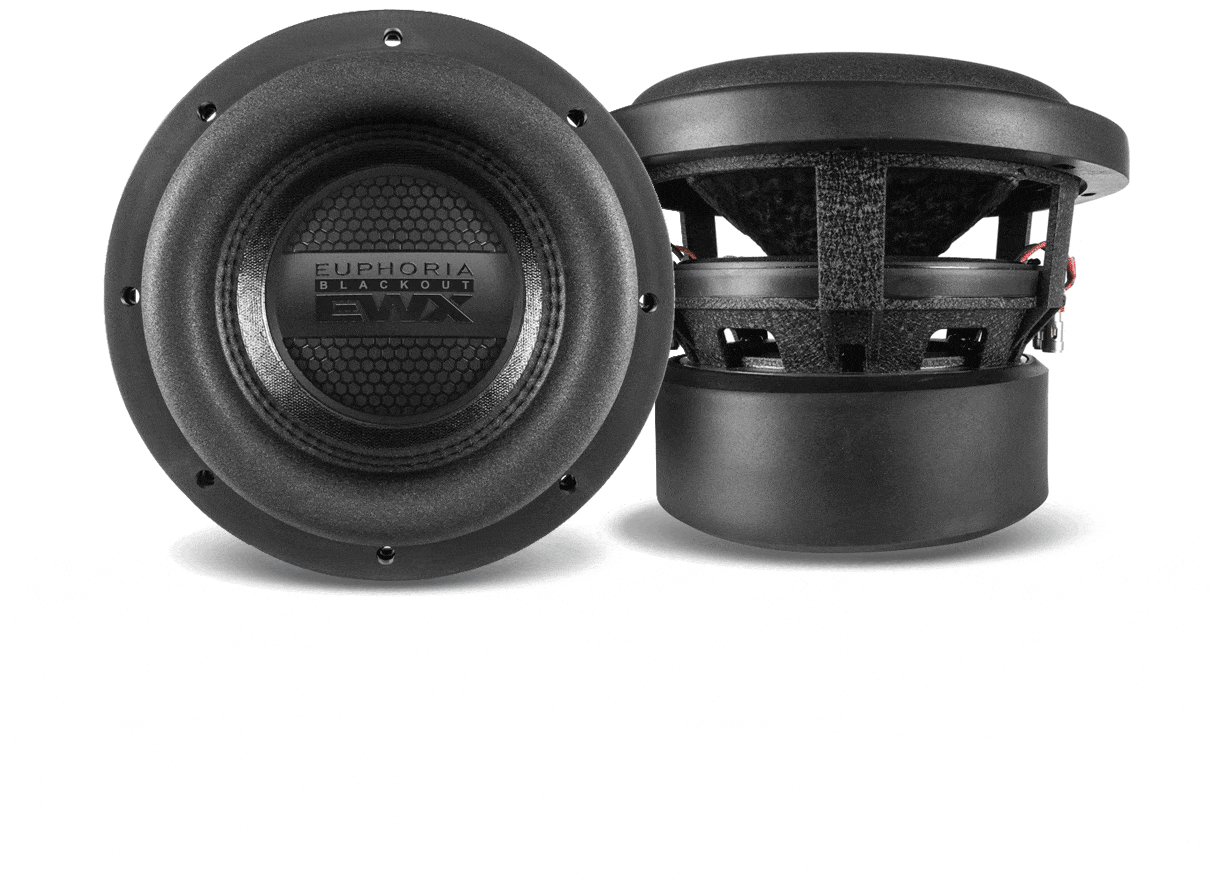

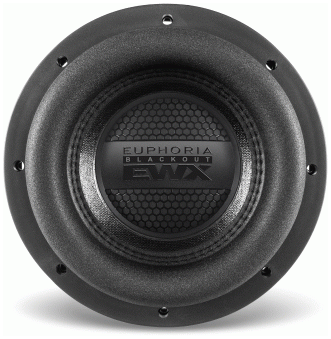

EUPHORIA BLACKOUT EWXB8D2
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 8″ / 220 mm |
| Resonance | 49.6 Hz |
| Q factor | 0.59 |
| Sensitivity | 82.7 dB |
| Linear excursion | ± 16.8 mm |
| Program Power | 1500 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 49.6Hz
- Mechanical quality factor QMS 7.30
- Electrical quality factor QES 0.64
- Total quality factor QTS 0.59
Large signal parameters
- Maximum linear excursion (one way) xmax 16.8mm
- Air volume displaced at xmax VD 359cm³
- Power handling P 600W
- Program power Pmax 1500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 1.98mH
- VC Diameter 50.8mm
Magnet
- Force factor (in series) Bl 14.8N/A
- Motor constant Bl/√RE 7.79N/√W
Diaphragm
- Effective diameter 165mm
- Effective area SD 214cm²
- Moving mass MMS 124g
- Moving mass (without air load) MMD 122g
Suspensions
- Stiffness KMS 12.1N/mm
- Compliance CMS 82.9µm/N
- Equivalent volume to the compliance VAS 5.38L
- Mechanical resistance RMS 5.31N·s/m

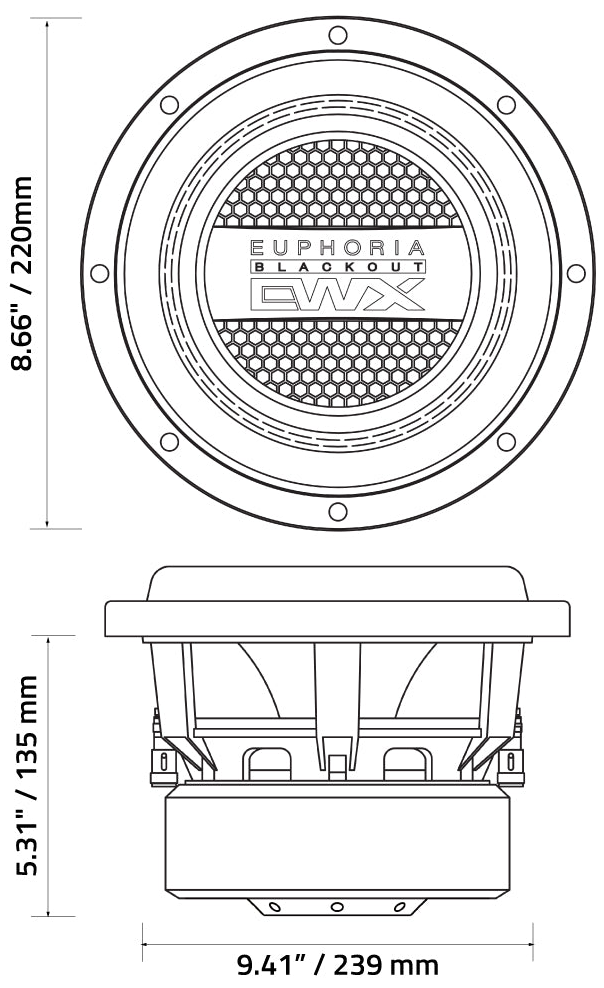

Dimensions
- Nominal diameter 8″
- 220mm
- Overall diameter 220mm
- Baffle cutout diameter 186mm
- Mounting depth 135mm
- Volume occupied by the driver (estimated) 1L
