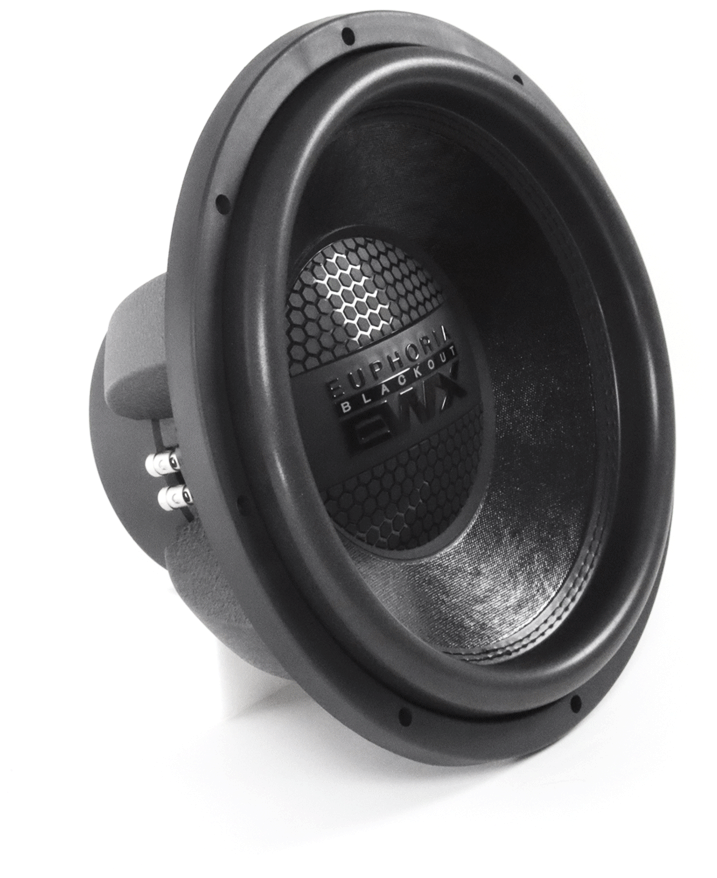

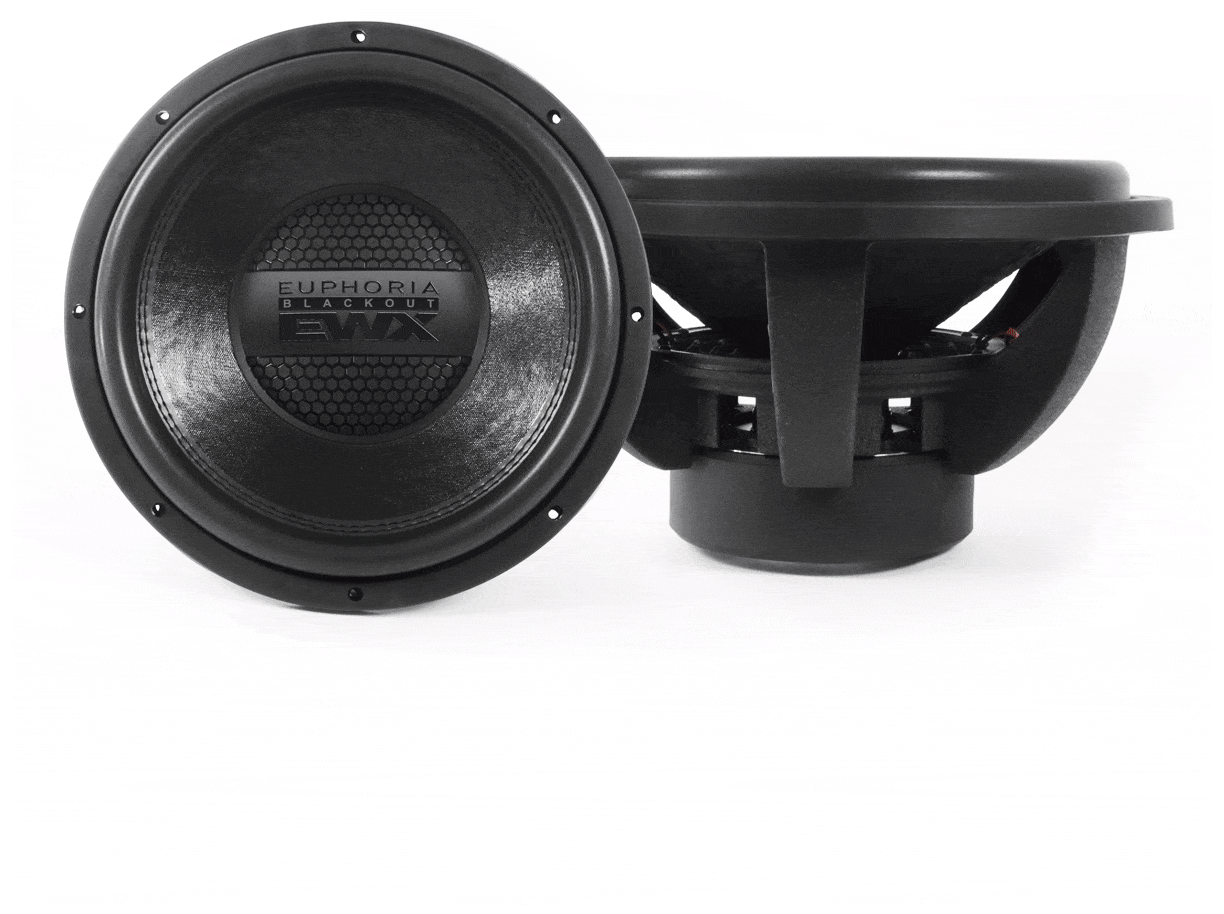

EUPHORIA BLACKOUT EWXB15D2
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 15″ / 395 mm |
| Resonance | 31.8 Hz |
| Q factor | 0.77 |
| Sensitivity | 87.5 dB |
| Linear excursion | ± 17.8 mm |
| Program Power | 2500 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31.8Hz
- Mechanical quality factor QMS 6.83
- Electrical quality factor QES 0.86
- Total quality factor QTS 0.77
Large signal parameters
- Maximum linear excursion (one way) xmax 17.8mm
- Air volume displaced at xmax VD 1485cm³
- Power handling P 1000W
- Program power Pmax 2500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 3.75mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 16.4N/A
- Motor constant Bl/√RE 8.65N/√W
Diaphragm
- Effective diameter 326mm
- Effective area SD 835cm²
- Moving mass MMS 324g
- Moving mass (without air load) MMD 307g
Suspensions
- Stiffness KMS 12.9N/mm
- Compliance CMS 77.5µm/N
- Equivalent volume to the compliance VAS 76.7L
- Mechanical resistance RMS 9.47N·s/m

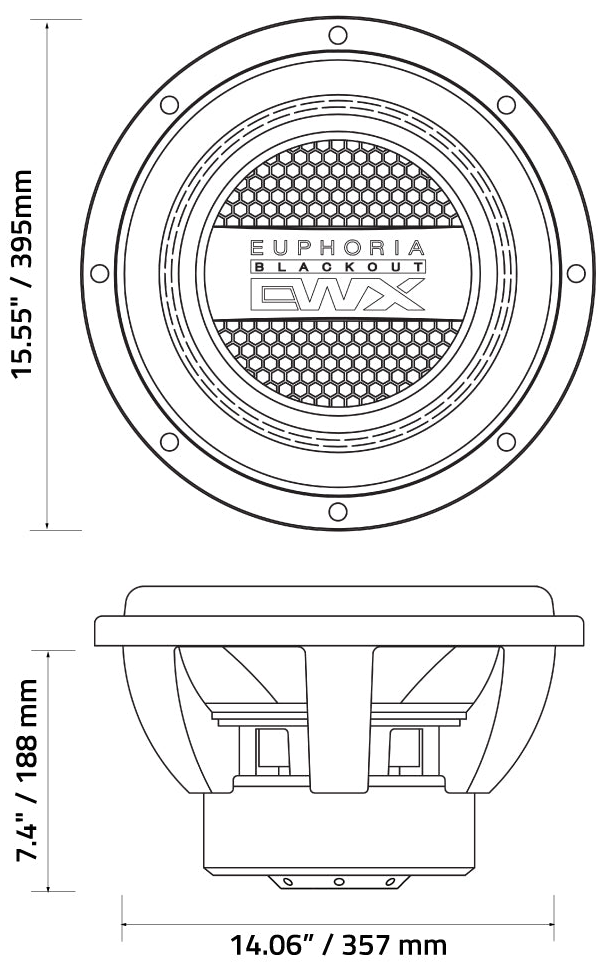

Dimensions
- Nominal diameter 15″
- 395mm
- Overall diameter 395mm
- Baffle cutout diameter 357mm
- Mounting depth 188mm
- Volume occupied by the driver (estimated) 4.7L
