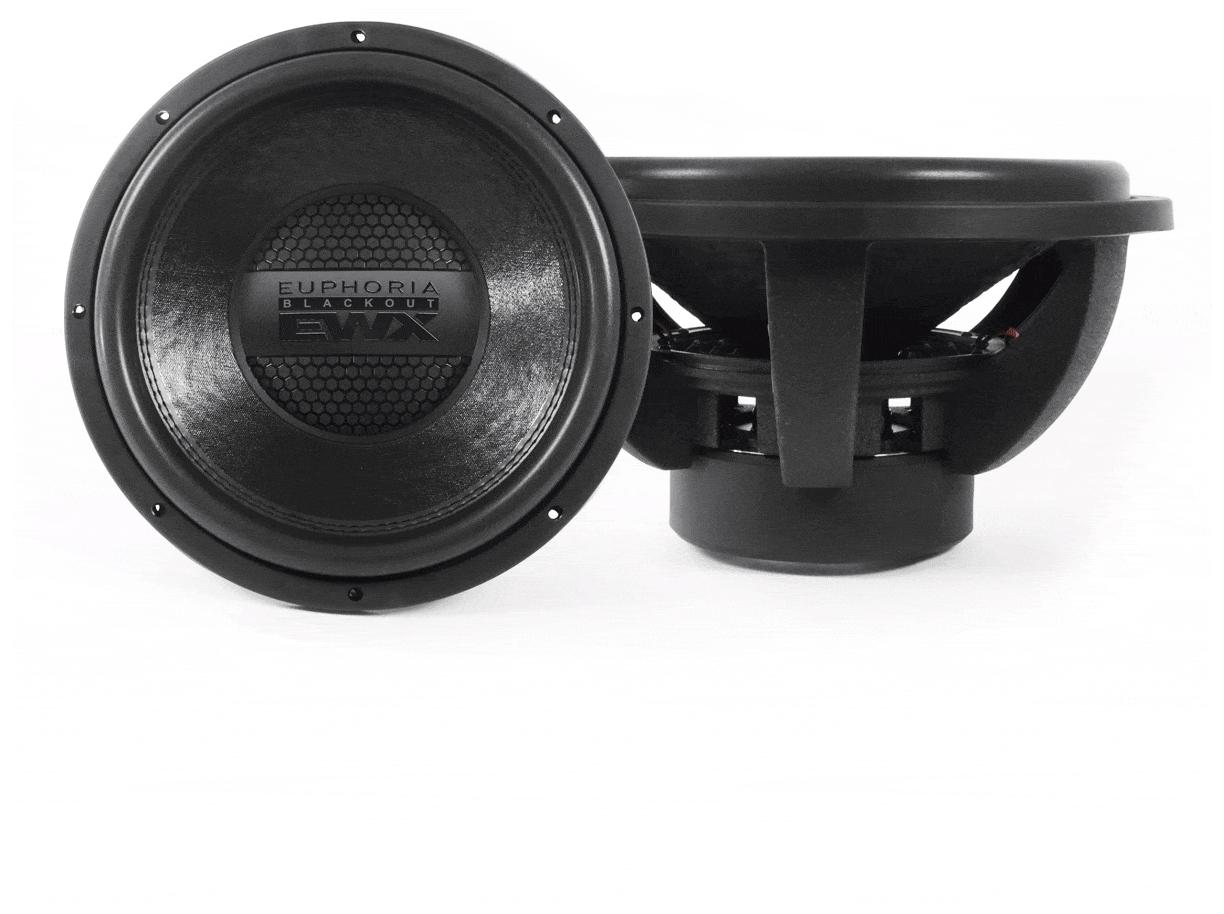

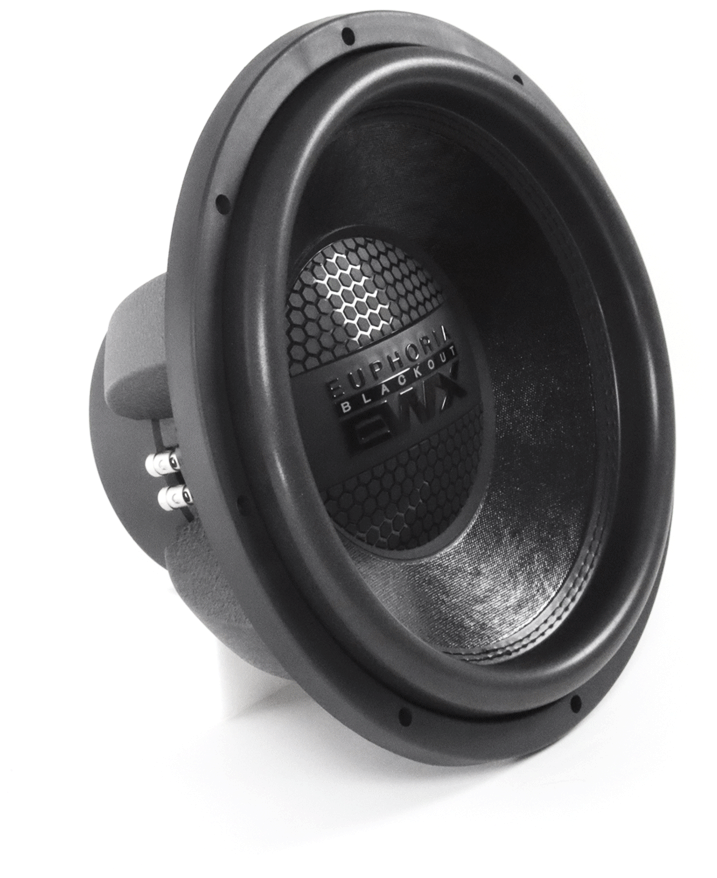

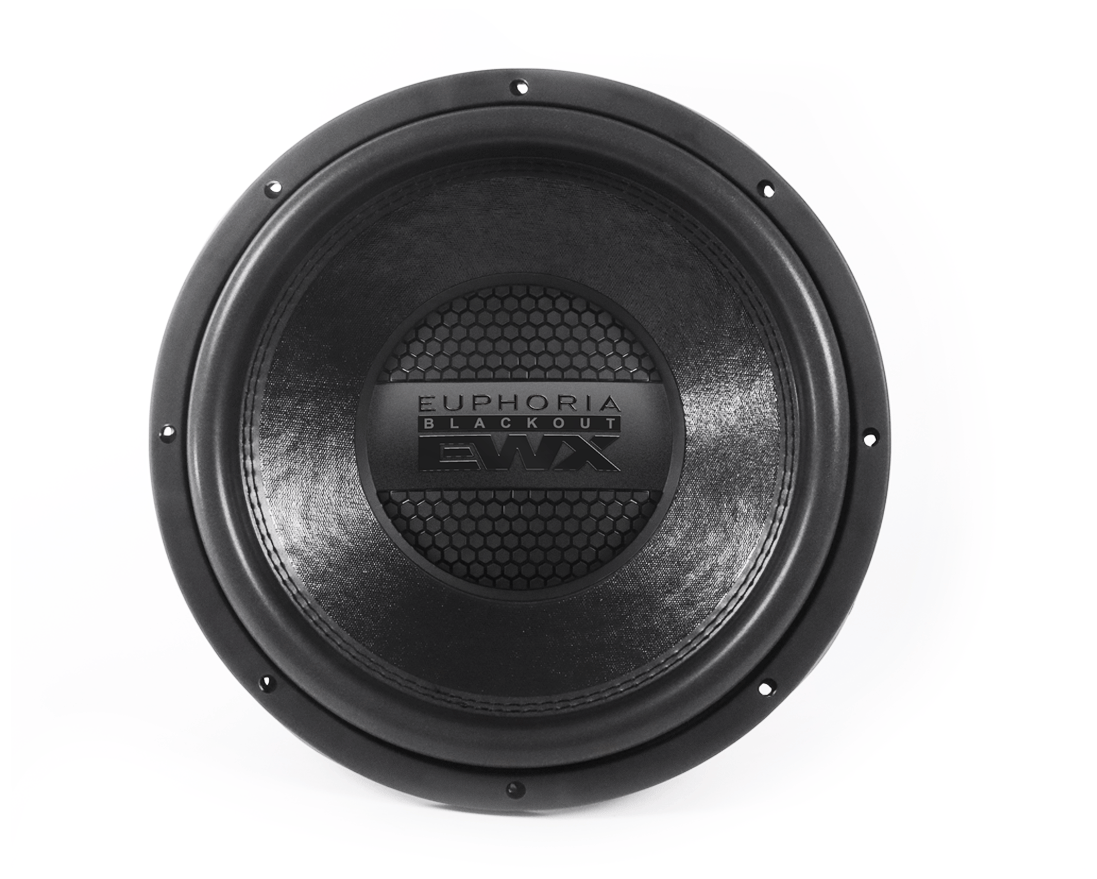

EUPHORIA BLACKOUT EWXB15D4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 15″ / 395 mm |
| Resonance | 35.8 Hz |
| Q factor | 0.85 |
| Sensitivity | 86.8 dB |
| Linear excursion | ± 17.8 mm |
| Program Power | 2500 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 35.8Hz
- Mechanical quality factor QMS 4.84
- Electrical quality factor QES 1.04
- Total quality factor QTS 0.85
Large signal parameters
- Maximum linear excursion (one way) xmax 17.8mm
- Air volume displaced at xmax VD 1485cm³
- Power handling P 1000W
- Program power Pmax 2500W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series, estimated) LE 8.62mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 25N/A
- Motor constant Bl/√RE 9.32N/√W
Diaphragm
- Effective diameter 326mm
- Effective area SD 835cm²
- Moving mass MMS 400g
- Moving mass (without air load) MMD 383g
Suspensions
- Stiffness KMS 20.3N/mm
- Compliance CMS 49.2µm/N
- Equivalent volume to the compliance VAS 48.7L
- Mechanical resistance RMS 18.6N·s/m

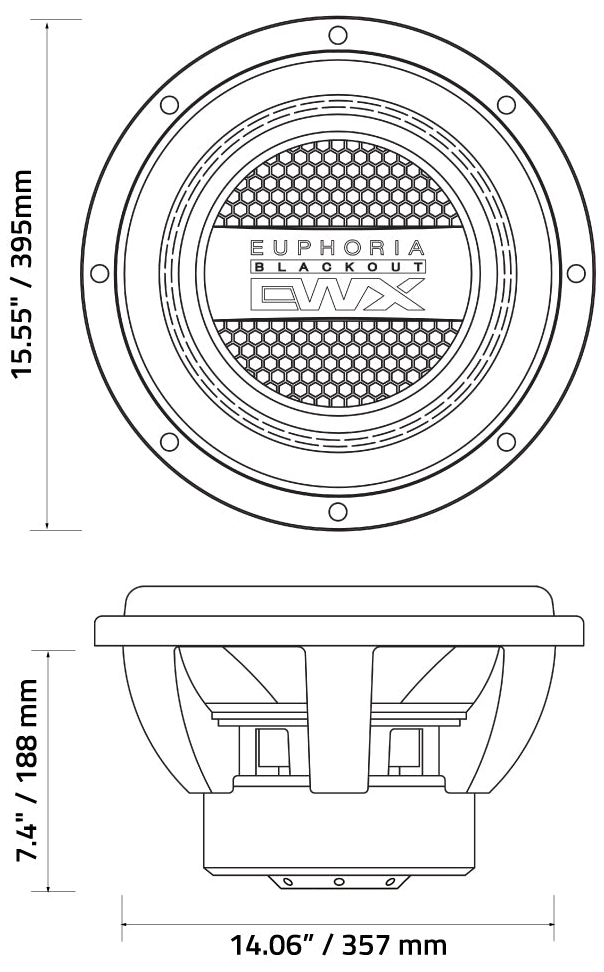

Dimensions
- Nominal diameter 15″
- 395mm
- Overall diameter 395mm
- Baffle cutout diameter 357mm
- Mounting depth 188mm
- Volume occupied by the driver (estimated) 4.7L
