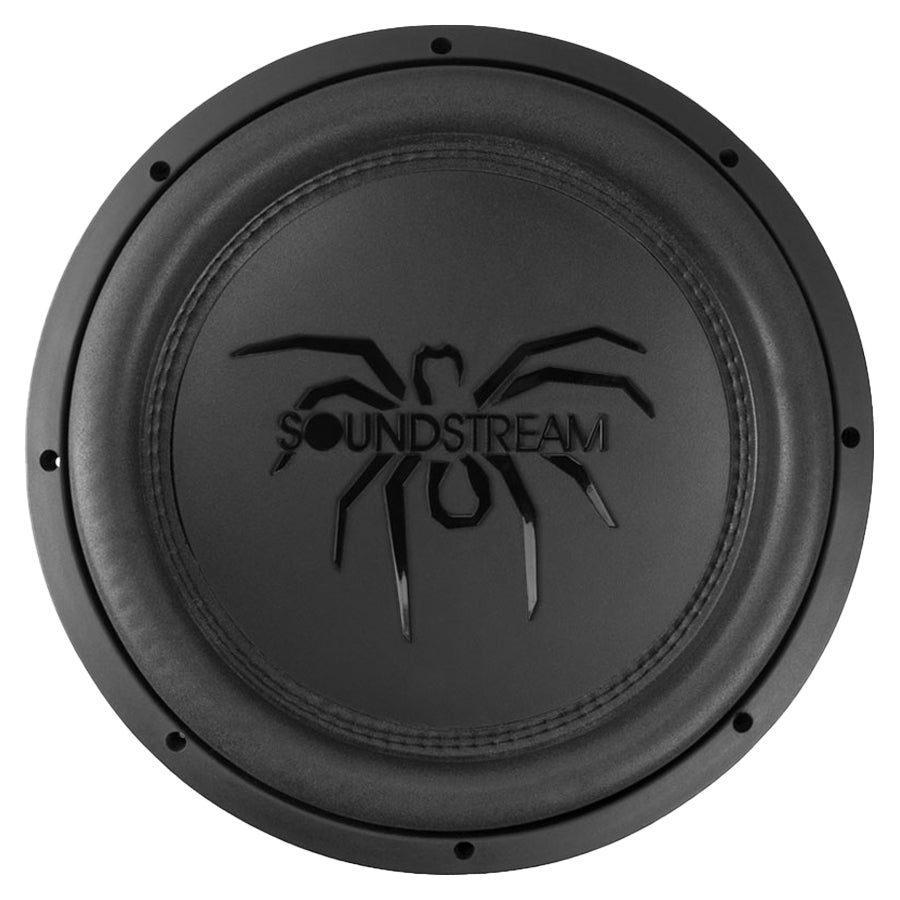

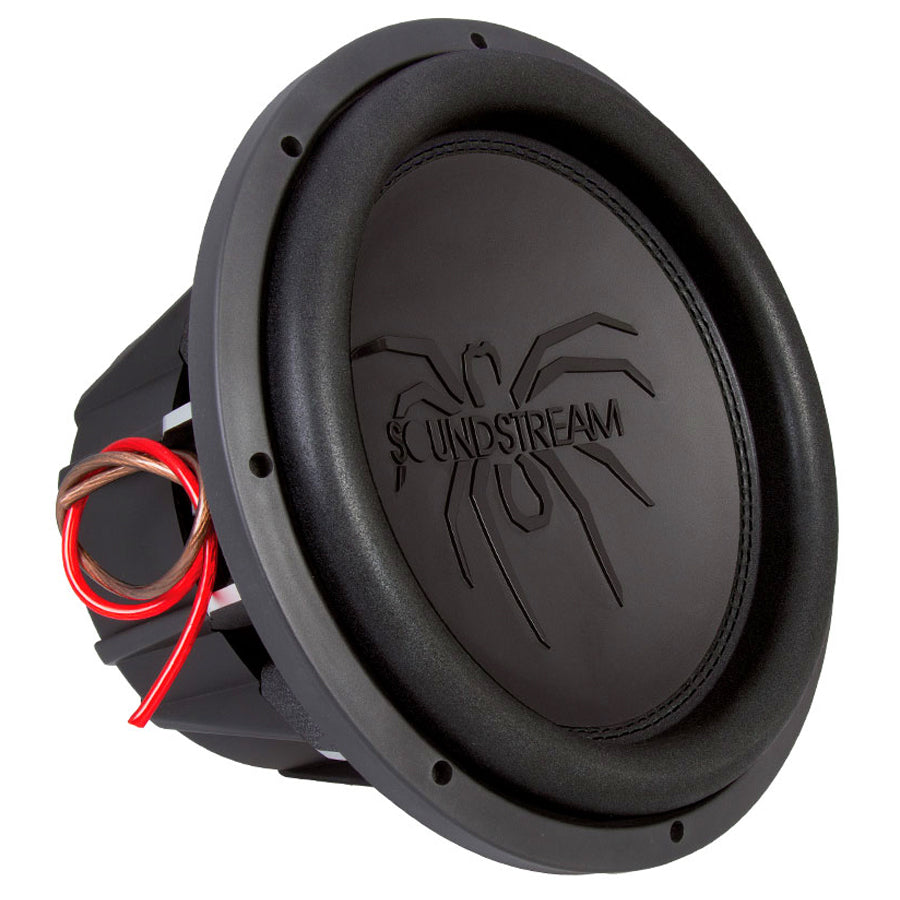

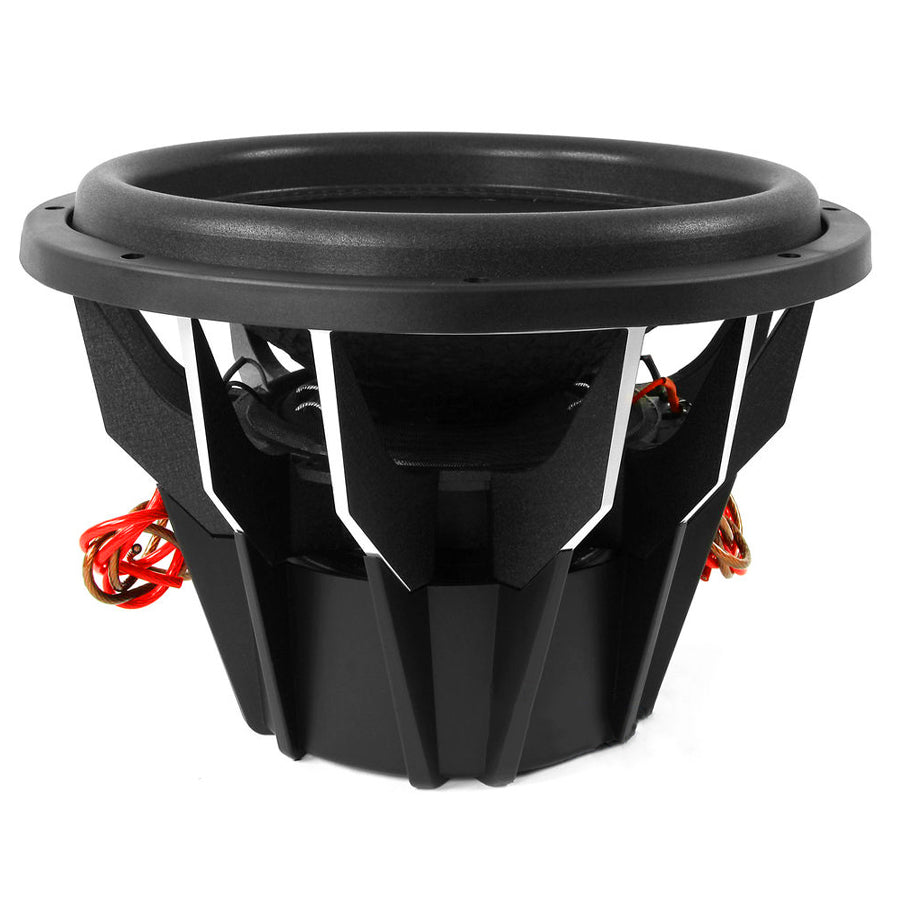

SoundStream Tarantula T5.152
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 15″ / 381 mm |
| Resonance | 34.9 Hz |
| Q factor | 0.89 |
| Sensitivity | 86.6 dB |
| Linear excursion | ± 16.5 mm |
| Program power | 2600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 34.9Hz
- Mechanical quality factor QMS 7.24
- Electrical quality factor QES 1.11
- Total quality factor QTS 0.89
Large signal parameters
- Maximum linear excursion (one way) xmax 16.5mm
- Maximum excursion before damage xlim 53.5mm
- Air volume displaced at xmax VD 1355cm³
- Power handling P 1300W
- Program power Pmax 2600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 4.63mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 18.6N/A
- Motor constant Bl/√RE 9.81N/√W
- Diameter 200mm
Diaphragm
- Effective diameter 323mm
- Effective area SD 821cm²
- Moving mass (including air load) MMS 446g
- Moving mass MMD 429g
- Material Spruce Pulp
Suspensions
- Stiffness KMS 21.5N/mm
- Compliance CMS 46.5µm/N
- Equivalent volume to the compliance VAS 44.5L
- Mechanical resistance RMS 13.5N·s/m
- Surround material Polyether Foam
- Spider material Poly-Cotton
Dimensions
- Nominal diameter 15″
- 381mm
- Overall diameter 394mm
- Baffle cutout diameter 359mm
- Overall depth 229mm
- Volume occupied by the driver (estimated) 6.2L
- Frame material Die-Cast Aluminium
