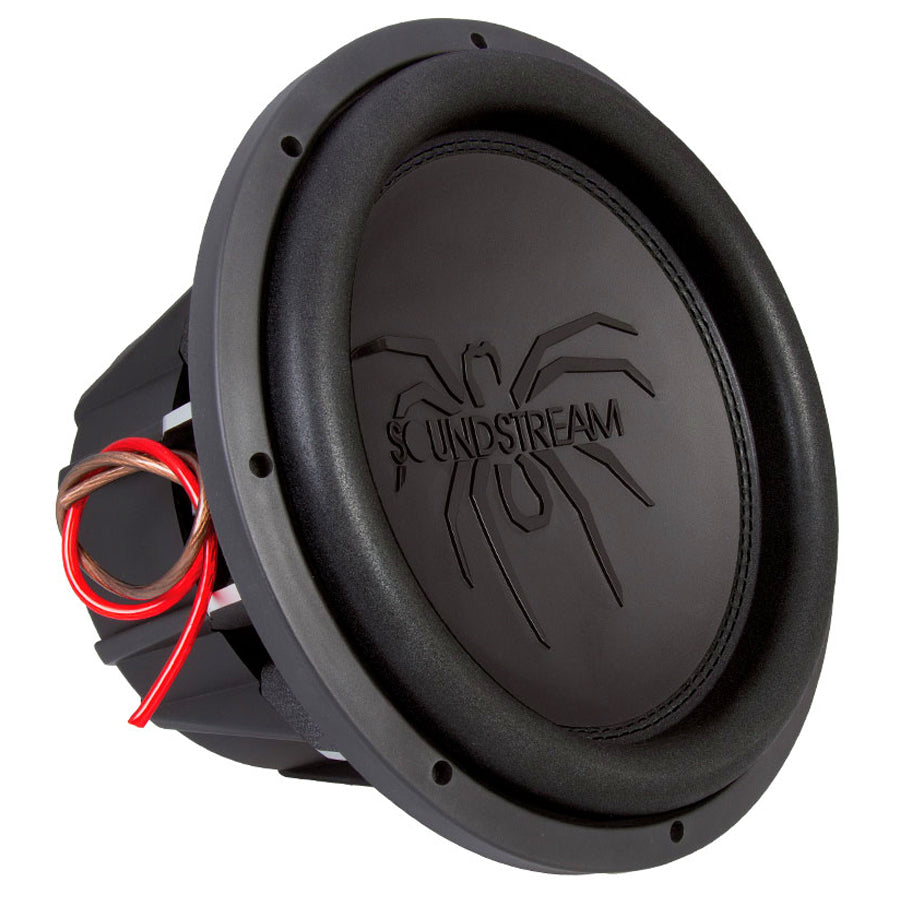

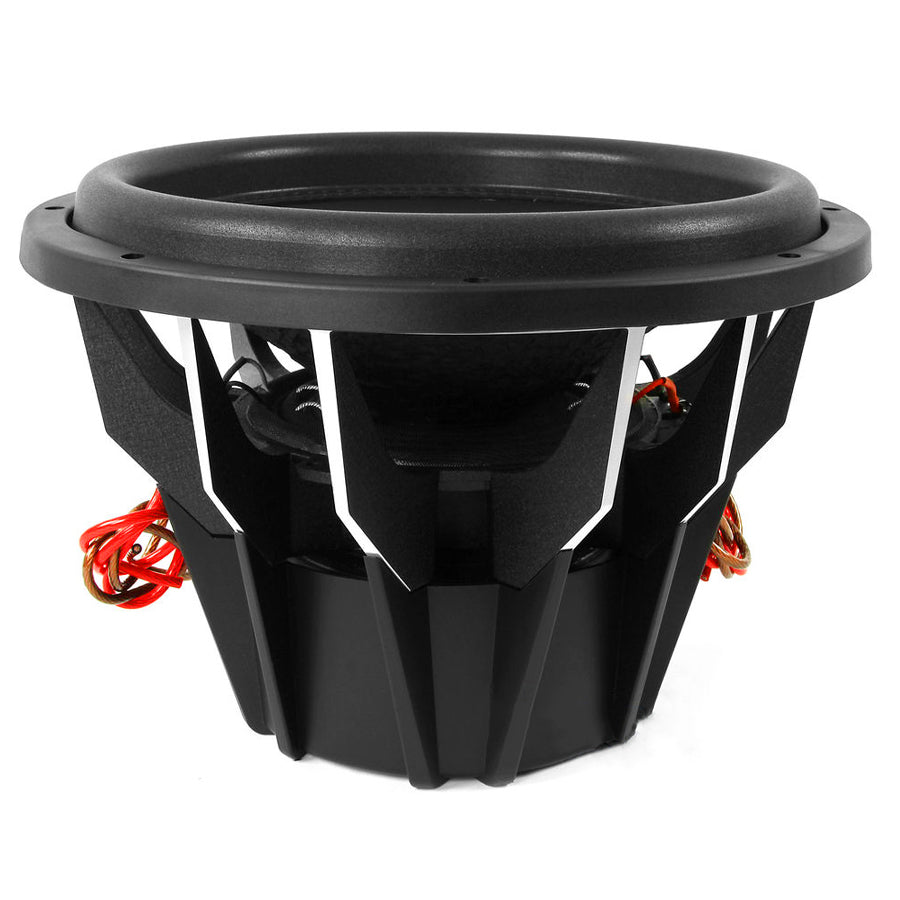

SoundStream Tarantula T5.154
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 15″ / 381 mm |
| Resonance | 32.6 Hz |
| Q factor | 0.68 |
| Sensitivity | 86.1 dB |
| Linear excursion | ± 16.5 mm |
| Program power | 2600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 32.6Hz
- Mechanical quality factor QMS 6.46
- Electrical quality factor QES 0.76
- Total quality factor QTS 0.68
Large signal parameters
- Maximum linear excursion (one way) xmax 16.5mm
- Maximum excursion before damage xlim 53.5mm
- Air volume displaced at xmax VD 1339cm³
- Power handling P 1300W
- Program power Pmax 2600W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series, estimated) LE 8.74mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 25.4N/A
- Motor constant Bl/√RE 9.48N/√W
- Diameter 200mm
- Height 95mm
Diaphragm
- Effective diameter 321mm
- Effective area SD 812cm²
- Moving mass (including air load) MMS 409g
- Moving mass MMD 392g
- Material Spruce Pulp
Suspensions
- Stiffness KMS 14.3N/mm
- Compliance CMS 70µm/N
- Equivalent volume to the compliance VAS 65.4L
- Mechanical resistance RMS 13N·s/m
- Surround material Polyether Foam
- Spider material Poly-Cotton
Dimensions
- Nominal diameter 15″
- 381mm
- Overall diameter 394mm
- Baffle cutout diameter 359mm
- Overall depth 229mm
- Volume occupied by the driver (estimated) 6.2L
- Frame material Die-Cast Aluminium
