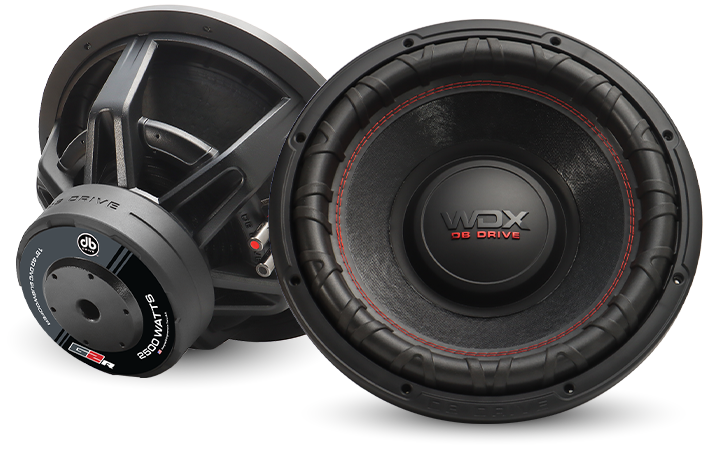

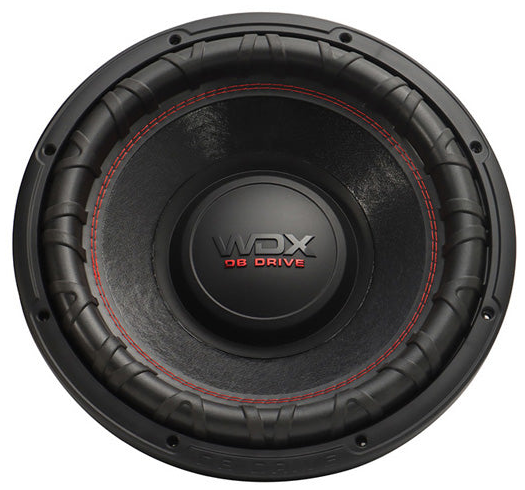

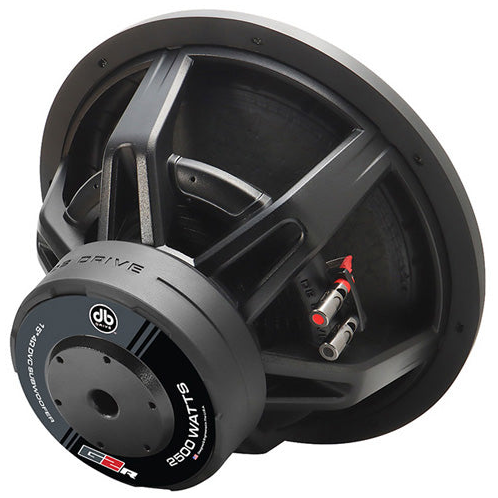

DB Drive WDX15G2R.4
2x2Ω
2x4Ω
Subwoofer
| Nominal diameter | 15″ / 397 mm |
| Resonance | 31.2 Hz |
| Q factor | 0.97 |
| Sensitivity | 85.4 dB |
| Linear excursion | ± 20 mm |
| Program Power | 2500 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.4dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31.2Hz
- Mechanical quality factor QMS 3.61
- Electrical quality factor QES 1.32
- Total quality factor QTS 0.97
Large signal parameters
- Maximum linear excursion (one way) xmax 20mm
- Air volume displaced at xmax VD 1609cm³
- Power handling P 1250W
- Program power Pmax 2500W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 7.2mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 18.6N/A
- Motor constant Bl/√RE 7.36N/√W
Diaphragm
- Effective diameter 320mm
- Effective area SD 805cm²
- Moving mass MMS 364g
- Moving mass (without air load) MMD 348g
- Material Non-Pressed paper
Suspensions
- Stiffness KMS 14N/mm
- Compliance CMS 71.4µm/N
- Equivalent volume to the compliance VAS 65.6L
- Mechanical resistance RMS 19.8N·s/m
- Surround material Double stitched reinforced foam
- Spider material Poly-cotton
Dimensions
- Nominal diameter 15″
- 397mm
- Overall diameter 397mm
- Baffle cutout diameter 349mm
- Mounting depth 203mm
- Volume occupied by the driver (estimated) 4.8L
- Frame material Die-cast Aluminium
