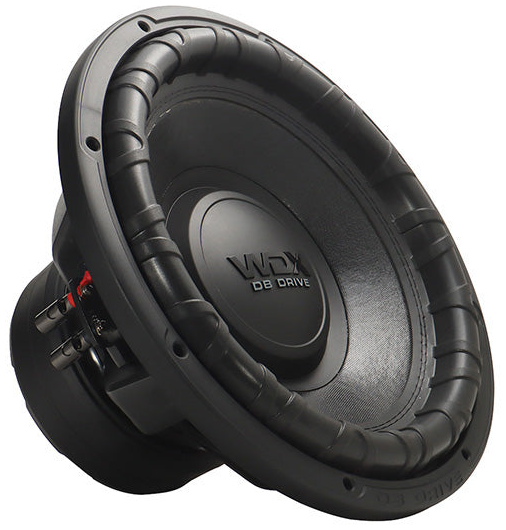

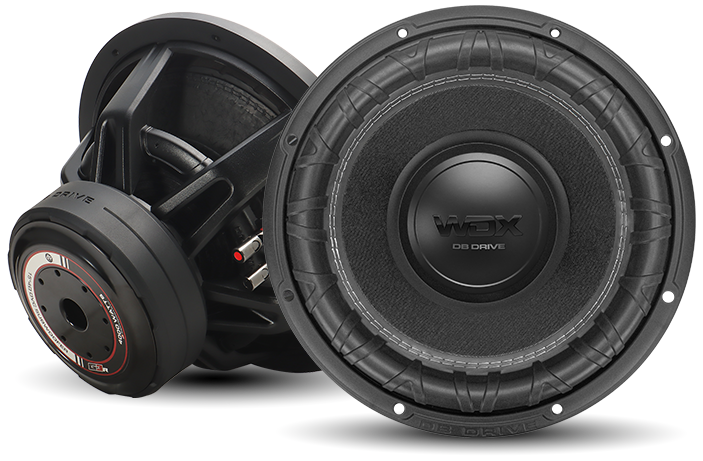

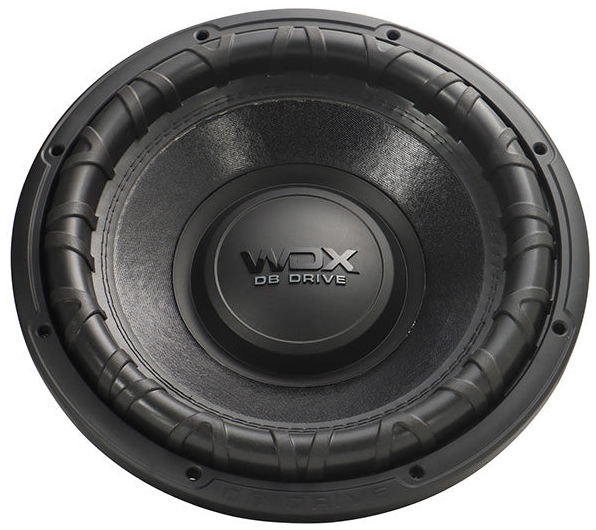

DB Drive WDX15G3R.4
2x4Ω
Subwoofer
| Nominal diameter | 15″ / 397 mm |
| Resonance | 29.5 Hz |
| Q factor | 0.75 |
| Sensitivity | 85.5 dB |
| Linear excursion | ± 23 mm |
| Program Power | 4000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 29.5Hz
- Mechanical quality factor QMS 3.50
- Electrical quality factor QES 0.95
- Total quality factor QTS 0.75
Large signal parameters
- Maximum linear excursion (one way) xmax 23mm
- Air volume displaced at xmax VD 1851cm³
- Power handling P 2000W
- Program power Pmax 4000W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 7.42mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 21.8N/A
- Motor constant Bl/√RE 8.61N/√W
Diaphragm
- Effective diameter 320mm
- Effective area SD 805cm²
- Moving mass MMS 381g
- Moving mass (without air load) MMD 364g
- Material Non-Pressed paper cone
Suspensions
- Stiffness KMS 13.1N/mm
- Compliance CMS 76.4µm/N
- Equivalent volume to the compliance VAS 70.2L
- Mechanical resistance RMS 20.2N·s/m
- Surround material Double stitched reinforced foam surround
- Spider material Poly-cotton
Dimensions
- Nominal diameter 15″
- 397mm
- Overall diameter 397mm
- Baffle cutout diameter 349mm
- Mounting depth 207mm
- Volume occupied by the driver (estimated) 4.8L
- Frame material Die-cast Aluminium
