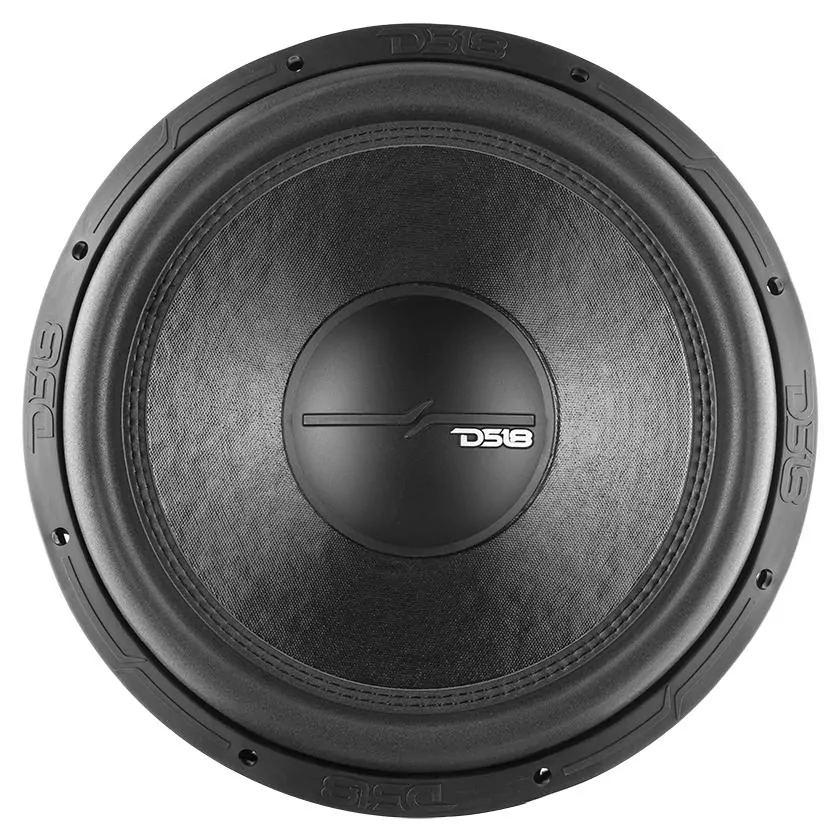

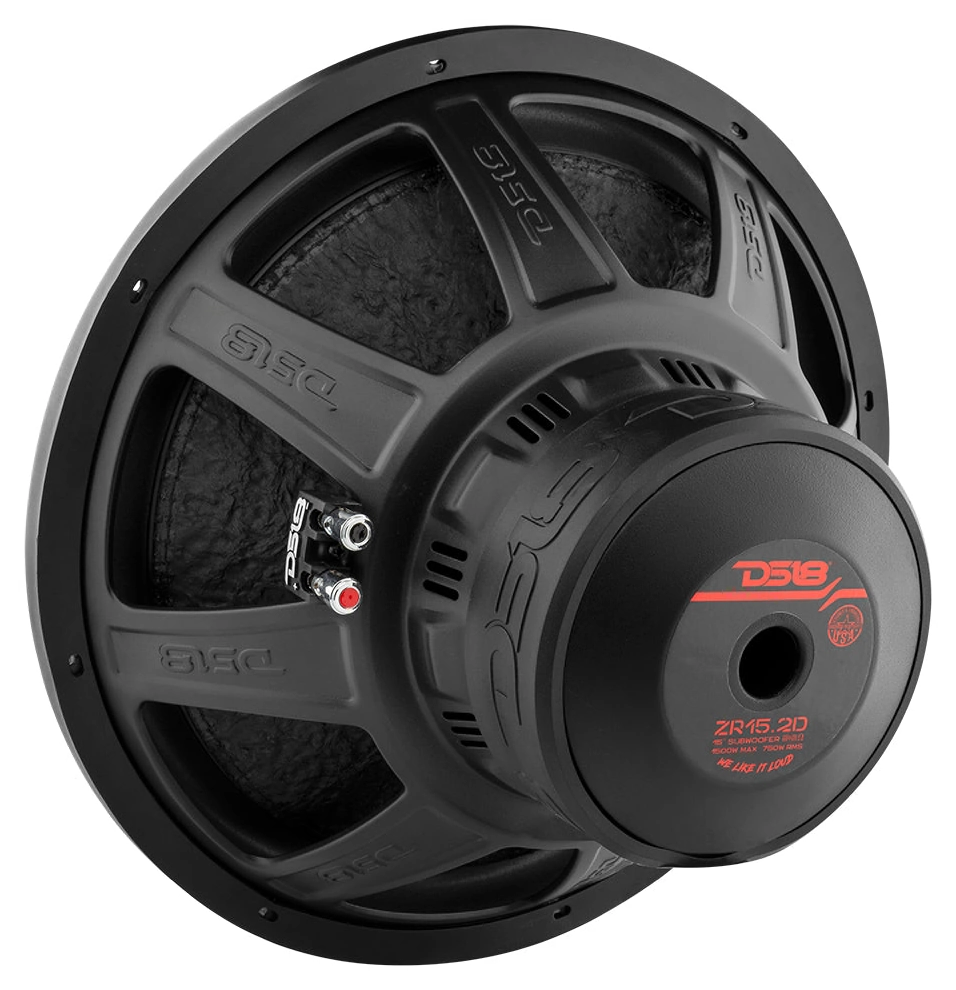

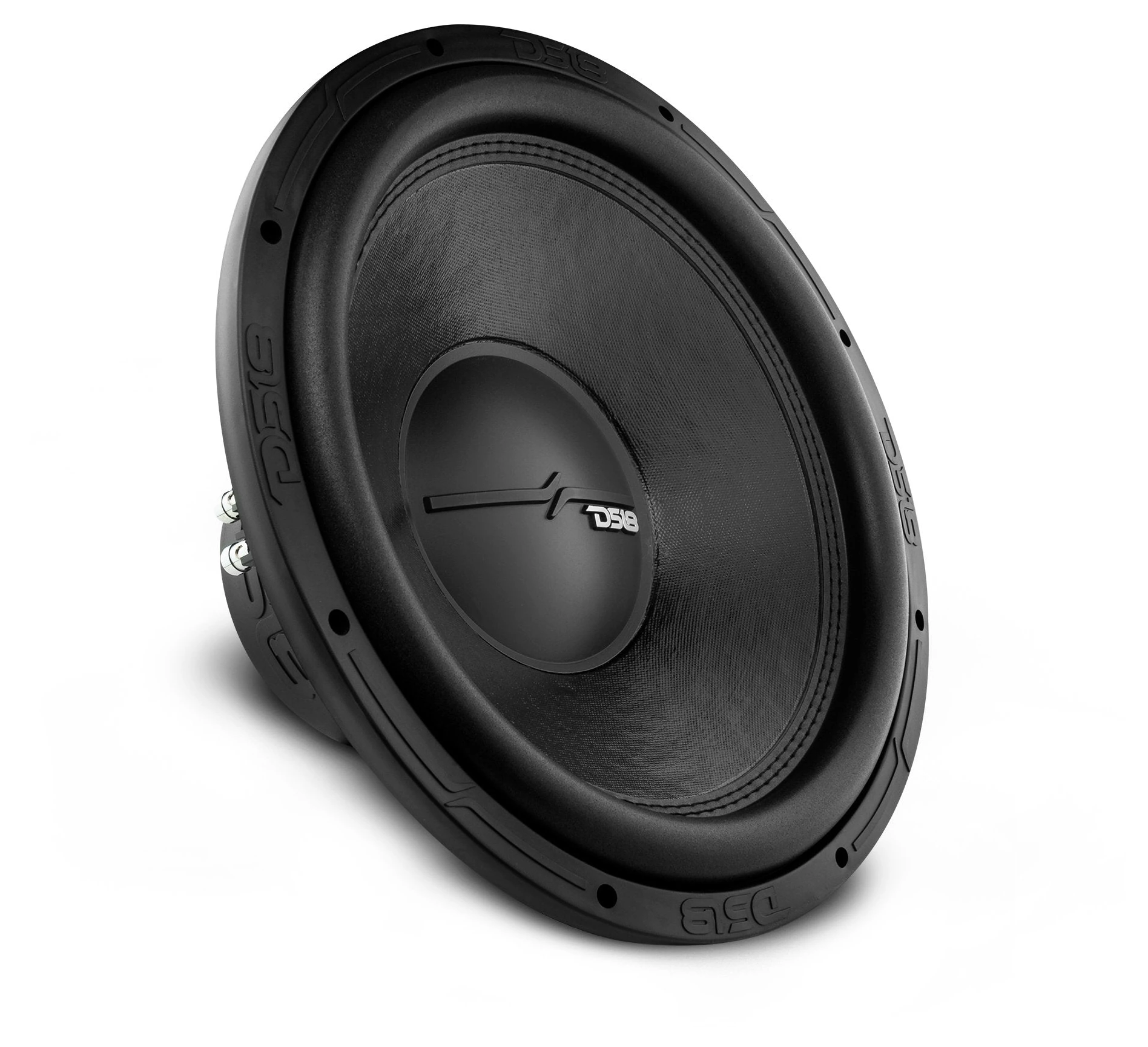

DS18 ZR15.2D
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 15″ / 391 mm |
| Resonance | 26 Hz |
| Q factor | 0.69 |
| Sensitivity | 86.9 dB |
| Program Power | 1500 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.9dB
- Frequency response 21 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 26Hz
- Mechanical quality factor QMS 4.34
- Electrical quality factor QES 0.82
- Total quality factor QTS 0.69
Large signal parameters
- Power handling P 750W
- Program power Pmax 1500W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.4Ω
- Inductance (1kHz, in series) LE 5.68mH
- VC Diameter 61.6mm
- Winding material Copper
- Former material Aluminum
Magnet
- Force factor (in series) Bl 17.2N/A
- Motor constant Bl/√RE 8.18N/√W
- Diameter 155mm
- Weight 2.835kg
- Material Ferrite
Diaphragm
- Effective diameter 326mm
- Effective area SD 835cm²
- Moving mass MMS 346g
- Moving mass (without air load) MMD 329g
- Material Non Pressed Paper
Suspensions
- Stiffness KMS 13.3N/mm
- Compliance CMS 75.4µm/N
- Equivalent volume to the compliance VAS 76.5L
- Mechanical resistance RMS 13N·s/m
- Surround material Foam

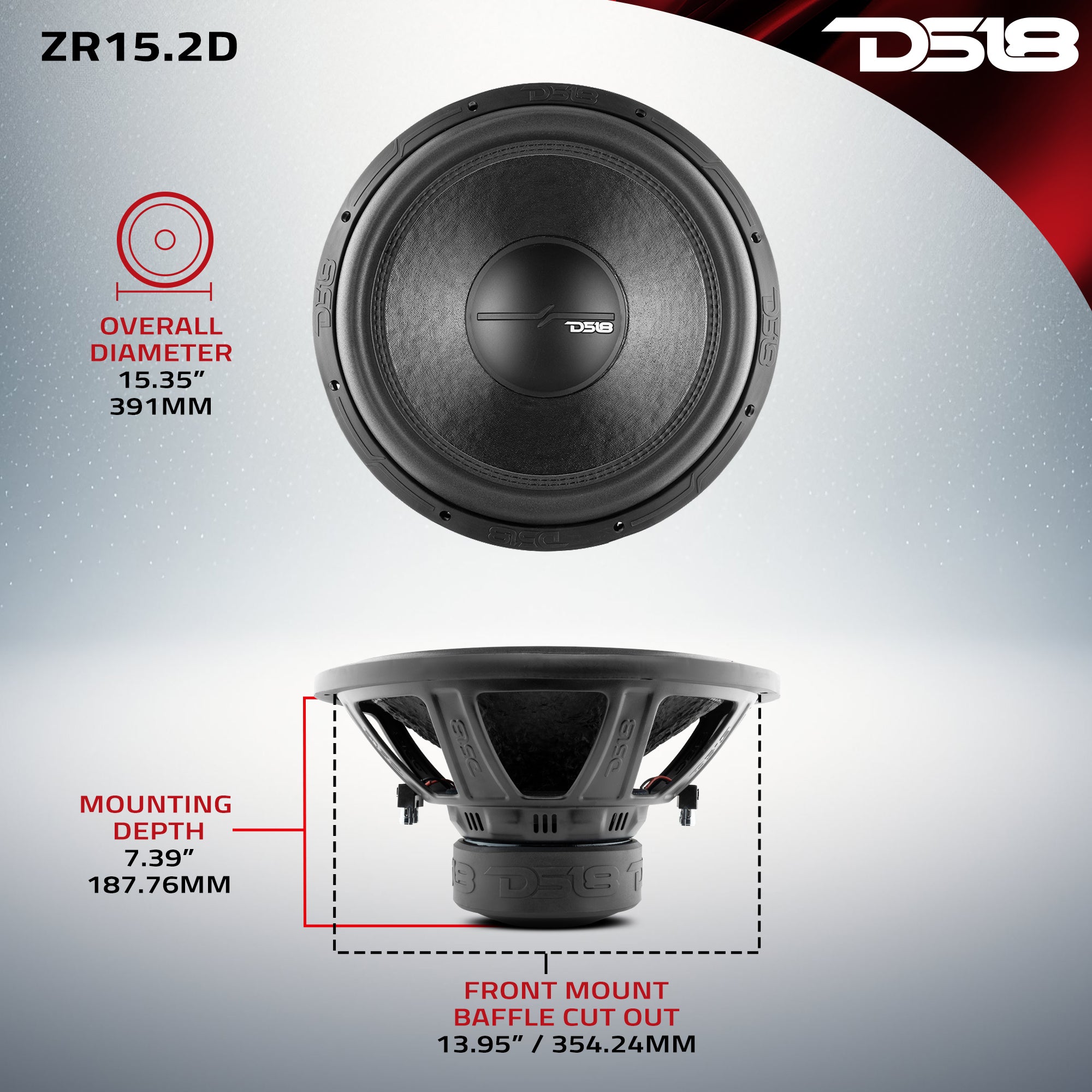

Dimensions
- Nominal diameter 15″
- 391mm
- Overall diameter 391mm
- Baffle cutout diameter 354mm
- Overall depth 214mm
- Flange thickness 26mm
- Mounting depth 188mm
- Volume occupied by the driver 3.12L
- Frame material Steel
