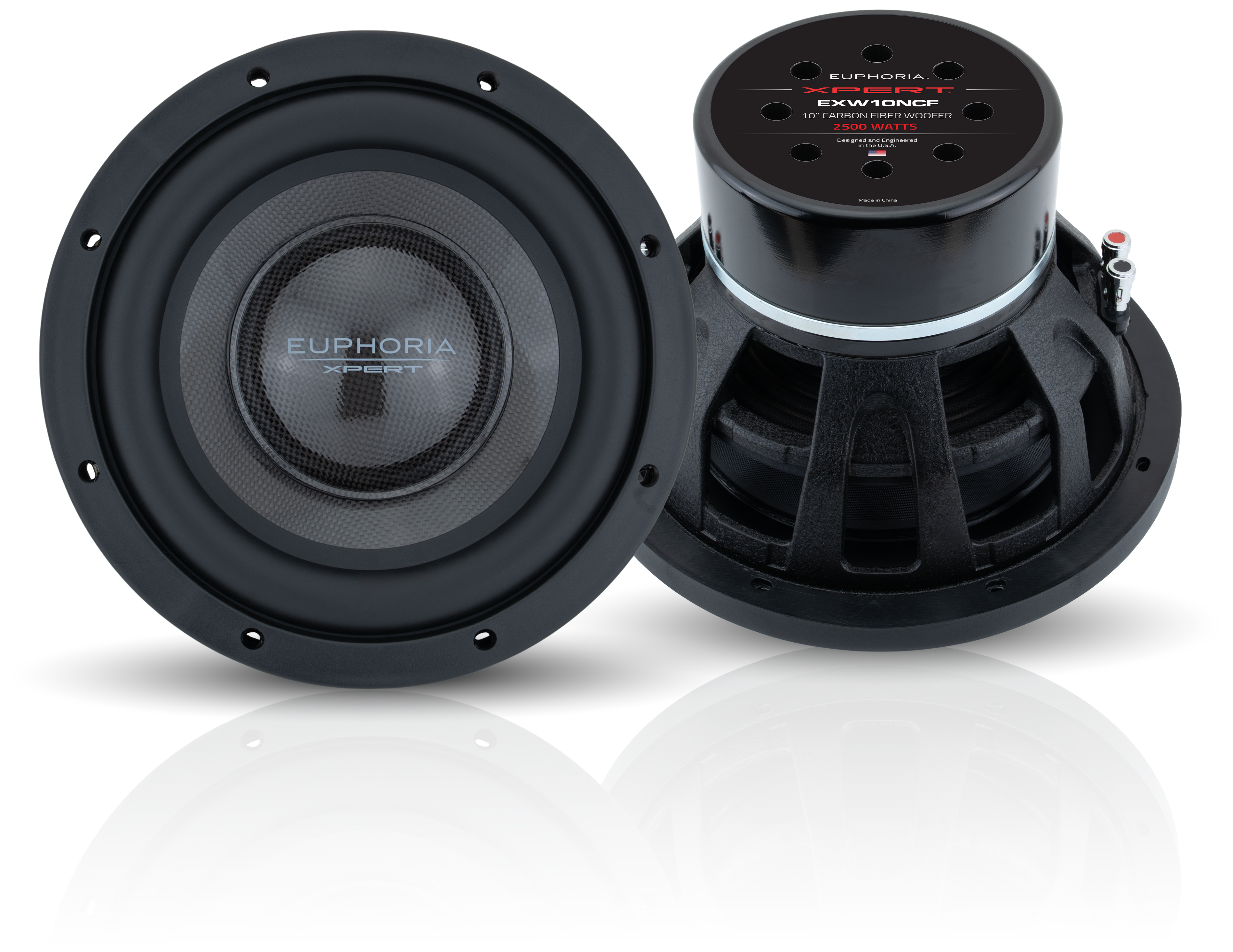

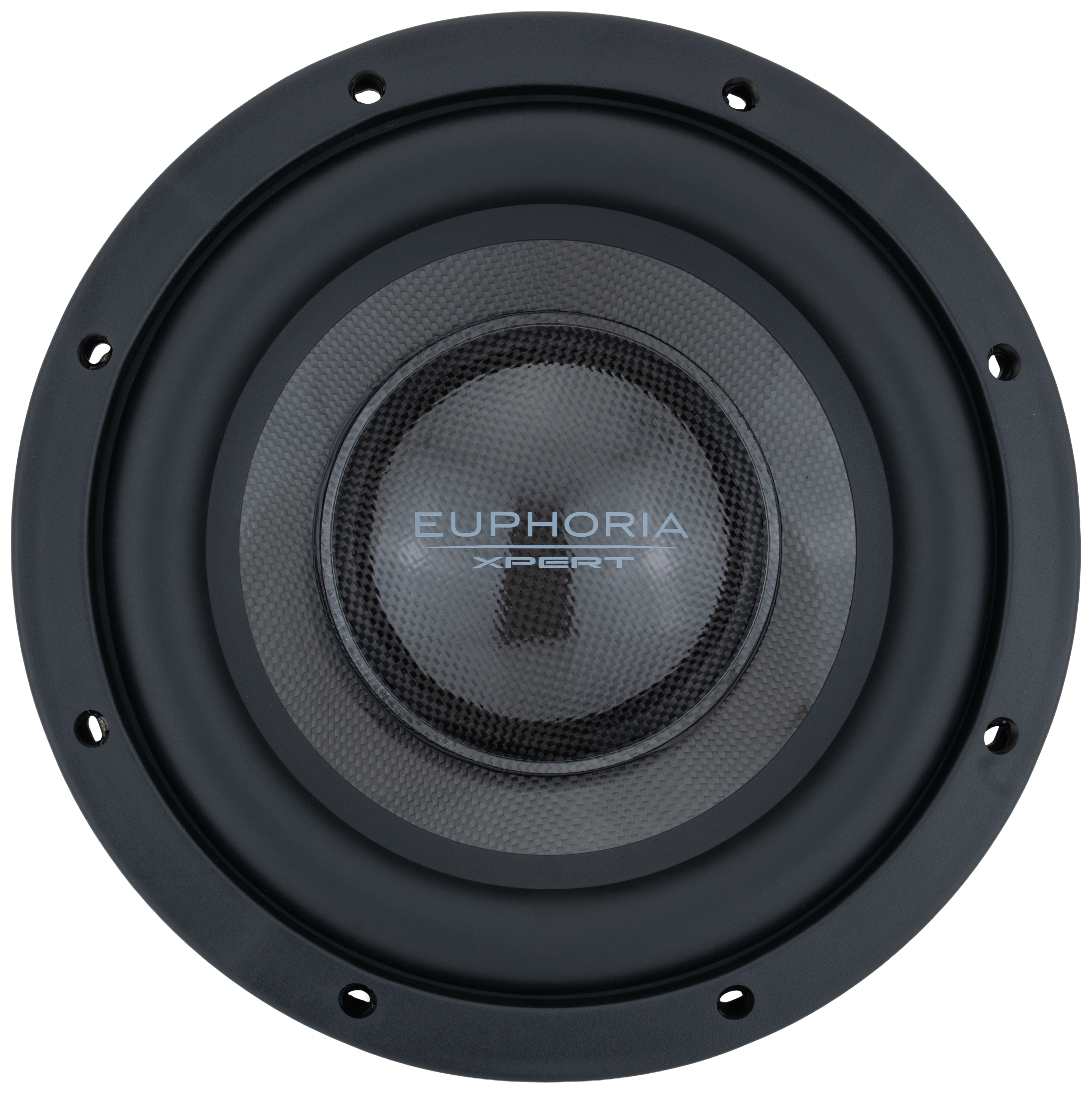

EUPHORIA XPERT EXW10NCF
2x4Ω
Woofer
| Nominal diameter | 10″ / 279 mm |
| Resonance | 42.8 Hz |
| Q factor | 0.42 |
| Sensitivity | 84.1 dB |
| Linear excursion | ± 28 mm |
| Program Power | 2500 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 42.8Hz
- Mechanical quality factor QMS 2.73
- Electrical quality factor QES 0.50
- Total quality factor QTS 0.42
Large signal parameters
- Maximum linear excursion (one way) xmax 28mm
- Air volume displaced at xmax VD 971cm³
- Power handling P 1250W
- Program power Pmax 2500W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 6.4Ω
- Inductance (1kHz, in series, estimated) LE 5.08mH
- VC Diameter 63.5mm
Magnet
- Force factor (in series) Bl 27.2N/A
- Motor constant Bl/√RE 10.8N/√W
- Material Neodymium
Diaphragm
- Effective diameter 210mm
- Effective area SD 347cm²
- Moving mass MMS 216g
- Moving mass (without air load) MMD 211g
- Material Carbon Fiber
Suspensions
- Stiffness KMS 15.6N/mm
- Compliance CMS 63.9µm/N
- Equivalent volume to the compliance VAS 10.9L
- Mechanical resistance RMS 21.3N·s/m
- Surround material Rubber

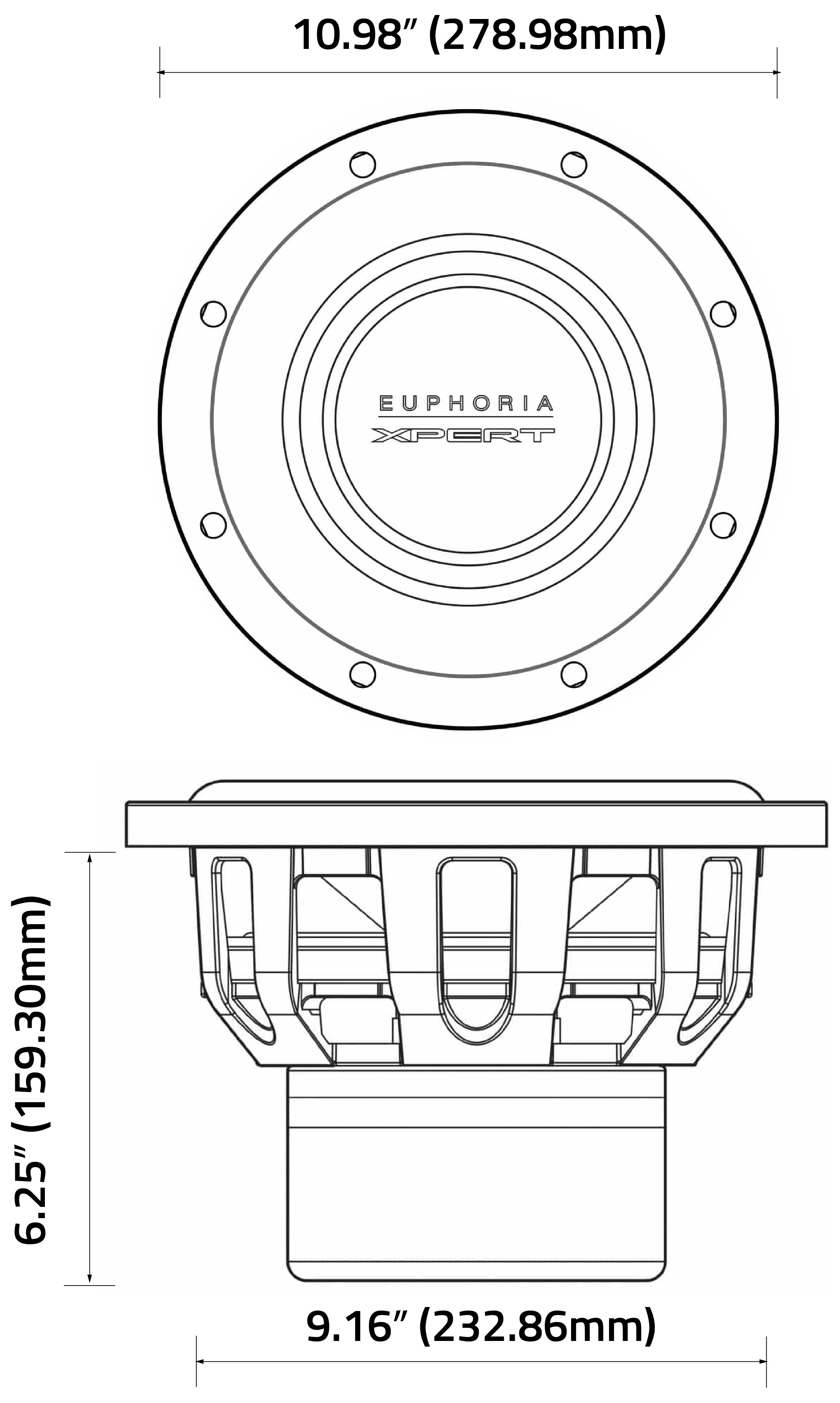

Dimensions
- Nominal diameter 10″
- 279mm
- Overall diameter 279mm
- Baffle cutout diameter 233mm
- Mounting depth 159mm
- Volume occupied by the driver (estimated) 1.9L
- Frame material Die-Cast Aluminium
