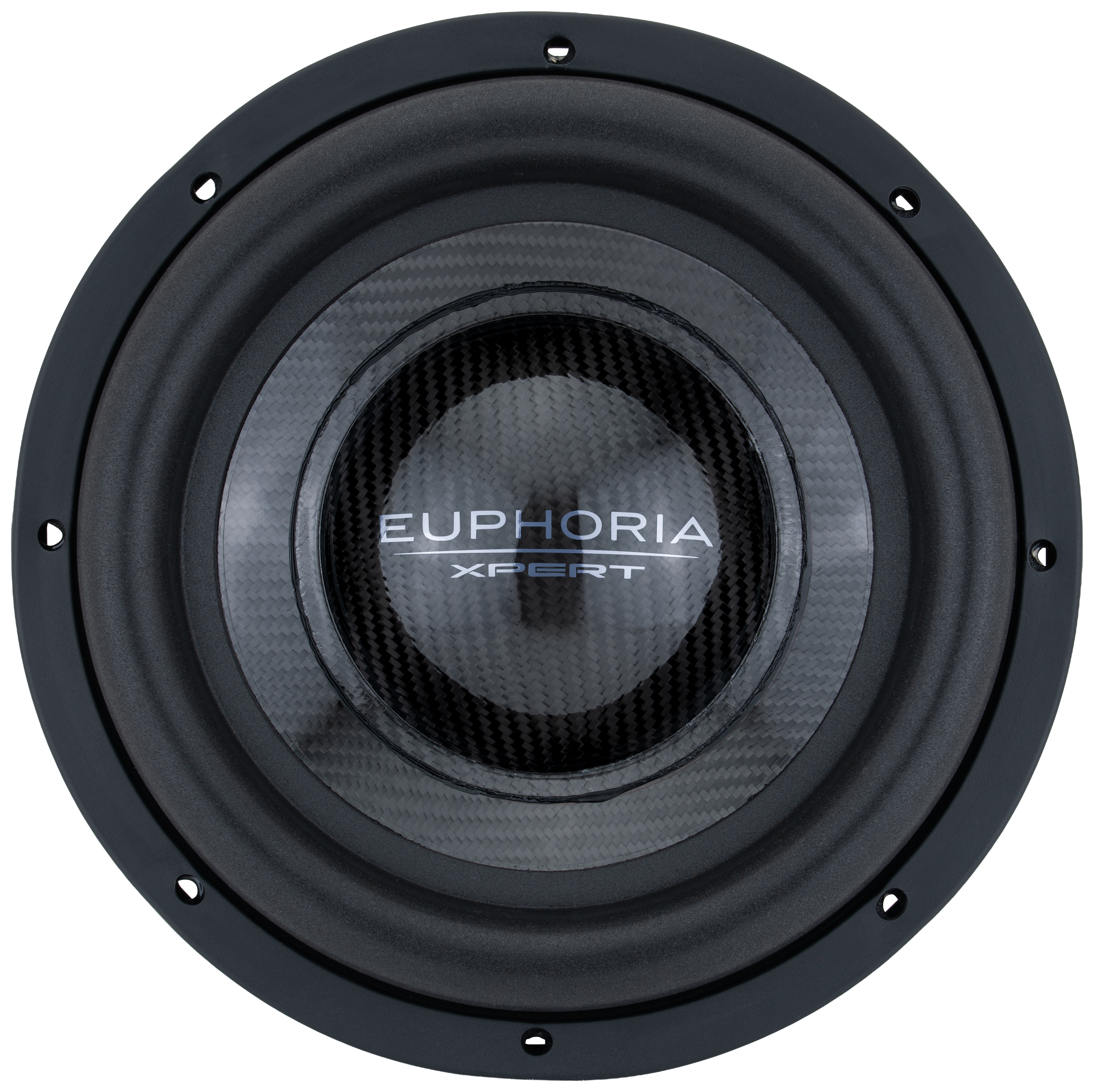

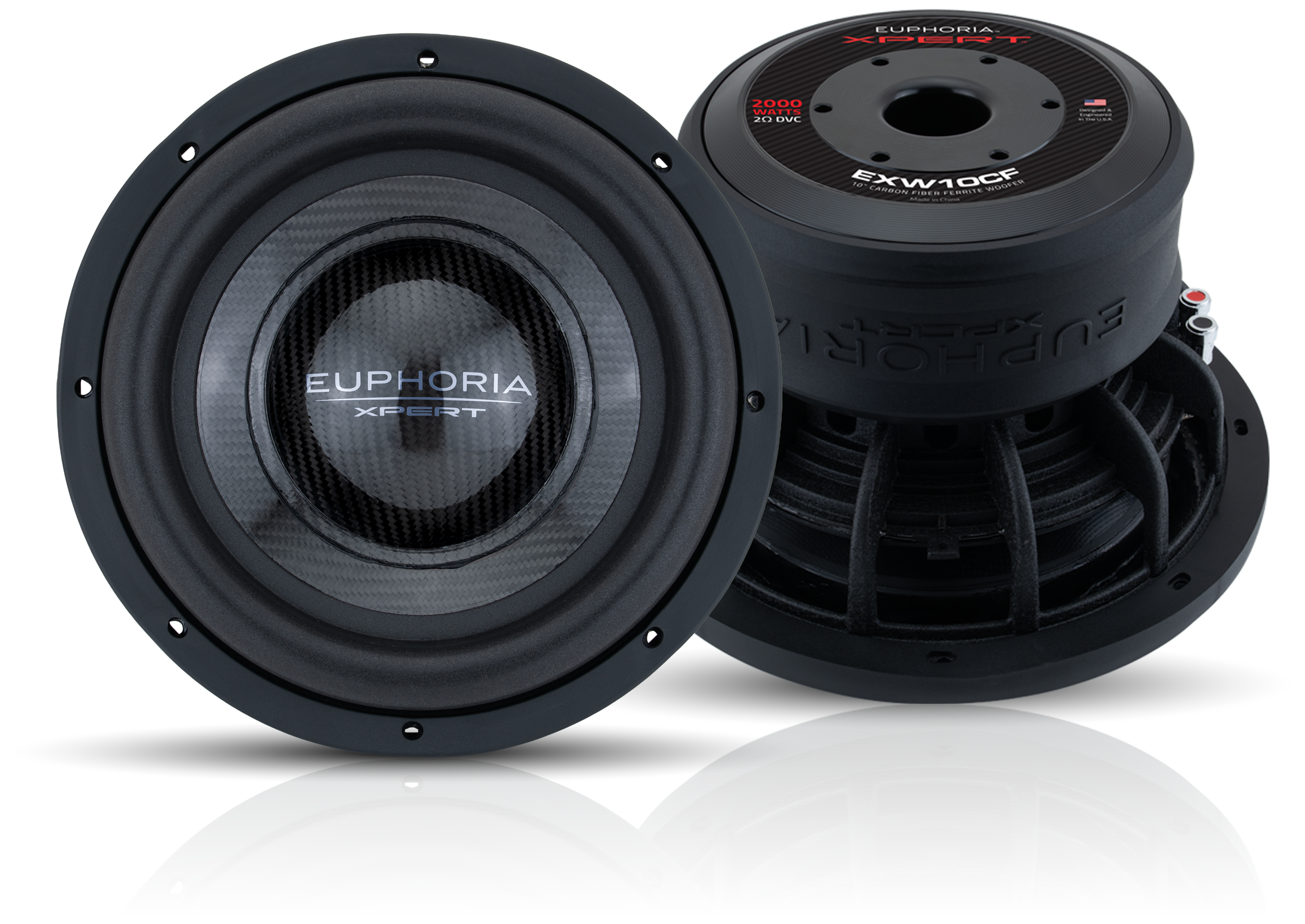

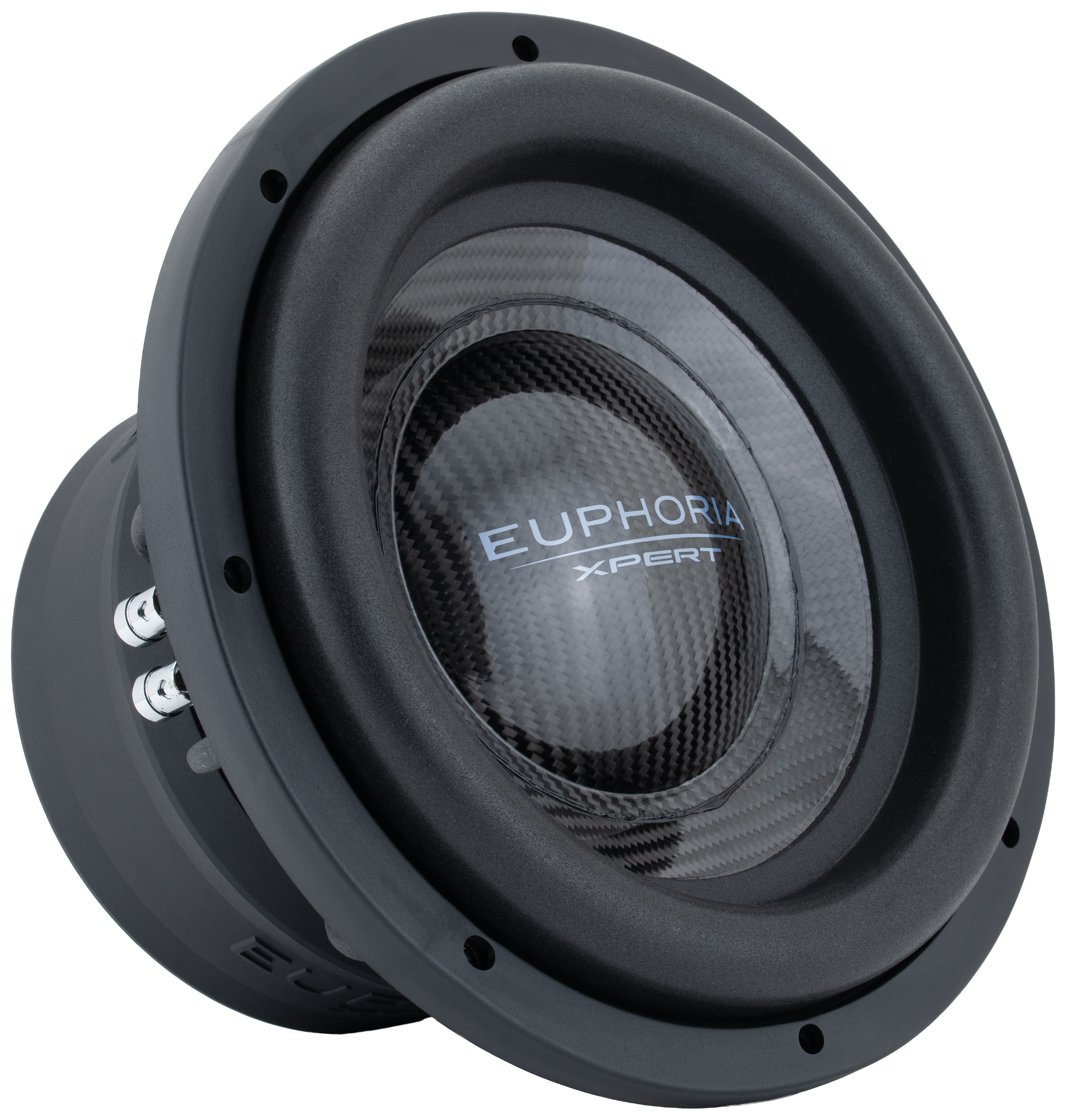

EUPHORIA XPERT EXW10CF
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 277 mm |
| Resonance | 41.3 Hz |
| Q factor | 0.43 |
| Sensitivity | 83 dB |
| Linear excursion | ± 24 mm |
| Program Power | 2000 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83dB
Thiele & Small parameters
- Resonance frequency (free air) fS 41.3Hz
- Mechanical quality factor QMS 2.26
- Electrical quality factor QES 0.53
- Total quality factor QTS 0.43
Large signal parameters
- Maximum linear excursion (one way) xmax 24mm
- Air volume displaced at xmax VD 872cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series, estimated) LE 3.38mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 22.2N/A
- Motor constant Bl/√RE 11.7N/√W
- Material Ferrite
Diaphragm
- Effective diameter 215mm
- Effective area SD 363cm²
- Moving mass MMS 277g
- Moving mass (without air load) MMD 272g
- Material Carbon Fiber
Suspensions
- Stiffness KMS 18.7N/mm
- Compliance CMS 53.5µm/N
- Equivalent volume to the compliance VAS 10L
- Mechanical resistance RMS 31.9N·s/m
- Surround material Foam
Dimensions
- Nominal diameter 10″
- 277mm
- Overall diameter 277mm
- Baffle cutout diameter 238mm
- Mounting depth 155mm
- Volume occupied by the driver (estimated) 1.9L
- Frame material Die-Cast Aluminium
