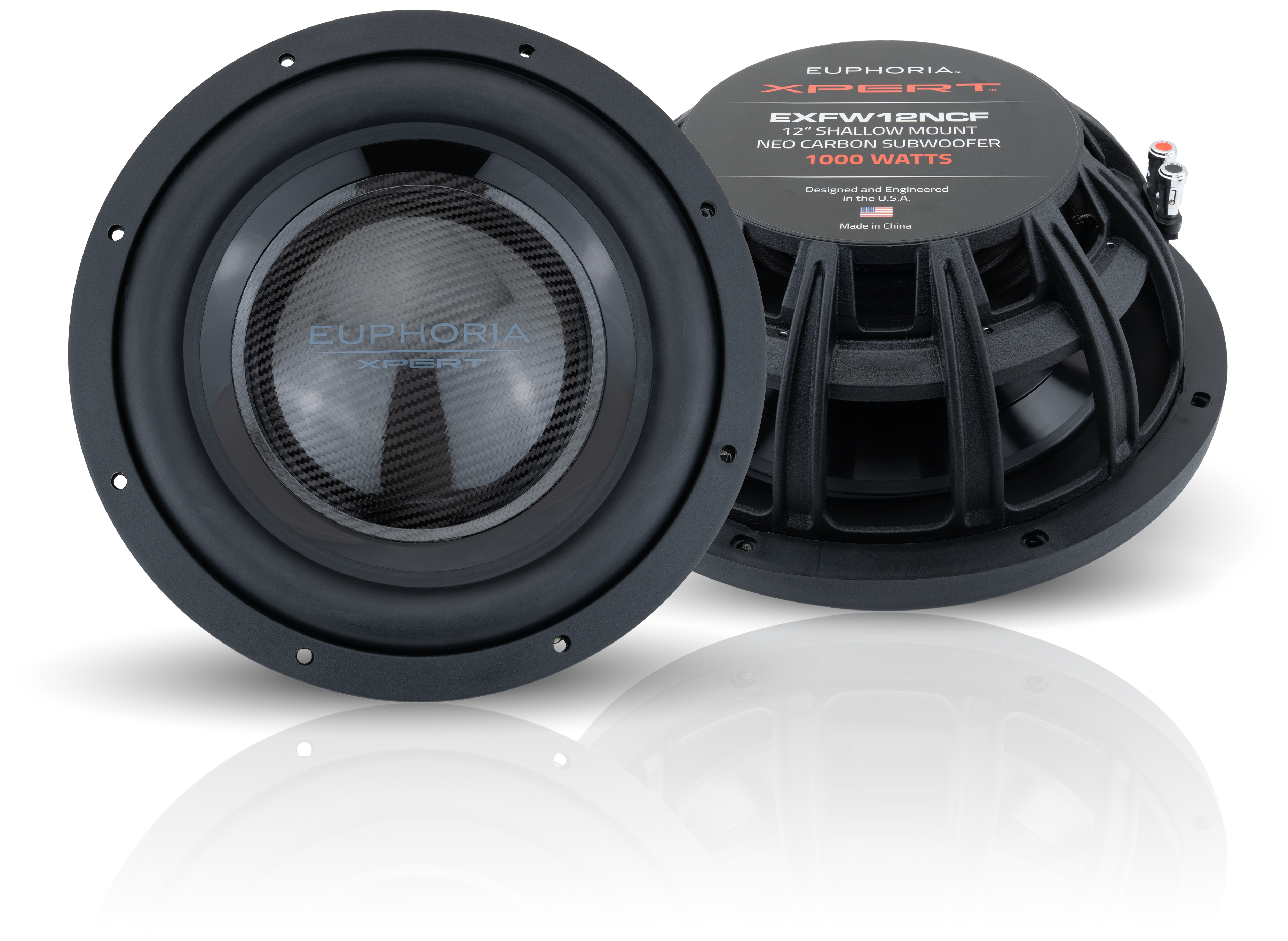

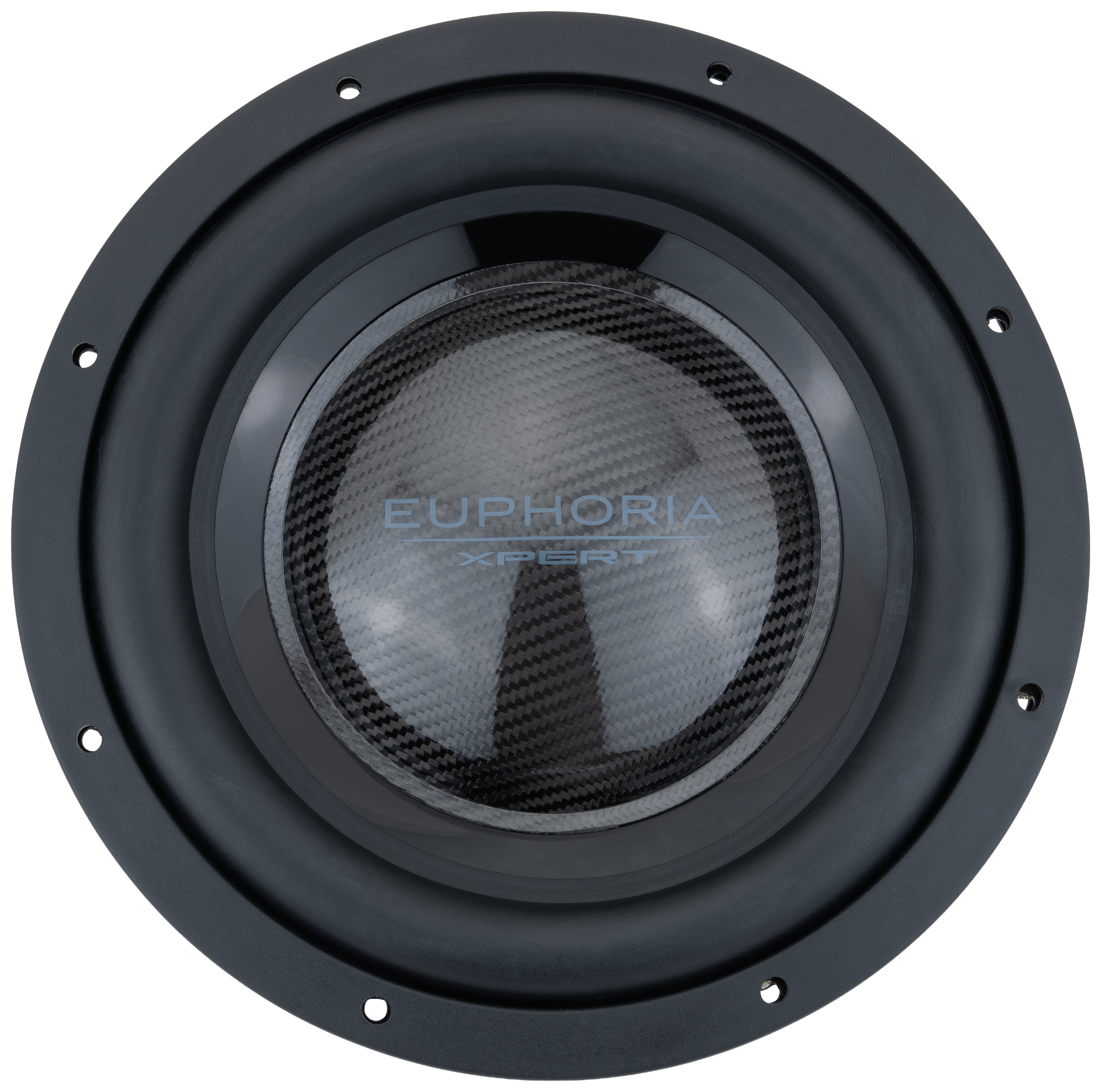

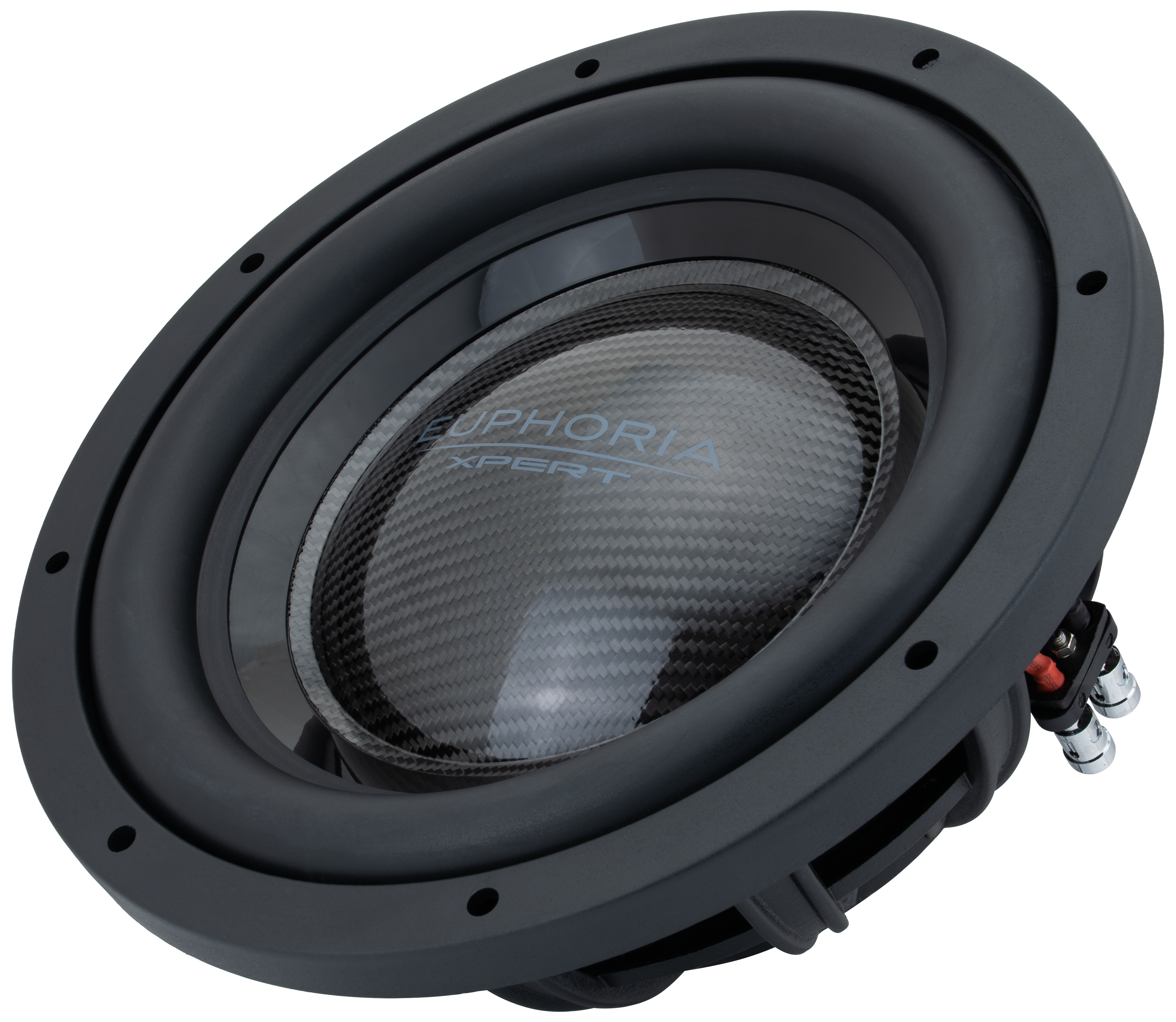

EUPHORIA XPERT EXFW12NCF
2x4Ω
Shallow Woofer
| Nominal diameter | 12″ / 323 mm |
| Resonance | 33.8 Hz |
| Q factor | 0.34 |
| Sensitivity | 85.6 dB |
| Linear excursion | ± 10 mm |
| Program Power | 1200 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.6dB
Thiele & Small parameters
- Resonance frequency (free air) fS 33.8Hz
- Mechanical quality factor QMS 1.60
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Air volume displaced at xmax VD 511cm³
- Power handling P 500W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 2 x 4Ω
- DC resistance (in series) RE 7.2Ω
- Inductance (1kHz, in series, estimated) LE 6.59mH
- VC Diameter 63.5mm
Magnet
- Force factor (in series) Bl 30.8N/A
- Motor constant Bl/√RE 11.5N/√W
- Material Neodymium
Diaphragm
- Effective diameter 255mm
- Effective area SD 511cm²
- Moving mass MMS 268g
- Moving mass (without air load) MMD 259g
- Material Carbon Fiber
Suspensions
- Stiffness KMS 12.1N/mm
- Compliance CMS 82.9µm/N
- Equivalent volume to the compliance VAS 30.7L
- Mechanical resistance RMS 35.6N·s/m
- Surround material Rubber

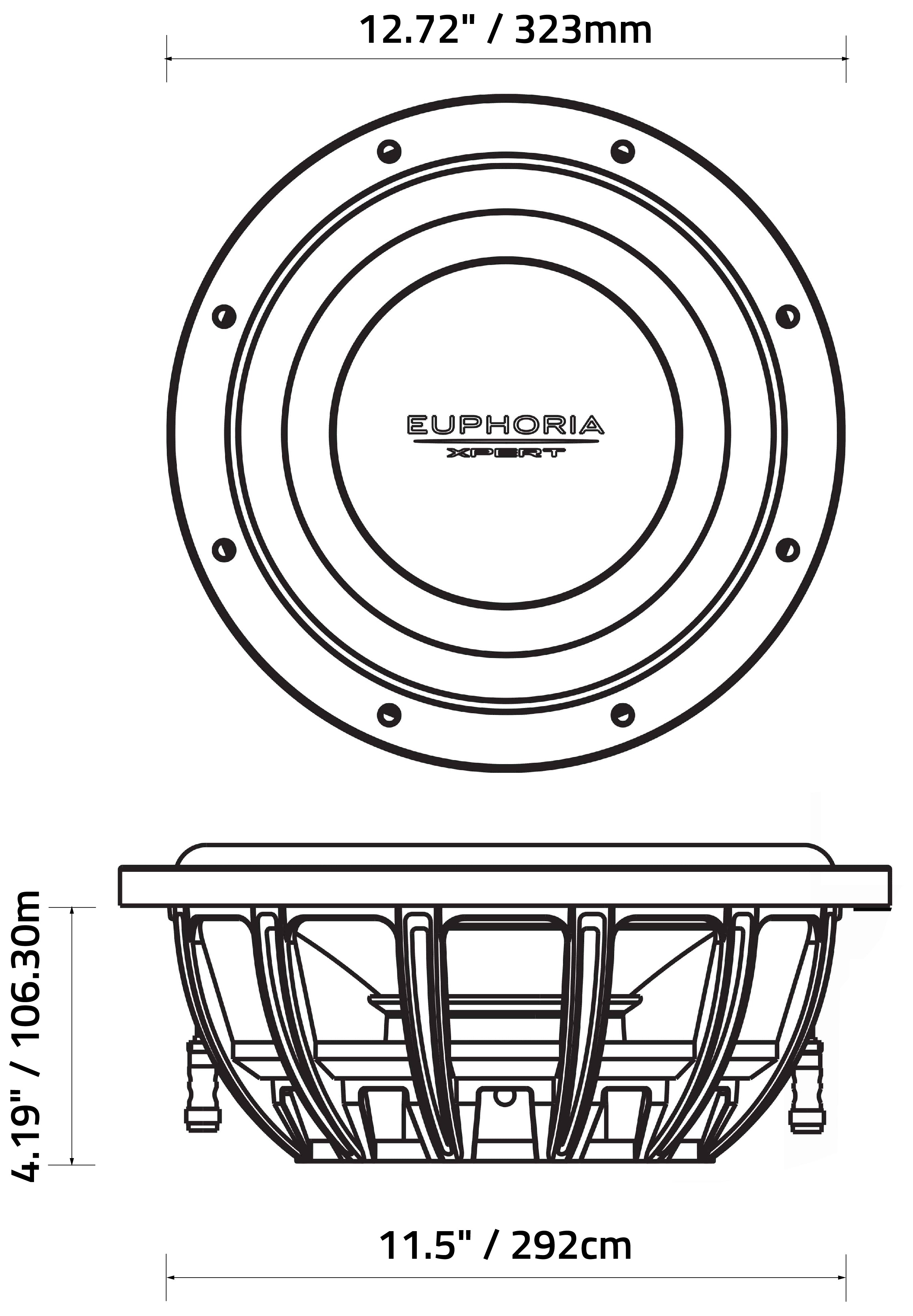

Dimensions
- Nominal diameter 12″
- 323mm
- Overall diameter 323mm
- Baffle cutout diameter 292mm
- Mounting depth 106mm
- Volume occupied by the driver (estimated) 2.8L
- Frame material Die-Cast Aluminium
