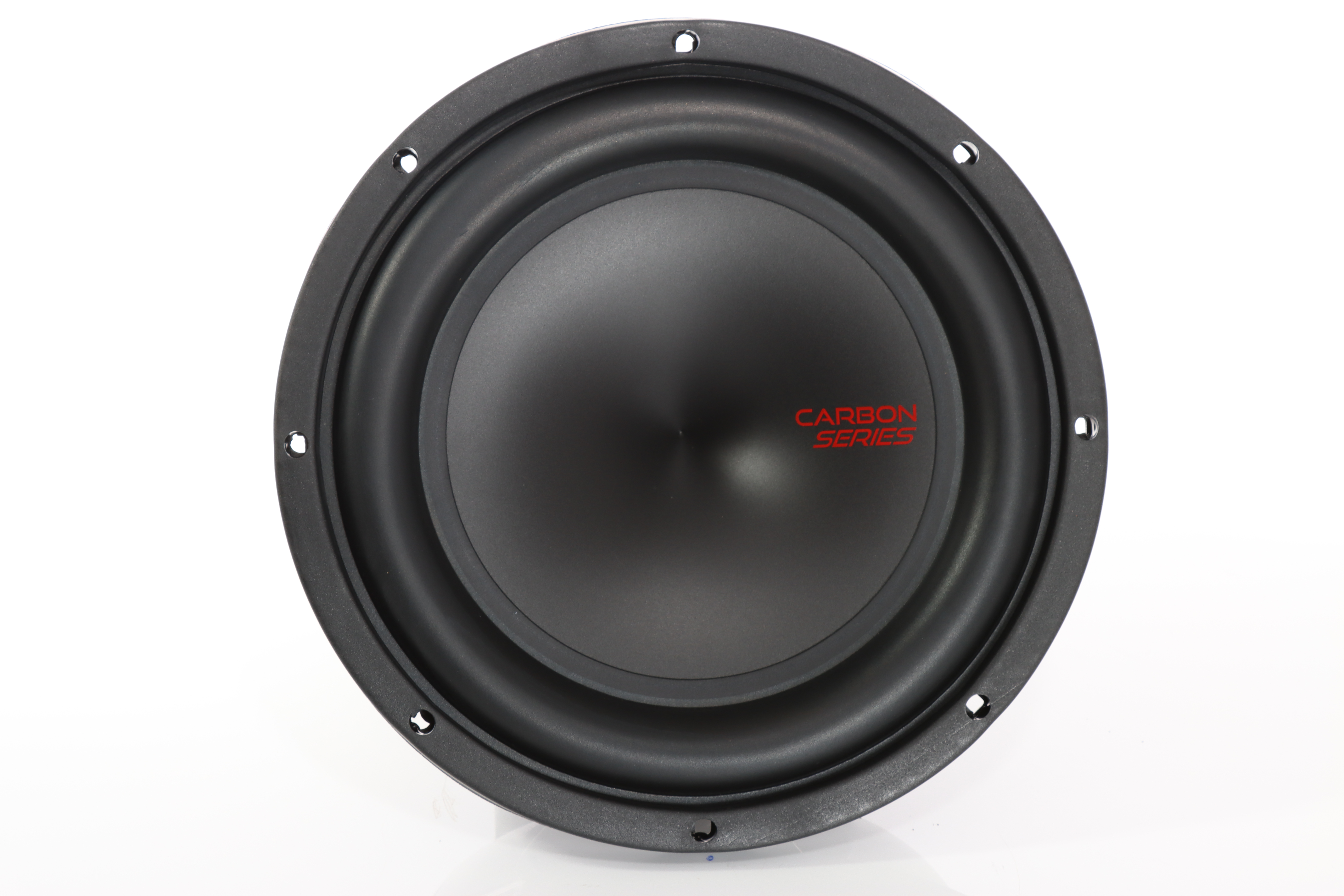

Audio System CARBON08 EVO
2x2Ω
Subwoofer
| Nominal diameter | 8″ / 214 mm |
| Resonance | 43.1 Hz |
| Q factor | 0.39 |
| Sensitivity | 83.7 dB |
| Linear excursion | ± 6 mm |
| Program power | 280 W |
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.7dB
- Frequency response 35 - 400Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 43.1Hz
- Mechanical quality factor QMS 3.14
- Electrical quality factor QES 0.45
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion (one way) xmax 6mm
- Air volume displaced at xmax VD 127cm³
- Power handling P 200W
- Program power Pmax 280W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.2Ω
- Inductance (1kHz, in series, estimated) LE 1.43mH
- VC Diameter 38.6mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 9.7N/A
- Motor constant Bl/√RE 4.73N/√W
Diaphragm
- Effective diameter 164mm
- Effective area SD 211cm²
- Moving mass (including air load) MMS 60.8g
- Moving mass MMD 58.4g
- Material Paper
Suspensions
- Stiffness KMS 2.73N/mm
- Compliance CMS 366µm/N
- Equivalent volume to the compliance VAS 14.2L
- Mechanical resistance RMS 5.24N·s/m
- Surround material NBR (Rubber)
- Spider material PPTA Connex
Dimensions
- Nominal diameter 8″
- 214mm
- Overall diameter 214mm
- Baffle cutout diameter 180mm
- Overall depth 99mm
- Flange thickness 10mm
- Mounting depth 89mm
- Volume occupied by the driver (estimated) 0.98L
- Net weight 2.7kg
- Frame material Steel-Sheet
