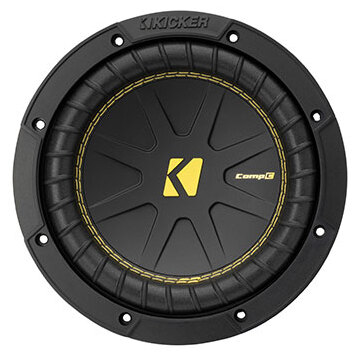

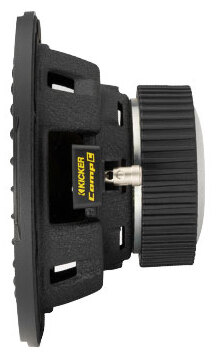

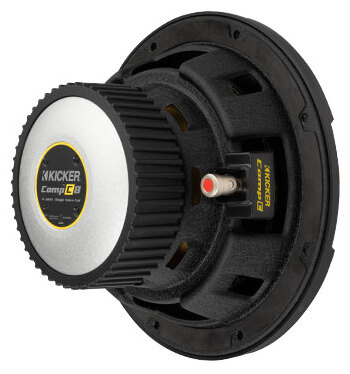

KICKER CompC 50CWCS84
2x4Ω
4Ω
Subwoofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 42.8 Hz |
| Q factor | 0.73 |
| Sensitivity | 84 dB |
| Linear excursion | ± 11.1 mm |
| Program Power | 400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 84dB
- Frequency response 30 - 500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 42.8Hz
- Mechanical quality factor QMS 10.30
- Electrical quality factor QES 0.78
- Total quality factor QTS 0.73
Large signal parameters
- Maximum linear excursion (one way) xmax 11.1mm
- Air volume displaced at xmax VD 224cm³
- Power handling P 200W
- Program power Pmax 400W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.9Ω
- Inductance (1kHz) LE 2.03mH
Magnet
- Force factor Bl 8.97N/A
- Motor constant Bl/√RE 4.52N/√W
Diaphragm
- Effective diameter 160mm
- Effective area SD 201cm²
- Moving mass MMS 59.4g
- Moving mass (without air load) MMD 57.2g
Suspensions
- Stiffness KMS 4.3N/mm
- Compliance CMS 233µm/N
- Equivalent volume to the compliance VAS 13.3L
- Mechanical resistance RMS 1.55N·s/m

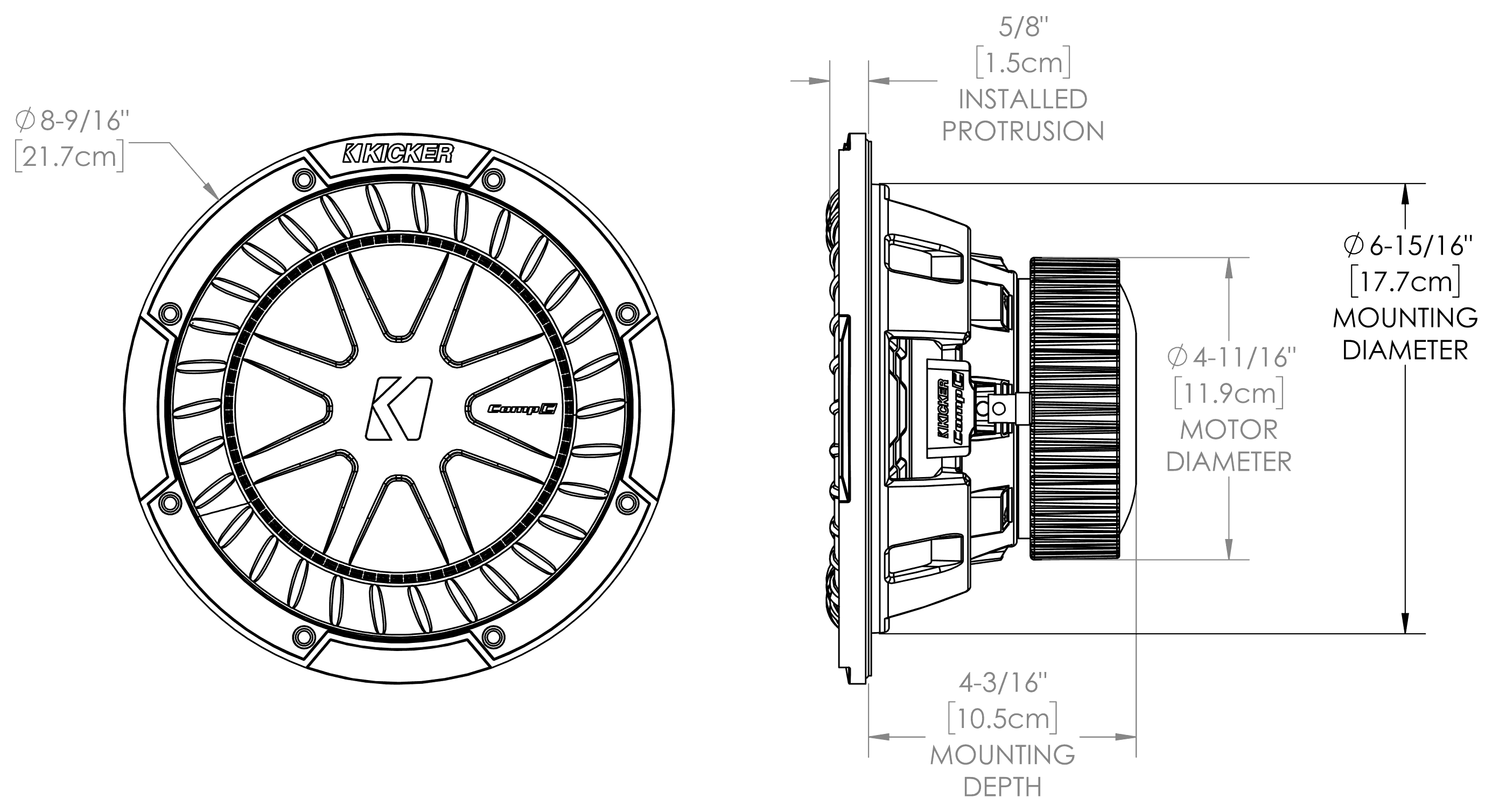

Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 217mm
- Baffle cutout diameter 177mm
- Mounting depth 105mm
- Volume occupied by the driver (estimated) 1L
