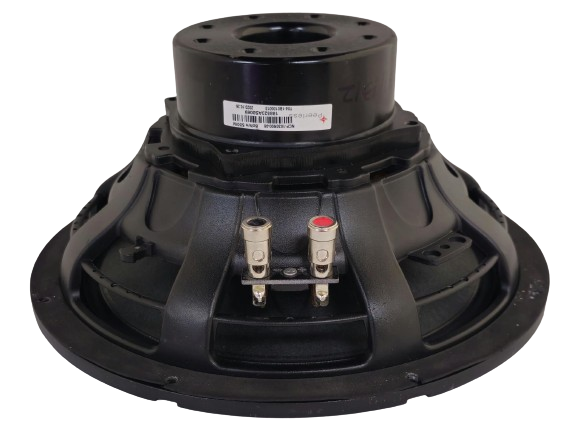

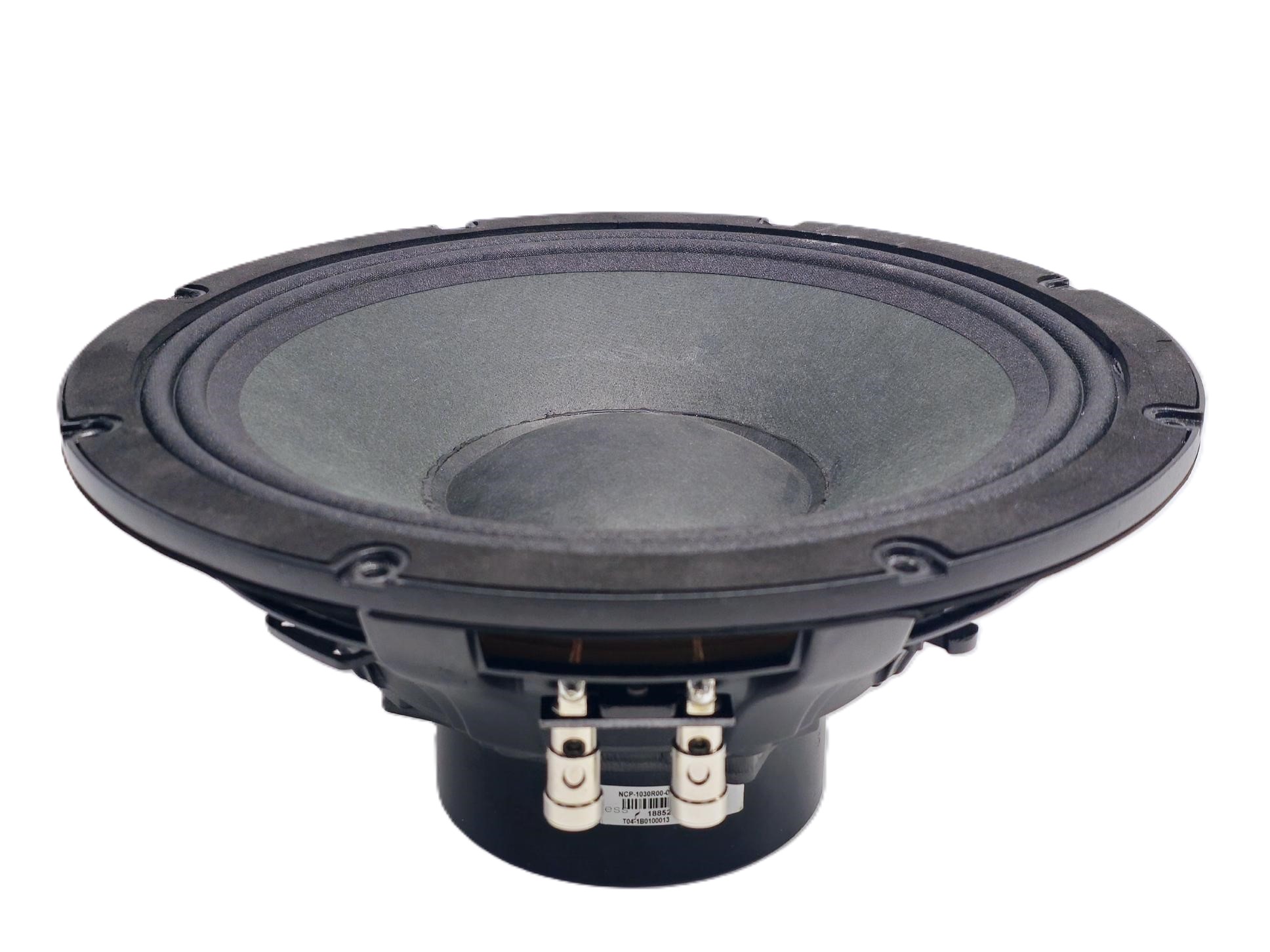

Peerless NCP-1030R00-08
8Ω
Woofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 67 Hz |
| Q factor | 0.23 |
| Sensitivity | 97.9 dB |
| Linear excursion | ± 3.9 mm |
| Program Power | 800 W |
.jpg)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 97.9dB

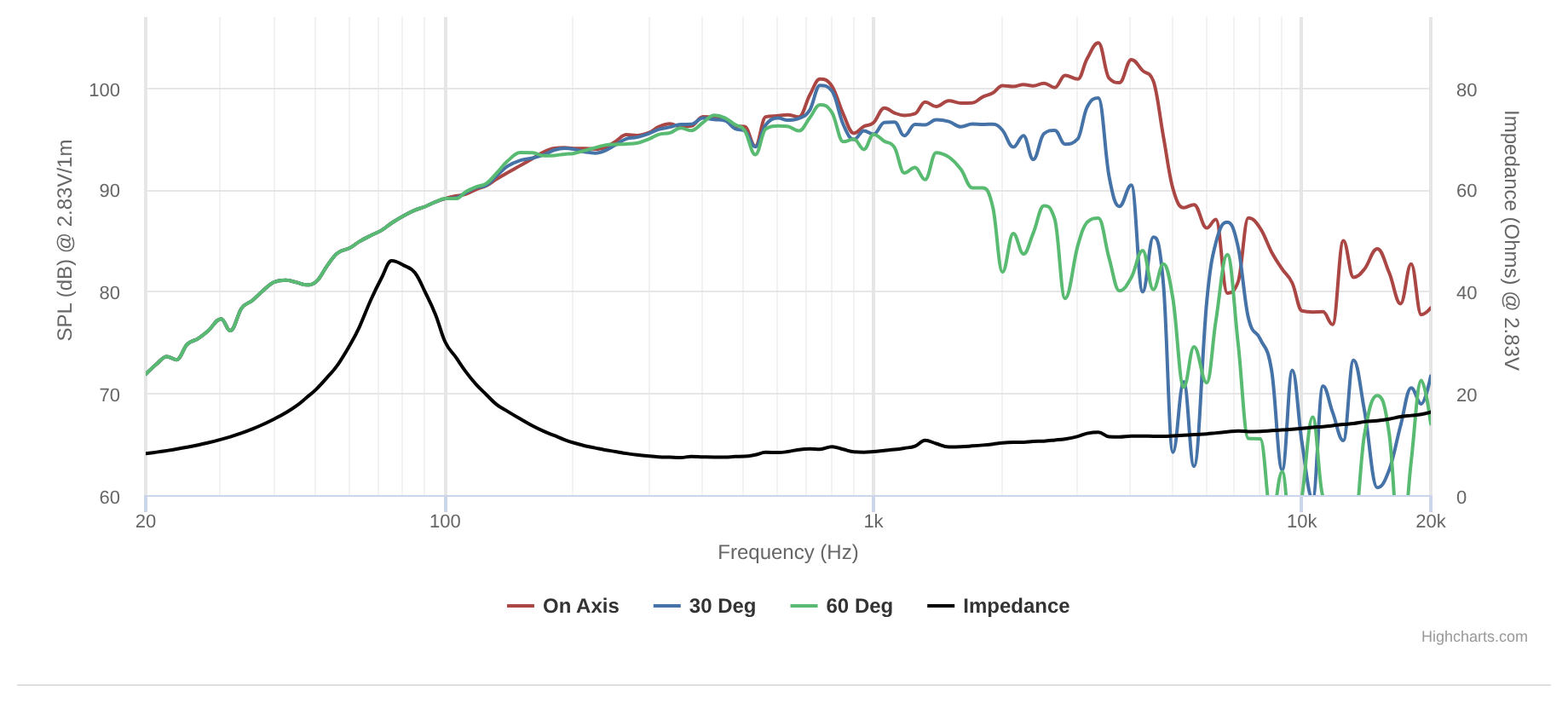

- Frequency response 100 - 4000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 67Hz
- Mechanical quality factor QMS 1.92
- Electrical quality factor QES 0.27
- Total quality factor QTS 0.23
Large signal parameters
- Maximum linear excursion (one way) xmax 3.9mm
- Air volume displaced at xmax VD 144cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.8Ω
- Inductance (1kHz) LE 0.014mH
- VC Diameter 75.8mm
Magnet
- Force factor Bl 19.1N/A
- Motor constant Bl/√RE 7.93N/√W
- Air gap height HAG 10mm
- Material Neodymium
Diaphragm
- Effective diameter 216mm
- Effective area SD 366cm²
- Moving mass MMS 39.6g
- Moving mass (without air load) MMD 34.7g
- Material Paper
Suspensions
- Stiffness KMS 7.14N/mm
- Compliance CMS 140µm/N
- Equivalent volume to the compliance VAS 27L
- Mechanical resistance RMS 8.68N·s/m

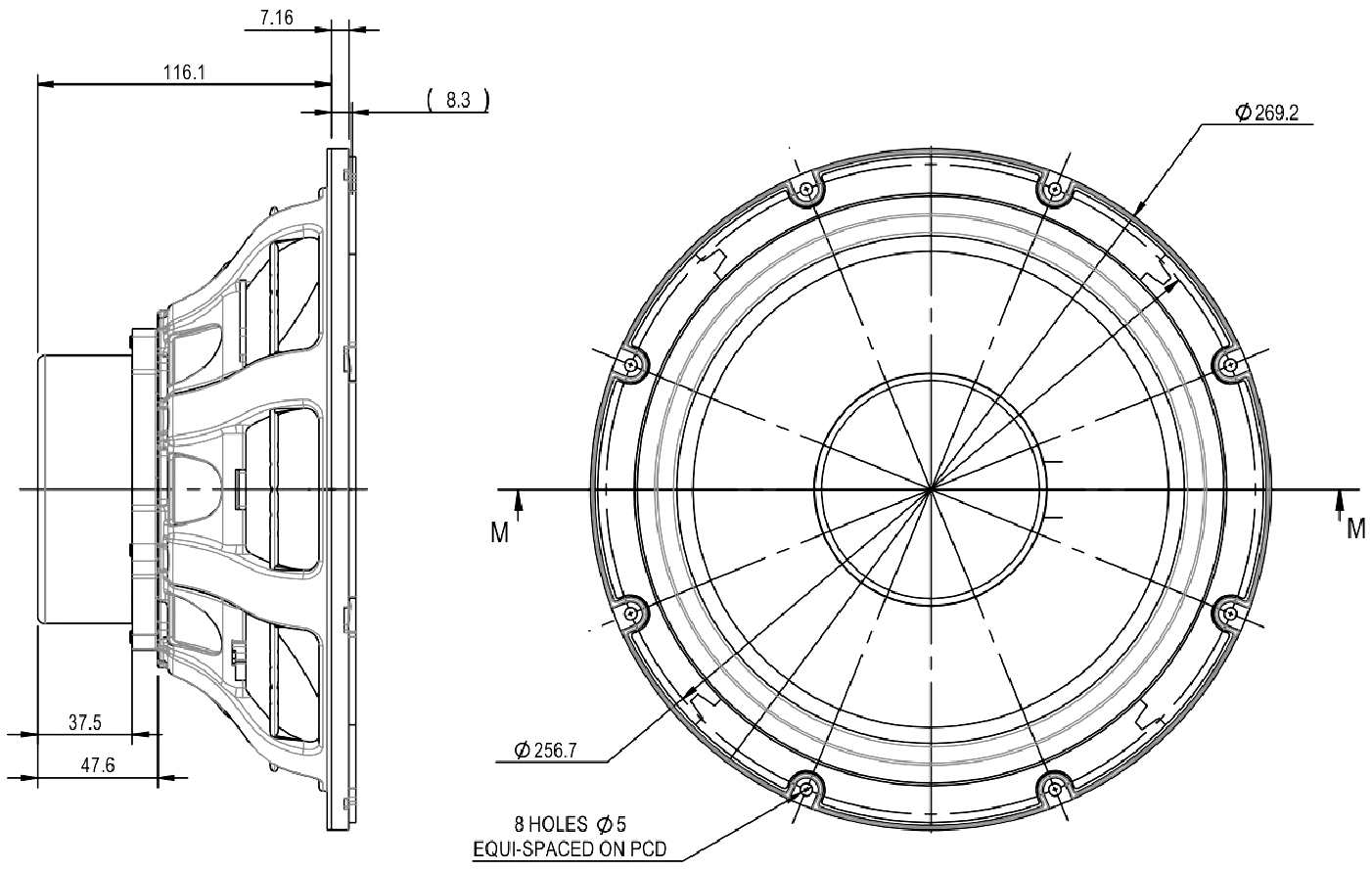

Dimensions
- Nominal diameter 10″
- 254mm
- Volume occupied by the driver (estimated) 1.6L
- Net weight 3.8kg
- Frame material Cast Aluminium
.png)
.png)
