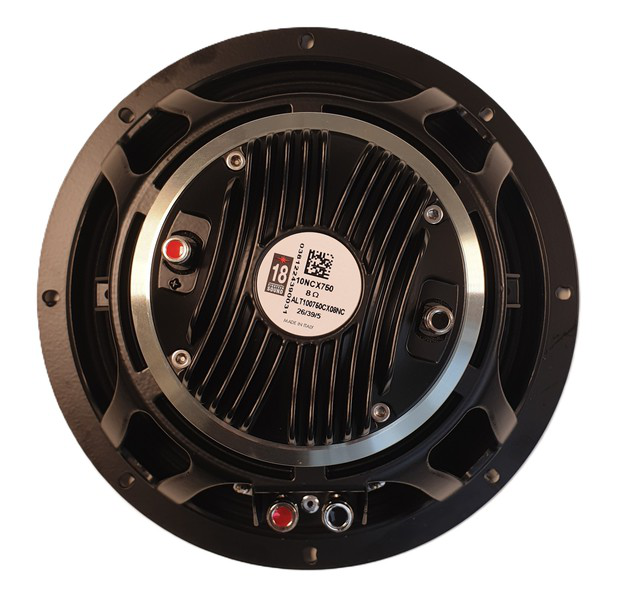

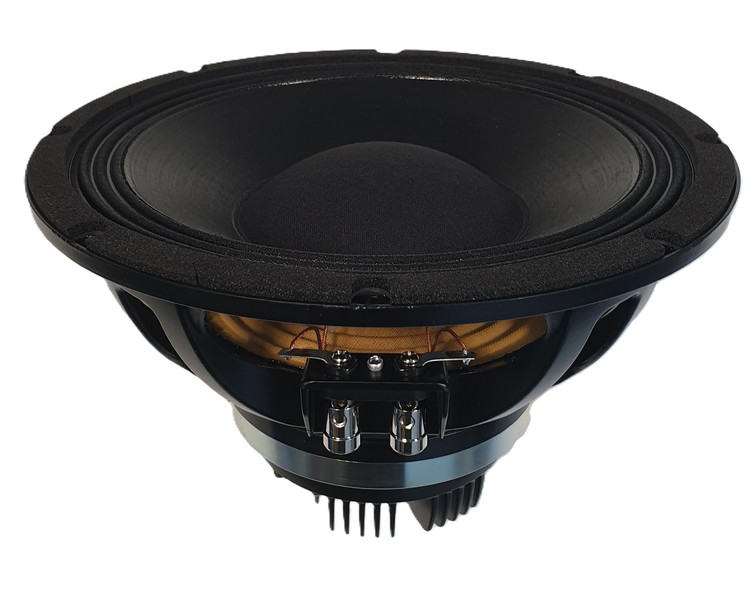

Eighteen Sound 10NCX750
8Ω
Coaxial
| Nominal diameter | 10″ / 260 mm |
| Resonance | 64 Hz |
| Q factor | 0.25 |
| Sensitivity | 95.5 dB |
| Linear excursion | ± 5.5 mm |
| Program Power | 700 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.5dB

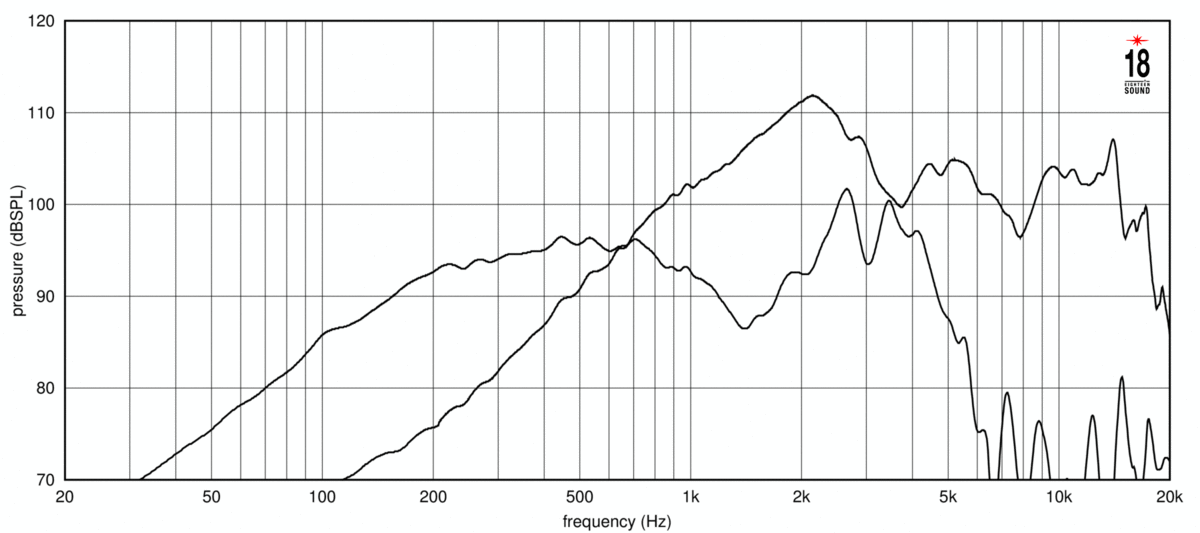

- Frequency response 60 - 1500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 64Hz
- Mechanical quality factor QMS 7.90
- Electrical quality factor QES 0.26
- Total quality factor QTS 0.25
Large signal parameters
- Maximum linear excursion xmax 5.5mm
- Air volume displaced at xmax VD 190cm³
- Power handling P 350W
- Program power Pmax 700W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 0.54mH
- VC Diameter 75mm
- Winding height HVC 15mm
- Winding material Copper
Magnet
- Force factor Bl 20N/A
- Motor constant Bl/√RE 8.69N/√W
- Air gap height HAG 7.6mm
- Material Neodymium
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 46g
- Moving mass (without air load) MMD 41.3g
- Material Water repellent
Suspensions
- Stiffness KMS 7.87N/mm
- Compliance CMS 127µm/N
- Equivalent volume to the compliance VAS 23L
- Mechanical resistance RMS 2.34N·s/m

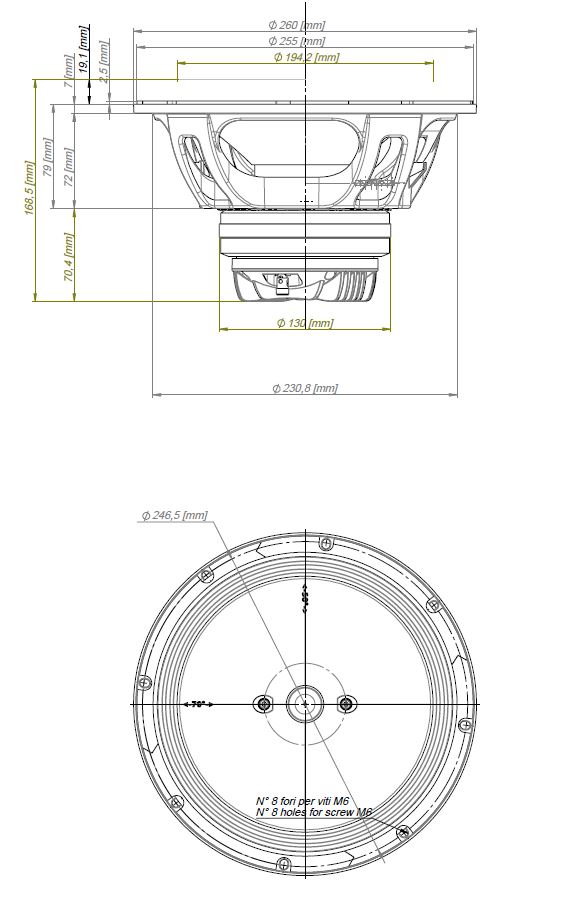

Dimensions
- Nominal diameter 10″
- 260mm
- Overall diameter 260mm
- Baffle cutout diameter 230mm
- Overall depth 148mm
- Flange thickness 14mm
- Mounting depth 134mm
- Volume occupied by the driver (estimated) 1.9L
- Net weight 4.25kg
.png)
.png)
.jpg)
