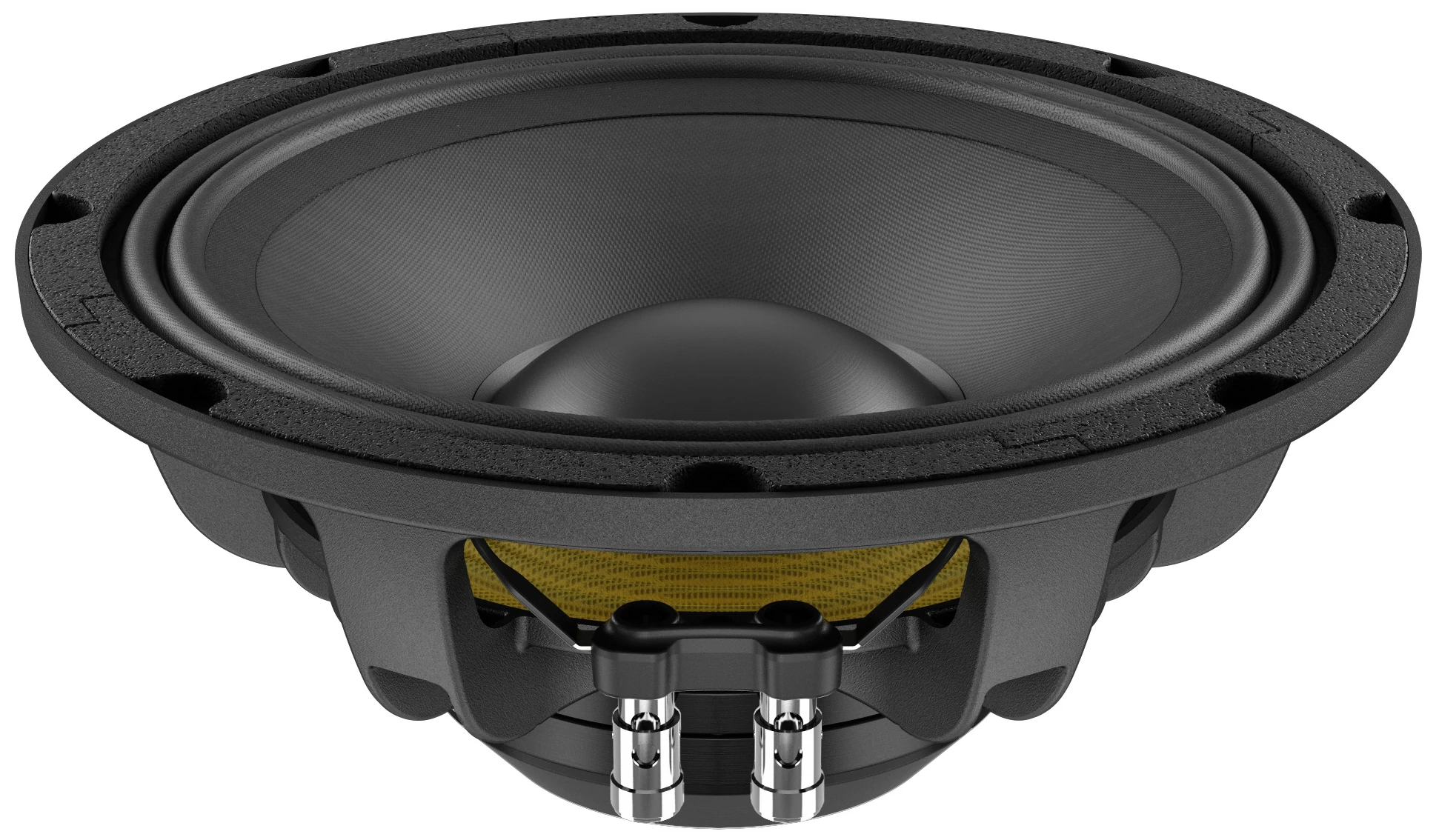

LaVoce WAN103.01-16
8Ω
16Ω
Woofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 70 Hz |
| Q factor | 0.28 |
| Sensitivity | 95.8 dB |
| Linear excursion | ± 5 mm |
| Program Power | 900 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.8dB

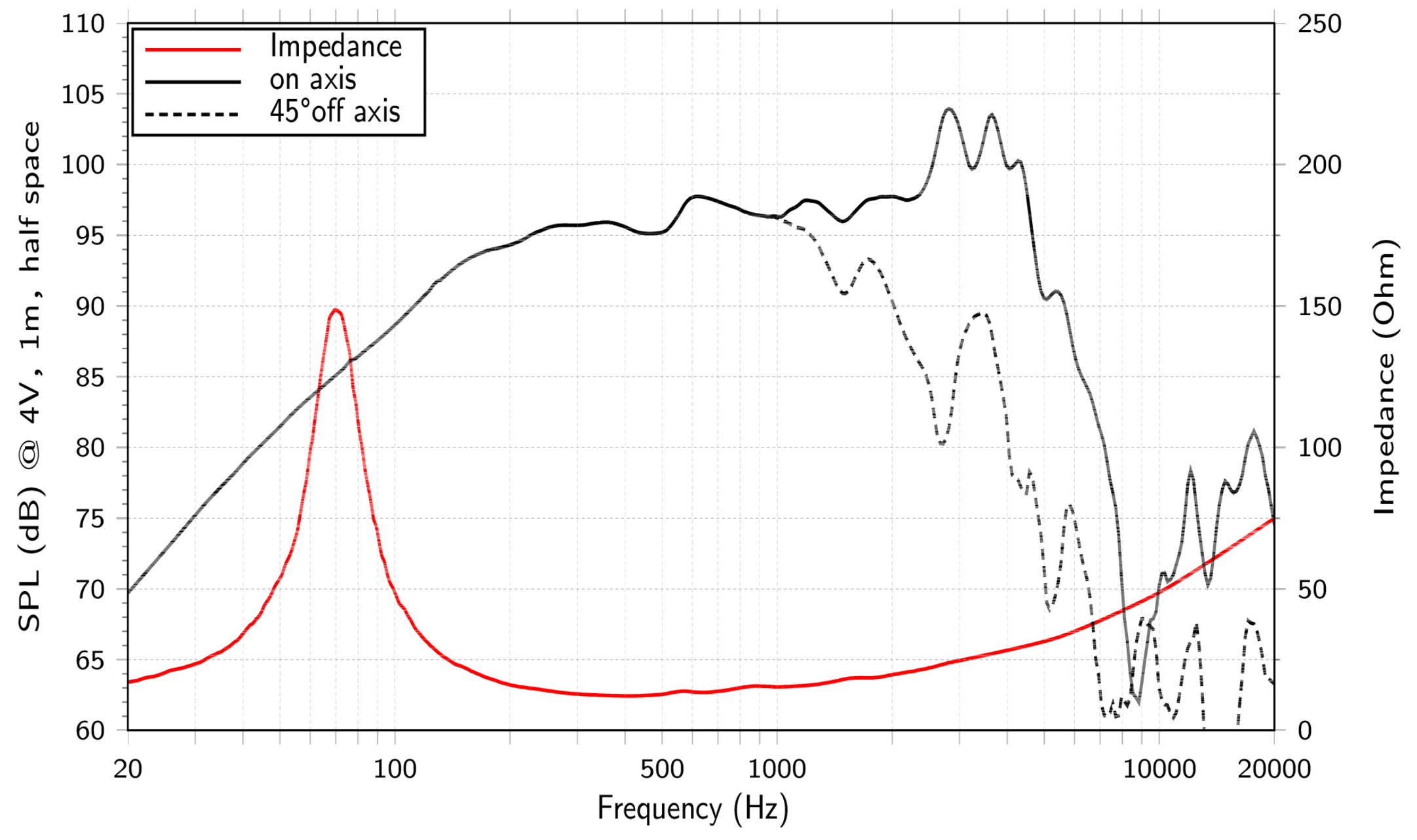

- Frequency response 70 - 3500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 70Hz
- Mechanical quality factor QMS 3.99
- Electrical quality factor QES 0.30
- Total quality factor QTS 0.28
Large signal parameters
- Maximum linear excursion (one way) xmax 5mm
- Maximum excursion before damage xlim 10.2mm
- Air volume displaced at xmax VD 175cm³
- Power handling P 450W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 10.6Ω
- Inductance (1kHz) LE 0.79mH
- VC Diameter 75mm
- Winding height HVC 14.8mm
- Winding material Copper Clad Aluminium
- Former material Kapton
Magnet
- Force factor Bl 25.5N/A
- Motor constant Bl/√RE 7.84N/√W
- Air gap height HAG 9.5mm
- Diameter 120mm
- Height 10mm
- Material Neodymium
Diaphragm
- Effective diameter 211mm
- Effective area SD 350cm²
- Moving mass MMS 41.5g
- Moving mass (without air load) MMD 36.9g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 8.07N/mm
- Compliance CMS 124µm/N
- Equivalent volume to the compliance VAS 21.5L
- Mechanical resistance RMS 4.57N·s/m
- Surround material Polycotton

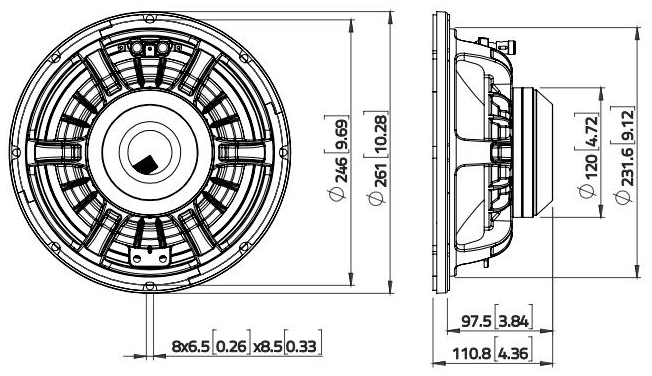

Dimensions
- Nominal diameter 10″
- 250mm
- Volume occupied by the driver 1.6L
- Net weight 3.1kg
- Frame material Aluminium
.webp)
.webp)
