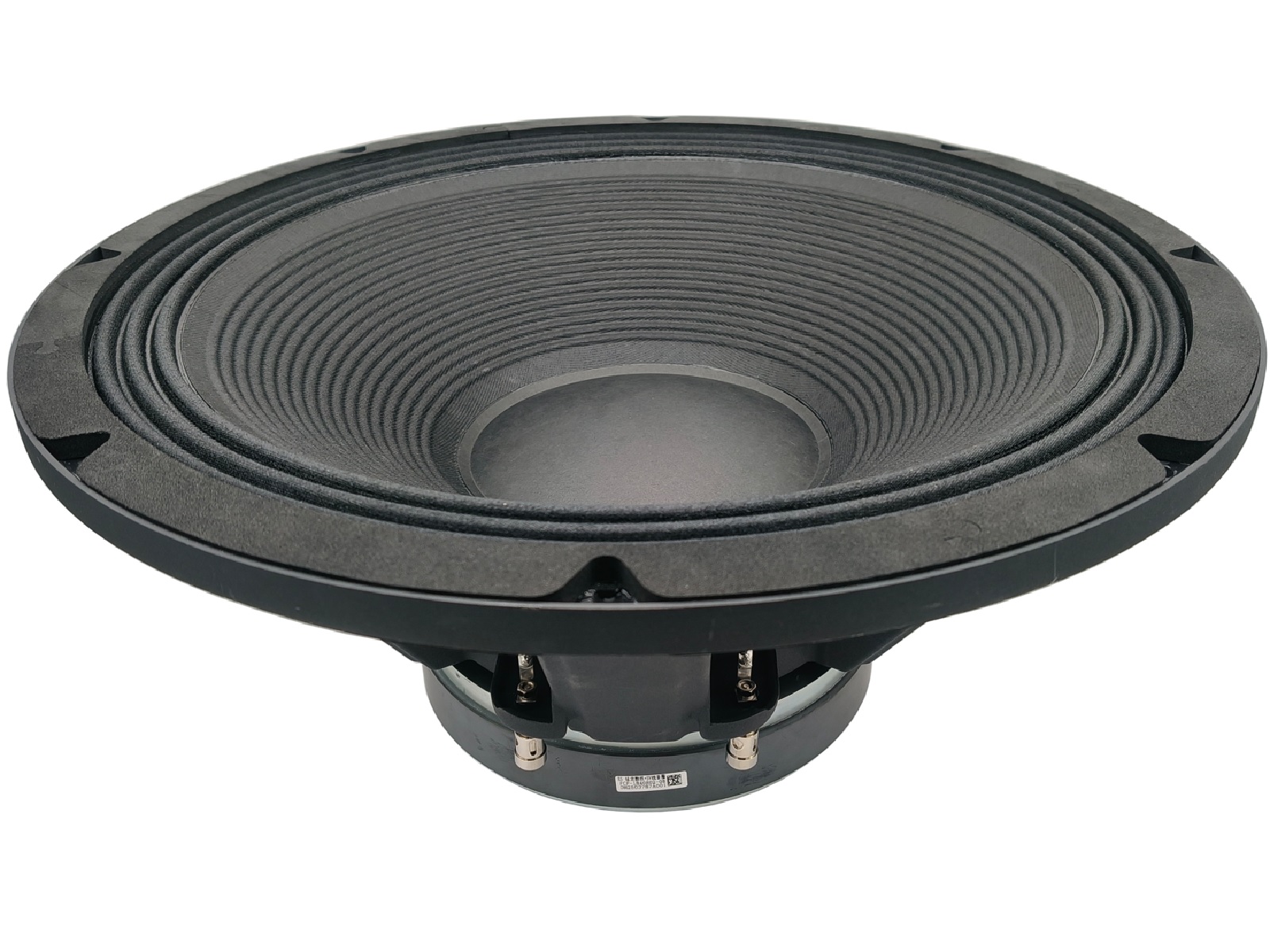

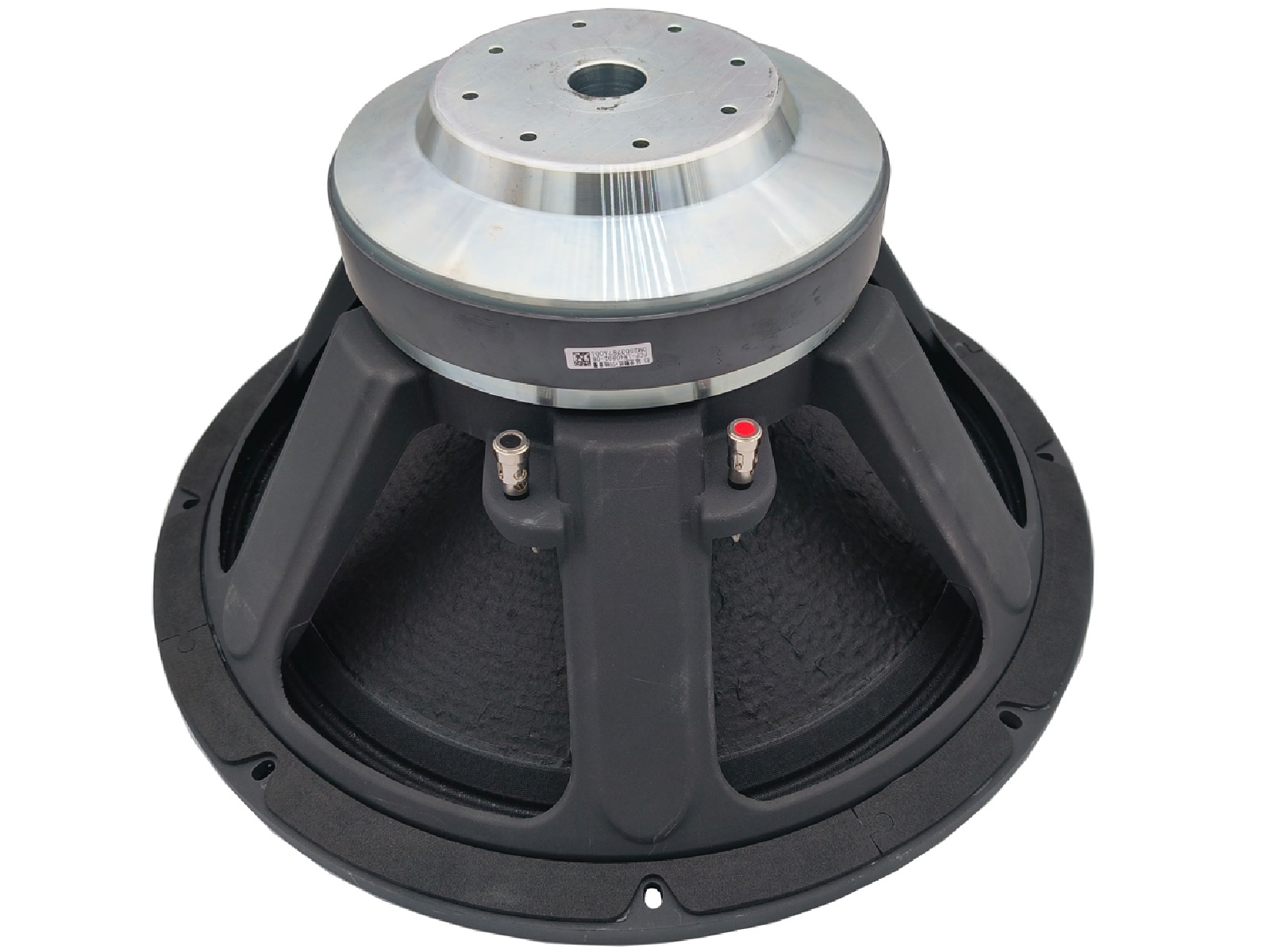

Peerless FCP-1840R02-08
8Ω
Subwoofer
| Nominal diameter | 18″ / 457 mm |
| Resonance | 39 Hz |
| Q factor | 0.43 |
| Sensitivity | 95.1 dB |
| Linear excursion | ± 13.5 mm |
| Program power | 1600 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.1dB

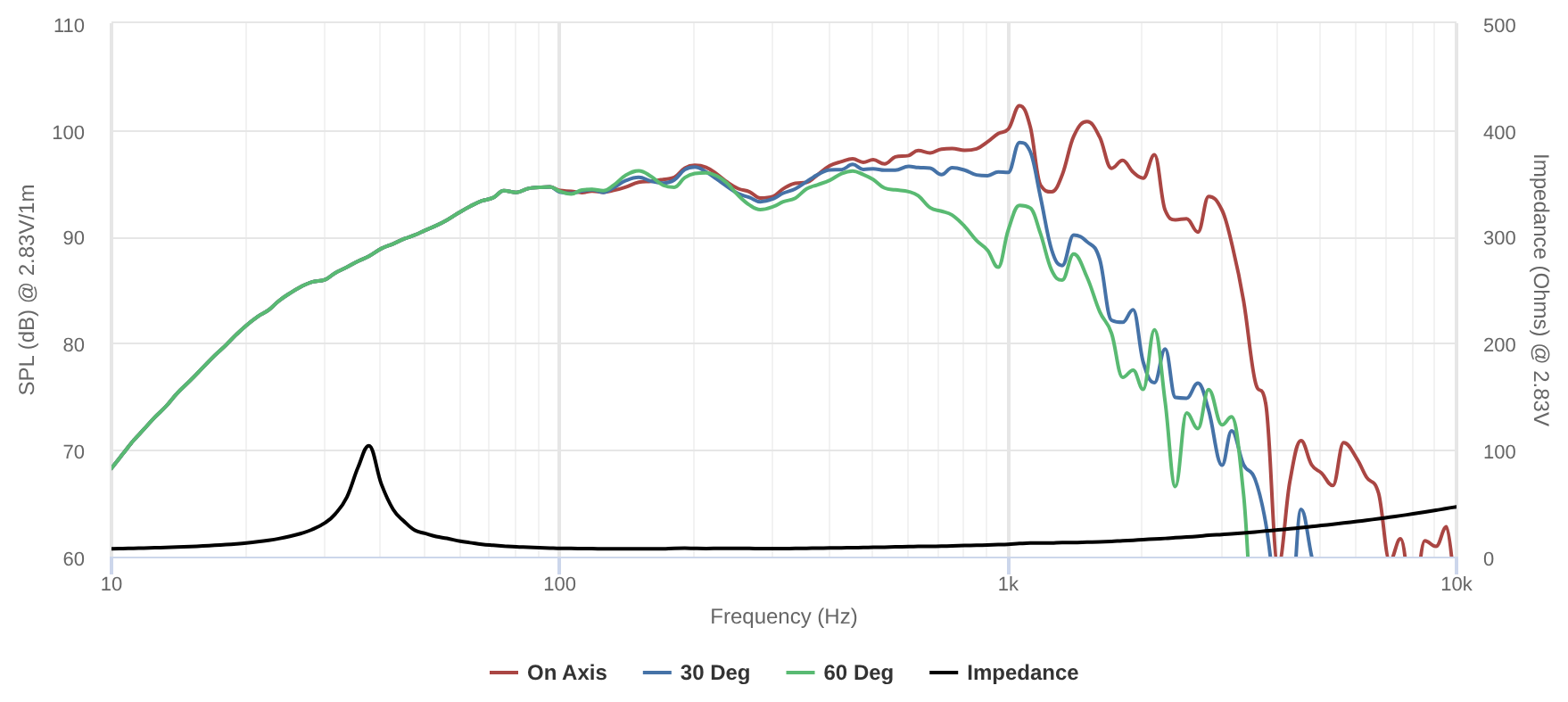

- Frequency response 30 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 39Hz
- Mechanical quality factor QMS 13.70
- Electrical quality factor QES 0.44
- Total quality factor QTS 0.43
Large signal parameters
- Maximum linear excursion (one way) xmax 13.5mm
- Air volume displaced at xmax VD 1647cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 0.749mH
- VC Diameter 100.1mm
Magnet
- Force factor Bl 26.2N/A
- Motor constant Bl/√RE 11.2N/√W
- Air gap height HAG 12mm
- Material Ferrite
Diaphragm
- Effective diameter 394mm
- Effective area SD 1220cm²
- Moving mass (including air load) MMS 224g
- Moving mass MMD 195g
- Material Paper
Suspensions
- Stiffness KMS 13.7N/mm
- Compliance CMS 73µm/N
- Equivalent volume to the compliance VAS 156L
- Mechanical resistance RMS 4.01N·s/m
- Surround material Fabric
Dimensions
- Nominal diameter 18″
- 457mm
- Volume occupied by the driver (estimated) 8.1L
- Net weight 17.4kg
- Frame material Cast Aluminium
.png)
