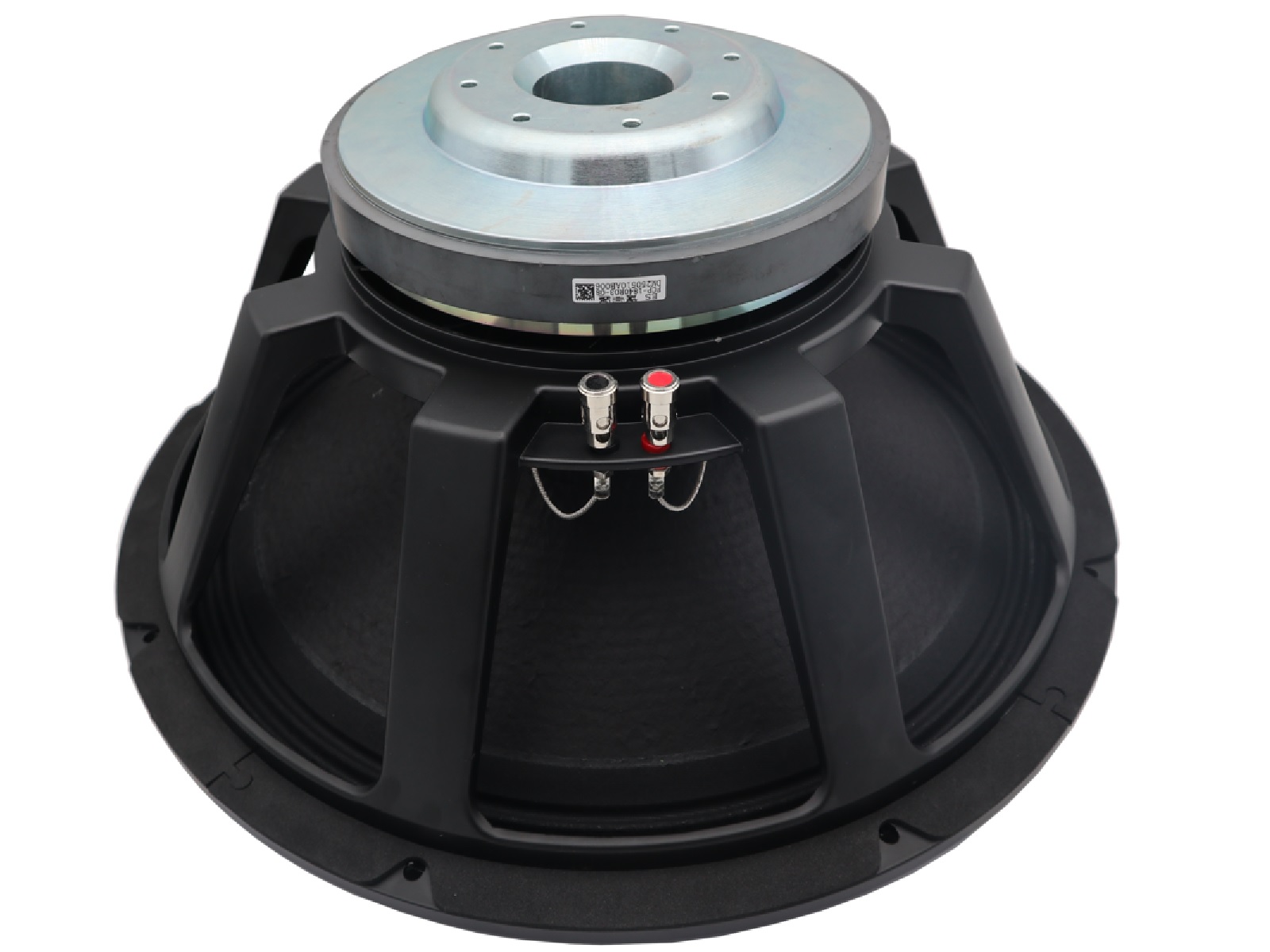

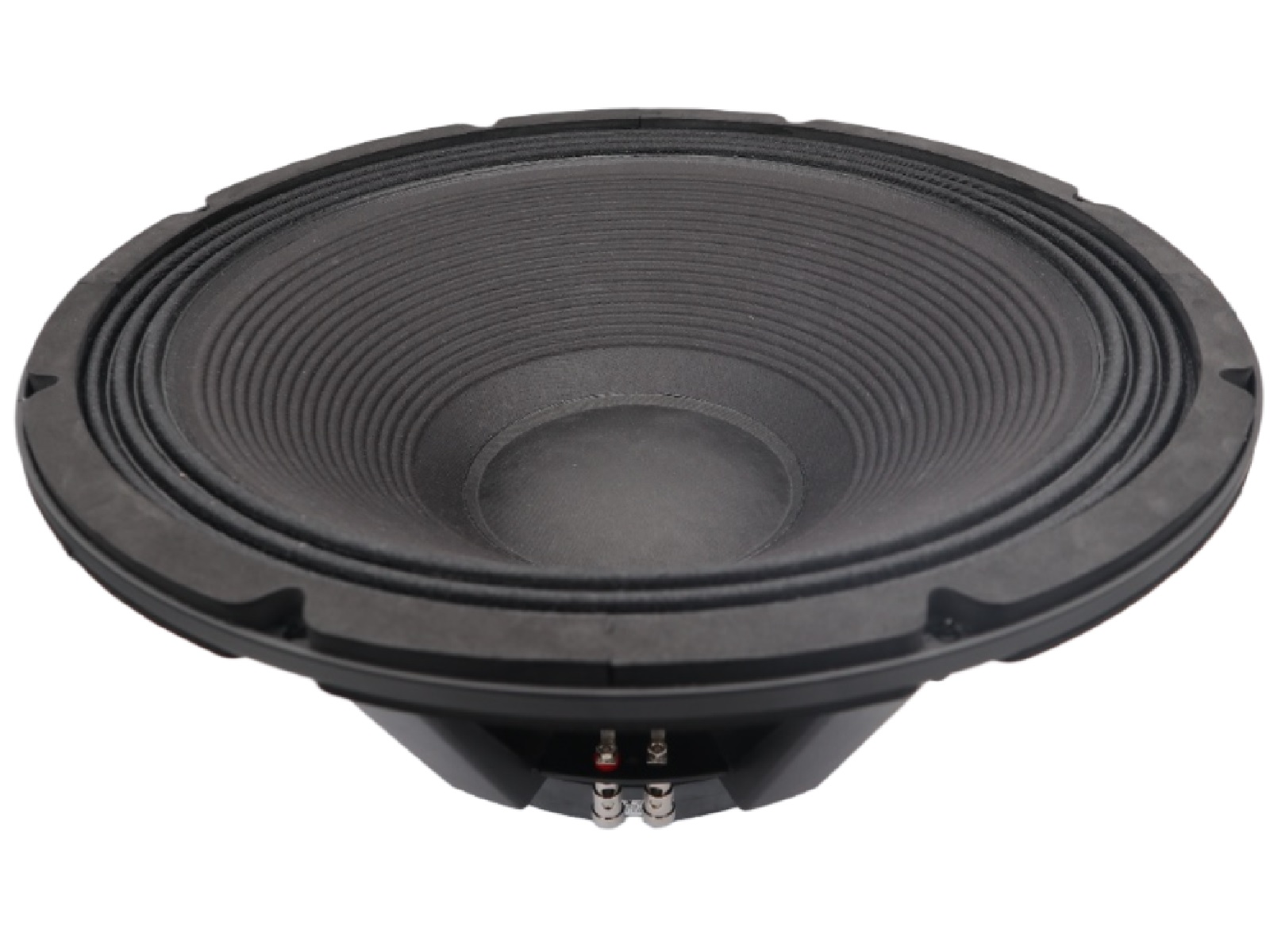

Peerless FCP-1840R03-08
8Ω
Subwoofer
| Nominal diameter | 18″ / 457 mm |
| Resonance | 41 Hz |
| Q factor | 0.47 |
| Sensitivity | 94 dB |
| Linear excursion | ± 12.3 mm |
| Program power | 1600 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94dB
- Frequency response 30 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41Hz
- Mechanical quality factor QMS 17.60
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.47
Large signal parameters
- Maximum linear excursion (one way) xmax 12.3mm
- Air volume displaced at xmax VD 1501cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 0.991mH
- VC Diameter 100mm
Magnet
- Force factor Bl 26.8N/A
- Motor constant Bl/√RE 11.4N/√W
- Air gap height HAG 10mm
- Material Ferrite
Diaphragm
- Effective diameter 394mm
- Effective area SD 1220cm²
- Moving mass (including air load) MMS 252g
- Moving mass MMD 223g
- Material Fabric
Suspensions
- Stiffness KMS 16.4N/mm
- Compliance CMS 61µm/N
- Equivalent volume to the compliance VAS 128L
- Mechanical resistance RMS 3.69N·s/m
- Surround material Fabric
Dimensions
- Nominal diameter 18″
- 457mm
- Volume occupied by the driver (estimated) 4.8L
- Net weight 10.6kg
- Frame material Cast Aluminium
.png)
