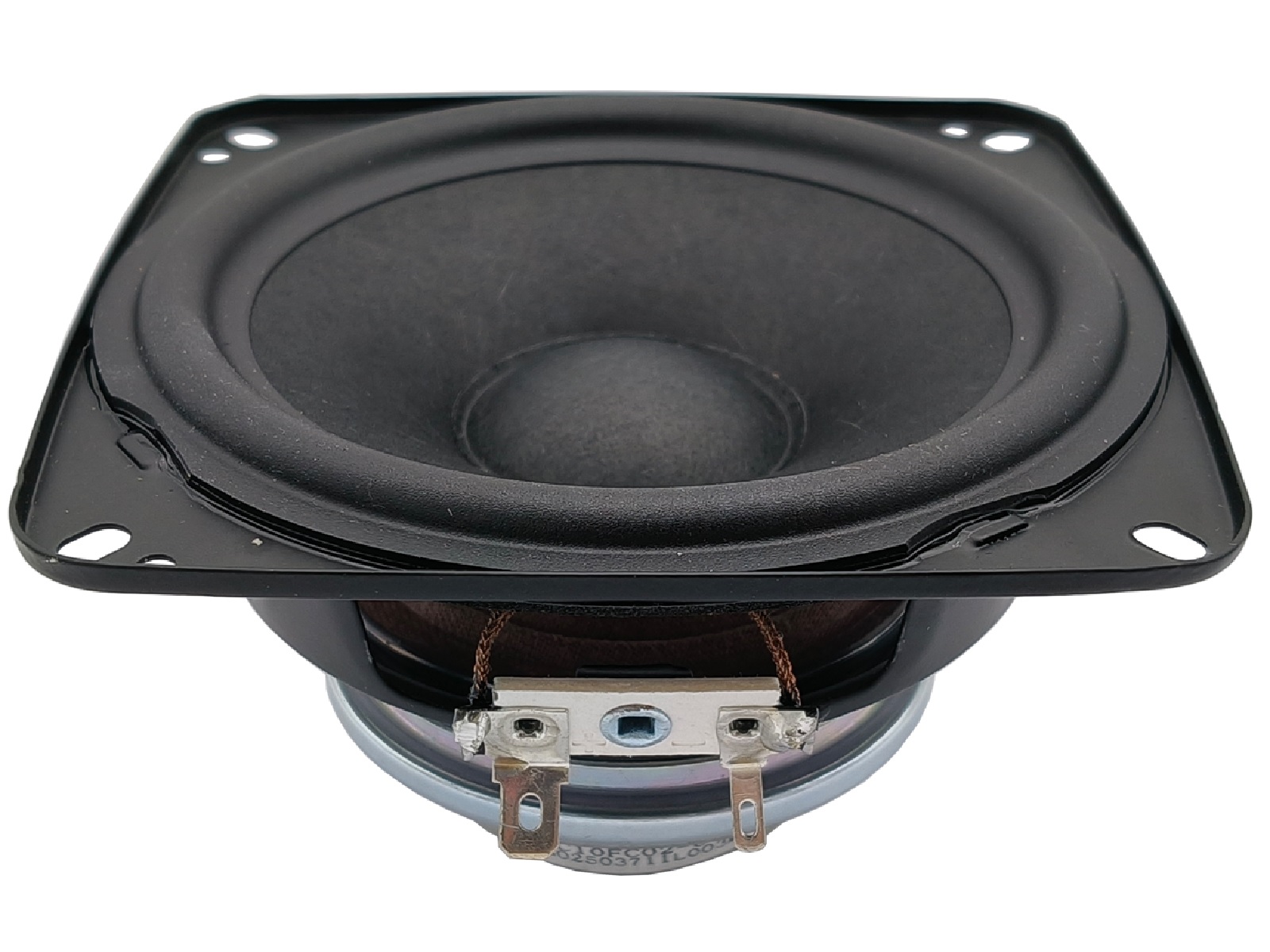

Peerless TC10FC02-08
8Ω
Full-range
| Nominal diameter | 4″ / 102 mm |
| Resonance | 150 Hz |
| Q factor | 0.51 |
| Sensitivity | 91 dB |
| Linear excursion | ± 2.7 mm |
| Program power | 80 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91dB

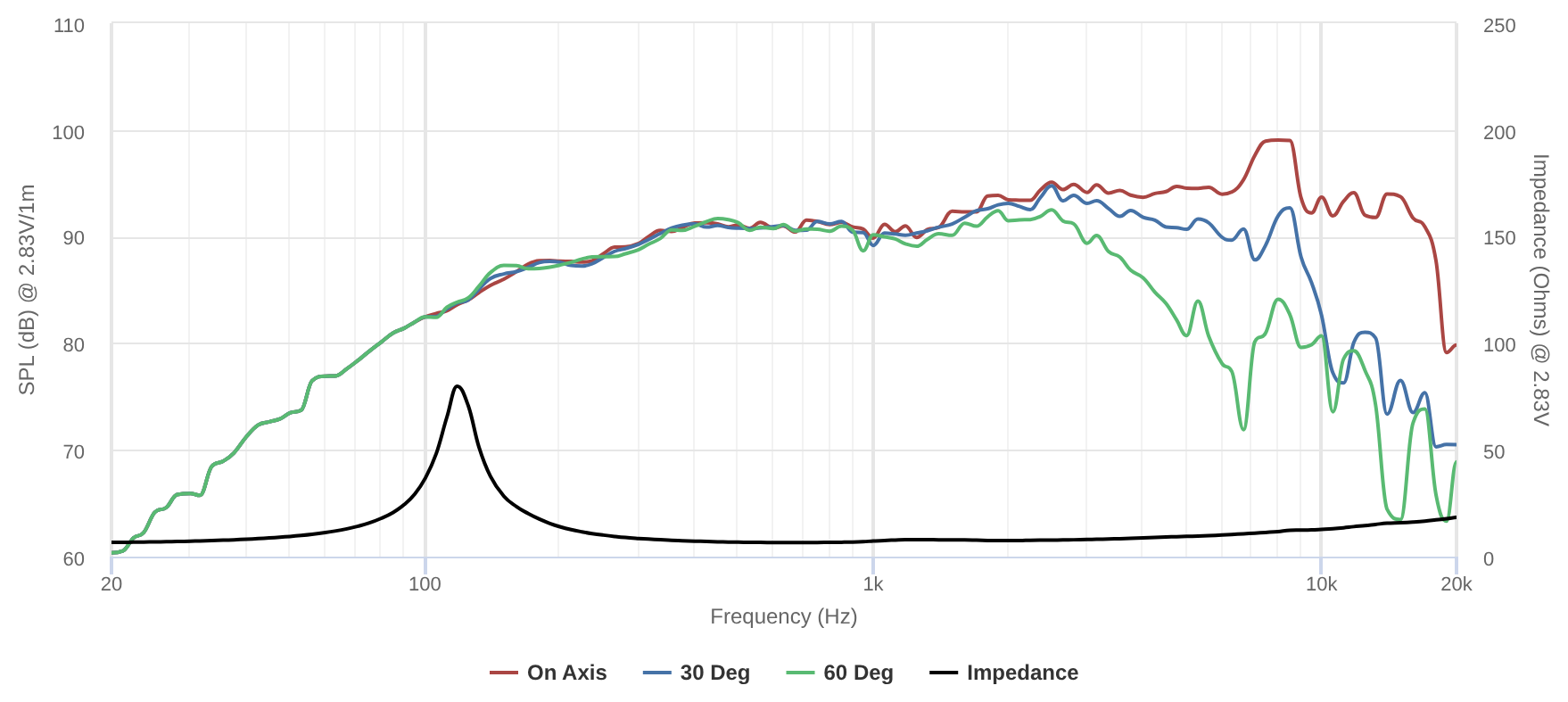

- Frequency response 200 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 150Hz
- Mechanical quality factor QMS 8.91
- Electrical quality factor QES 0.54
- Total quality factor QTS 0.51
Large signal parameters
- Maximum linear excursion (one way) xmax 2.7mm
- Air volume displaced at xmax VD 16cm³
- Power handling P 40W
- Program power Pmax 80W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.0Ω
- Inductance (1kHz) LE 0.113mH
- VC Diameter 25.5mm
Magnet
- Force factor Bl 6.78N/A
- Motor constant Bl/√RE 2.77N/√W
- Air gap height HAG 4mm
- Material Neodymium
Diaphragm
- Effective diameter 87mm
- Effective area SD 59.5cm²
- Moving mass (including air load) MMS 4.45g
- Moving mass MMD 4.1g
Suspensions
- Stiffness KMS 3.85N/mm
- Compliance CMS 260µm/N
- Equivalent volume to the compliance VAS 1.3L
- Mechanical resistance RMS 0.47N·s/m
- Surround material NBR Rubber
Dimensions
- Nominal diameter 4″
- 102mm
- Volume occupied by the driver (estimated) 249L
- Net weight 442.0kg
