Peerless FSL-1025R03-06
8Ω

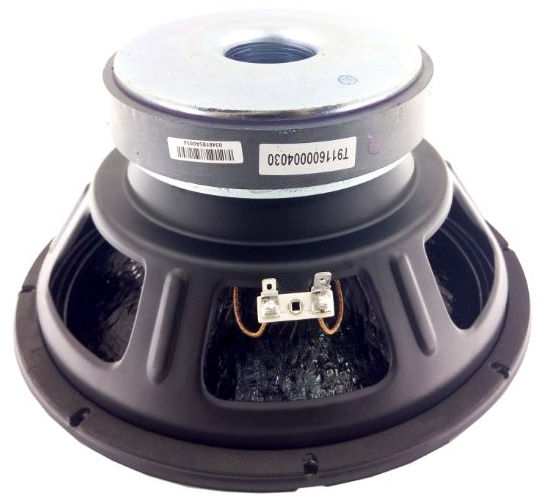

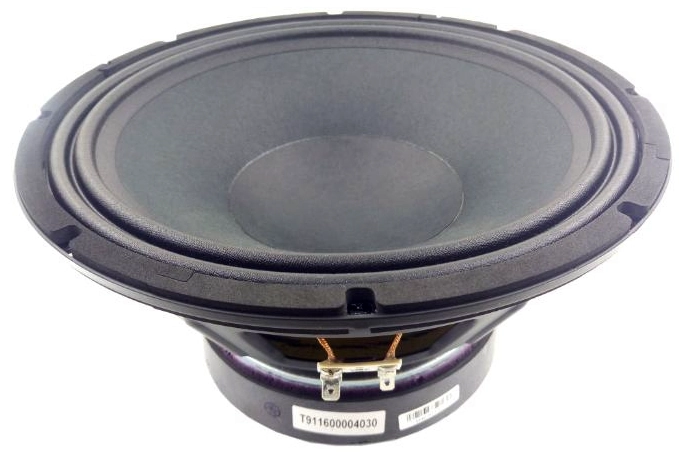

Woofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 66 Hz |
| Q factor | 0.46 |
| Sensitivity | 91.7 dB |
| Linear excursion | ± 6.3 mm |
| Program power | 500 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91.7dB

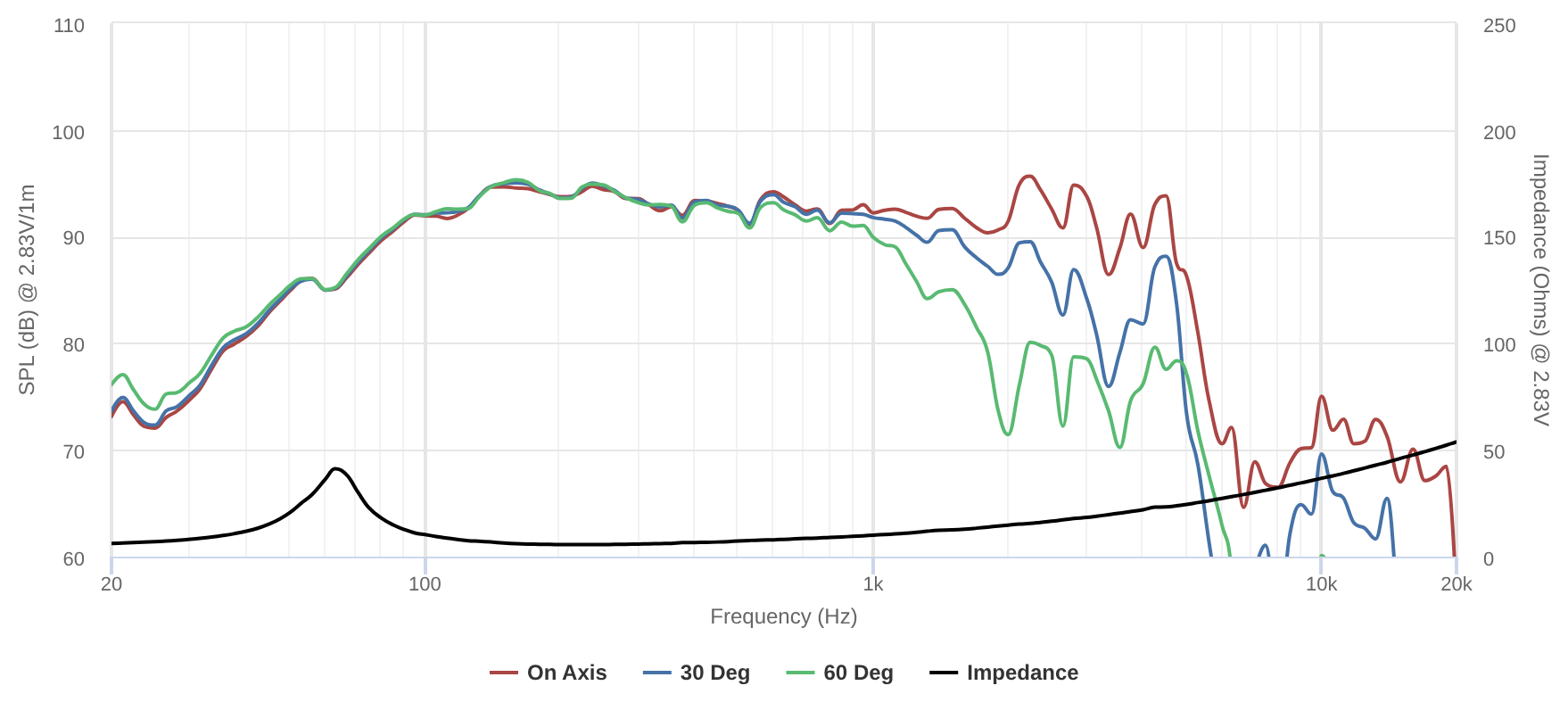

- Frequency response 40 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 66Hz
- Mechanical quality factor QMS 5.15
- Electrical quality factor QES 0.51
- Total quality factor QTS 0.46
Large signal parameters
- Maximum linear excursion (one way) xmax 6.3mm
- Air volume displaced at xmax VD 217cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 4.6Ω
- Inductance (1kHz) LE 0.791mH
- VC Diameter 65.5mm
Magnet
- Force factor Bl 14.3N/A
- Motor constant Bl/√RE 6.67N/√W
- Air gap height HAG 8mm
- Material Ferrite
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass (including air load) MMS 54.4g
- Moving mass MMD 49.8g
- Material Paper
Suspensions
- Stiffness KMS 9.09N/mm
- Compliance CMS 110µm/N
- Equivalent volume to the compliance VAS 18.1L
- Mechanical resistance RMS 4.38N·s/m

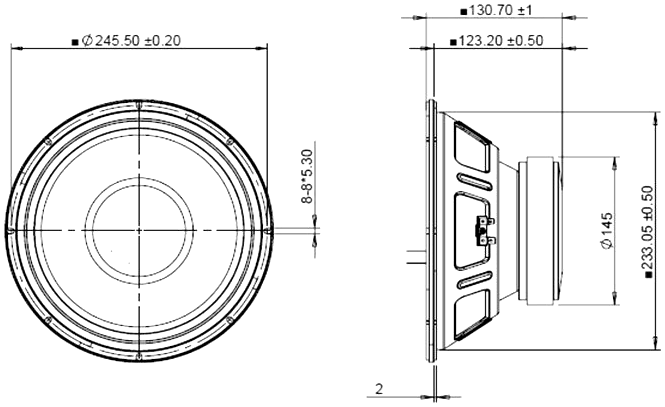

Dimensions
- Nominal diameter 10″
- 254mm
- Volume occupied by the driver (estimated) 1.8L
- Net weight 4.12kg
