Peerless NSM-0412R00-08
8Ω
Woofer
| Nominal diameter | 4.5″ / 114 mm |
| Resonance | 110 Hz |
| Q factor | 0.27 |
| Sensitivity | 90.1 dB |
| Linear excursion | ± 5.6 mm |
| Program Power | 220 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 90.1dB

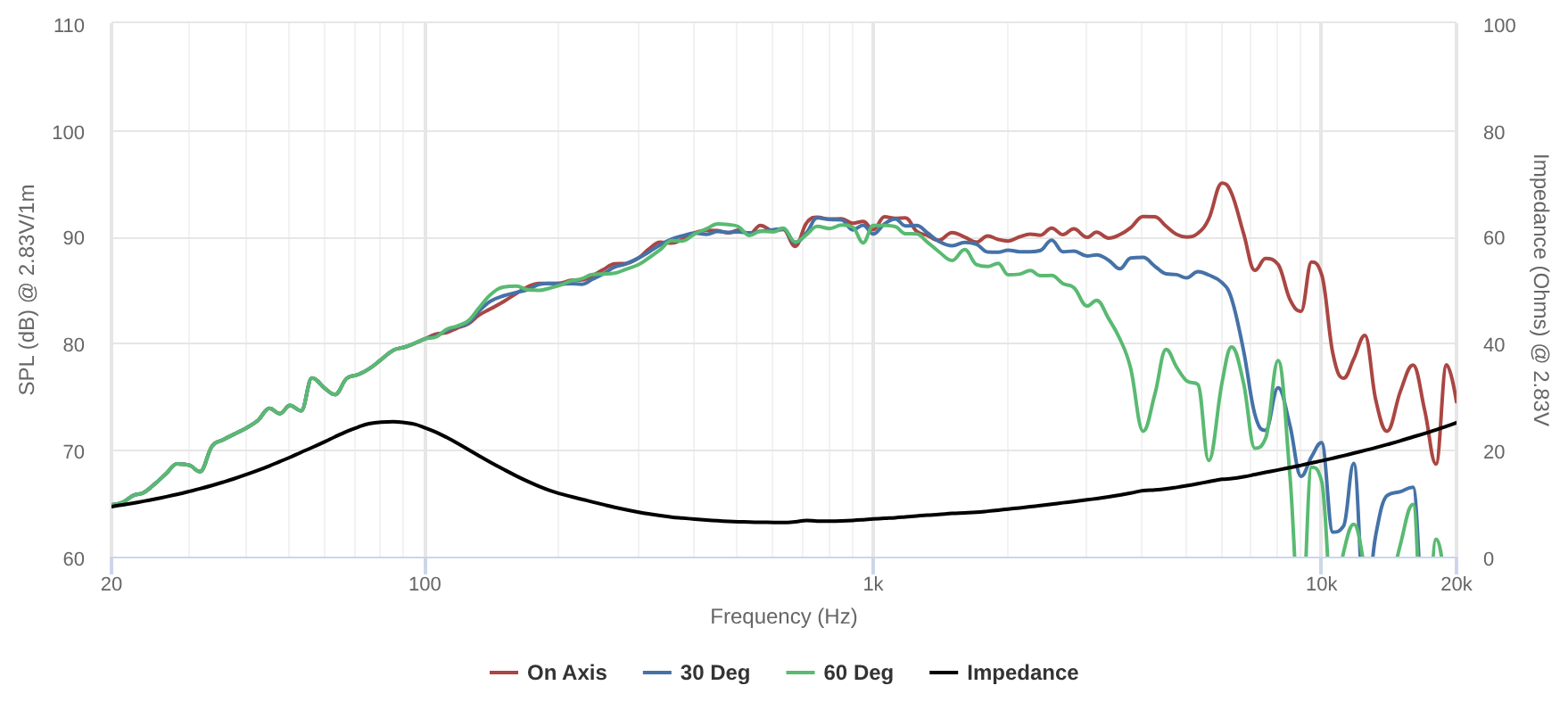

- Frequency response 100 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 110Hz
- Mechanical quality factor QMS 1.28
- Electrical quality factor QES 0.34
- Total quality factor QTS 0.27
Large signal parameters
- Maximum linear excursion xmax 5.6mm
- Air volume displaced at xmax VD 36cm³
- Power handling P 110W
- Program power Pmax 220W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 0.227mH
- VC Diameter 32.4mm
Magnet
- Force factor Bl 8.63N/A
- Motor constant Bl/√RE 3.65N/√W
- Air gap height HAG 6mm
- Material Neodymium
Diaphragm
- Effective diameter 91mm
- Effective area SD 65cm²
- Moving mass MMS 6.72g
- Moving mass (without air load) MMD 6.3g
- Material Paper
Suspensions
- Stiffness KMS 2.94N/mm
- Compliance CMS 340µm/N
- Equivalent volume to the compliance VAS 2.04L
- Mechanical resistance RMS 3.63N·s/m
- Surround material Fabric

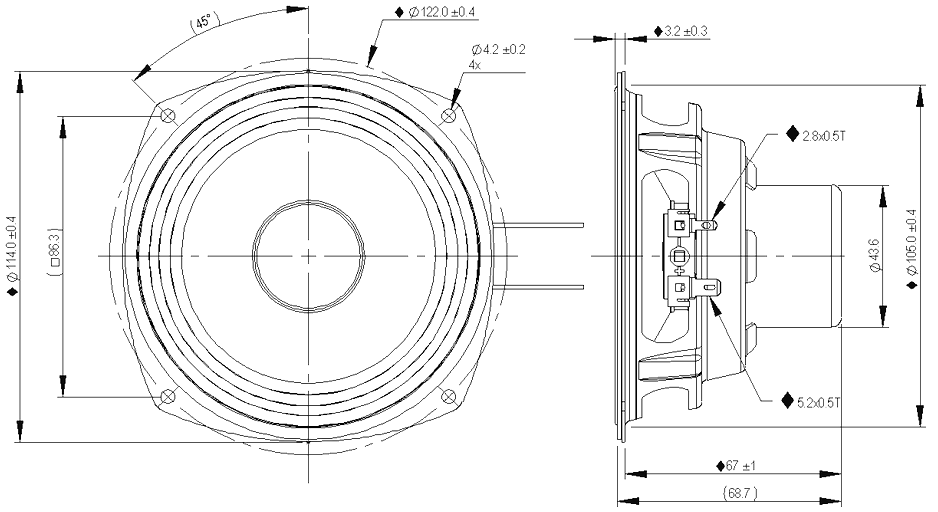

Dimensions
- Nominal diameter 4.5″
- 114mm
- Volume occupied by the driver (estimated) 165L
- Net weight 300.0kg
.png)
.png)
