Peerless TC8FC13-04

4Ω

Full-range

Nominal diameter	3″ / 76 mm
Resonance	220 Hz
Q factor	0.51
Sensitivity	91.4 dB
Linear excursion	± 2.2 mm
Program Power	60 W

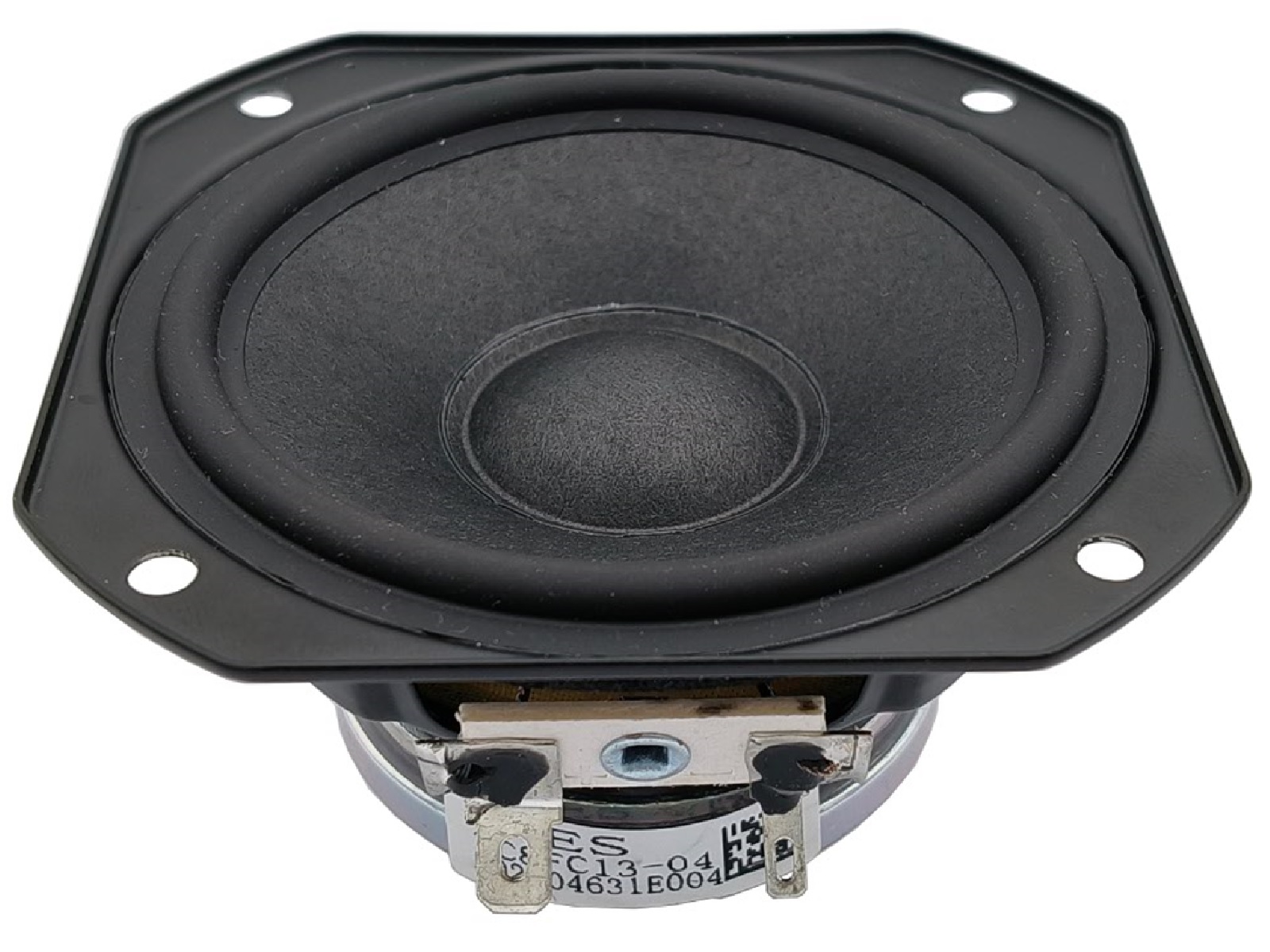

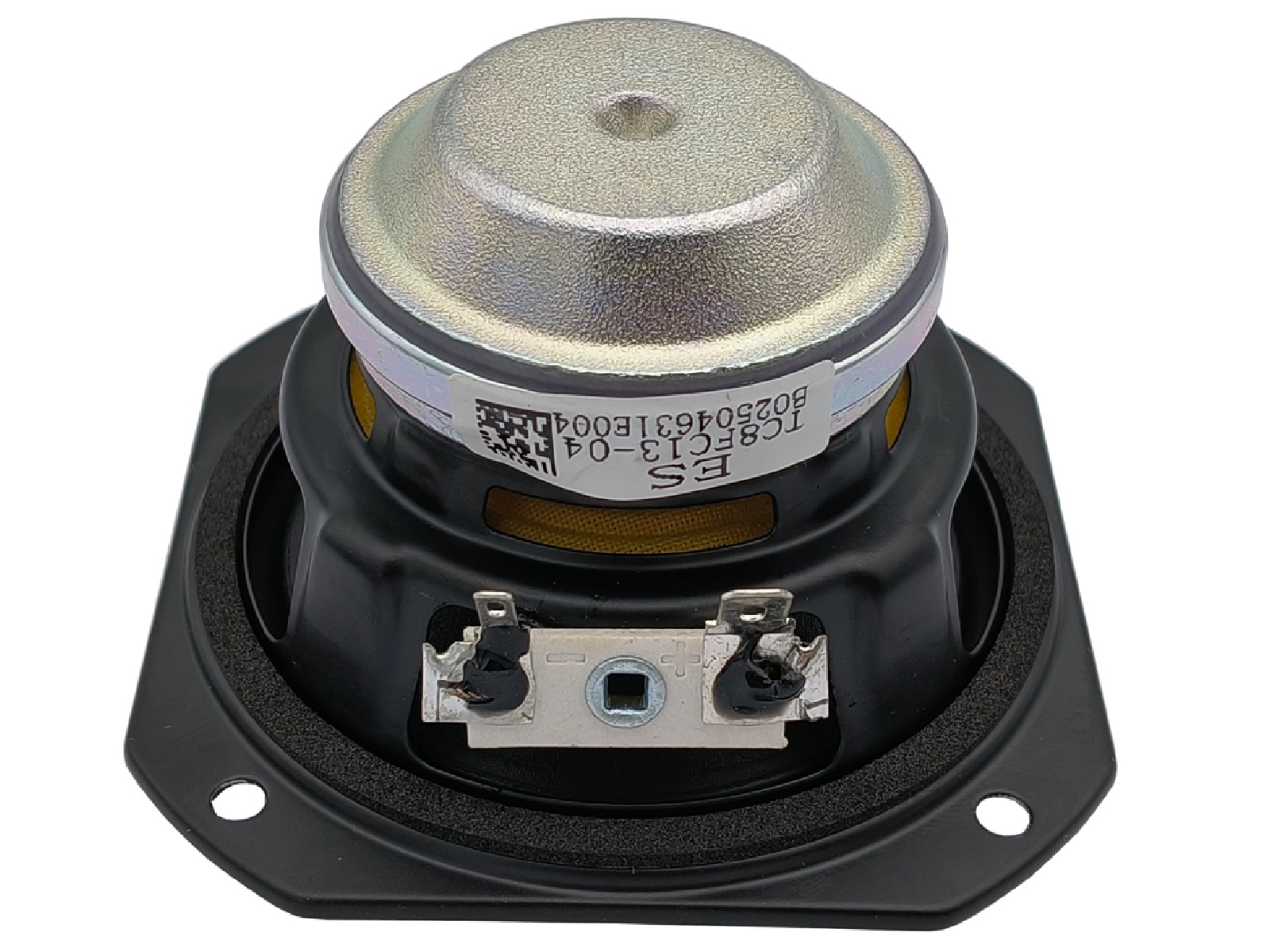

Peerless TC8FC13-04 Full-range

Specifications

Sensitivity (1W, 1m, infinite baffle) SPL1W 91.4dB
Frequency response 200 - 9000Hz

Thiele & Small parameters

Resonance frequency (free air) fS 220Hz
Mechanical quality factor QMS 19.20
Electrical quality factor QES 0.52
Total quality factor QTS 0.51

Large signal parameters

Maximum linear excursion xmax 2.2mm
Air volume displaced at xmax VD 7.4cm³
Power handling P 30W
Program power Pmax 60W

Voice Coil

Nominal impedance Z 4Ω
DC resistance RE 3.8Ω
Inductance (1kHz) LE 0.052mH
VC Diameter 20.3mm

Magnet

Force factor Bl 4.44N/A
Motor constant Bl/√RE 2.28N/√W
Air gap height HAG 4mm
Material Neodymium

Diaphragm

Effective diameter 65mm
Effective area SD 33.2cm²
Moving mass MMS 1.96g
Moving mass (without air load) MMD 1.8g
Material Paper

Suspensions

Stiffness KMS 3.7N/mm
Compliance CMS 270µm/N
Equivalent volume to the compliance VAS 0.414L
Mechanical resistance RMS 0.14N·s/m
Surround material Rubber

Dimensions

Nominal diameter 3″
76mm
Volume occupied by the driver (estimated) 126L
Net weight 232.0kg
Frame material Pressed Steel

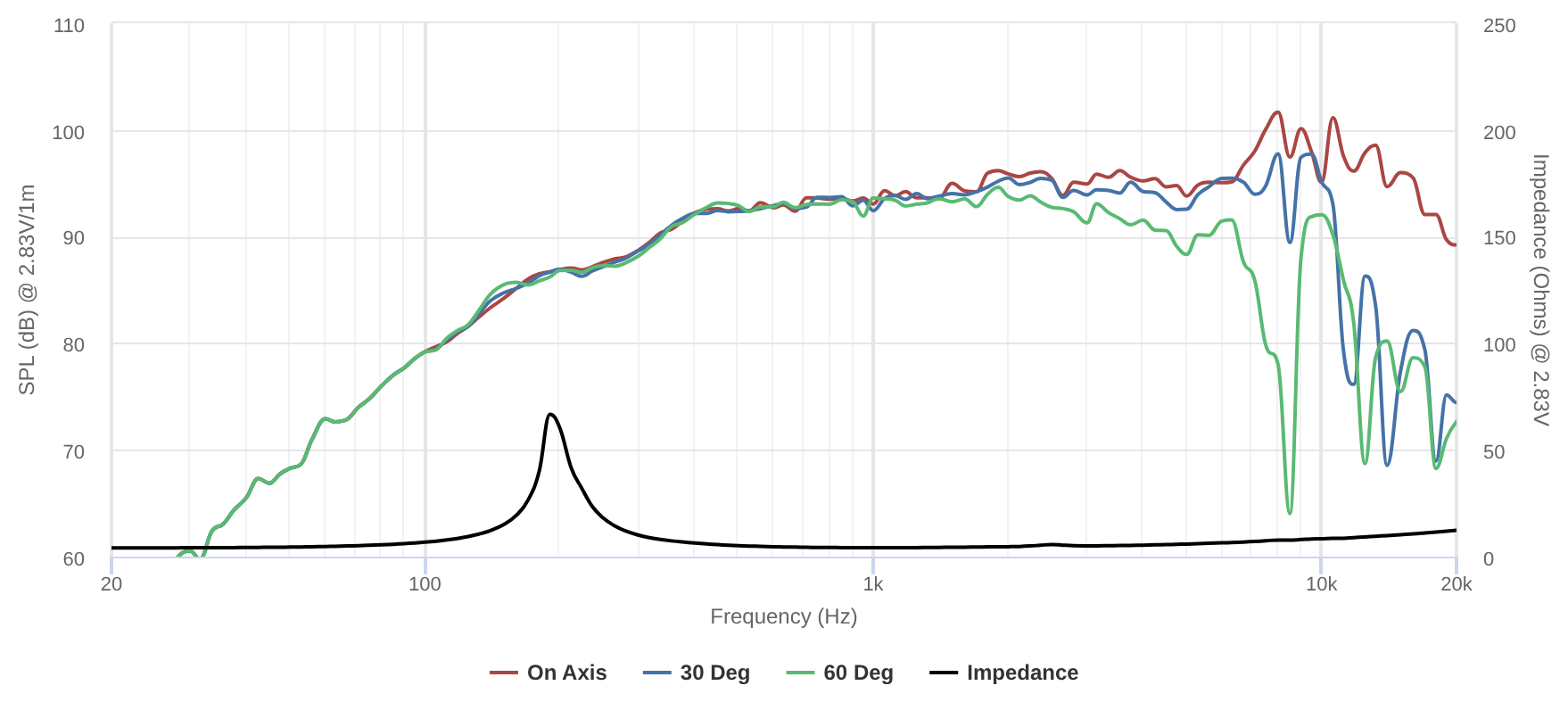

Peerless TC8FC13-04 SPL & Impedance

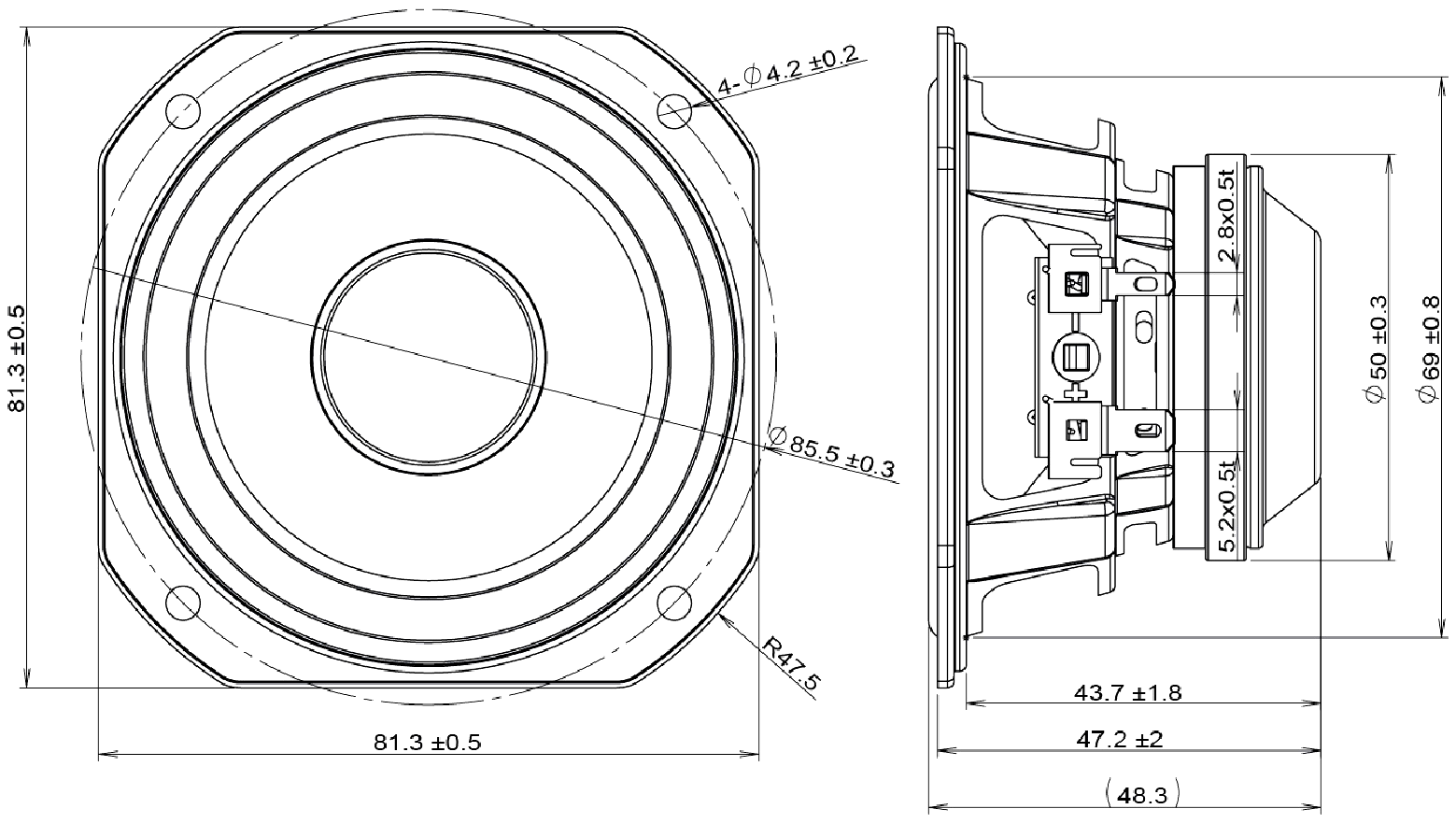

Peerless TC8FC13-04 Dimensions
