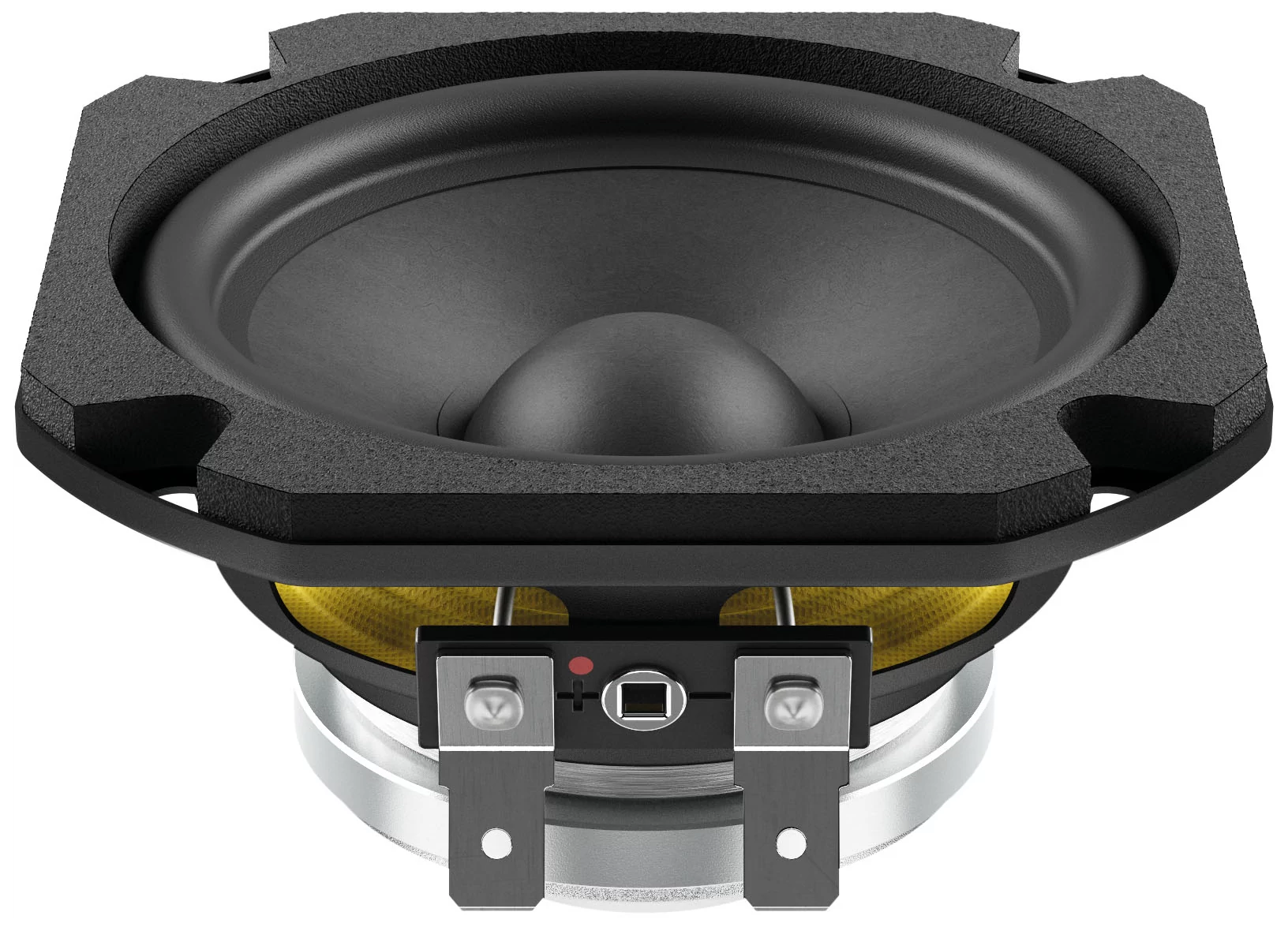

LaVoce FSN030.72-16
8Ω
16Ω
Full-range
| Nominal diameter | 3″ / 70 mm |
| Resonance | 131 Hz |
| Q factor | 0.45 |
| Sensitivity | 88.7 dB |
| Linear excursion | ± 2.2 mm |
| Program Power | 60 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.7dB

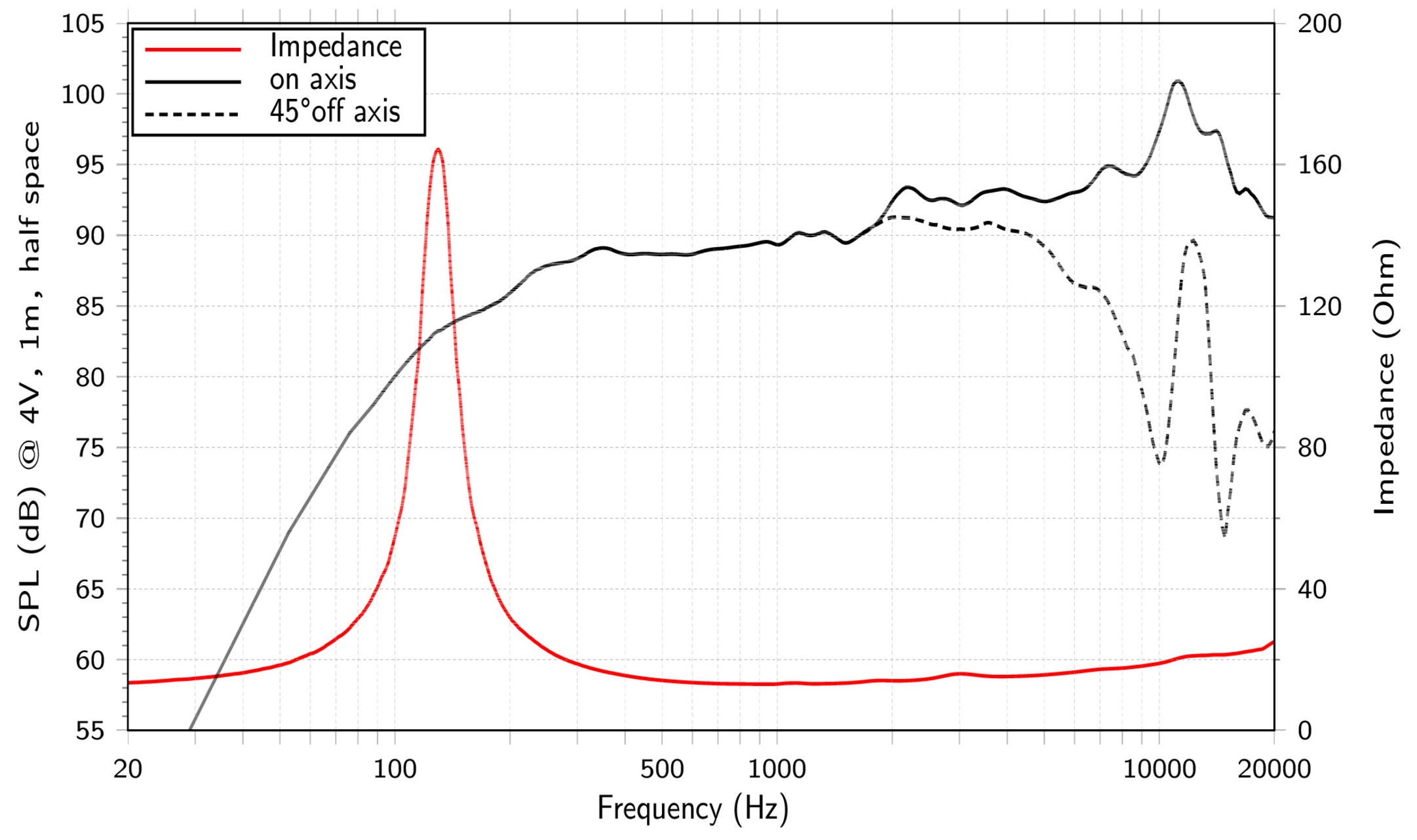

- Frequency response 120 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 131Hz
- Mechanical quality factor QMS 7.16
- Electrical quality factor QES 0.49
- Total quality factor QTS 0.45
Large signal parameters
- Maximum linear excursion (one way) xmax 2.2mm
- Maximum excursion before damage xlim 3.2mm
- Air volume displaced at xmax VD 7.3cm³
- Power handling P 30W
- Program power Pmax 60W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 12.6Ω
- Inductance (1kHz) LE 0.21mH
- VC Diameter 20mm
- Winding height HVC 6.3mm
- Winding material Copper Clad Aluminium
- Former material Glass fiber
Magnet
- Force factor Bl 6.75N/A
- Motor constant Bl/√RE 1.9N/√W
- Air gap height HAG 4mm
- Diameter 50mm
- Height 5mm
- Material Neodymium
Diaphragm
- Effective diameter 65mm
- Effective area SD 33cm²
- Moving mass MMS 2.13g
- Moving mass (without air load) MMD 2g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 1.44N/mm
- Compliance CMS 693µm/N
- Equivalent volume to the compliance VAS 1.07L
- Mechanical resistance RMS 0.24N·s/m
- Surround material Rubber

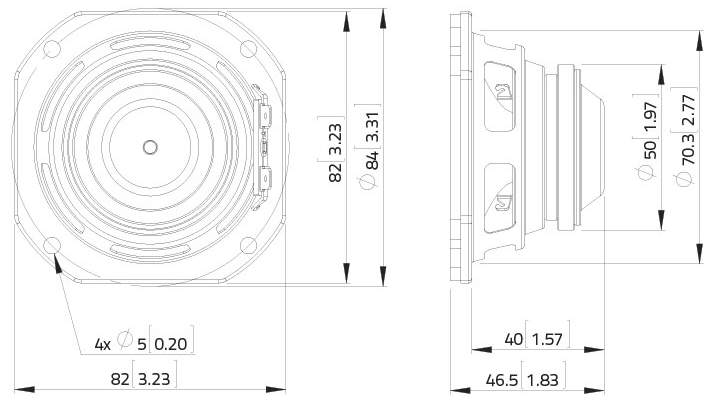

Dimensions
- Nominal diameter 3″
- 70mm
- Volume occupied by the driver 0.05L
- Net weight 0.19kg
- Frame material Steel
.webp)
.webp)
