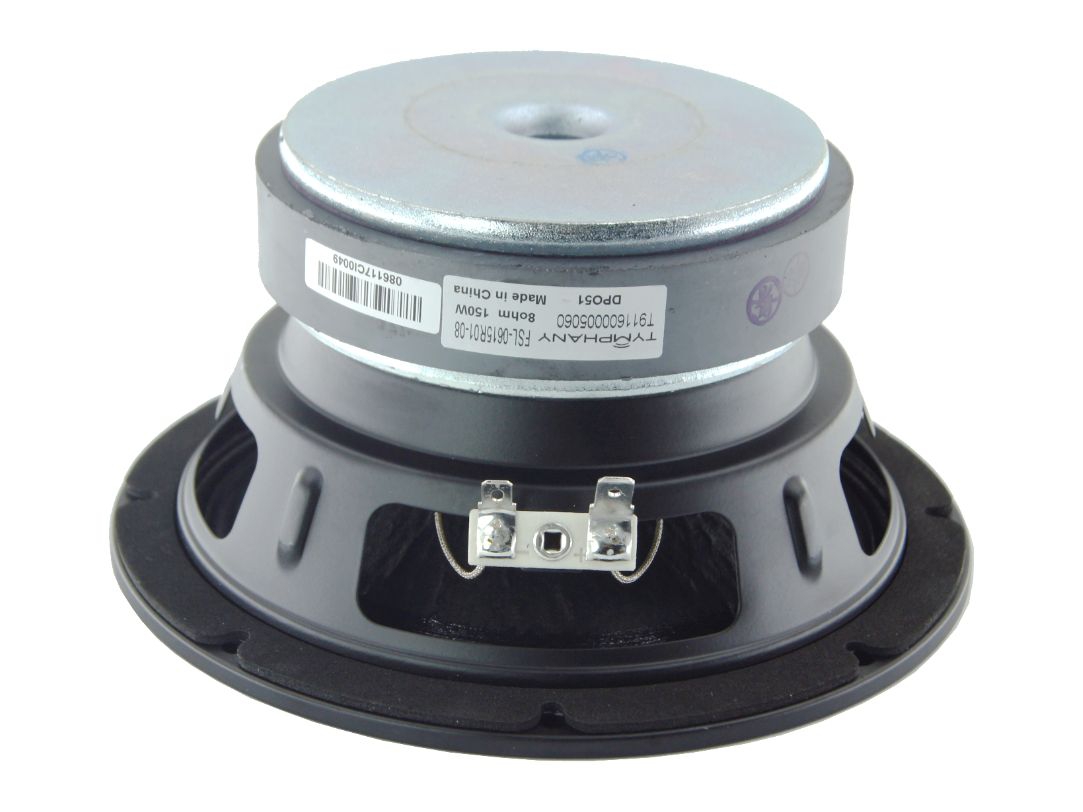

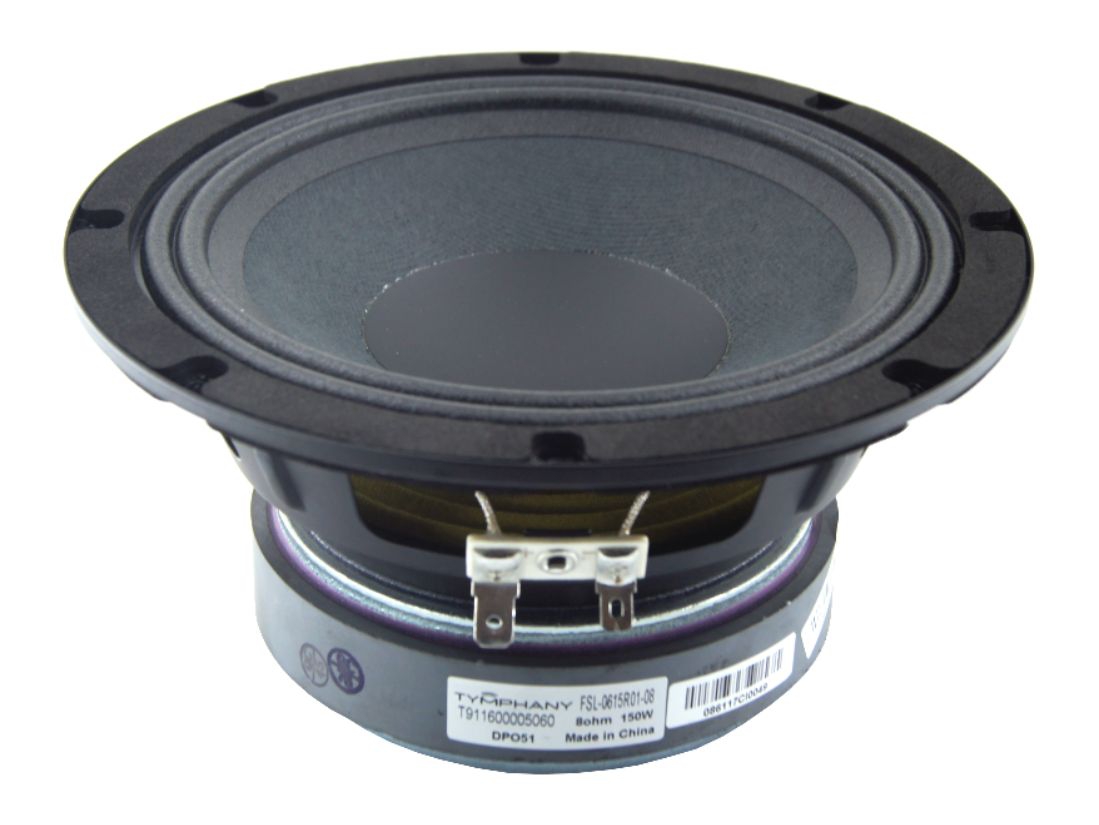

Peerless FSL-0615R01-08
8Ω
Woofer
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 84 Hz |
| Q factor | 0.45 |
| Sensitivity | 90.6 dB |
| Linear excursion | ± 6 mm |
| Program power | 200 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 90.6dB

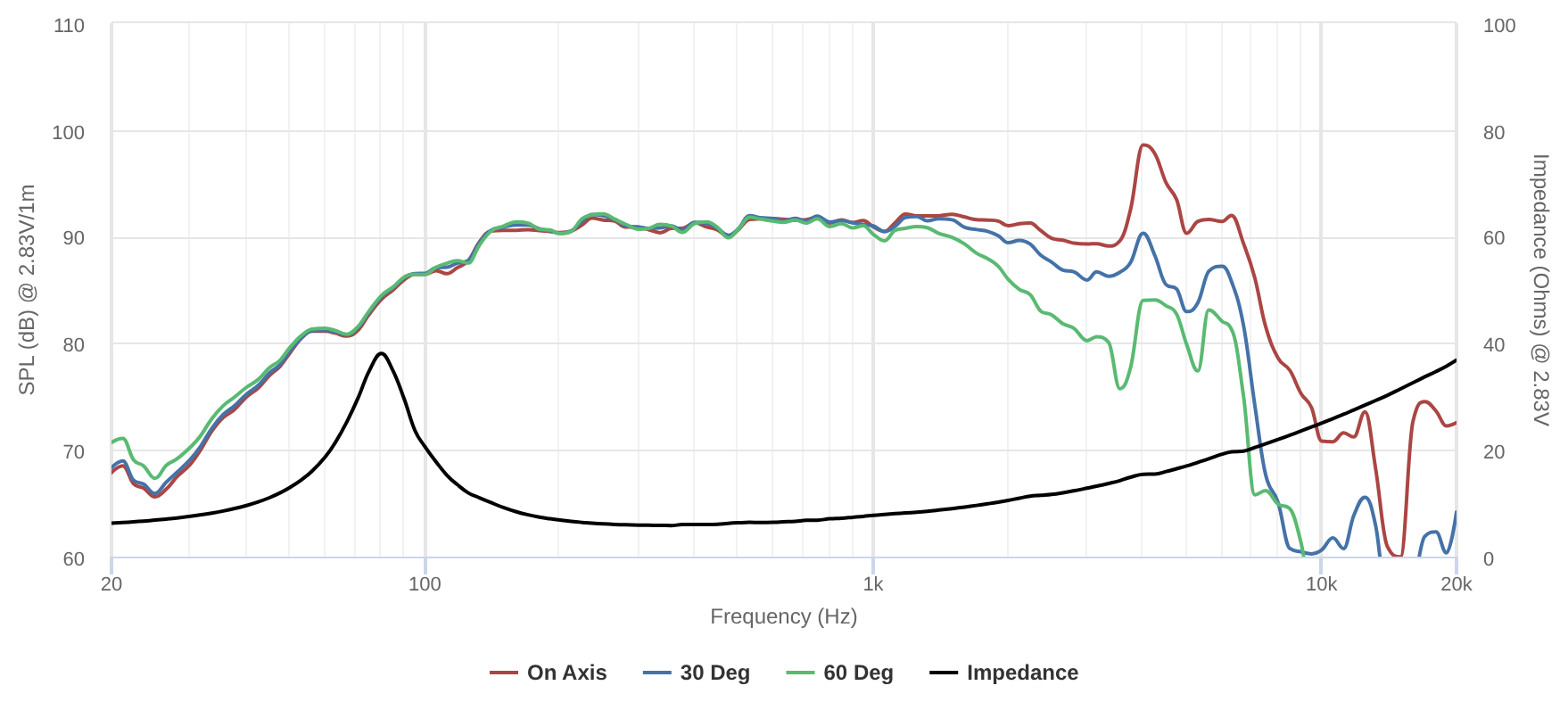

- Frequency response 50 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 84Hz
- Mechanical quality factor QMS 3.74
- Electrical quality factor QES 0.51
- Total quality factor QTS 0.45
Large signal parameters
- Maximum linear excursion (one way) xmax 6mm
- Air volume displaced at xmax VD 81cm³
- Power handling P 100W
- Program power Pmax 200W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.1Ω
- Inductance (1kHz) LE 0.446mH
- VC Diameter 38.4mm
Magnet
- Force factor Bl 8.48N/A
- Motor constant Bl/√RE 3.76N/√W
- Air gap height HAG 6mm
- Material Ferrite
Diaphragm
- Effective diameter 131mm
- Effective area SD 135cm²
- Moving mass (including air load) MMS 13.6g
- Moving mass MMD 12.4g
- Material Paper
Suspensions
- Stiffness KMS 3.85N/mm
- Compliance CMS 260µm/N
- Equivalent volume to the compliance VAS 6.73L
- Mechanical resistance RMS 1.92N·s/m
Dimensions
- Nominal diameter 6.5″
- 165mm
- Volume occupied by the driver (estimated) 0.76L
- Net weight 1.86kg
.png)
.png)
