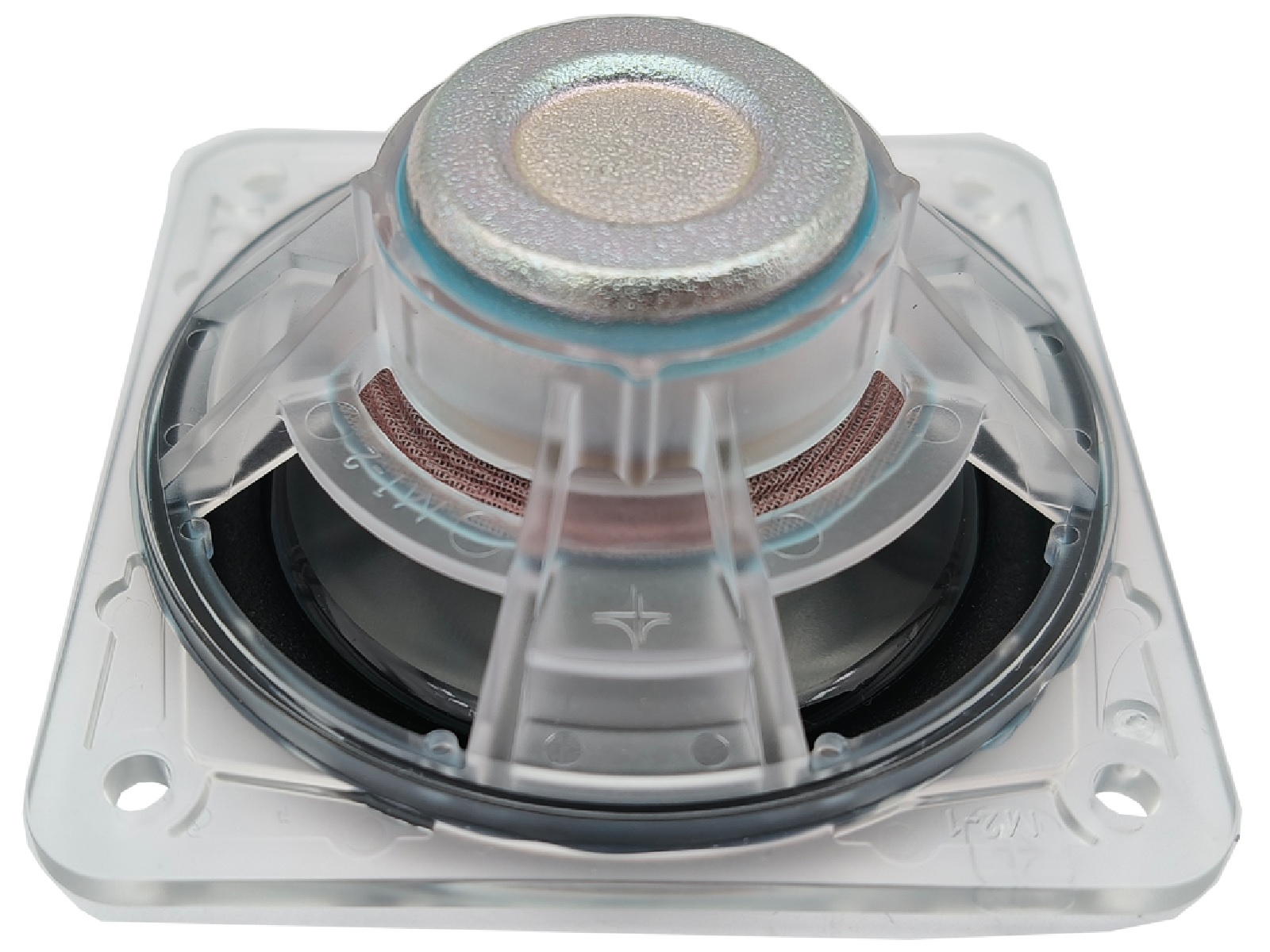

Peerless HVS-60N18PA00-04
4Ω
Full-range
| Nominal diameter | 2.5″ / 64 mm |
| Resonance | 140 Hz |
| Q factor | 0.85 |
| Sensitivity | 82.7 dB |
| Linear excursion | ± 2.2 mm |
| Program power | 8 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.7dB

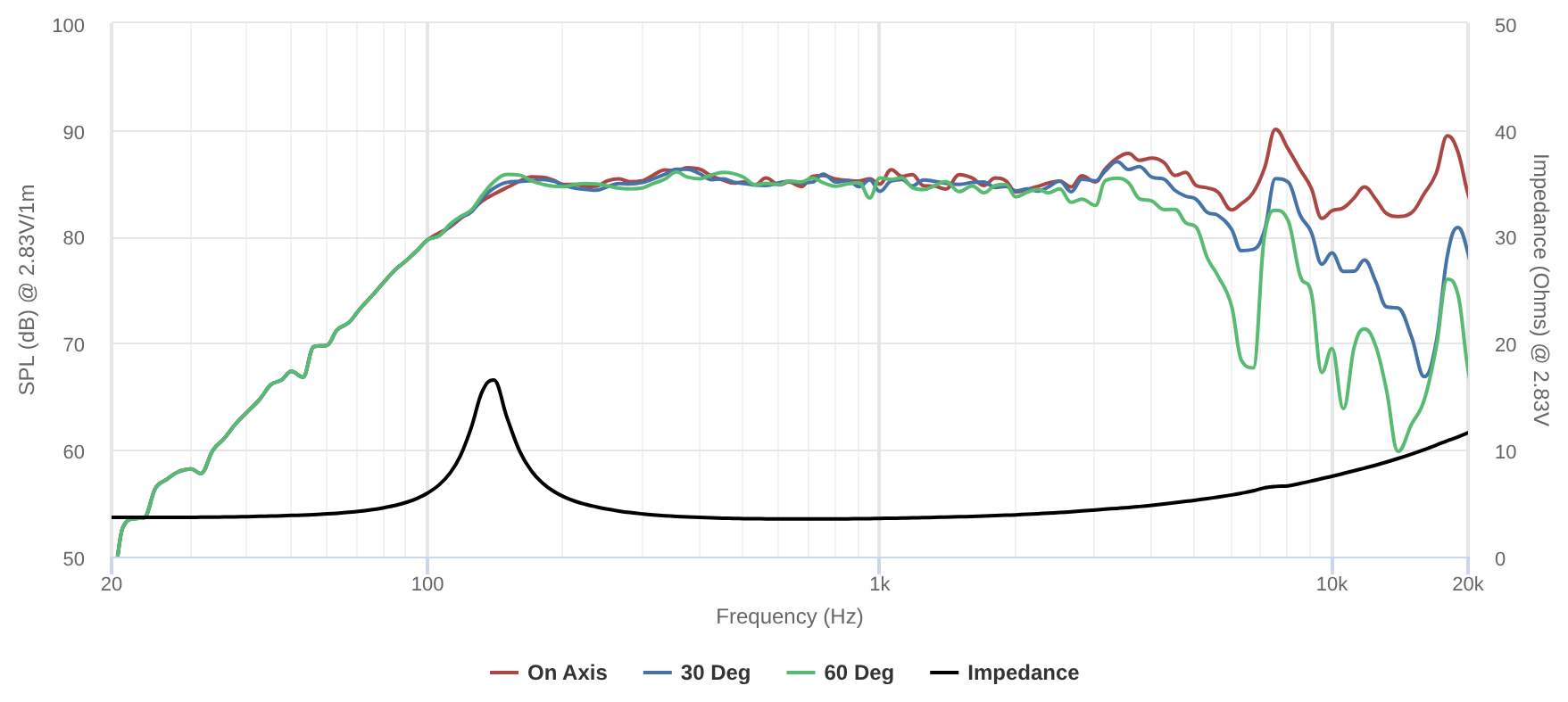

- Frequency response 150 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 140Hz
- Mechanical quality factor QMS 4.81
- Electrical quality factor QES 1.03
- Total quality factor QTS 0.85
Large signal parameters
- Maximum linear excursion (one way) xmax 2.2mm
- Air volume displaced at xmax VD 4.3cm³
- Power handling P 4W
- Program power Pmax 8W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.4Ω
- Inductance (1kHz) LE 0.091mH
- VC Diameter 18mm
Magnet
- Force factor Bl 2.31N/A
- Motor constant Bl/√RE 1.25N/√W
- Air gap height HAG 2.5mm
- Material Neodymium
Diaphragm
- Effective diameter 50mm
- Effective area SD 19.6cm²
- Moving mass (including air load) MMS 1.79g
- Moving mass MMD 1.7g
- Material Aluminum
Suspensions
- Stiffness KMS 1.45N/mm
- Compliance CMS 690µm/N
- Equivalent volume to the compliance VAS 0.374L
- Mechanical resistance RMS 0.33N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 2.5″
- 64mm
- Volume occupied by the driver (estimated) 25L
- Net weight 51.0kg
