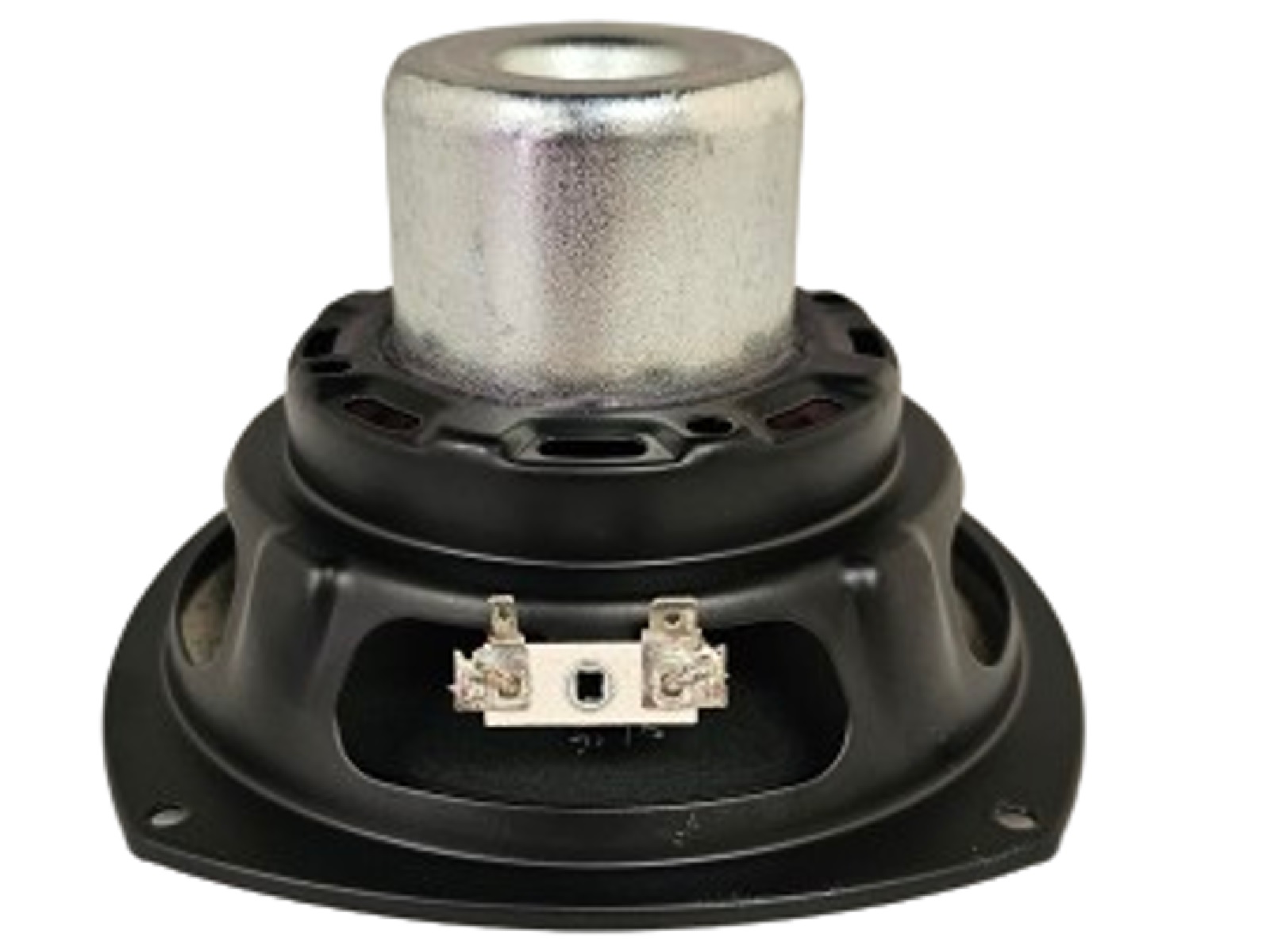

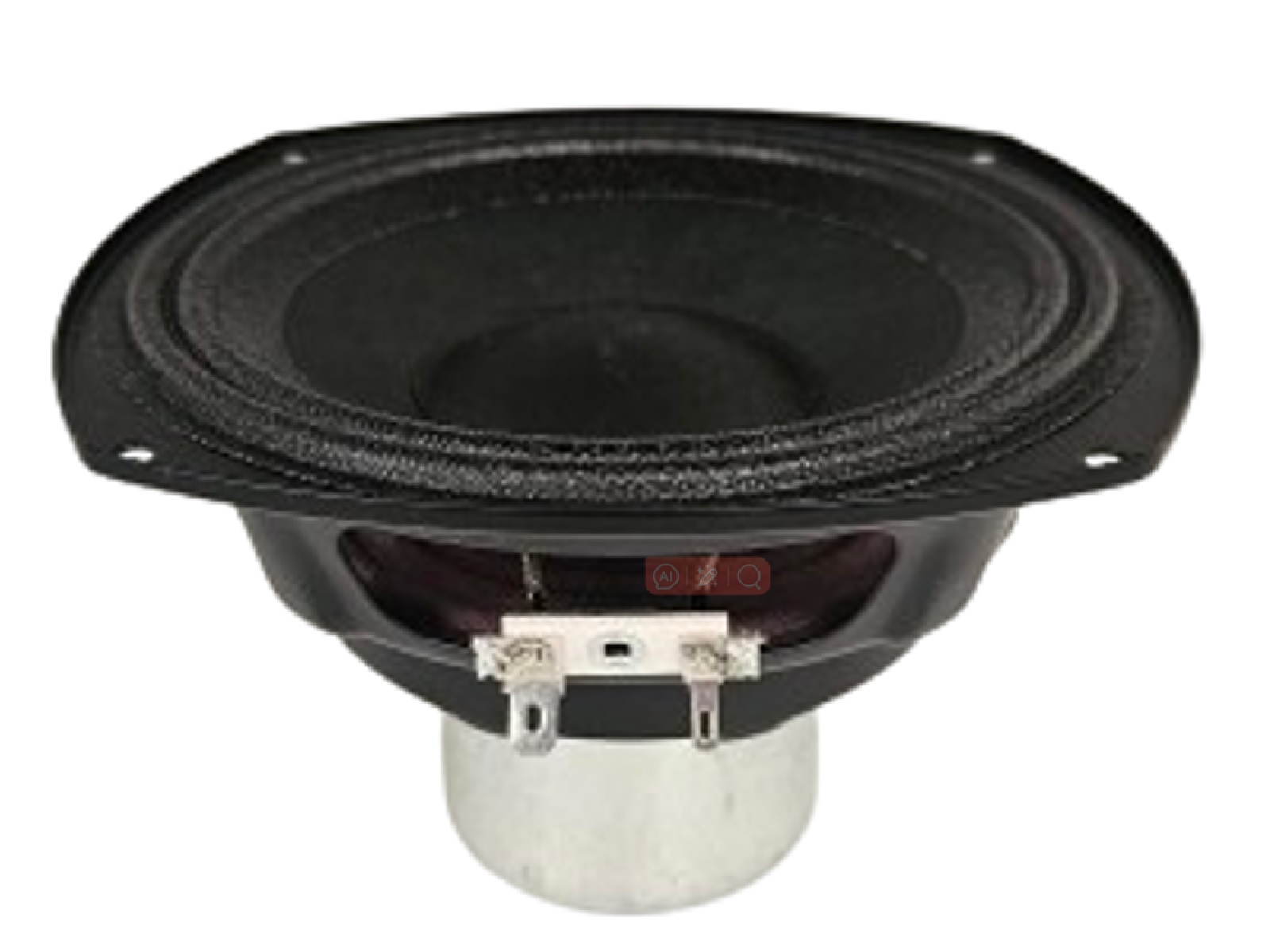

Peerless NSM-0515R00-04
4Ω
16ΩWoofer
| Nominal diameter | 5″ / 133 mm |
| Resonance | 110 Hz |
| Q factor | 0.30 |
| Sensitivity | 91.6 dB |
| Linear excursion | ± 6 mm |
| Program Power | 260 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 91.6dB

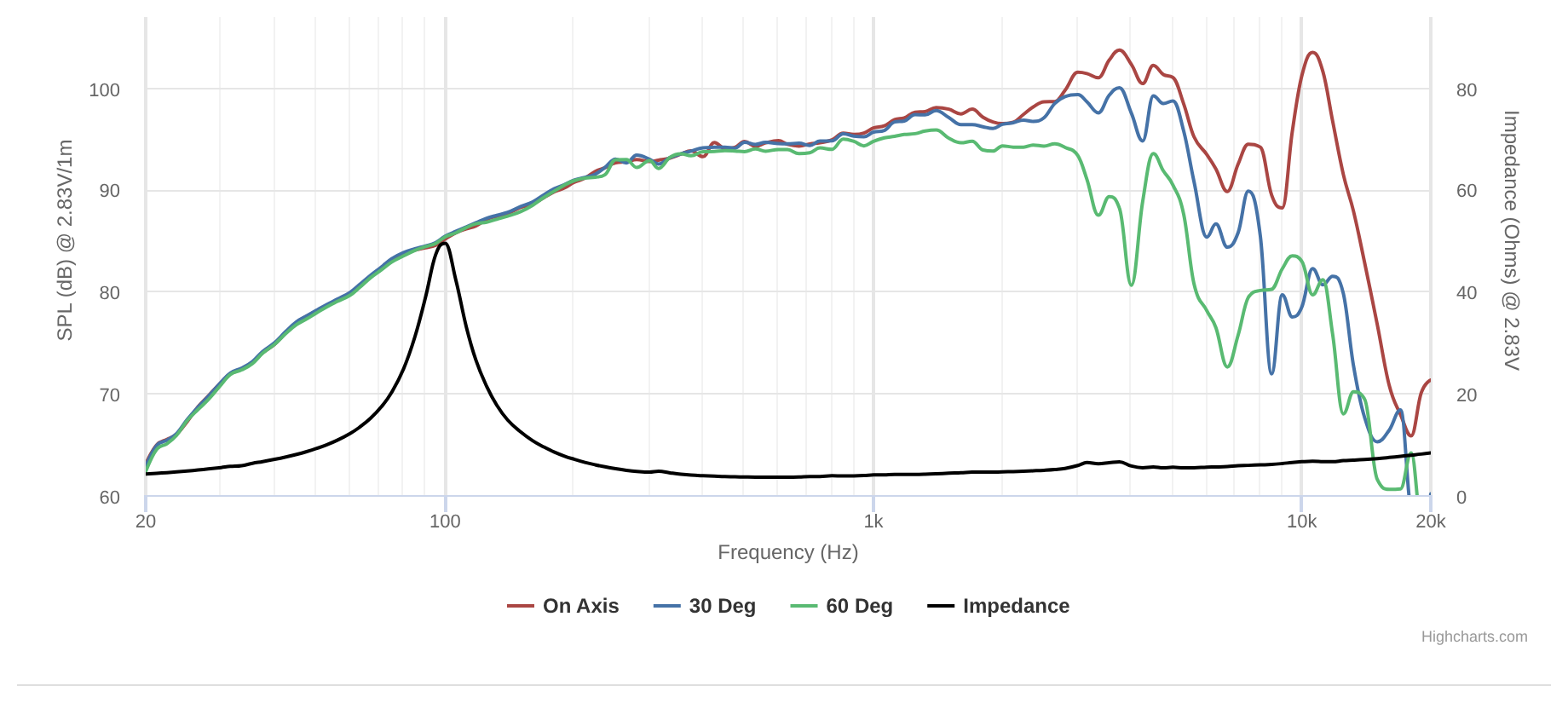

- Frequency response 100 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 110Hz
- Mechanical quality factor QMS 7.26
- Electrical quality factor QES 0.31
- Total quality factor QTS 0.30
Large signal parameters
- Maximum linear excursion xmax 6mm
- Air volume displaced at xmax VD 57cm³
- Power handling P 130W
- Program power Pmax 260W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 2.7Ω
- Inductance (1kHz) LE 0.066mH
- VC Diameter 38.4mm
Magnet
- Force factor Bl 8.7N/A
- Motor constant Bl/√RE 5.29N/√W
- Air gap height HAG 6mm
- Material Neodymium
Diaphragm
- Effective diameter 110mm
- Effective area SD 94.4cm²
- Moving mass MMS 12.4g
- Moving mass (without air load) MMD 11.8g
- Material Paper
Suspensions
- Stiffness KMS 5.26N/mm
- Compliance CMS 170µm/N
- Equivalent volume to the compliance VAS 2.11L
- Mechanical resistance RMS 1.17N·s/m
- Surround material Fabric

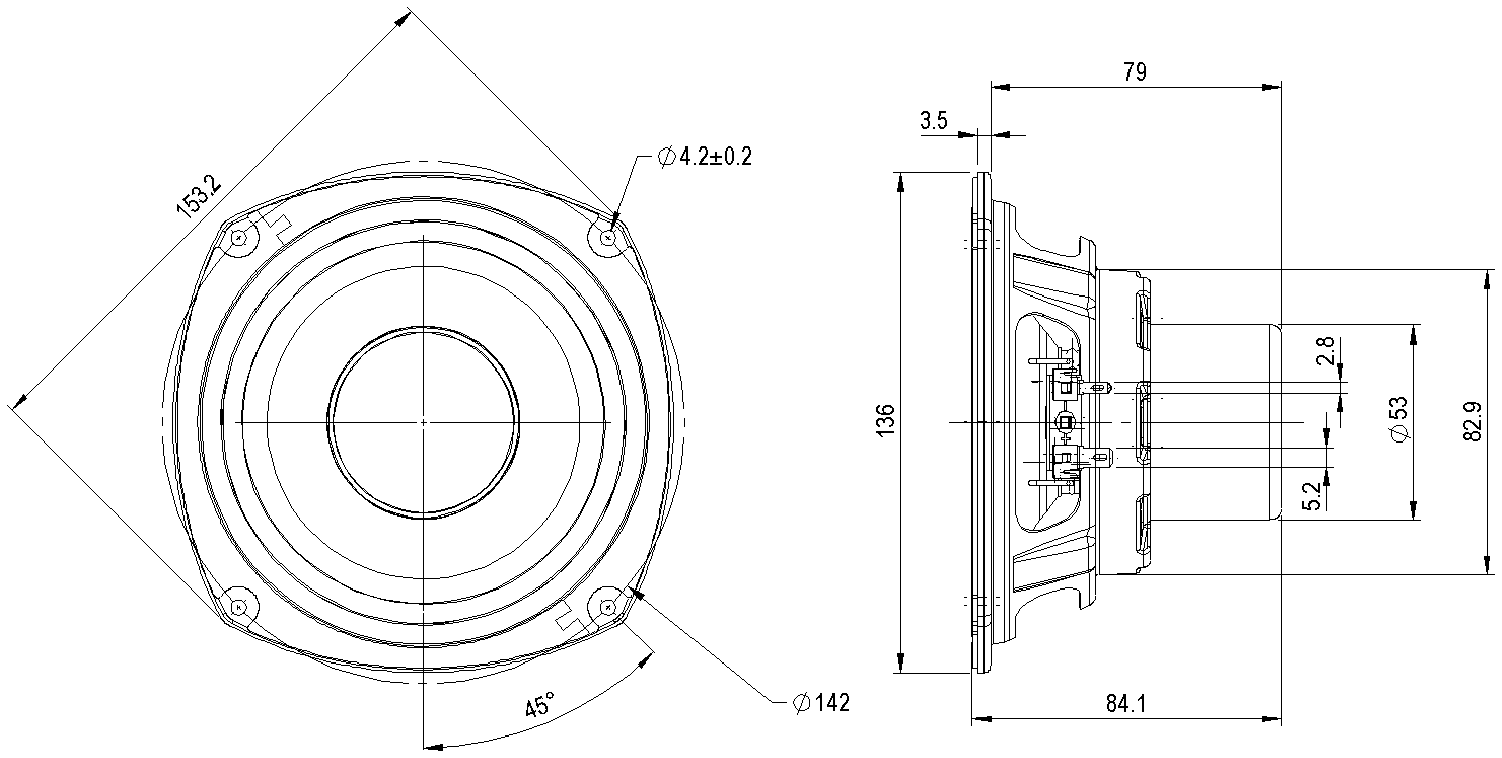

Dimensions
- Nominal diameter 5″
- 133mm
- Volume occupied by the driver (estimated) 0.29L
- Net weight 0.74kg
- Frame material Pressed Steel
.png)
.png)
