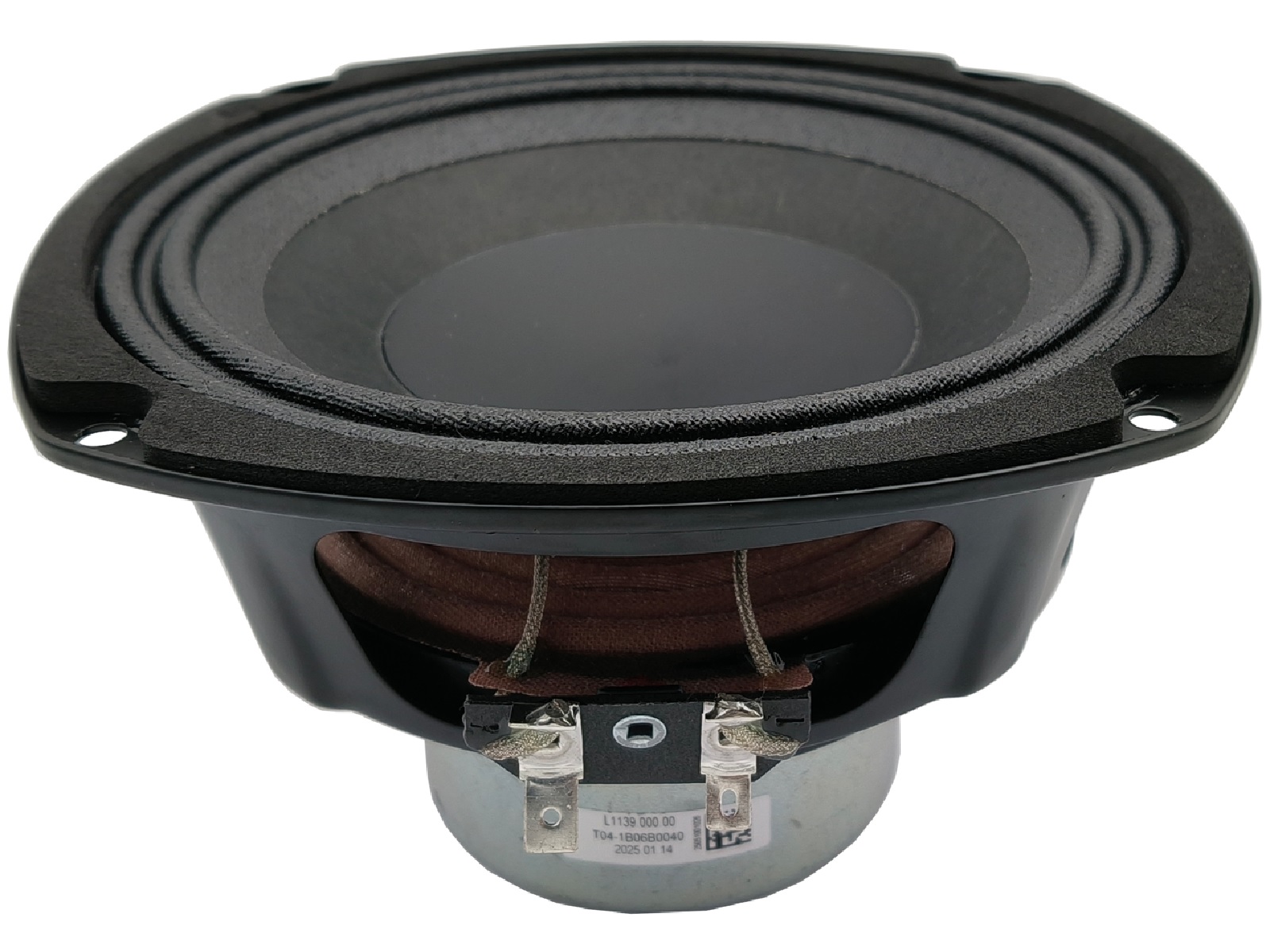

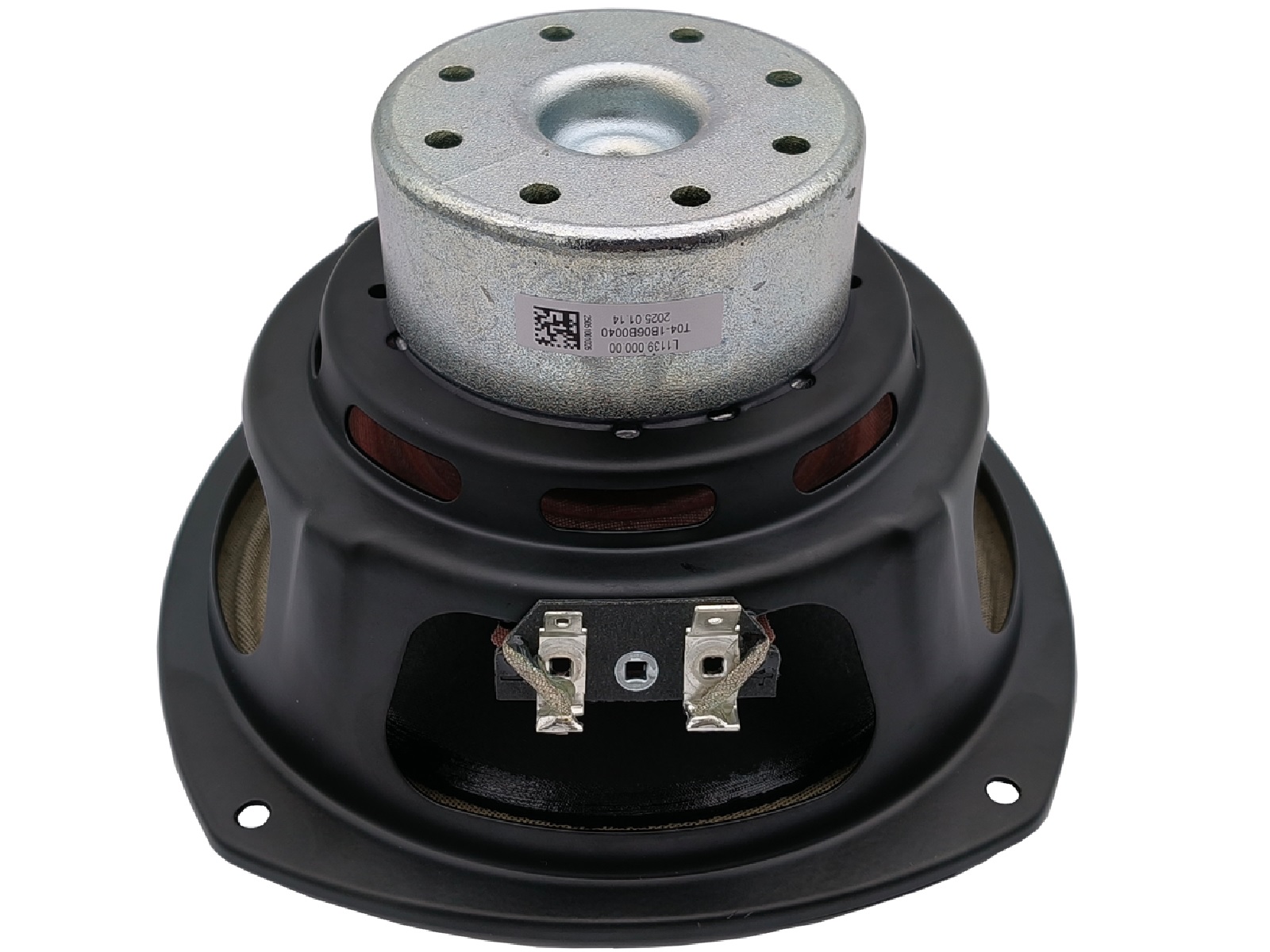

Peerless NSM-0620R00-04
4Ω
16ΩWoofer
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 88 Hz |
| Q factor | 0.22 |
| Sensitivity | 92.6 dB |
| Linear excursion | ± 6.8 mm |
| Program Power | 450 W |
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.6dB

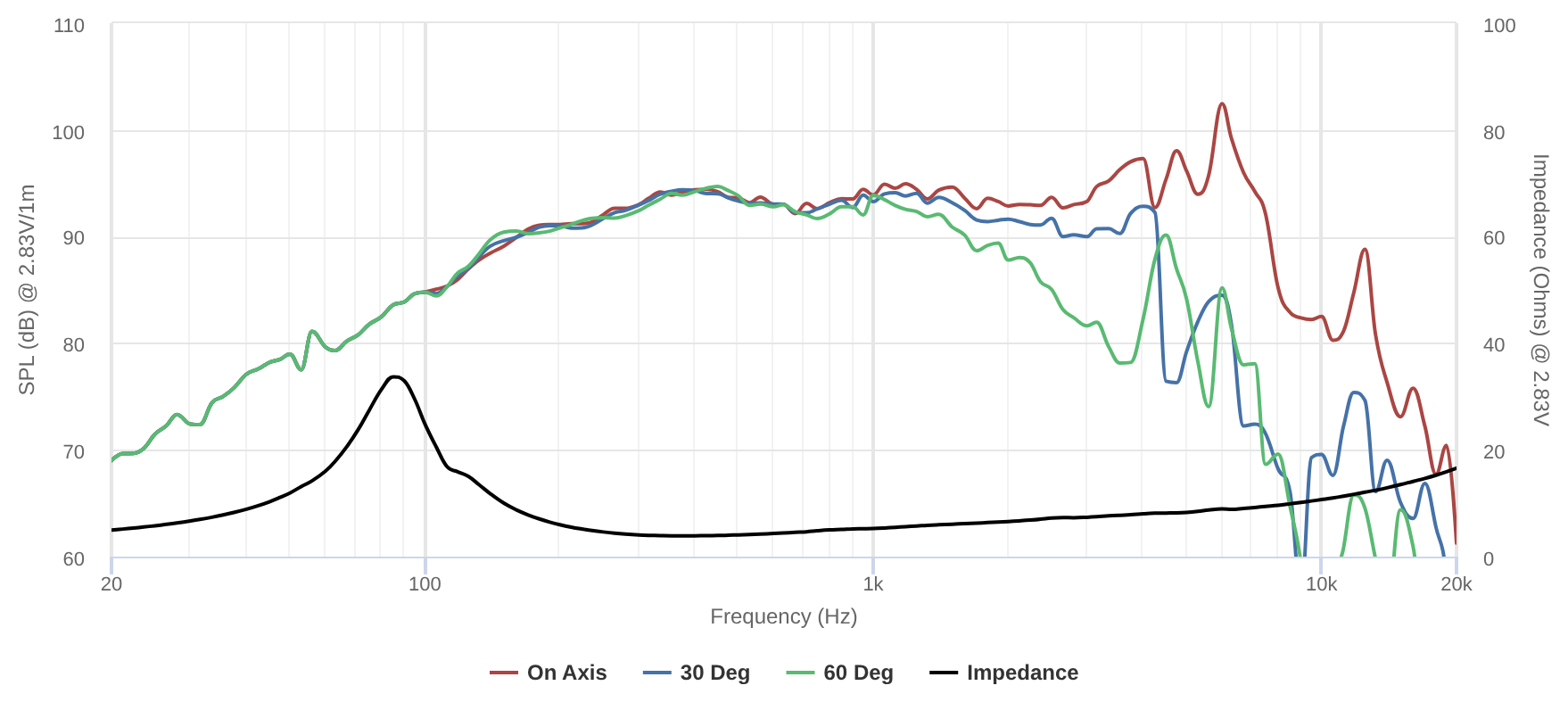

- Frequency response 90 - 8000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 88Hz
- Mechanical quality factor QMS 3.81
- Electrical quality factor QES 0.23
- Total quality factor QTS 0.22
Large signal parameters
- Maximum linear excursion (one way) xmax 6.8mm
- Air volume displaced at xmax VD 93cm³
- Power handling P 225W
- Program power Pmax 450W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 2.7Ω
- Inductance (1kHz) LE 0.136mH
- VC Diameter 50.5mm
Magnet
- Force factor Bl 11.5N/A
- Motor constant Bl/√RE 7N/√W
- Air gap height HAG 9mm
- Material Neodymium
Diaphragm
- Effective diameter 132mm
- Effective area SD 137cm²
- Moving mass MMS 20.9g
- Moving mass (without air load) MMD 19.7g
- Material Paper
Suspensions
- Stiffness KMS 6.25N/mm
- Compliance CMS 160µm/N
- Equivalent volume to the compliance VAS 4.17L
- Mechanical resistance RMS 3.03N·s/m
- Surround material Fabric

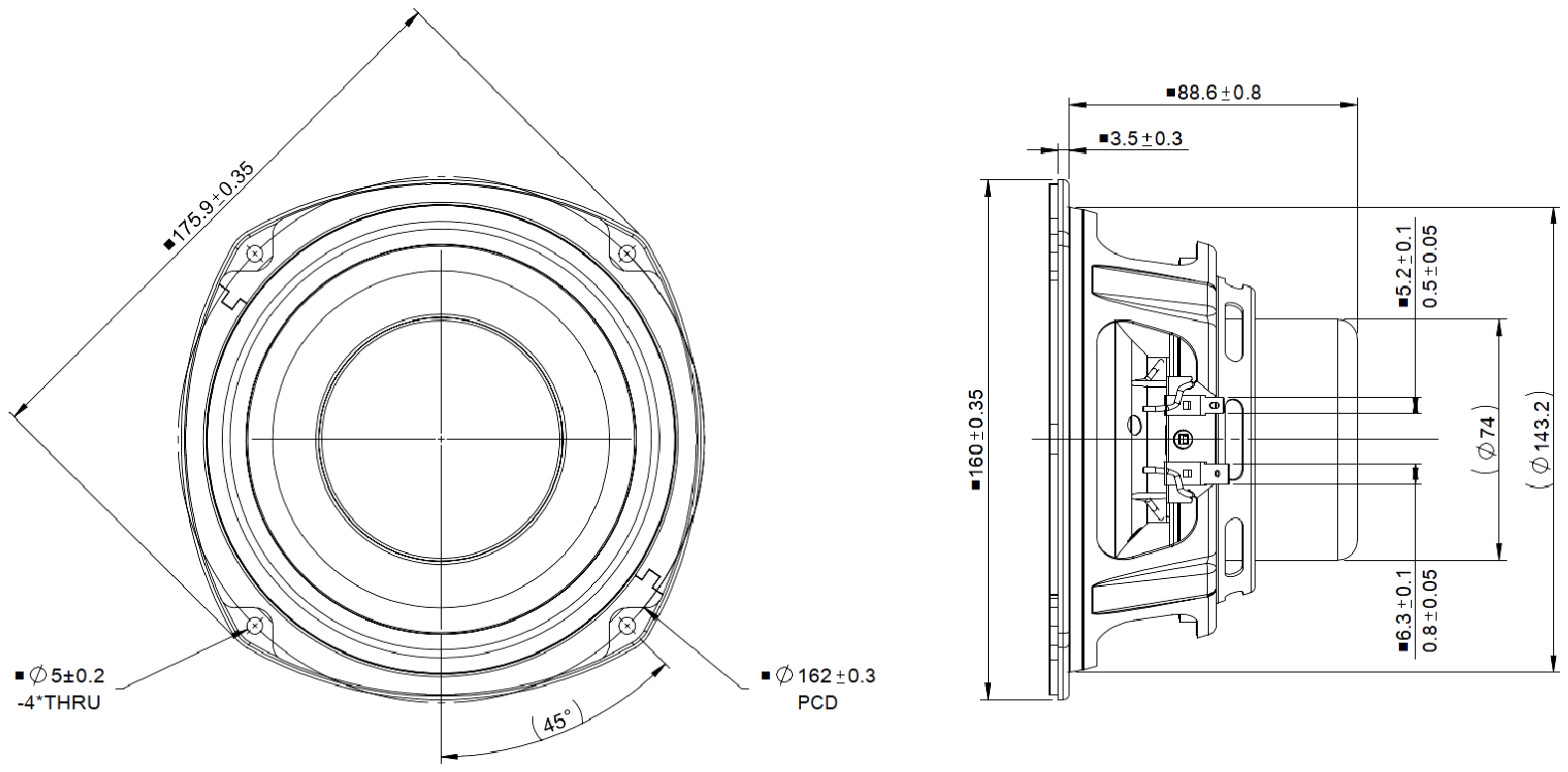

Dimensions
- Nominal diameter 6.5″
- 165mm
- Volume occupied by the driver (estimated) 0.52L
- Net weight 1.3kg
- Frame material Pressed Steel
.png)
.png)
