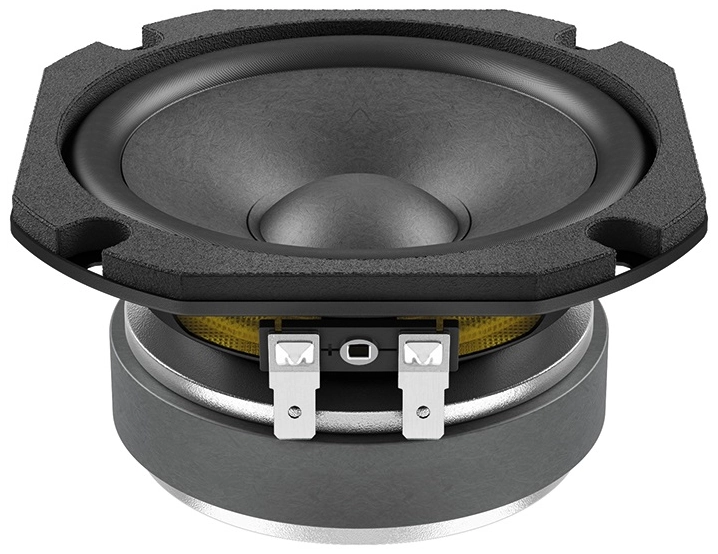

LaVoce FSF041.00-16
8Ω
16Ω
Full-range
| Nominal diameter | 4″ / 100 mm |
| Resonance | 132 Hz |
| Q factor | 1.01 |
| Sensitivity | 87.4 dB |
| Linear excursion | ± 2.2 mm |
| Program Power | 80 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.4dB
- Frequency response 110 - 18000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 132Hz
- Mechanical quality factor QMS 5.46
- Electrical quality factor QES 1.24
- Total quality factor QTS 1.01
Large signal parameters
- Maximum linear excursion (one way) xmax 2.2mm
- Maximum excursion before damage xlim 3.2mm
- Air volume displaced at xmax VD 12cm³
- Power handling P 40W
- Program power Pmax 80W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 12.3Ω
- Inductance (1kHz) LE 0.1mH
- VC Diameter 25mm
- Winding height HVC 6.4mm
- Winding material Copper Clad Aluminium
- Former material Polyimide
Magnet
- Force factor Bl 5.96N/A
- Motor constant Bl/√RE 1.7N/√W
- Air gap height HAG 4mm
- Diameter 80mm
- Height 15mm
- Material Ferrite
Diaphragm
- Effective diameter 84mm
- Effective area SD 56cm²
- Moving mass MMS 4.3g
- Moving mass (without air load) MMD 4g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 2.96N/mm
- Compliance CMS 338µm/N
- Equivalent volume to the compliance VAS 1.5L
- Mechanical resistance RMS 0.65N·s/m
- Surround material Polyimide

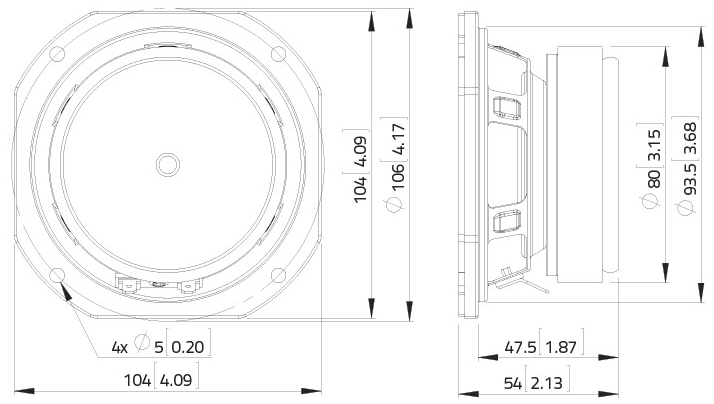

Dimensions
- Nominal diameter 4″
- 100mm
- Volume occupied by the driver 0.18L
- Net weight 0.72kg
- Frame material Steel
.webp)
.webp)
