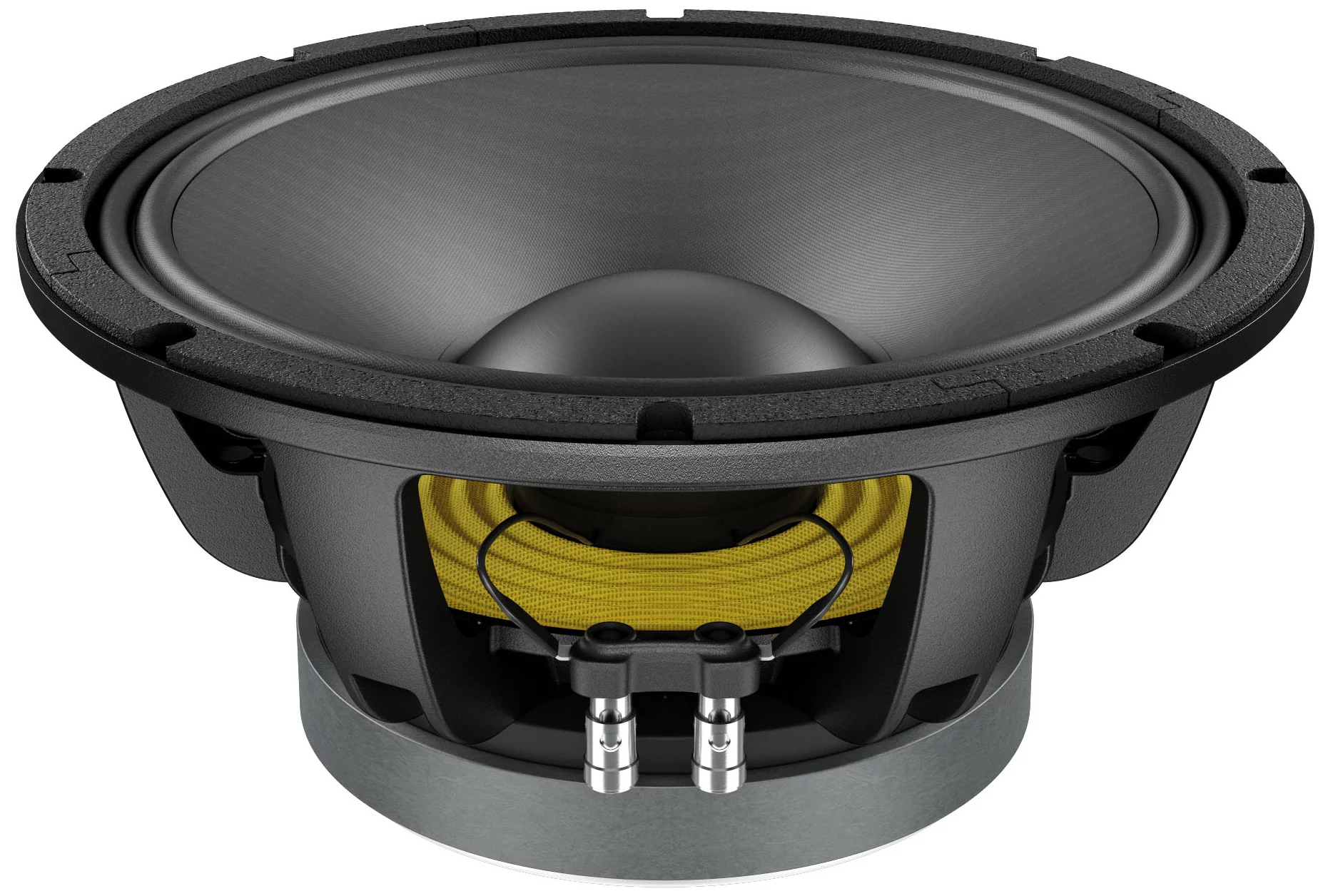

LaVoce WAF123.00-4
4Ω
8ΩWoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 50 Hz |
| Q factor | 0.24 |
| Sensitivity | 96 dB |
| Linear excursion | ± 7 mm |
| Program Power | 1000 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 96dB

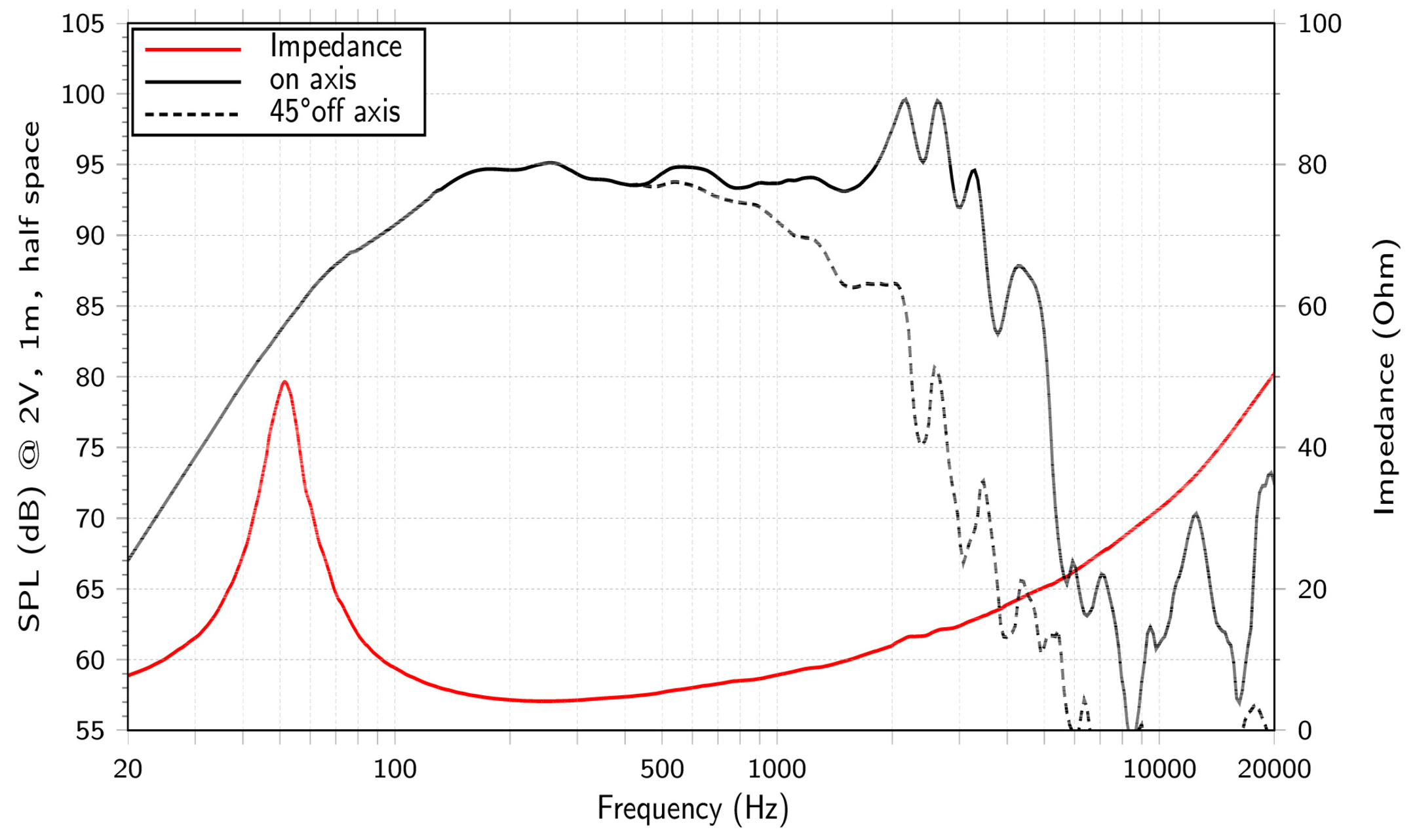

- Frequency response 50 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 50Hz
- Mechanical quality factor QMS 3.67
- Electrical quality factor QES 0.26
- Total quality factor QTS 0.24
Large signal parameters
- Maximum linear excursion (one way) xmax 7mm
- Maximum excursion before damage xlim 12.5mm
- Air volume displaced at xmax VD 372cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz) LE 0.72mH
- VC Diameter 75mm
- Winding height HVC 19mm
- Winding material Copper Clad Aluminium
- Former material Glass fiber
Magnet
- Force factor Bl 15.9N/A
- Motor constant Bl/√RE 8.74N/√W
- Air gap height HAG 10mm
- Diameter 190mm
- Height 25mm
- Material Ferrite
Diaphragm
- Effective diameter 260mm
- Effective area SD 531cm²
- Moving mass MMS 62.5g
- Moving mass (without air load) MMD 54.1g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 6.21N/mm
- Compliance CMS 161µm/N
- Equivalent volume to the compliance VAS 64.2L
- Mechanical resistance RMS 5.35N·s/m
- Surround material Polycotton

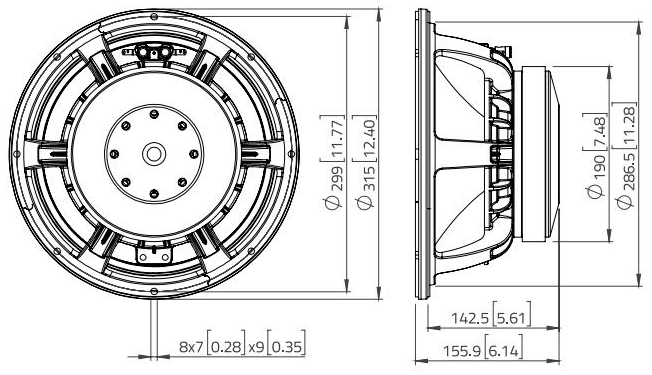

Dimensions
- Nominal diameter 12″
- 300mm
- Volume occupied by the driver 2.8L
- Net weight 8.7kg
- Frame material Aluminium
.webp)
.webp)
