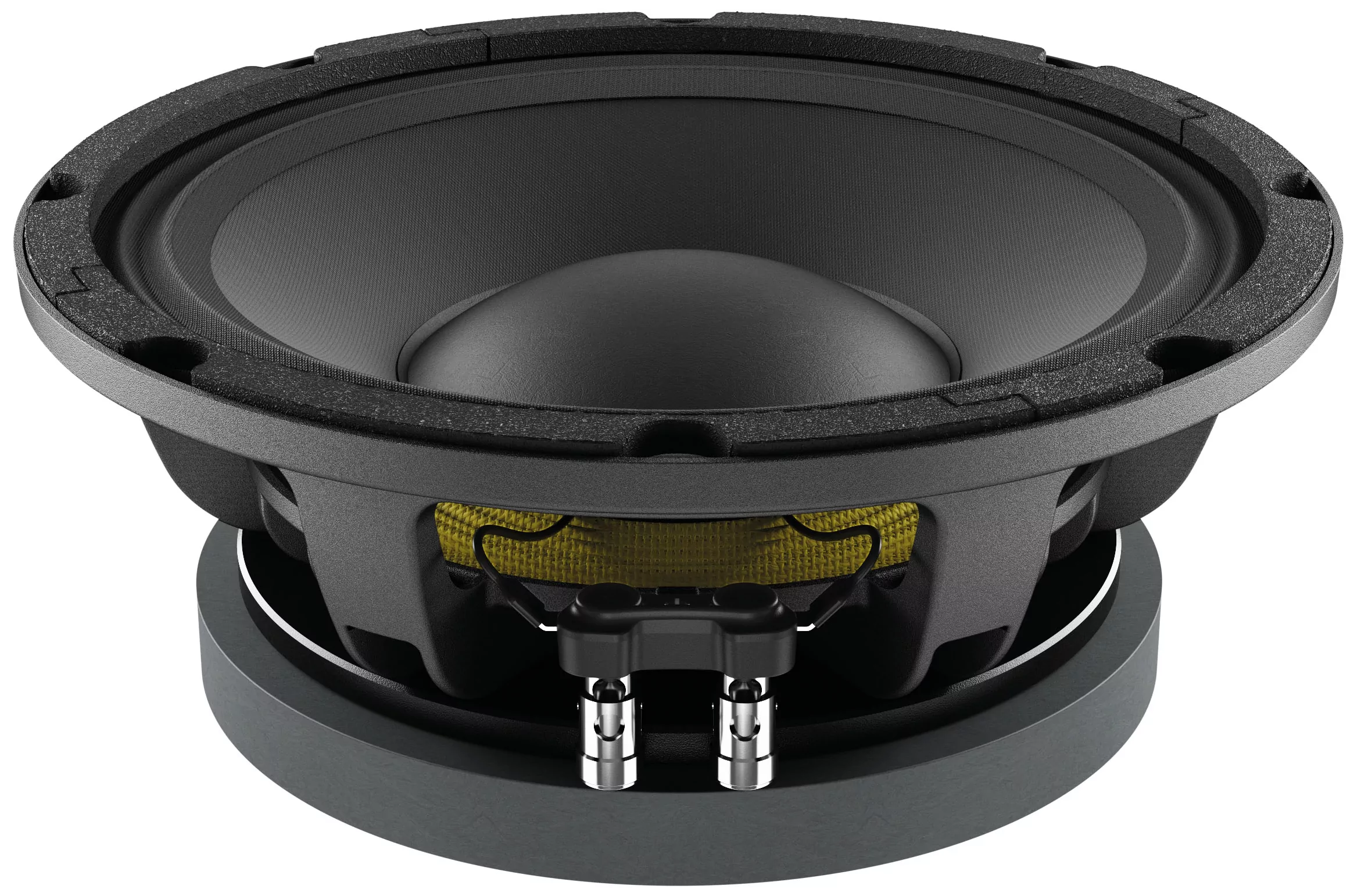

LaVoce MAF103.00-16
8Ω
16Ω
Mid-range
| Nominal diameter | 10″ / 250 mm |
| Resonance | 90 Hz |
| Q factor | 0.32 |
| Sensitivity | 96.4 dB |
| Linear excursion | ± 2.4 mm |
| Program Power | 700 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 96.4dB

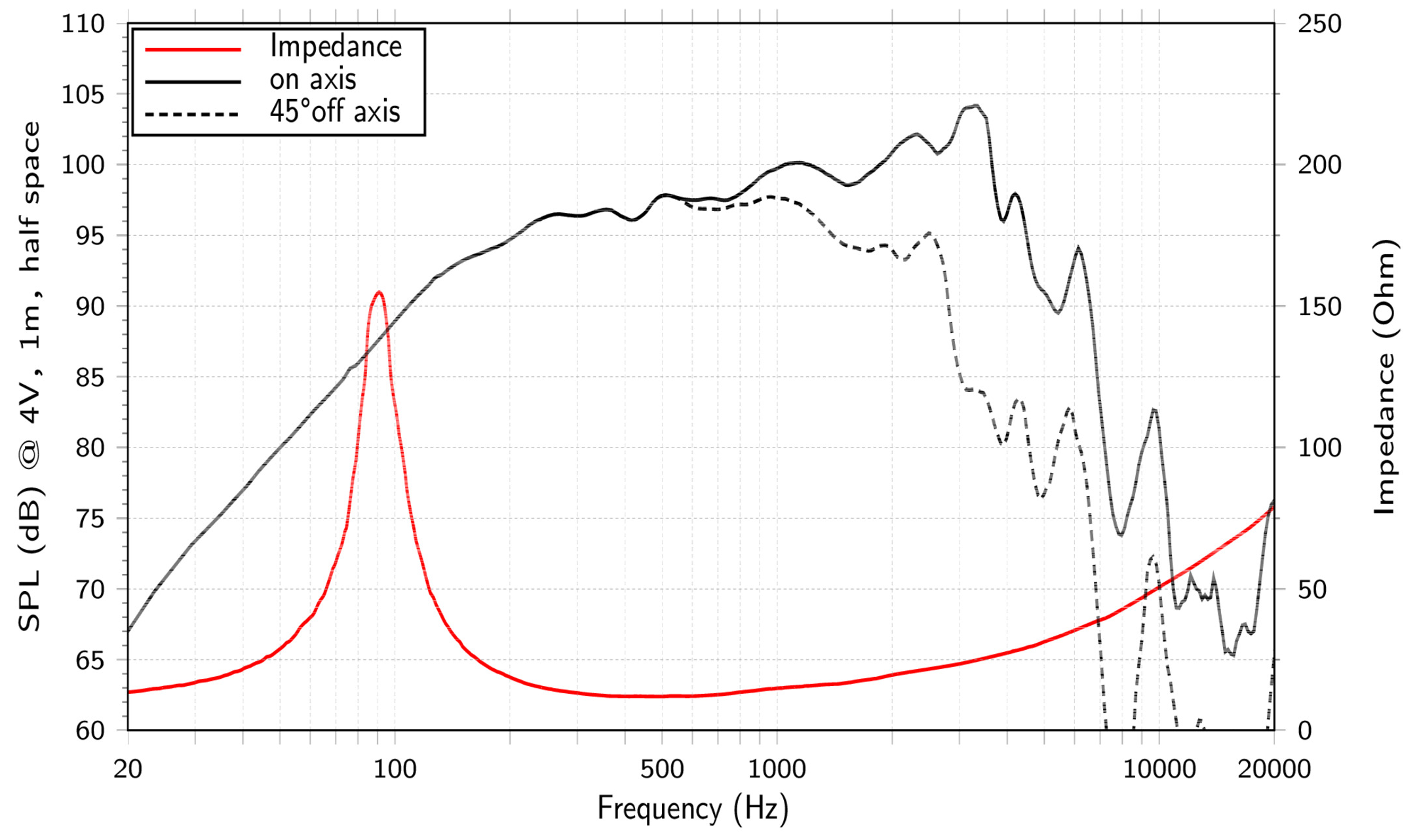

- Frequency response 70 - 4000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 90Hz
- Mechanical quality factor QMS 5.94
- Electrical quality factor QES 0.34
- Total quality factor QTS 0.32
Large signal parameters
- Maximum linear excursion (one way) xmax 2.4mm
- Maximum excursion before damage xlim 6.4mm
- Air volume displaced at xmax VD 84cm³
- Power handling P 350W
- Program power Pmax 700W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 10.3Ω
- Inductance (1kHz) LE 0.79mH
- VC Diameter 75mm
- Winding height HVC 8.8mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Force factor Bl 26.5N/A
- Motor constant Bl/√RE 8.25N/√W
- Air gap height HAG 8mm
- Diameter 200mm
- Height 20mm
- Material Ferrite
Diaphragm
- Effective diameter 211mm
- Effective area SD 350cm²
- Moving mass MMS 40.7g
- Moving mass (without air load) MMD 36.1g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 13N/mm
- Compliance CMS 77µm/N
- Equivalent volume to the compliance VAS 13.4L
- Mechanical resistance RMS 3.87N·s/m
- Surround material Polycotton

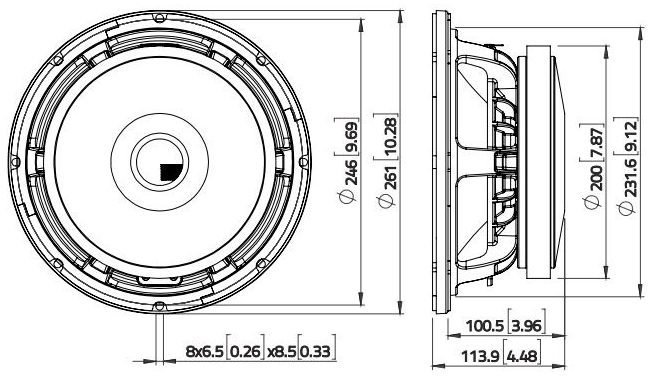

Dimensions
- Nominal diameter 10″
- 250mm
- Volume occupied by the driver 1.8L
- Net weight 6.9kg
- Frame material Aluminium
.webp)
.webp)
