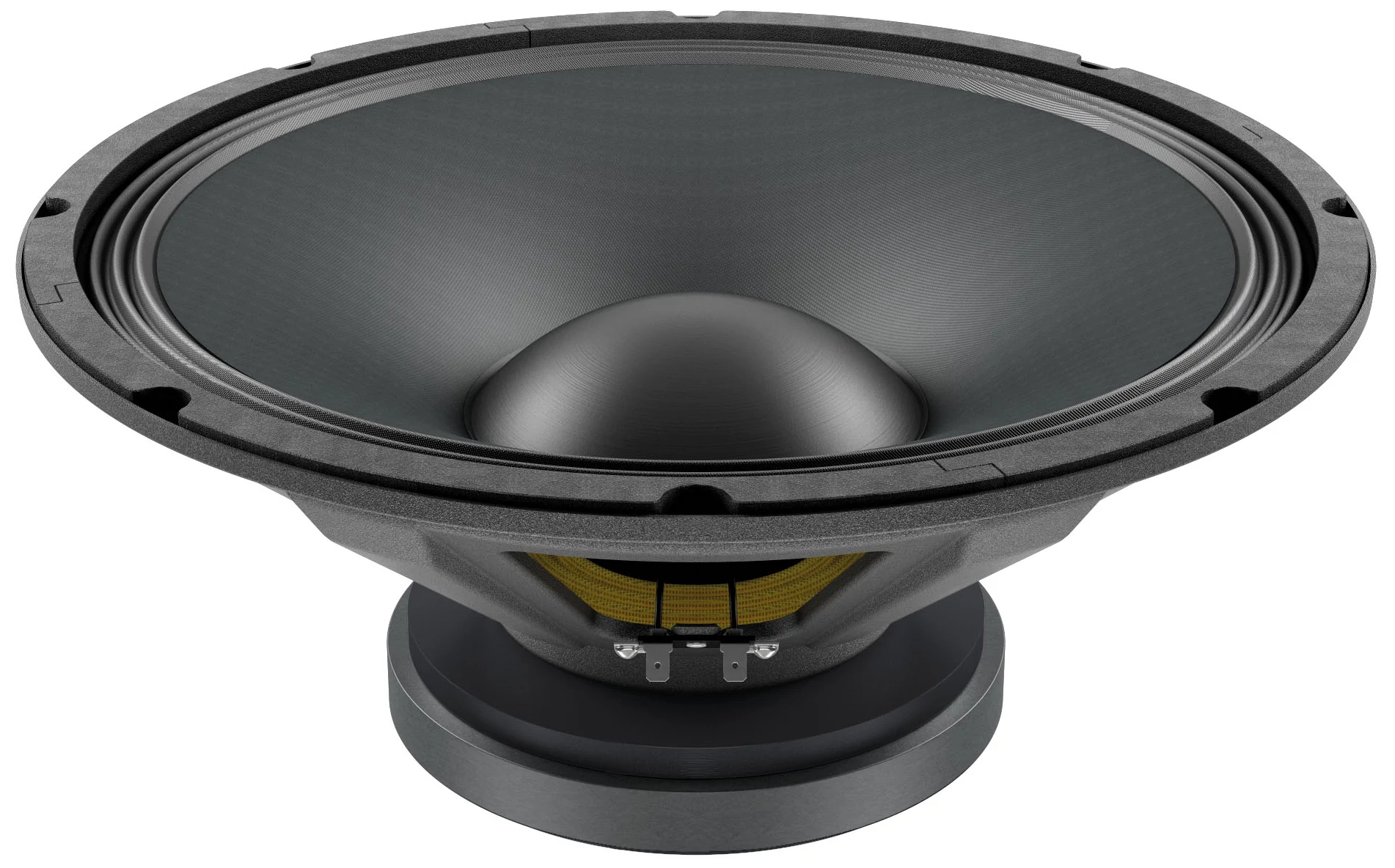

LaVoce SSF153.00-4
4Ω
8ΩSubwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 42 Hz |
| Q factor | 0.33 |
| Sensitivity | 95.5 dB |
| Linear excursion | ± 7 mm |
| Program Power | 800 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.5dB

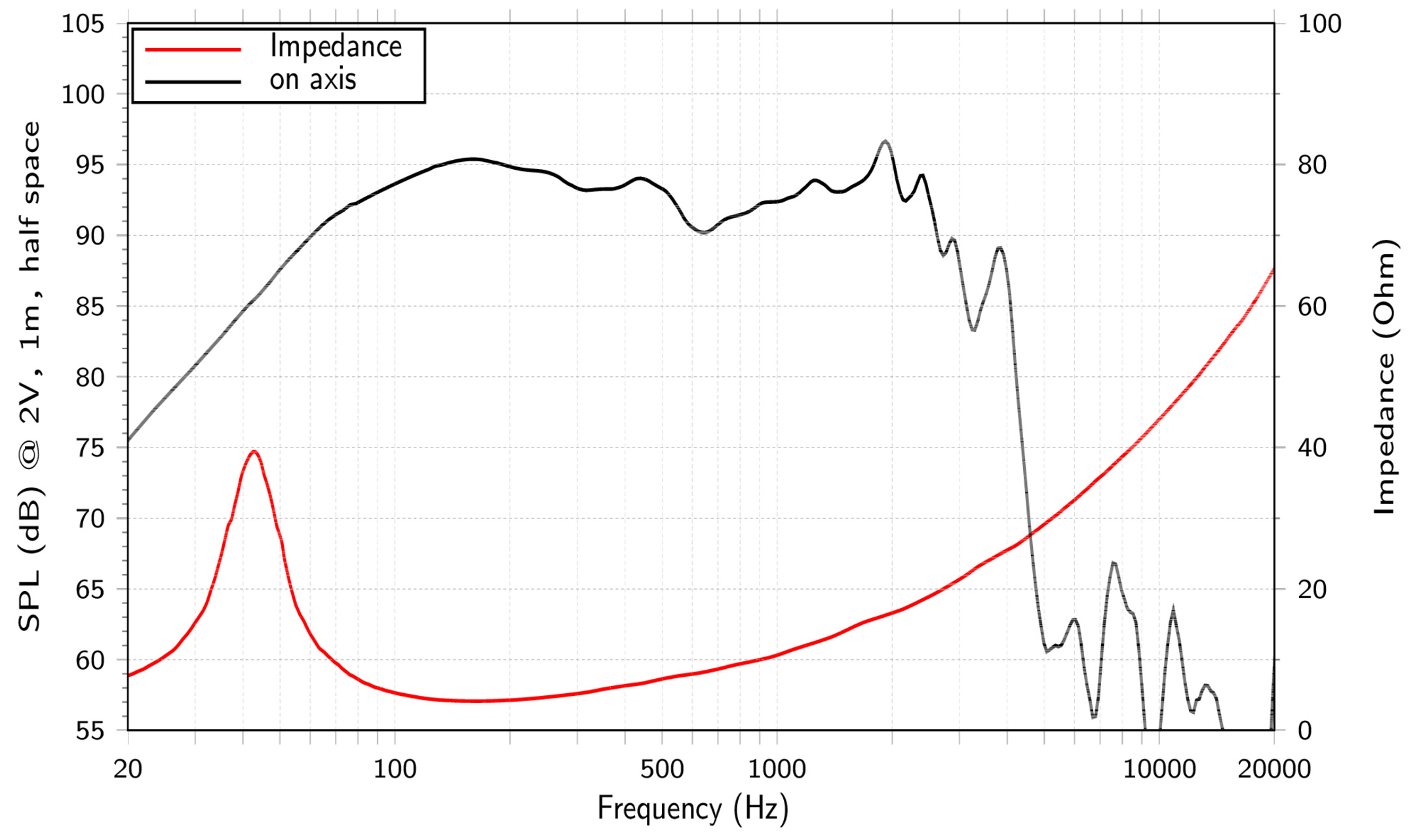

- Frequency response 45 - 2000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 42Hz
- Mechanical quality factor QMS 4.66
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.33
Large signal parameters
- Maximum linear excursion (one way) xmax 7mm
- Maximum excursion before damage xlim 12.8mm
- Air volume displaced at xmax VD 599cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.4Ω
- Inductance (1kHz) LE 1.05mH
- VC Diameter 75mm
- Winding height HVC 19.2mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Force factor Bl 16.7N/A
- Motor constant Bl/√RE 9.04N/√W
- Air gap height HAG 10.5mm
- Diameter 192mm
- Height 20mm
- Material Ferrite
Diaphragm
- Effective diameter 330mm
- Effective area SD 855cm²
- Moving mass MMS 111g
- Moving mass (without air load) MMD 93.4g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 7.69N/mm
- Compliance CMS 130µm/N
- Equivalent volume to the compliance VAS 134L
- Mechanical resistance RMS 6.26N·s/m
- Surround material Polycotton

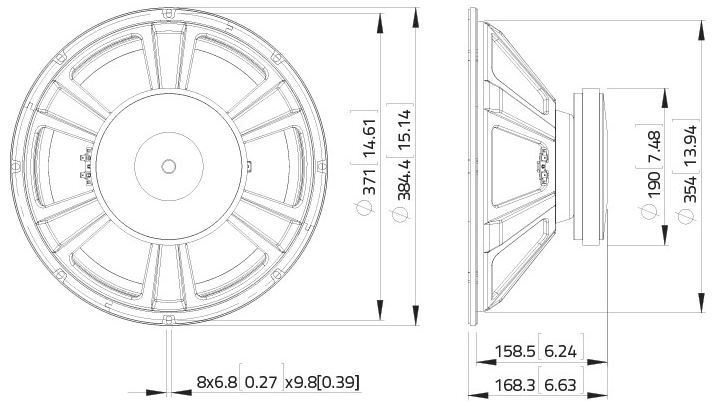

Dimensions
- Nominal diameter 15″
- 380mm
- Volume occupied by the driver 4.1L
- Net weight 8.5kg
- Frame material Steel
.webp)
.webp)
