SB Audience ROSSO-15MW500
8Ω
Woofer
| Nominal diameter | 15″ / 394 mm |
| Resonance | 42 Hz |
| Q factor | 0.33 |
| Sensitivity | 95.3 dB |
| Linear excursion | ± 8.4 mm |
| Program Power | 1000 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.3dB
- Frequency response 42 - 3700Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 42Hz
- Mechanical quality factor QMS 9.39
- Electrical quality factor QES 0.35
- Total quality factor QTS 0.33
Large signal parameters
- Maximum linear excursion xmax 8.4mm
- Maximum excursion before damage xlim 11mm
- Air volume displaced at xmax VD 726cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 1.37mH
- VC Diameter 99.2mm
- Winding height HVC 20.1mm
- Winding material Flat copper clad aluminium
- Former material Till
Magnet
- Flux density B 1.16T
- Force factor Bl 23.2N/A
- Motor constant Bl/√RE 9.8N/√W
- Air gap height HAG 10mm
- Diameter 220mm
- Material Ferrite
Diaphragm
- Effective diameter 332mm
- Effective area SD 866cm²
- Moving mass MMS 127g
- Moving mass (without air load) MMD 109g
- Material Paper with silk cotton tree
Suspensions
- Stiffness KMS 9.09N/mm
- Compliance CMS 110µm/N
- Equivalent volume to the compliance VAS 121L
- Mechanical resistance RMS 3.55N·s/m
- Surround material Triple roll

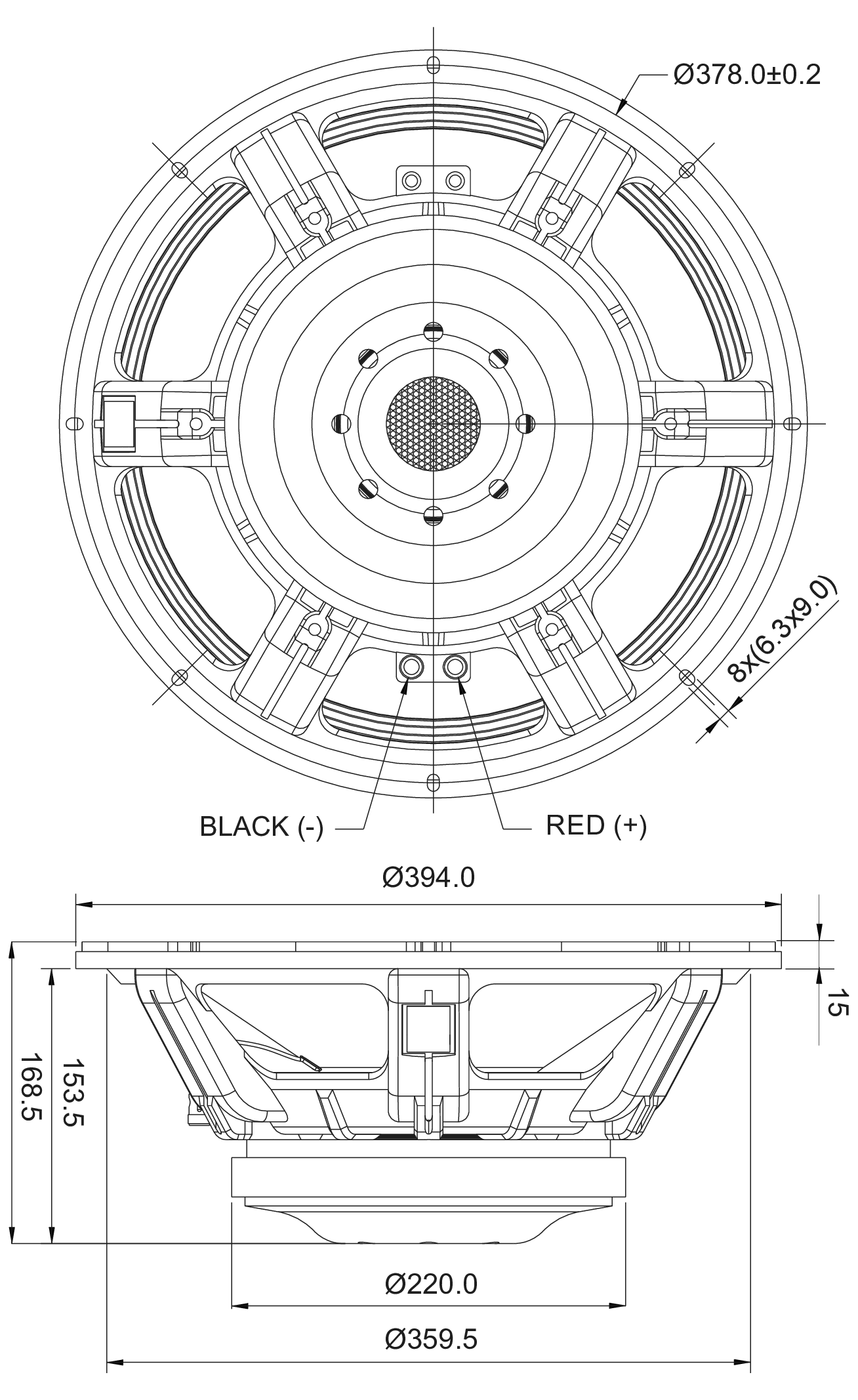

Dimensions
- Nominal diameter 15″
- 394mm
- Overall diameter 394mm
- Baffle cutout diameter 362mm
- Overall depth 169mm
- Flange thickness 15mm
- Mounting depth 154mm
- Volume occupied by the driver 5.08L
- Net weight 11.2kg
- Frame material Aluminium die cast
