LaVoce WAF061.80-16
8Ω
16Ω
Woofer
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 66 Hz |
| Q factor | 0.55 |
| Sensitivity | 87 dB |
| Linear excursion | ± 4.8 mm |
| Program Power | 300 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87dB

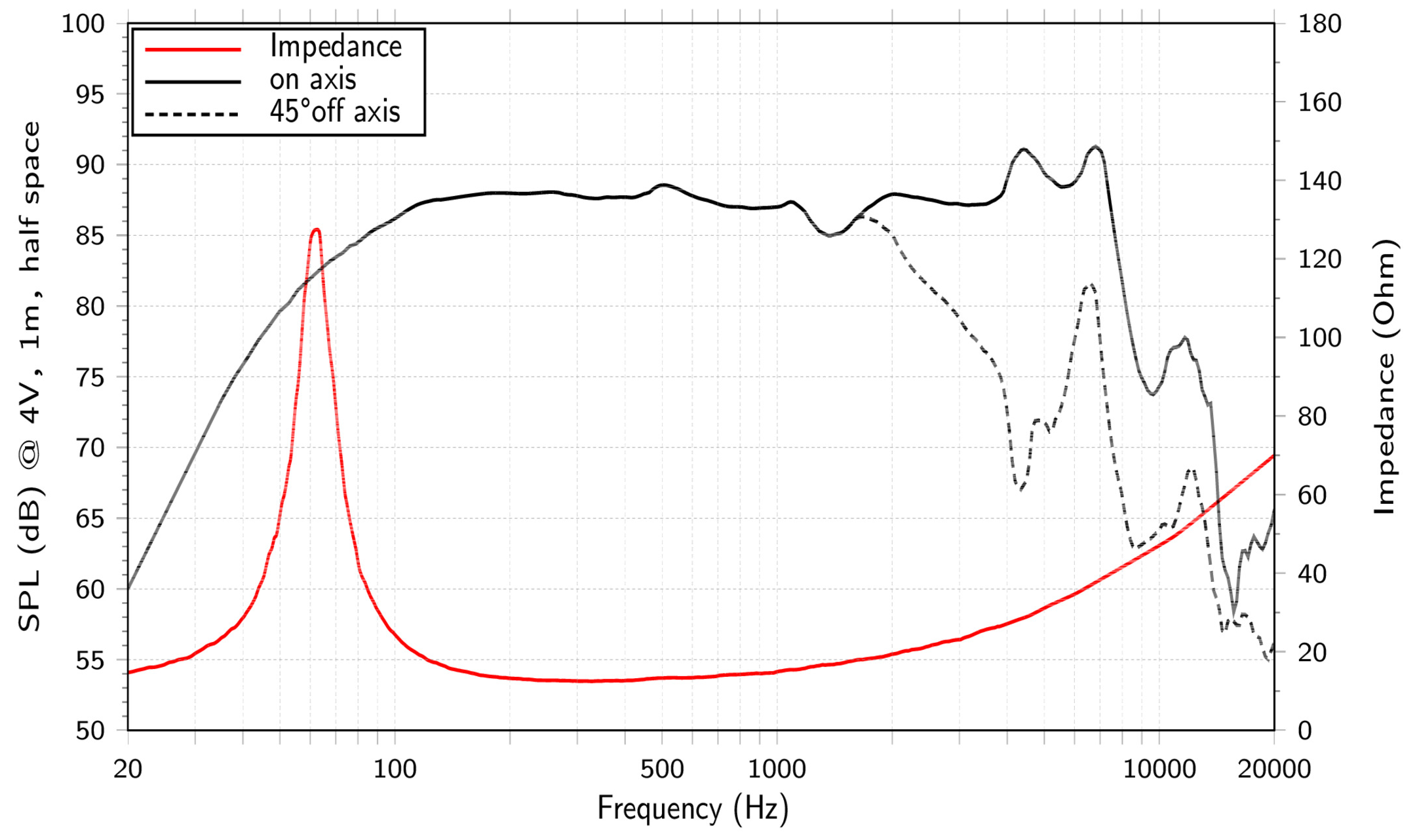

- Frequency response 65 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 66Hz
- Mechanical quality factor QMS 7.84
- Electrical quality factor QES 0.59
- Total quality factor QTS 0.55
Large signal parameters
- Maximum linear excursion (one way) xmax 4.8mm
- Maximum excursion before damage xlim 7.3mm
- Air volume displaced at xmax VD 63cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 11.4Ω
- Inductance (1kHz) LE 0.65mH
- VC Diameter 45mm
- Winding height HVC 12.5mm
- Winding material Copper Clad Aluminium
- Former material Glass fiber
Magnet
- Force factor Bl 12.8N/A
- Motor constant Bl/√RE 3.78N/√W
- Air gap height HAG 6mm
- Diameter 120mm
- Height 20mm
- Material Ferrite
Diaphragm
- Effective diameter 130mm
- Effective area SD 132cm²
- Moving mass MMS 20.5g
- Moving mass (without air load) MMD 19.4g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 3.52N/mm
- Compliance CMS 284µm/N
- Equivalent volume to the compliance VAS 7.05L
- Mechanical resistance RMS 1.08N·s/m
- Surround material Rubber

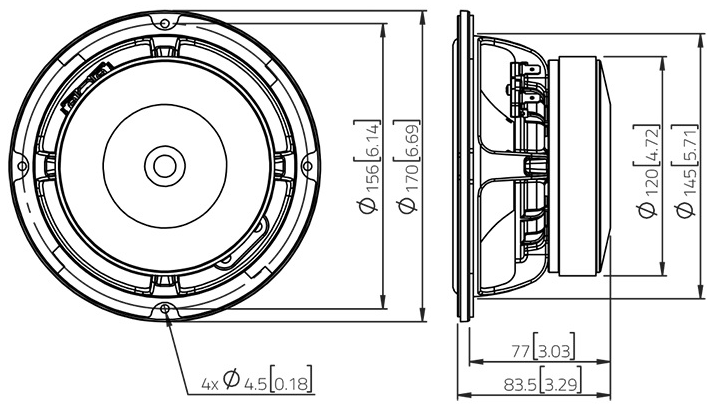

Dimensions
- Nominal diameter 6.5″
- 165mm
- Volume occupied by the driver 0.8L
- Net weight 2.3kg
- Frame material Aluminium
.webp)
.webp)
