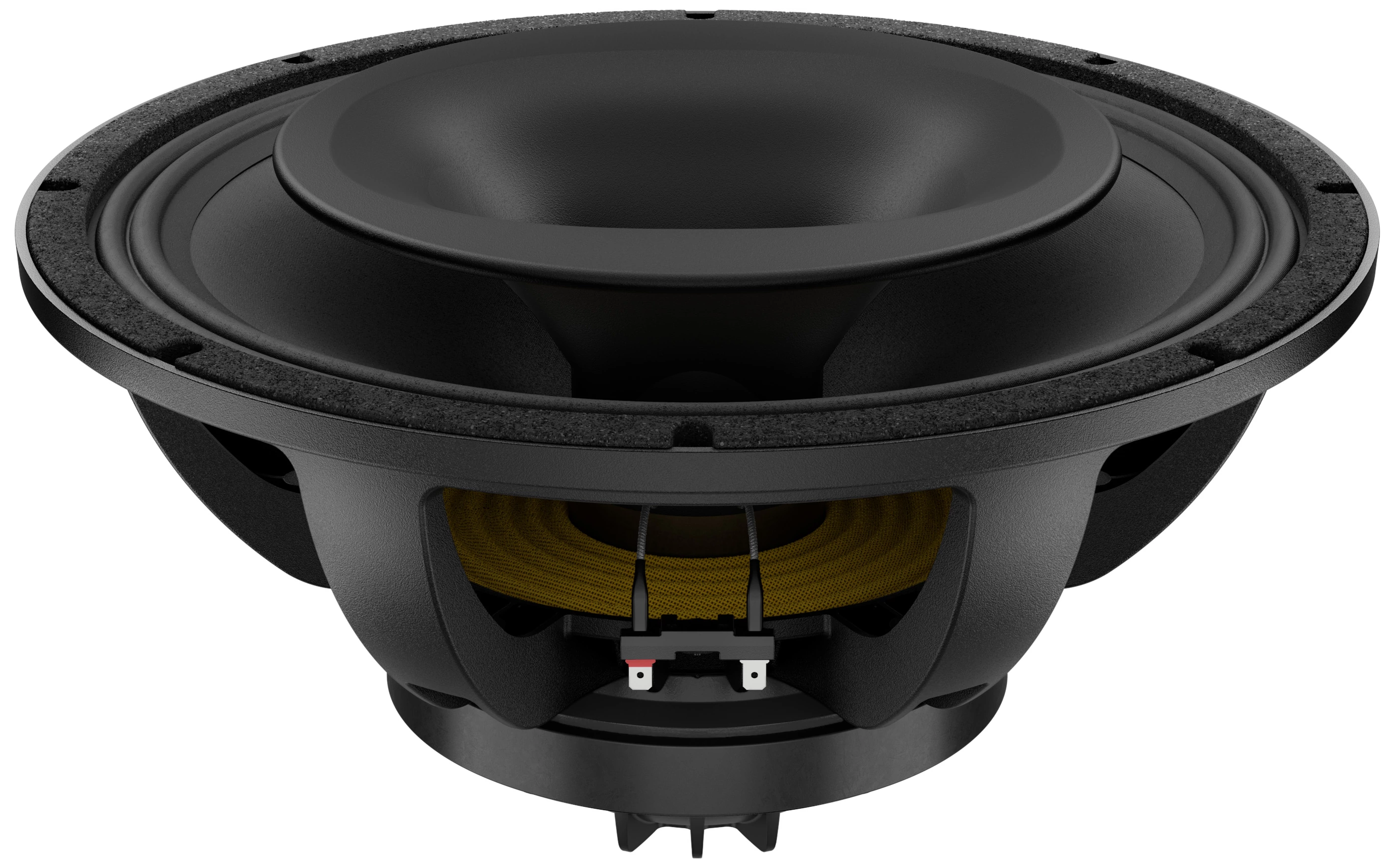

LaVoce CAF153.00TH
8Ω
Coaxial
| Nominal diameter | 15″ / 380 mm |
| Resonance | 46 Hz |
| Q factor | 0.51 |
| Sensitivity | 95.1 dB |
| Linear excursion | ± 6 mm |
| Program Power | 800 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.1dB

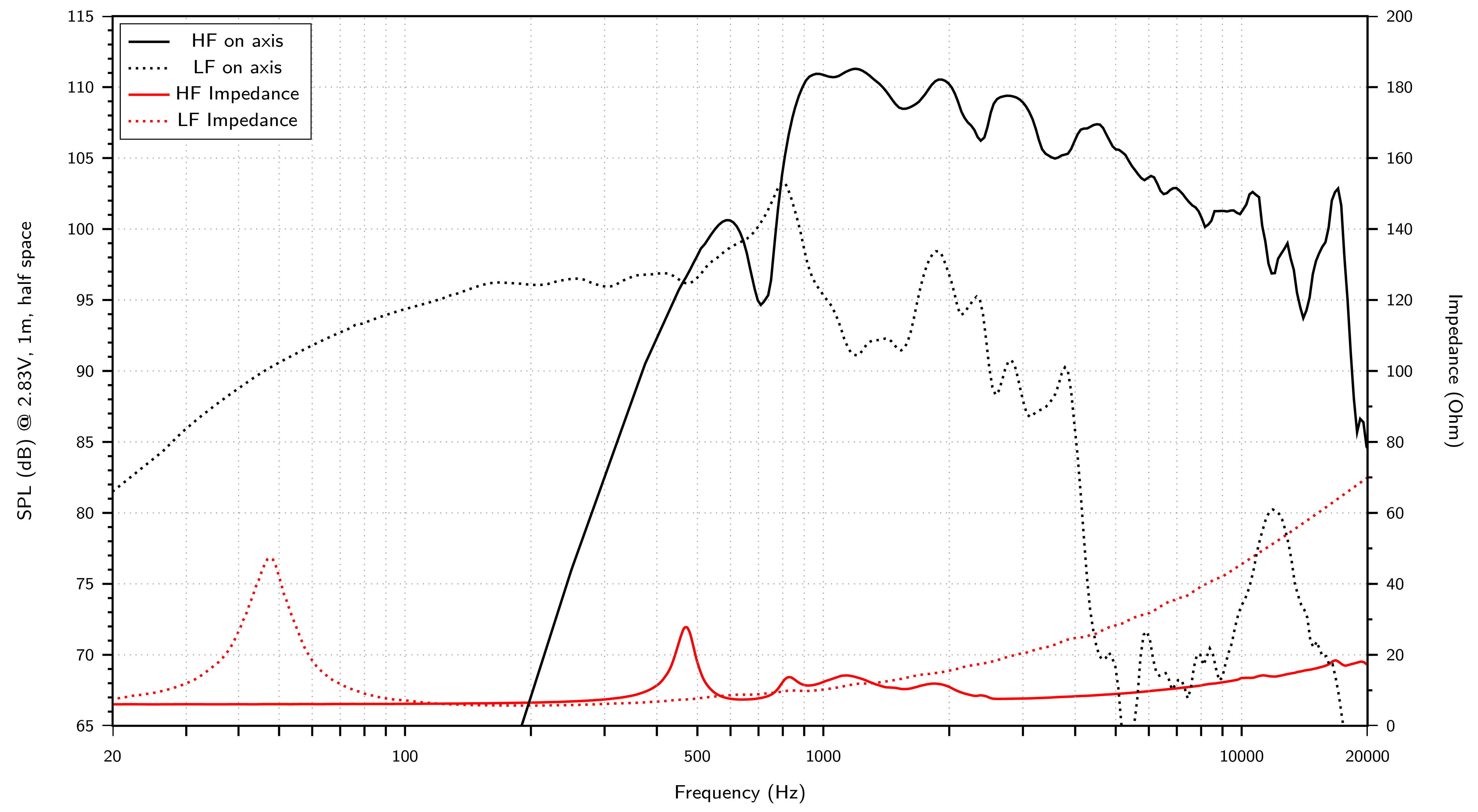

- Frequency response 45 - 18000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 46Hz
- Mechanical quality factor QMS 5.56
- Electrical quality factor QES 0.56
- Total quality factor QTS 0.51
Large signal parameters
- Maximum linear excursion (one way) xmax 6mm
- Maximum excursion before damage xlim 10mm
- Air volume displaced at xmax VD 513cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 0.89mH
- VC Diameter 75mm
- Winding height HVC 16mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Flux density B 0.96T
- Force factor Bl 15.2N/A
- Motor constant Bl/√RE 6.67N/√W
- Air gap height HAG 8mm
- Diameter 190mm
- Height 22mm
- Material Ferrite
Diaphragm
- Effective diameter 330mm
- Effective area SD 855cm²
- Moving mass MMS 86.5g
- Moving mass (without air load) MMD 69.4g
- Material Water proof treated paper
Suspensions
- Stiffness KMS 7.25N/mm
- Compliance CMS 138µm/N
- Equivalent volume to the compliance VAS 143L
- Mechanical resistance RMS 4.5N·s/m
- Surround material Polycotton

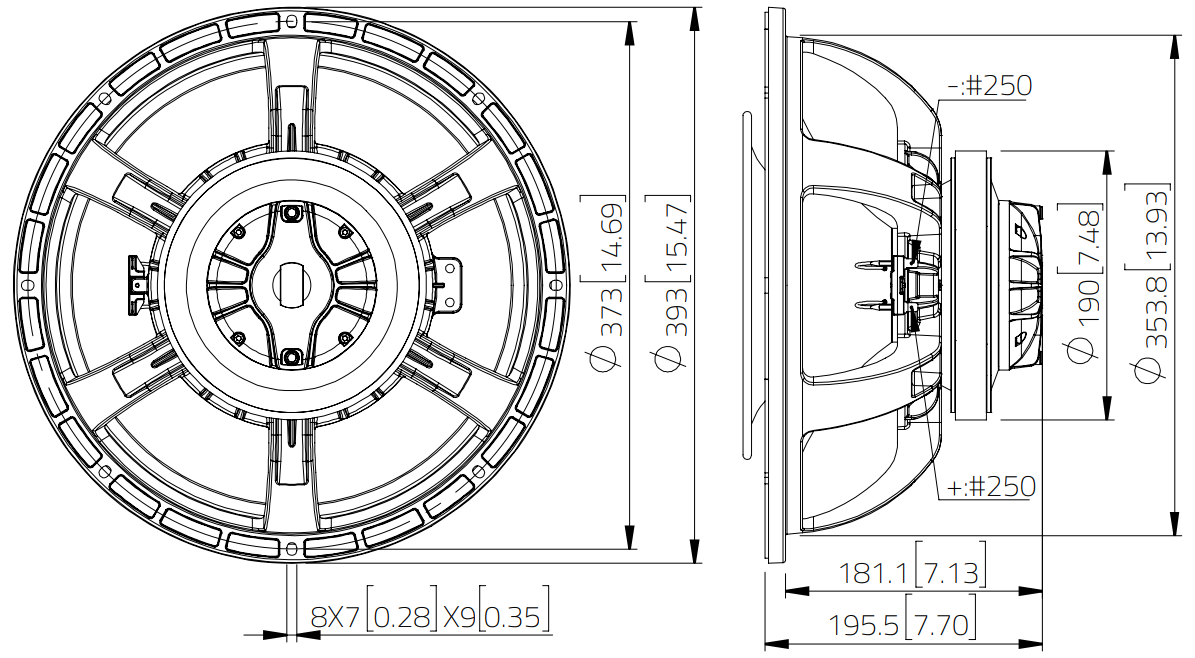

Dimensions
- Nominal diameter 15″
- 380mm
- Volume occupied by the driver 4.8L
- Net weight 7.5kg
- Frame material Aluminium
.webp)
.webp)
