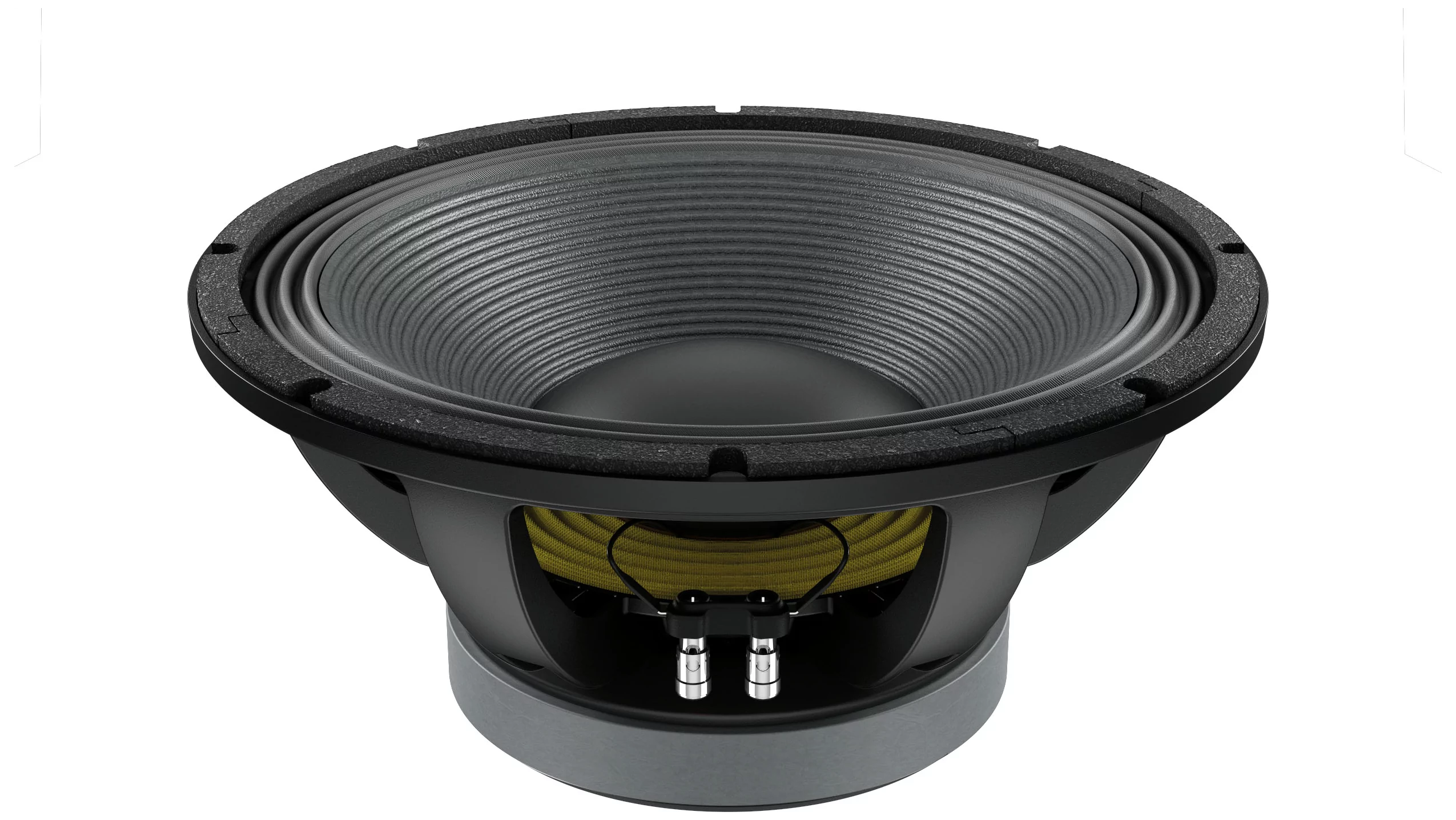

LaVoce WAF154.00-4
4Ω
8ΩWoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 38 Hz |
| Q factor | 0.27 |
| Sensitivity | 94.3 dB |
| Linear excursion | ± 12.7 mm |
| Program Power | 3000 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.3dB

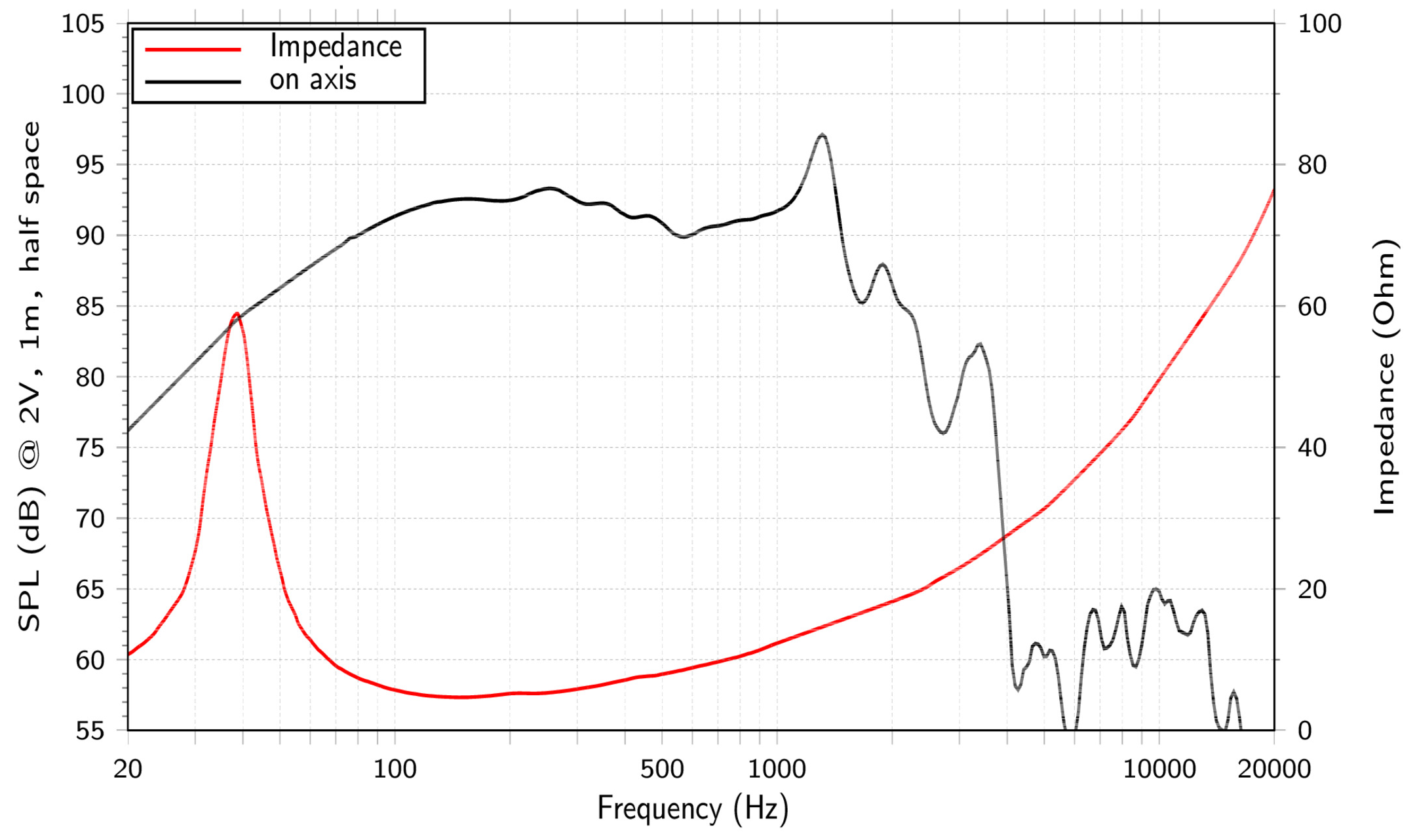

- Frequency response 40 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 38Hz
- Mechanical quality factor QMS 5.18
- Electrical quality factor QES 0.28
- Total quality factor QTS 0.27
Large signal parameters
- Maximum linear excursion (one way) xmax 12.7mm
- Maximum excursion before damage xlim 21.9mm
- Air volume displaced at xmax VD 1086cm³
- Power handling P 1500W
- Program power Pmax 3000W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.5Ω
- Inductance (1kHz) LE 1.25mH
- VC Diameter 100mm
- Winding height HVC 32.8mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Force factor Bl 23N/A
- Motor constant Bl/√RE 12.3N/√W
- Air gap height HAG 15mm
- Diameter 220mm
- Height 30mm
- Material Ferrite
Diaphragm
- Effective diameter 330mm
- Effective area SD 855cm²
- Moving mass MMS 178g
- Moving mass (without air load) MMD 161g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 10.2N/mm
- Compliance CMS 98µm/N
- Equivalent volume to the compliance VAS 101L
- Mechanical resistance RMS 8.2N·s/m
- Surround material Polycotton

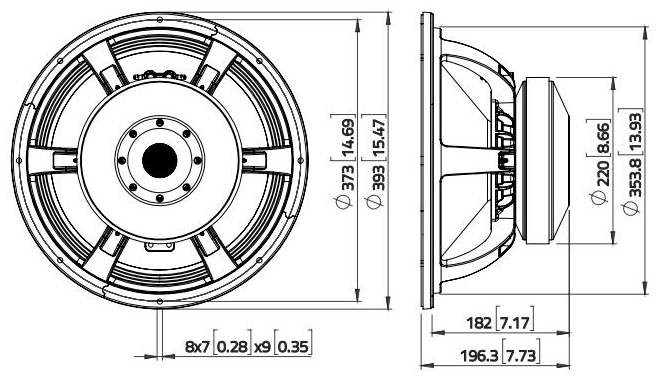

Dimensions
- Nominal diameter 15″
- 380mm
- Volume occupied by the driver 5.4L
- Net weight 15.5kg
- Frame material Aluminium
.webp)
.webp)
