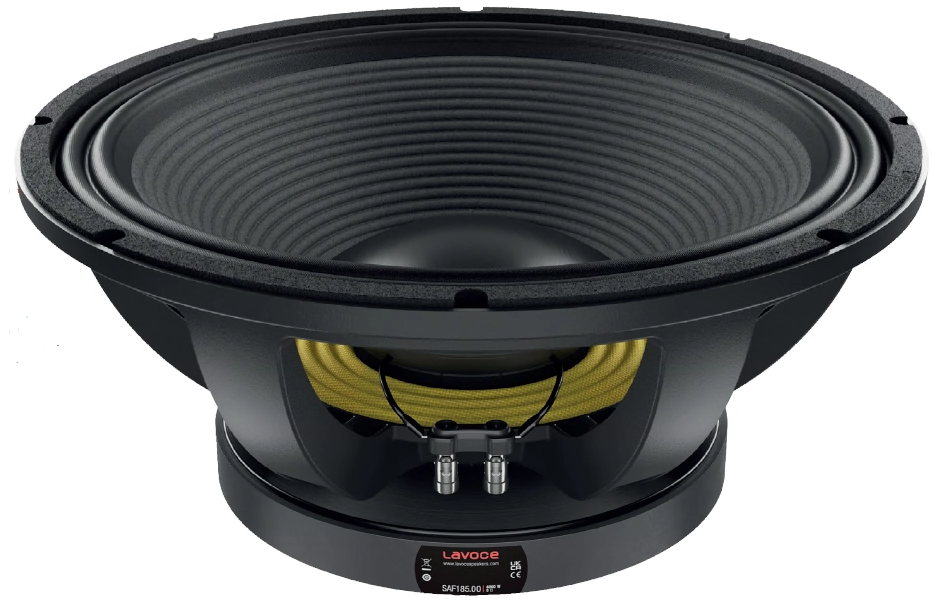

LaVoce SAF185.00
8Ω
Subwoofer
| Nominal diameter | 18″ / 460 mm |
| Resonance | 34 Hz |
| Q factor | 0.23 |
| Sensitivity | 95.6 dB |
| Linear excursion | ± 11.6 mm |
| Program Power | 3200 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.6dB
- Frequency response 30 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 34Hz
- Mechanical quality factor QMS 6.46
- Electrical quality factor QES 0.24
- Total quality factor QTS 0.23
Large signal parameters
- Maximum linear excursion (one way) xmax 11.6mm
- Maximum excursion before damage xlim 18.6mm
- Air volume displaced at xmax VD 1415cm³
- Power handling P 1600W
- Program power Pmax 3200W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.7Ω
- Inductance (1kHz) LE 1.38mH
- VC Diameter 125mm
- Winding height HVC 29.2mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Force factor Bl 37.5N/A
- Motor constant Bl/√RE 15.7N/√W
- Air gap height HAG 12mm
- Diameter 280mm
- Height 30mm
- Material Ferrite
Diaphragm
- Effective diameter 394mm
- Effective area SD 1220cm²
- Moving mass MMS 282g
- Moving mass (without air load) MMD 252g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 12.8N/mm
- Compliance CMS 78µm/N
- Equivalent volume to the compliance VAS 164L
- Mechanical resistance RMS 9.31N·s/m
- Surround material Polycotton

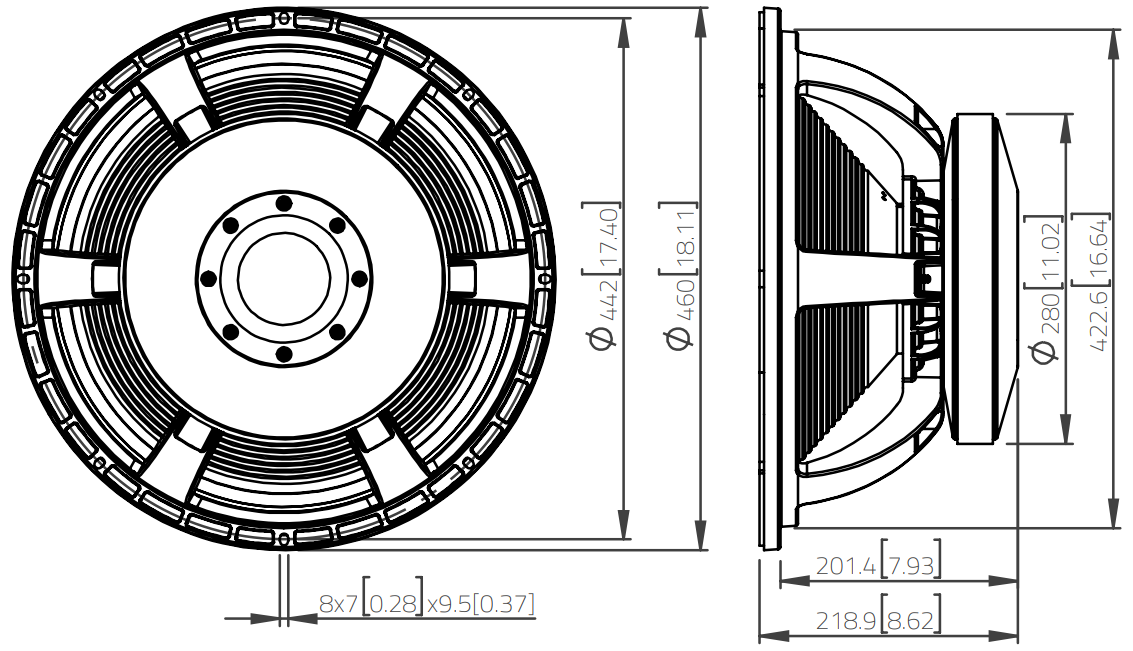

Dimensions
- Nominal diameter 18″
- 460mm
- Volume occupied by the driver 8.6L
- Net weight 20.1kg
- Frame material Aluminium
.webp)
.webp)
