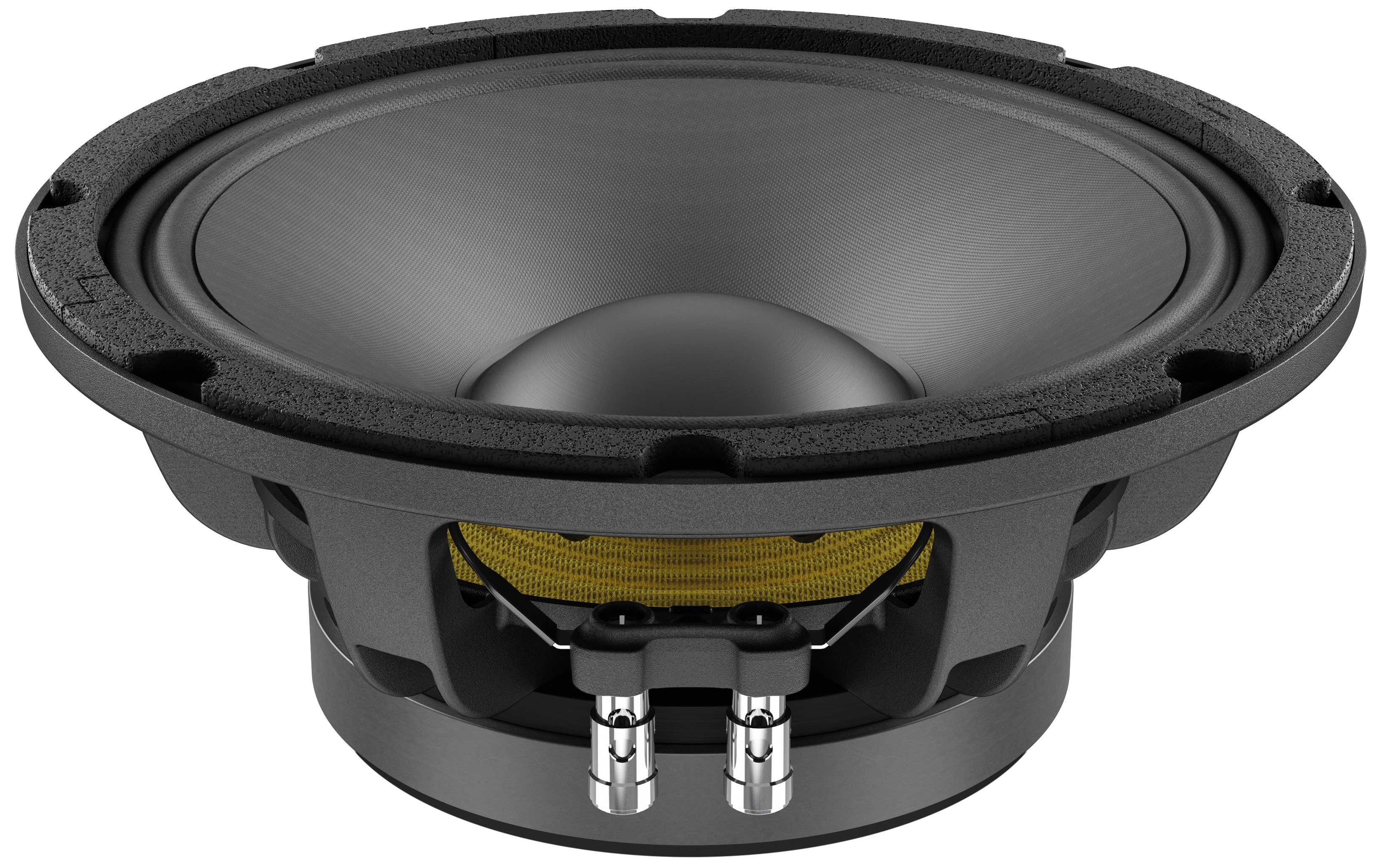

LaVoce WAF102.50A-16
8Ω
16Ω
Woofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 74 Hz |
| Q factor | 0.40 |
| Sensitivity | 95 dB |
| Linear excursion | ± 5.5 mm |
| Program Power | 500 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95dB

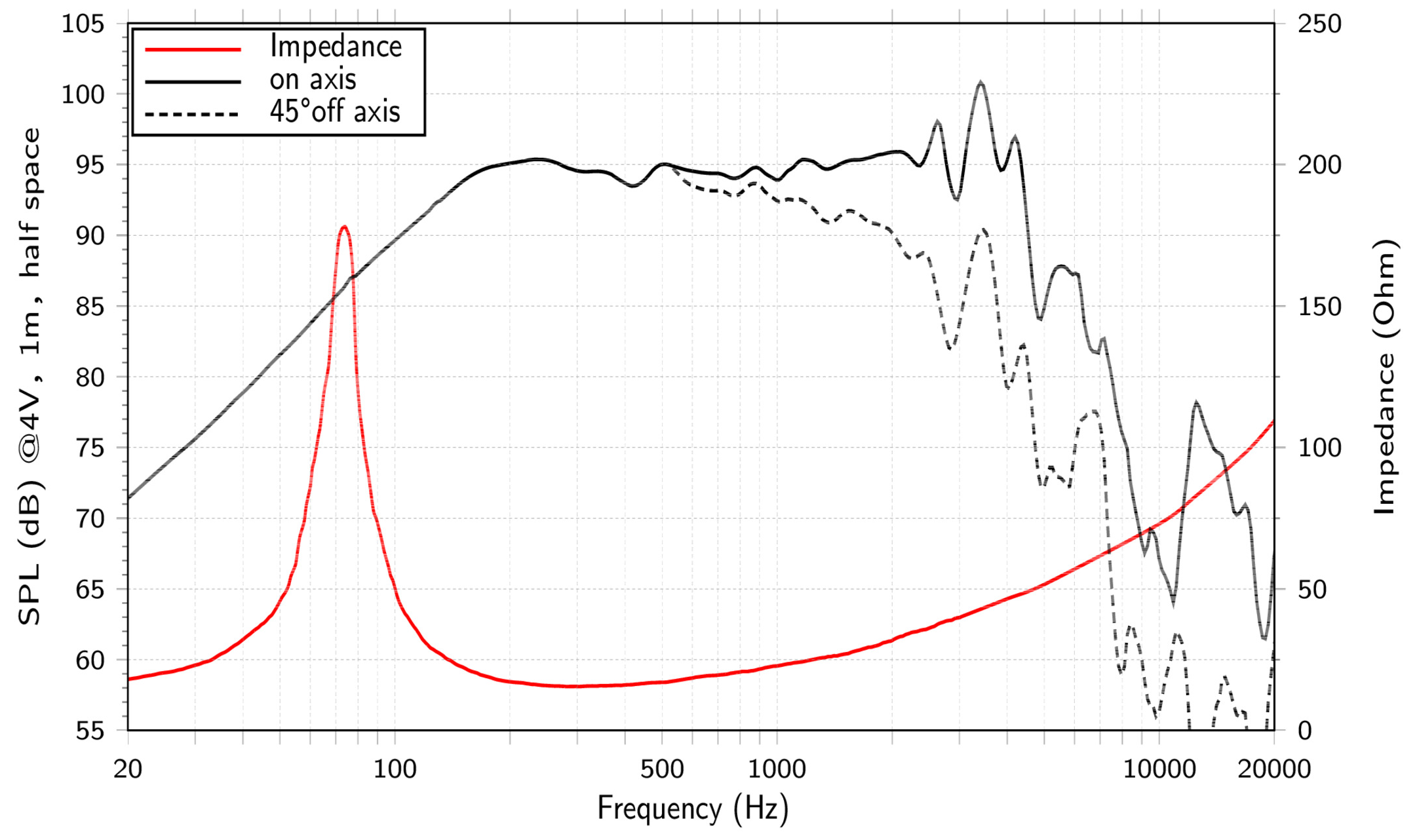

- Frequency response 70 - 4000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 74Hz
- Mechanical quality factor QMS 5.16
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion (one way) xmax 5.5mm
- Maximum excursion before damage xlim 9.5mm
- Air volume displaced at xmax VD 193cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 13.2Ω
- Inductance (1kHz) LE 1.42mH
- VC Diameter 65mm
- Winding height HVC 15mm
- Winding material EdgeWound CCA
- Former material Glass fiber
Magnet
- Force factor Bl 21.6N/A
- Motor constant Bl/√RE 5.96N/√W
- Air gap height HAG 8mm
- Diameter 155mm
- Height 20mm
- Material Ferrite
Diaphragm
- Effective diameter 211mm
- Effective area SD 350cm²
- Moving mass MMS 32.8g
- Moving mass (without air load) MMD 28.2g
Suspensions
- Stiffness KMS 7.09N/mm
- Compliance CMS 141µm/N
- Equivalent volume to the compliance VAS 24.4L
- Mechanical resistance RMS 2.96N·s/m
- Surround material Polycotton

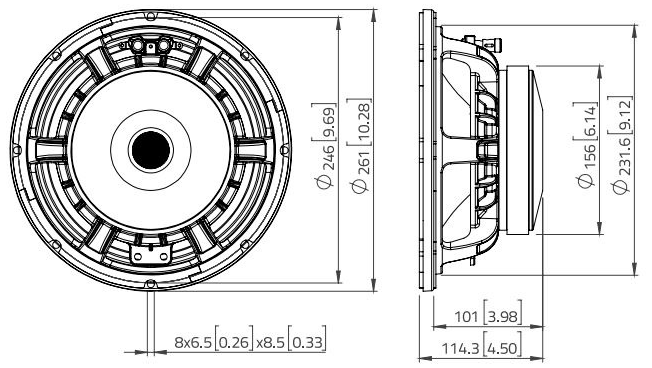

Dimensions
- Nominal diameter 10″
- 250mm
- Volume occupied by the driver 1.5L
- Net weight 4.7kg
- Frame material Aluminium
.webp)
.webp)
