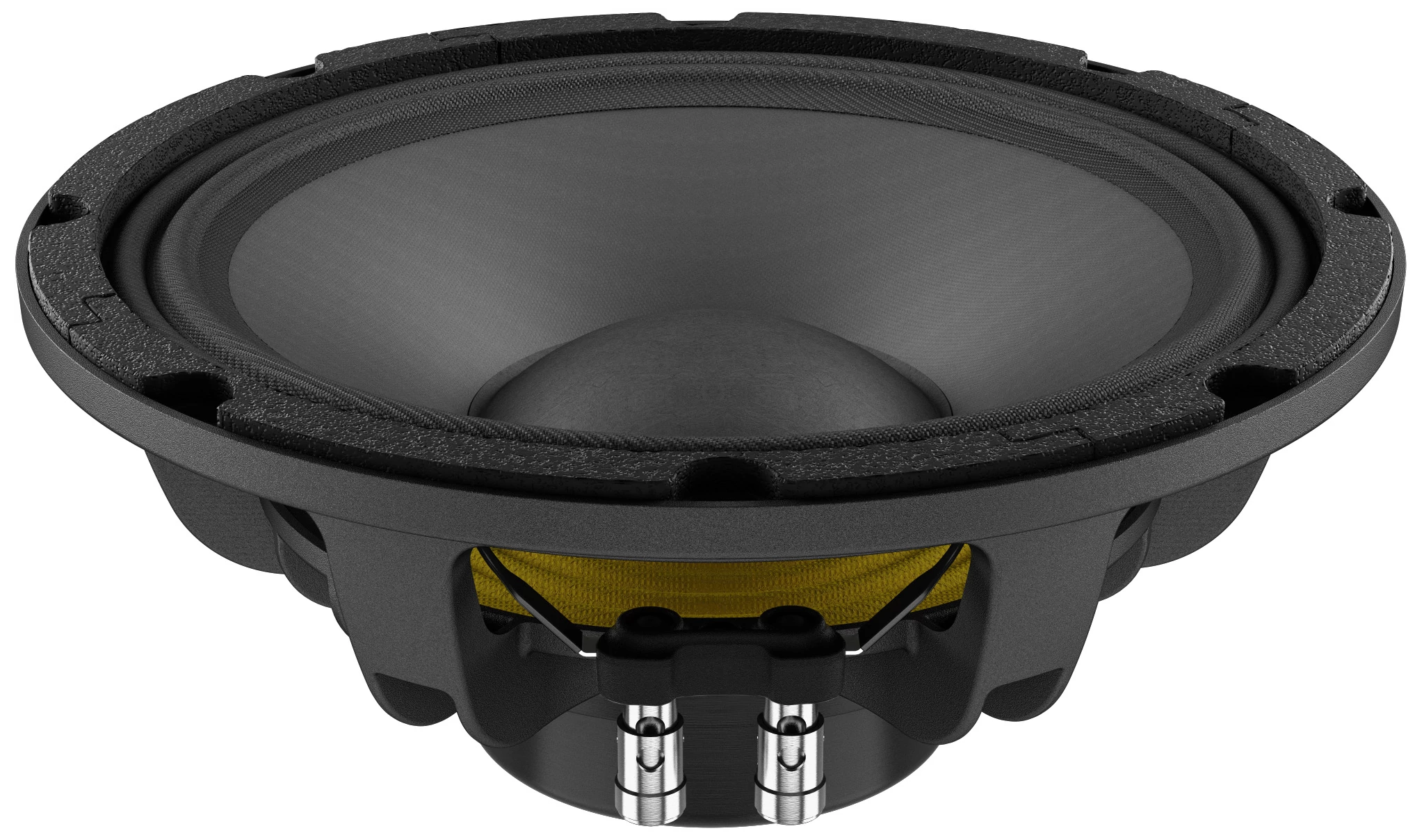

LaVoce WAN102.50-16
8Ω
16Ω
Woofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 76 Hz |
| Q factor | 0.43 |
| Sensitivity | 95.4 dB |
| Linear excursion | ± 5.5 mm |
| Program Power | 600 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.4dB

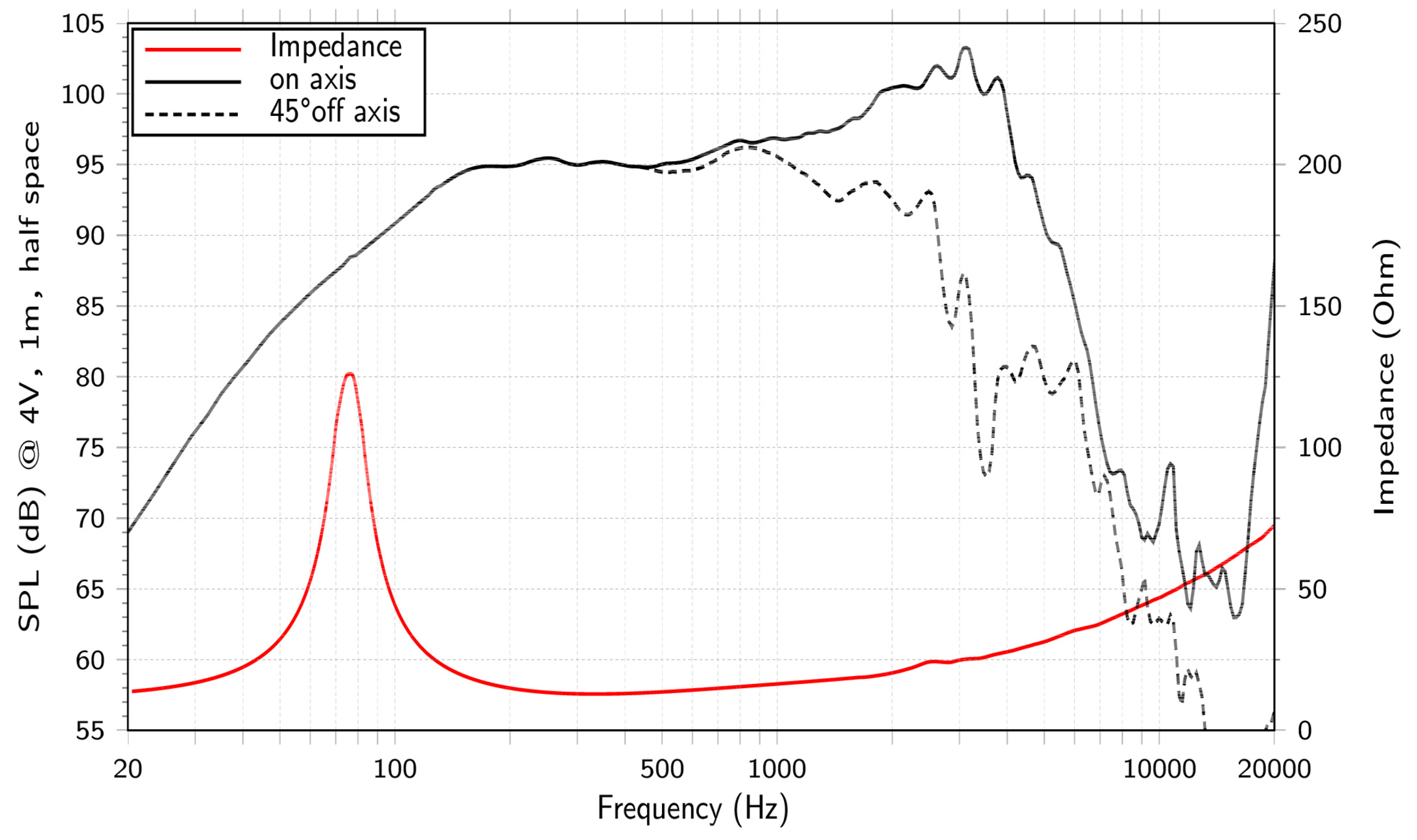

- Frequency response 80 - 4000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 76Hz
- Mechanical quality factor QMS 5.37
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.43
Large signal parameters
- Maximum linear excursion (one way) xmax 5.5mm
- Maximum excursion before damage xlim 9.5mm
- Air volume displaced at xmax VD 193cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 11.3Ω
- Inductance (1kHz) LE 0.84mH
- VC Diameter 65mm
- Winding height HVC 14.9mm
- Winding material Copper Clad Aluminium
- Former material Glass fiber
Magnet
- Force factor Bl 19N/A
- Motor constant Bl/√RE 5.65N/√W
- Air gap height HAG 8mm
- Diameter 64mm
- Height 8mm
- Material Neodymium
Diaphragm
- Effective diameter 211mm
- Effective area SD 350cm²
- Moving mass MMS 31.5g
- Moving mass (without air load) MMD 26.9g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 7.19N/mm
- Compliance CMS 139µm/N
- Equivalent volume to the compliance VAS 24.1L
- Mechanical resistance RMS 2.8N·s/m
- Surround material Polycotton

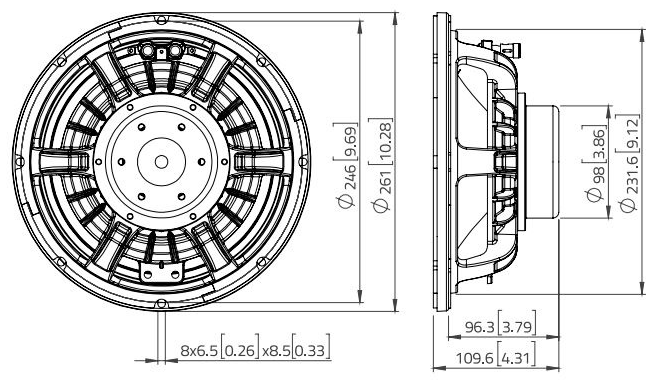

Dimensions
- Nominal diameter 10″
- 250mm
- Volume occupied by the driver 1.2L
- Net weight 2.8kg
- Frame material Aluminium
.webp)
.webp)
