LaVoce SAN184.50-4
4Ω
8ΩSubwoofer
| Nominal diameter | 18″ / 460 mm |
| Resonance | 35 Hz |
| Q factor | 0.23 |
| Sensitivity | 94.7 dB |
| Linear excursion | ± 15.1 mm |
| Program Power | 3400 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.7dB

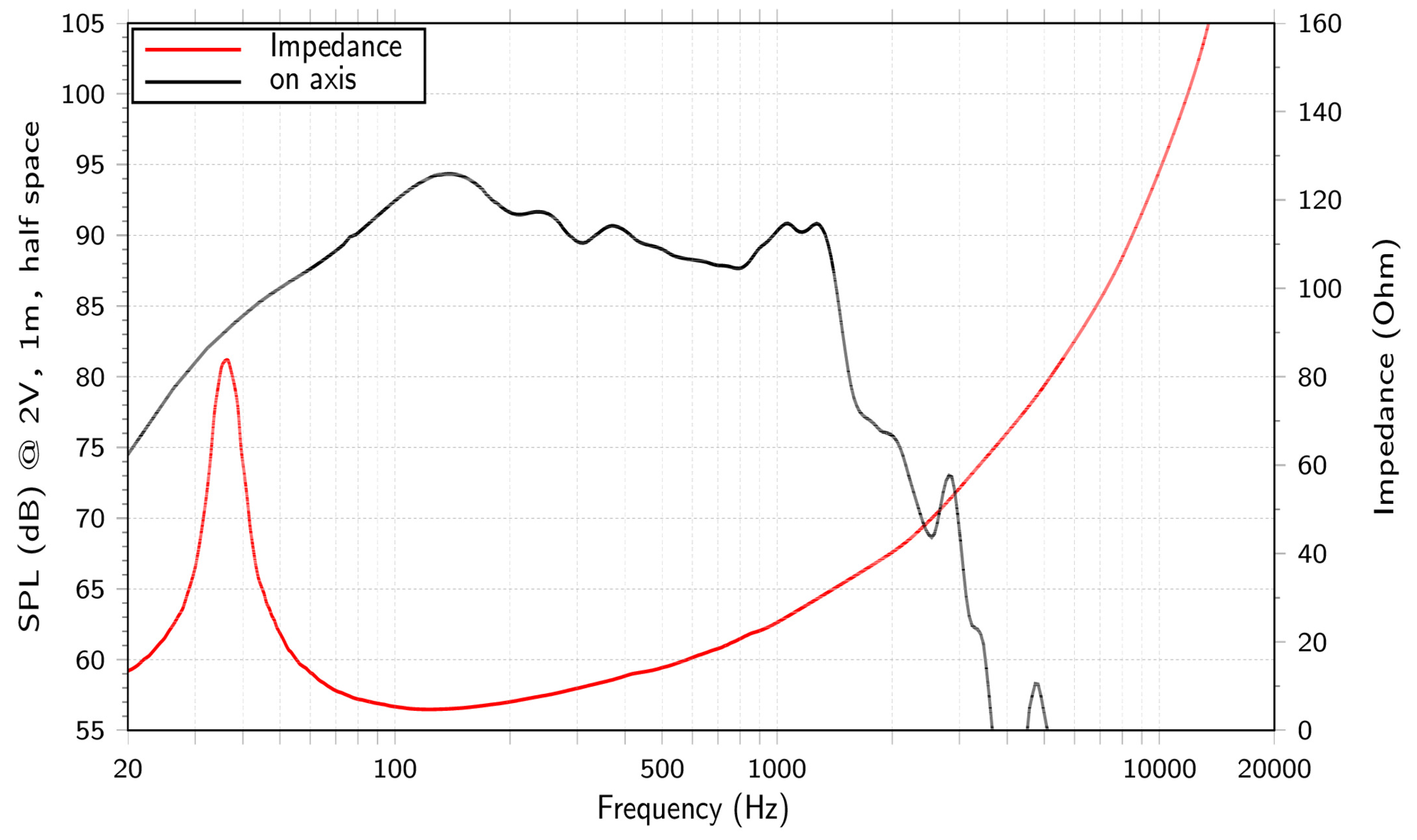

- Frequency response 30 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 6.37
- Electrical quality factor QES 0.24
- Total quality factor QTS 0.23
Large signal parameters
- Maximum linear excursion (one way) xmax 15.1mm
- Maximum excursion before damage xlim 23.6mm
- Air volume displaced at xmax VD 1842cm³
- Power handling P 1700W
- Program power Pmax 3400W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.5Ω
- Inductance (1kHz) LE 3.27mH
- VC Diameter 115mm
- Winding height HVC 37.1mm
- Winding material Copper Clad Aluminium
- Former material Glass fiber
Magnet
- Force factor Bl 33.8N/A
- Motor constant Bl/√RE 18.1N/√W
- Air gap height HAG 14mm
- Diameter 113mm
- Height 17mm
- Material Neodymium
Diaphragm
- Effective diameter 394mm
- Effective area SD 1220cm²
- Moving mass MMS 355g
- Moving mass (without air load) MMD 326g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 17.2N/mm
- Compliance CMS 58µm/N
- Equivalent volume to the compliance VAS 122L
- Mechanical resistance RMS 12.3N·s/m
- Surround material Polycotton

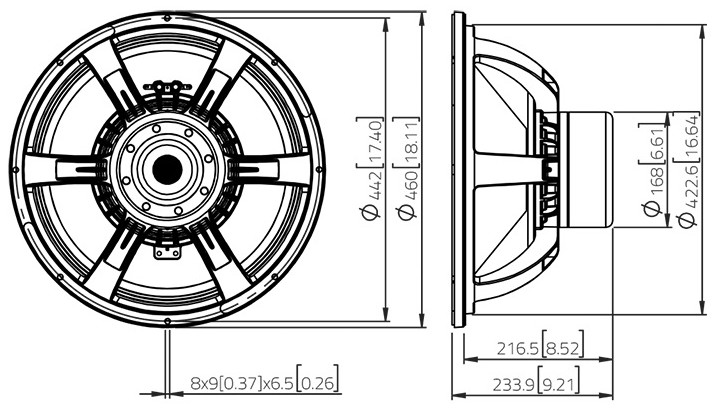

Dimensions
- Nominal diameter 18″
- 460mm
- Volume occupied by the driver 7.64L
- Net weight 13.5kg
- Frame material Aluminium
.webp)
.webp)
